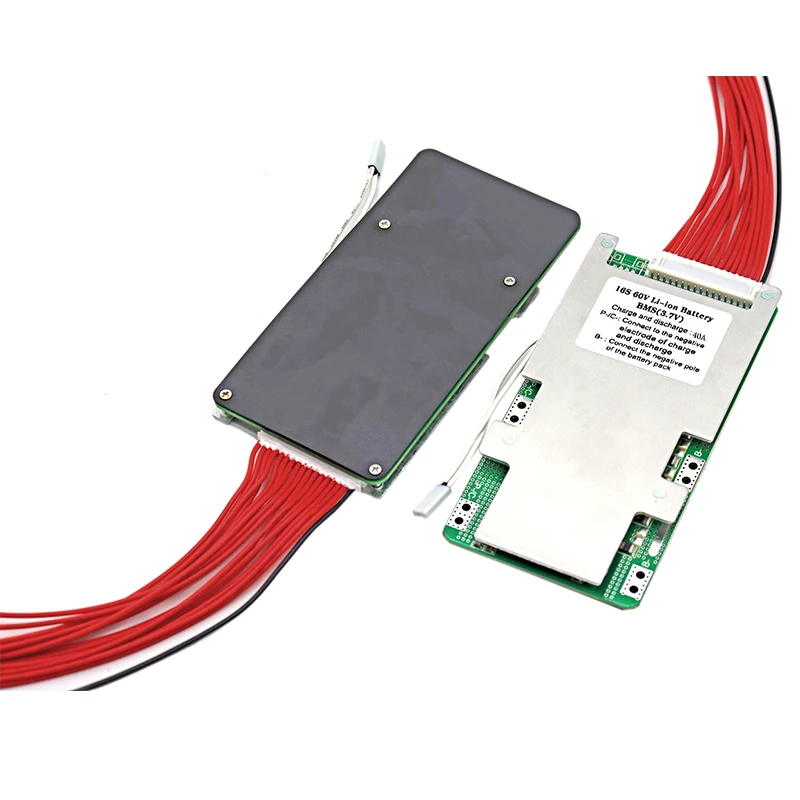

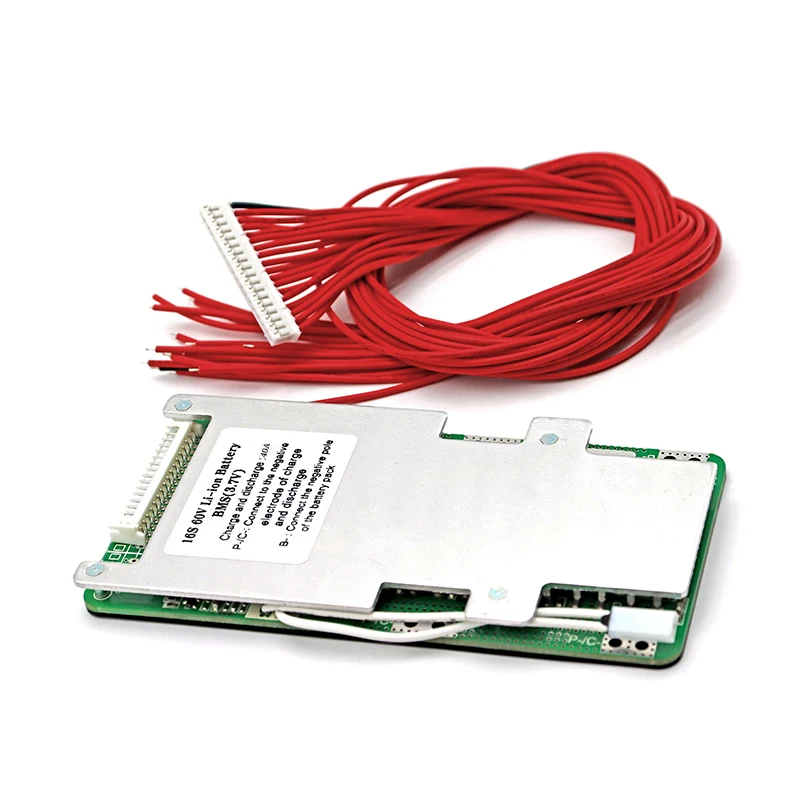

60V BMS / PCM, 16S 60V 40A BMS, Multiple protection function, Used for 60v 20ah 30ah 40ah 60ah li-ion battery, 60V 16S PCM PCB. With balance function.
Model Number: 16S-60V-40A
Type: Lithium battery protection circuit
Nominal Voltage: 60V
Nominal Capacity: 20-60Ah battery
Input Charging Voltage: 68(±0.4)V
Input Charging Current: ≤40A
Output Discharging Current: 40A
Over-Current Discharging Protection: 120A
Balance Current: 40mA
Balance Voltage: 4.25(±0.02)V
Over-Charge Protection Voltage: 4.25(±0.025)V
Over-Charge Protection Voltage Release: 4.15(±0.05)V
Over-Charge Protection Voltage Delay Time: 1S
Over-Discharge Protection Voltage: 2.70(±0.05)V
Over-Discharge Protection Voltage Release: 3.0(±0.1)V
Short Circuit Protection Release: Disconnect load
Impedance: ≤20mΩ
Operating Temperature: -40~85ºC
Number in series: 16S
Weight: 107g
Size: 120*60*10mm
Application: 16S 60V li-ion battery，Suitable for assembled battery pack, Electric bicycles, electric scooters, motorcycles, electric boats, solar energy, etc.
Feature:
1. It is suitable for 16S 60V lithium battery (16S 3.7V li-ion cell).
2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection.
3. the peripheral protection adopts the aluminum profile heat sink, which has anti-vibration, anti-fall, anti-impact and increasing heat dissipation and strength function.
4. the main control IC adopts the special battery protection with high integration degree, which has reliable and stable function, low self-loss and ESD.
5. has broken line protection function.

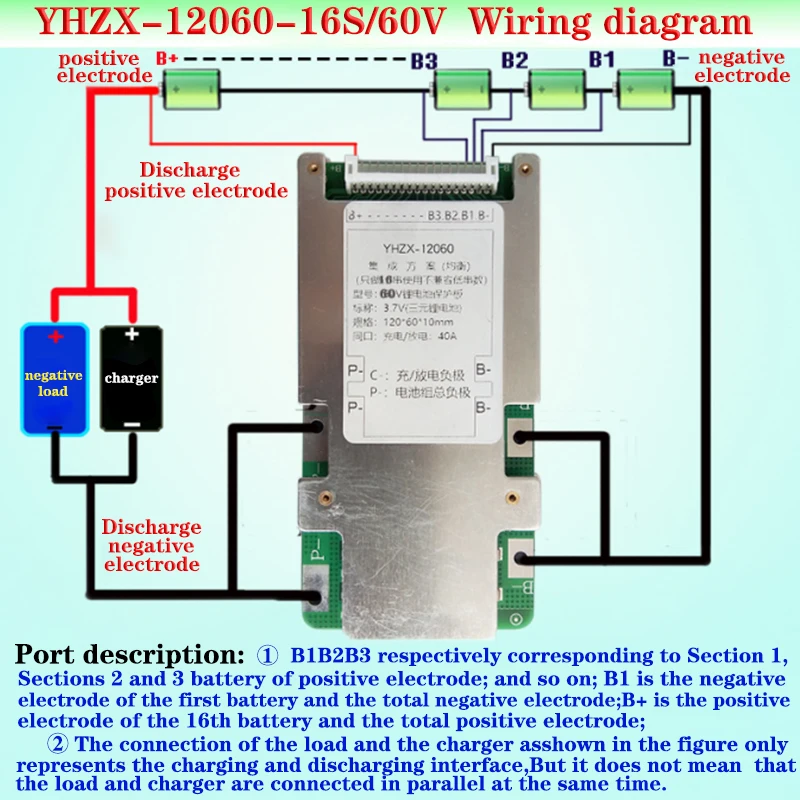

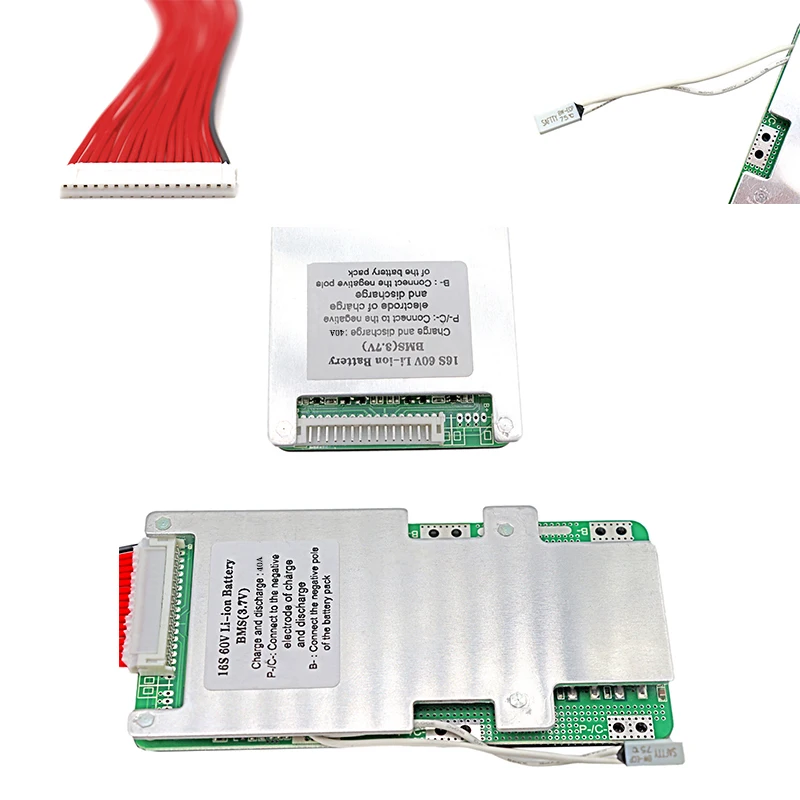

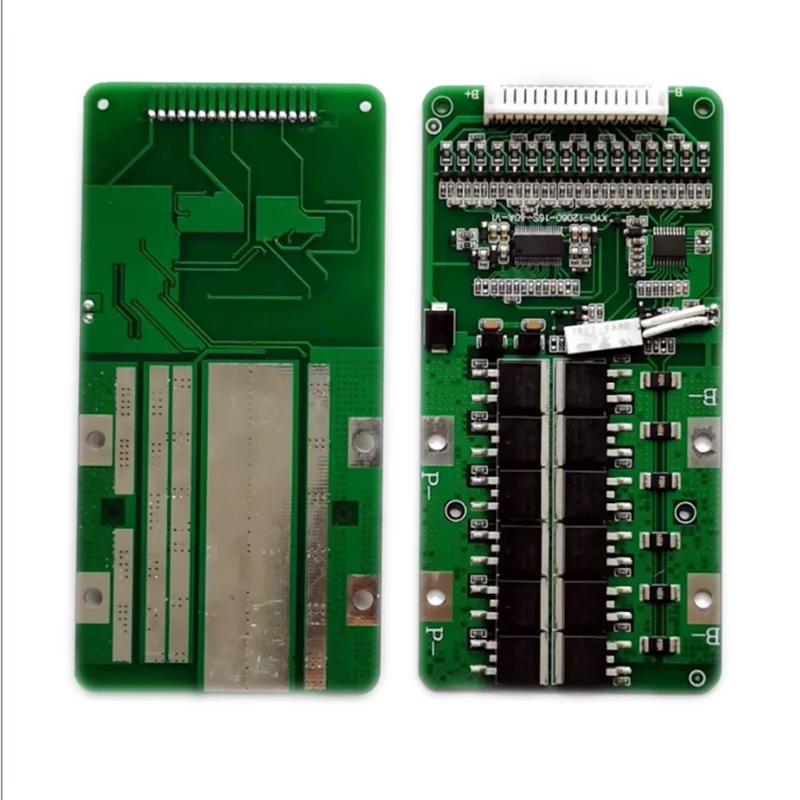

Wiring instructions:
Same port for charging and discharging：40A
power cable
B-: Connect to the negative pole of the battery pack
P-/C-: Connect to negative electrode of charger and discharge
Remarks:
Please connect B- line firstly, and then connect voltage monitoring wiring harness. The last step is to connect charge and discharge lines. If you want to remove them, the order should be reversed. Please pay attention to the connection order, or it will damage the component.
