AFRC Professionale Da Corsa Drift Kit V4 Programmabile In Metallo Smart Servo 3 AXIS Giroscopio

Professional Racing Drift Kit

* D3519HB-S Programmable Brushless Servo
* GYS-2 V4 3-AXIS Racing Gyro

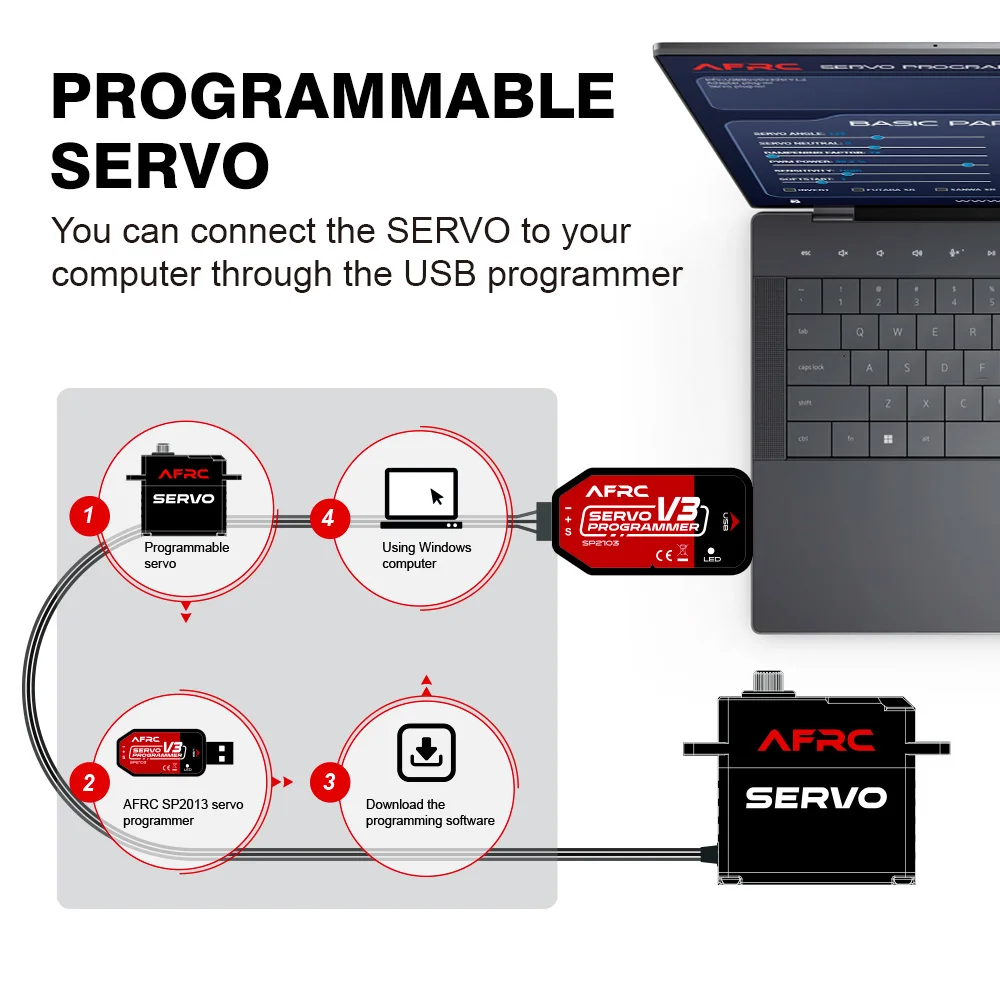

* SP2103 Servo Programmer(for AFRC Programmable Servo)

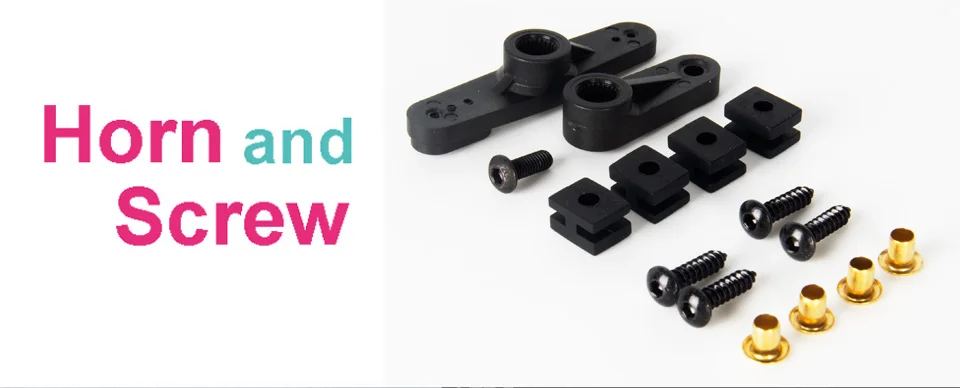

* 25T Metal Horn

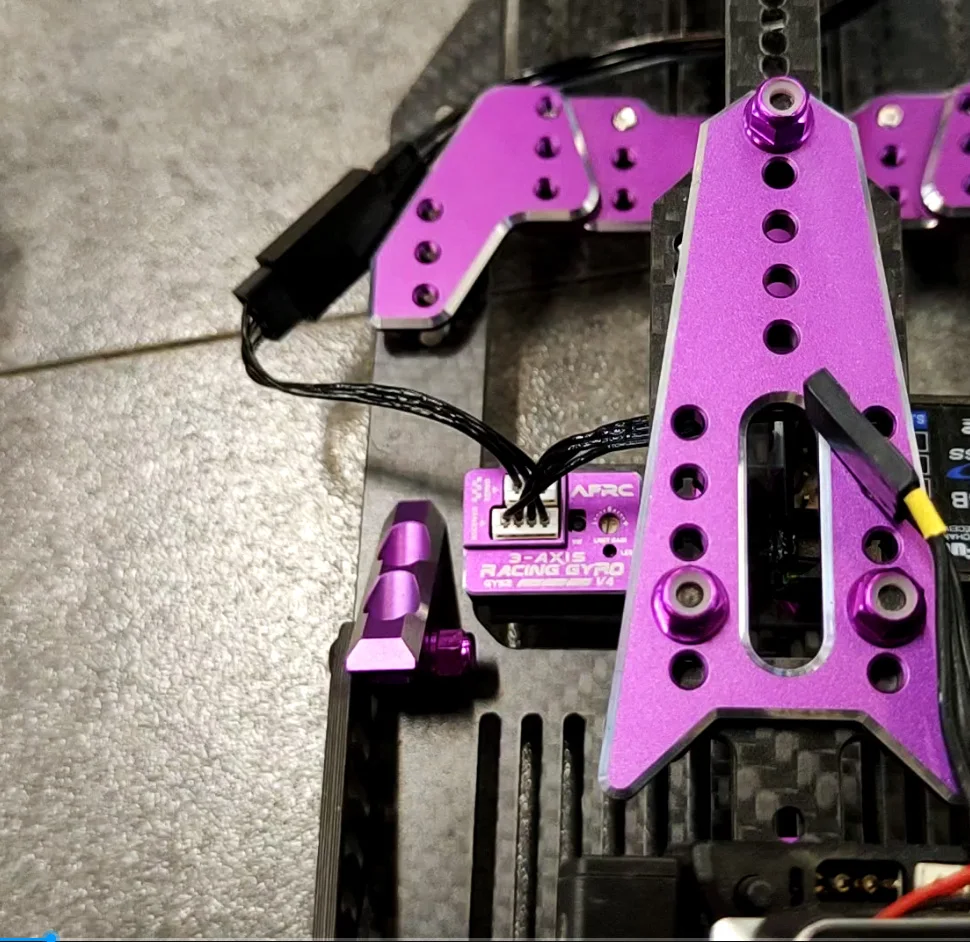

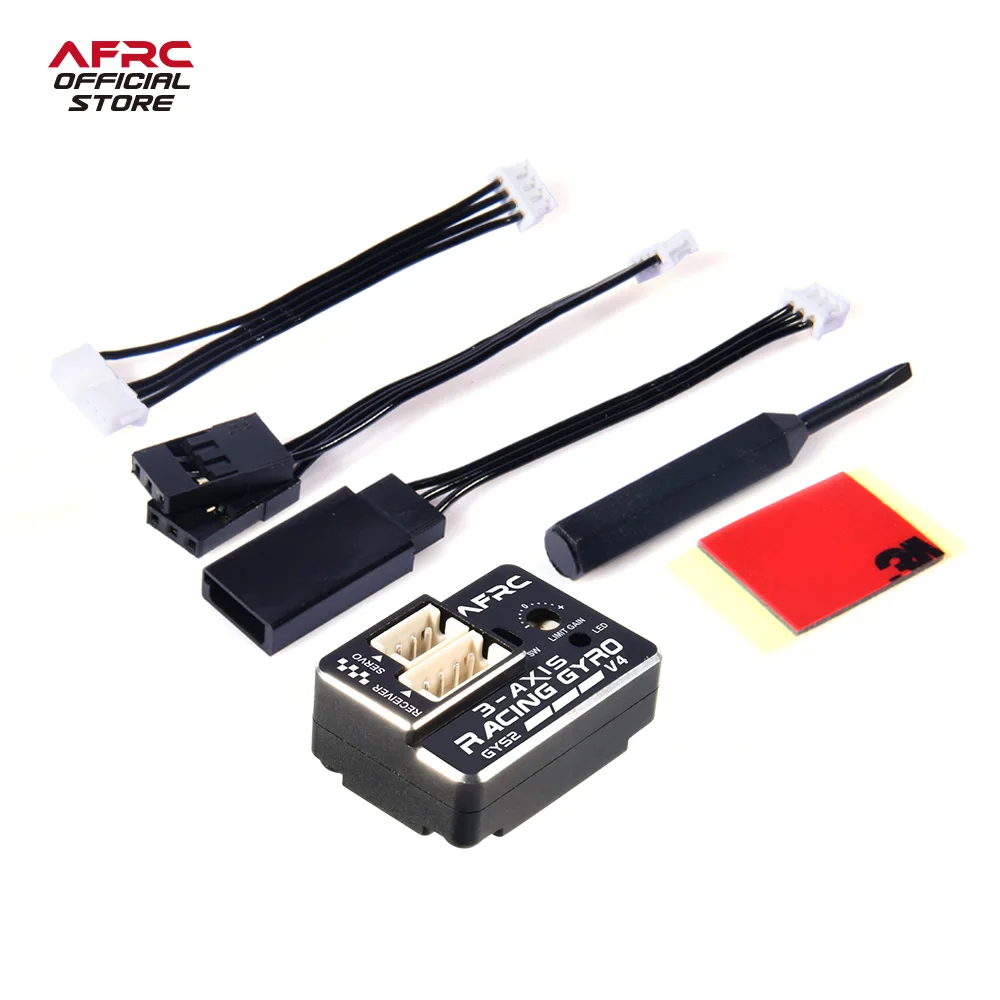

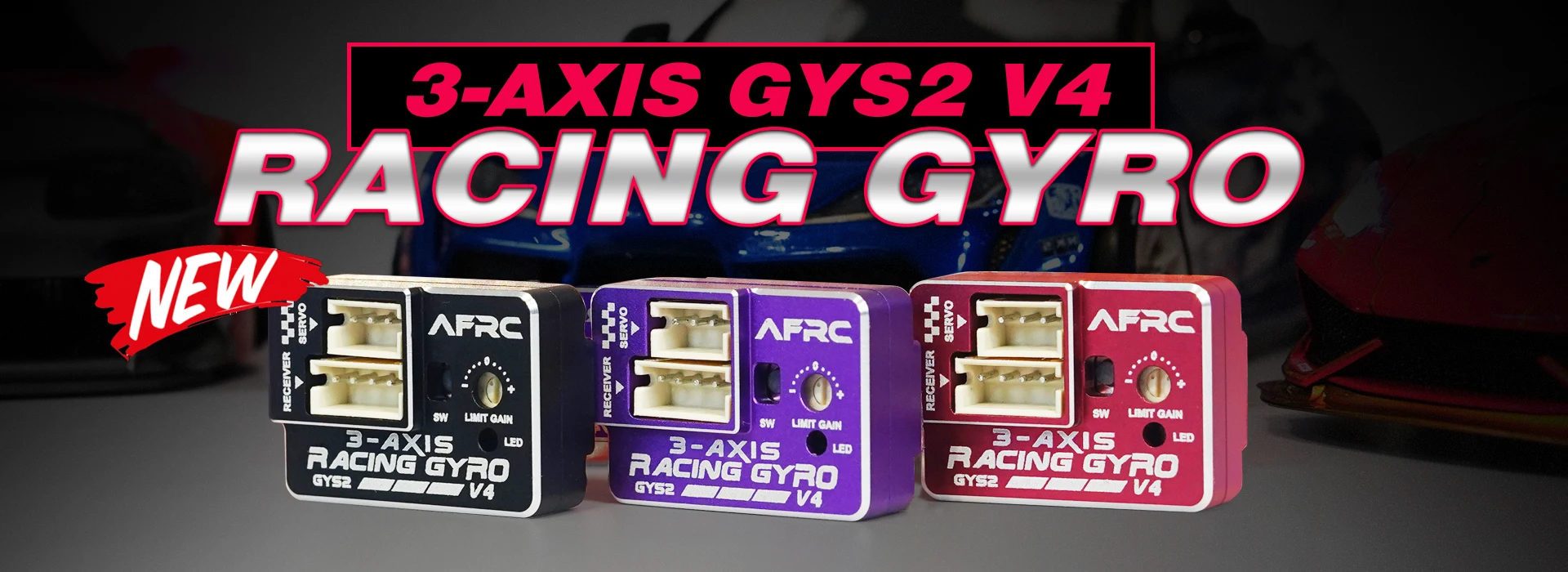

3 -AXIS GYS2 V4

RACING GYRO

Description:

Model: GYS2 V4
Dimensions: 21 x 15 x 8.5 mm(0.83 x 0.59 x 0.33inch)
Working Voltage: 3.7 ~ 8.0V
Shell Material：AL6061
Weight：4g
Current Drain: <30mA
Operating Temperature：-10℃+50℃
Gain Mode: Normal / AVCS Mode
Operating Voltage: PID Control System
Input Signal: PWM(50~333Hz)/SANWA SSR/SUR/SXR/SHR;FUTABA S.BUS/S.BUS2
Input & Output Plug: JST1.5mm (attached the signal input cable to connect with receiver)

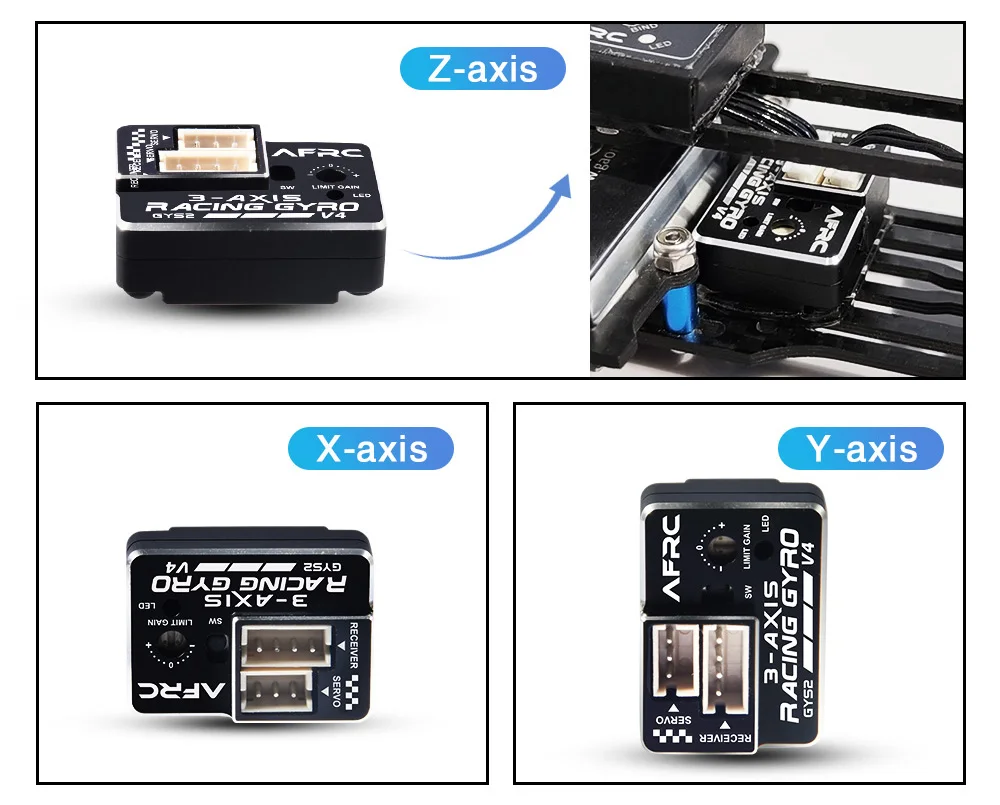

X, Y, Z three-axis selection:

Press and hold SW to power on to enter the travel setting, then double-click SW to enter the axis selection, the red light
flashes twice and it will stay solid red light (default Z axis), press SW to switch to the X axis green light It flashes twice quickly
and turns on, then press it again to switch to the Y-axis, the blue light will be solid, and continue to press SW to switch to the
Z-axis. If you do not operate the SW key for 5 seconds, it will automatically exit, and the gyro will automatically enter the
initialization.

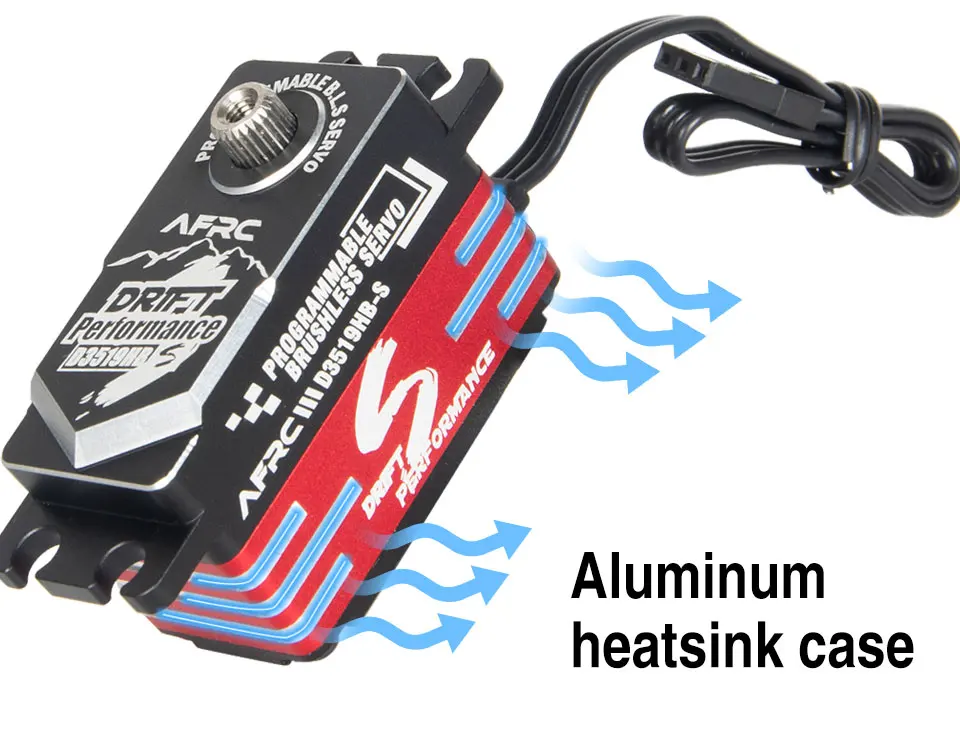

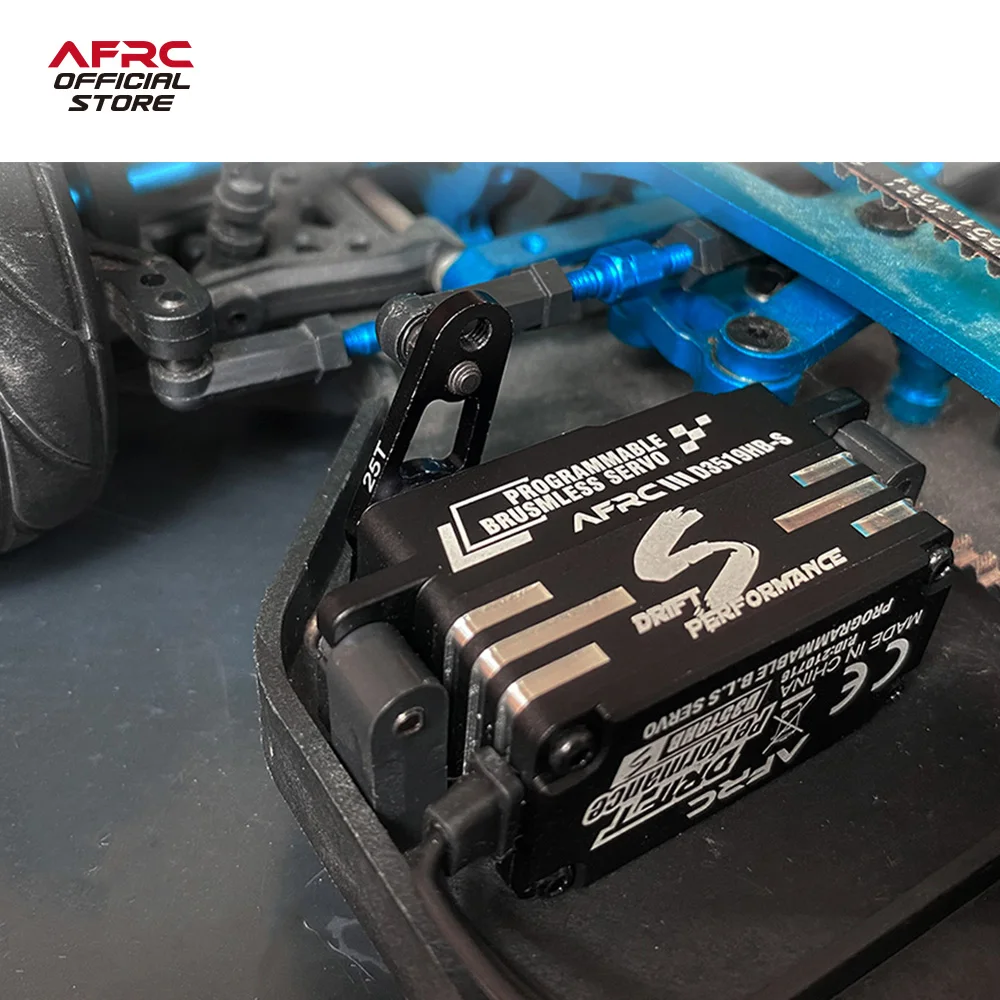

D3519HB-S

Programmable Brushless Servo

Description:

Model: D3519HB-S
Dimensions: 40 x 20.2 x 26.5 mm
Weight: 55g (No including accessory)
Working voltage: 4.8~ 8.4V

Torque:

4.8V：14.0 kg-cm
6.0V：16.5 kg-cm
7.4V：18.0 kg-cm
8.4V：19.6 kg-cm

Speed:

4.8V：0.105 sec/60°
6.0V：0.090 sec/60°
7.4V：0.080 sec/60°
8.4V：0.070 sec/60°

Motor type: Brushless motor

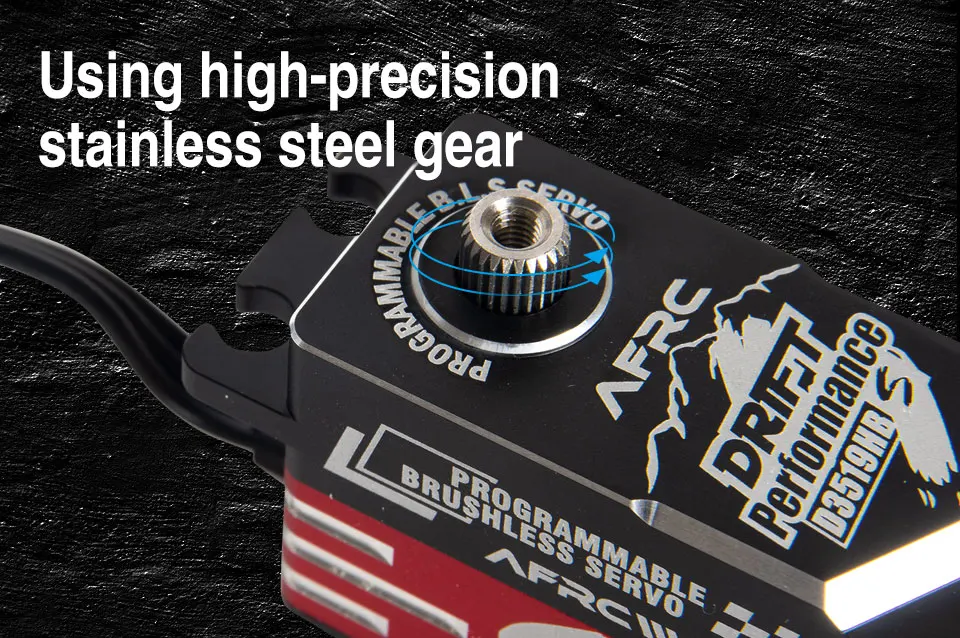

Gear type: Steel + Titanium
Case type: Aluminum alloy
Waterproof: IP65
Ideal for 1/10, 1/12 1/18 On Road, Off Road, Touring, Drifting, Airplanes, Boats, Robot etc.DIY Assembly Upgrading
