Note: If you want other measuring range or other models please feel frre to contact me , or note the specific model number when ordering. |
1. Features and uses
◆Capacity :4~20kg
◆Material: Aluminum materials 2024
◆Type: Parallel beam type
◆Defend grade: IP65
◆High accuracy, stable and reliable
◆Recommend platform size: 200 x 200mm
◆Application: It can be used on auto quantitative packing machine or weighing device and it is It is suitable to dynamic measurement and vibration environment.

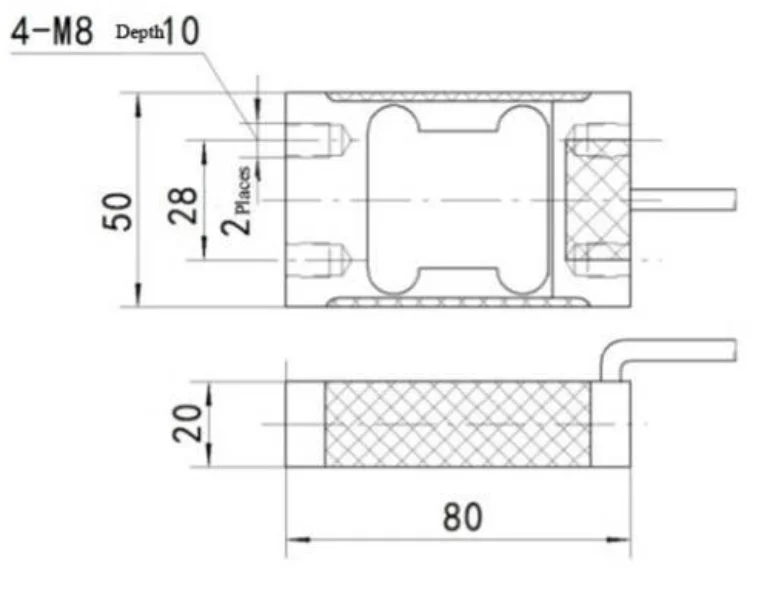

2.Dimension
3.Technical Parameters:
|
capacity
|
kg
|
4, 5, 8, 10, 20
|
|
safe overload
|
%FS
|
120
|
|
ultimate overload
|
%FS
|
150
|
|
rated output
|
mV/V
|
2.0 ± 0.2
|
|
excitation voltage
|
Vdc
|
5~12
|
|
combined error
|
%FS
|
C3
|
|
zero balance
|
%FS
|
《2.0
|
|
creep
|
%FS/30min
|
± 0.167
|
|
input resistance
|
Ω
|
406 ± 6
|
|
output resistance
|
Ω
|
350 ± 3
|
|
insulation resistance
|
M Ω
|
≥ 5000 @ 50 Vdc
|
|
operating temperature range
|
℃
|
-10 ~ +40
|
|
compensated temperature range
|
℃
|
-35~70
|
|
temperature coefficient of SPAN
|
%FS/10℃
|
± 0.0167
|
|
temperature coefficient of ZERO
|
%FS/10℃
|
± 0.0165
|
|
Electrical connection
|
cable
|
4 color wire, 0.17 m
|
| Peso | 0,500 lbs |
|---|---|
| Dimensioni | 16,00 × 14,00 × 12,00 in |
| Marca | CALTSensoR |
| Prodotti chimici ad alto impatto | Nessuno |
| Origine | CN (Origine) |
| Batteria Inclusa | no |
| Numero di modello | L6H5-15KG |
| Carico massimo | 15KG |
| Tipo di visualizzazione | analogico |
