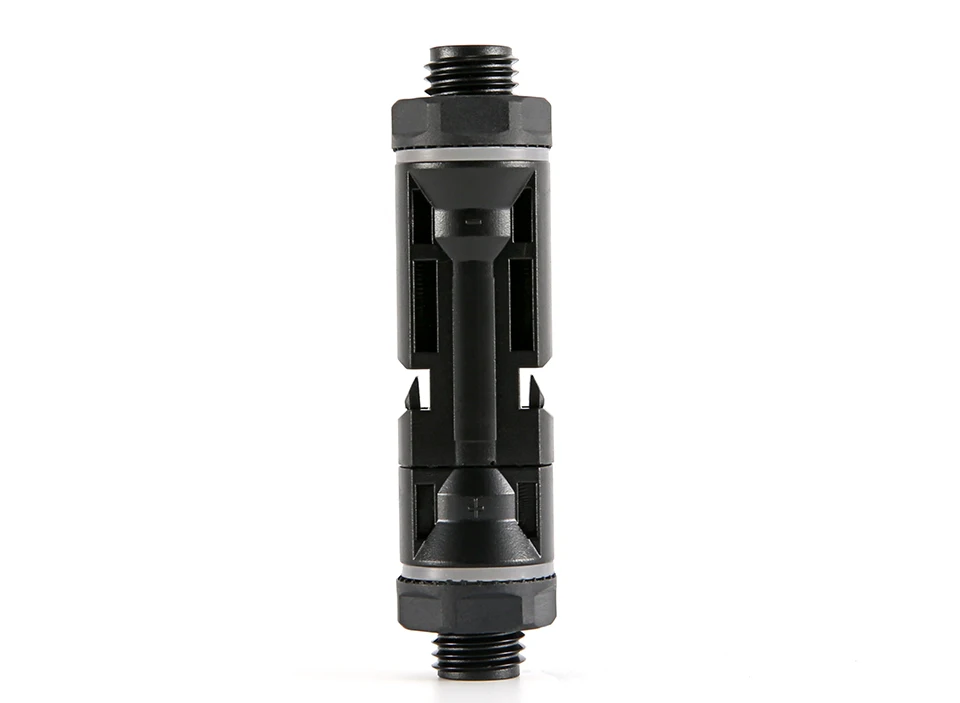

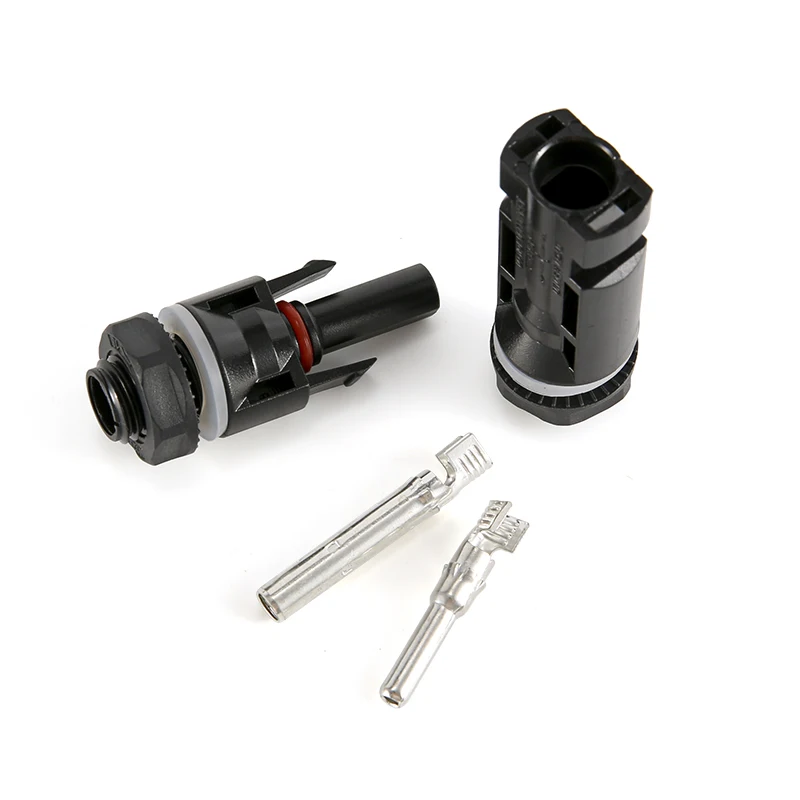

Solar PV 1000V connector for solar panel mount and inverter Panel solar connector solar coupler IP67
Specifications
* Rated current: 35A (2.5m㎡–6m㎡)
* Rated voltage: 1000V DC
* Connector contact resistance:≤0.5mΩ
* Degree of waterproof: IP67
* Flammability rating: UL94-V0
* Safety: Class II
* Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )
* Adapter Wire: OD 5mm-7mm
* Connector conductor material: copper, Tin
* Connector Insulation material: PPO/PPE
* Insertion force: less or equal to 50N
* Withdrawal force: over or equal to 50N
* Operating temperature range: -40℃～ +85℃
* Connection: Clamp
Thank you for your trust in our products. If you need to wholesale large quantities of goods. Please contact our product project manager. He will give you a lower wholesale price. Contact information below
