Product features
1. The module is compact and exquisite, easy to install and use
2. Automatic image control function: automatic white balance, automatic filtering, automatic 50/60Hz brightness detection, automatic black level calibration
3. Image quality control: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defect pixel elimination, and noise elimination
4. Support video or snapshot operations
5. Supports LED and flash strobe modes
6. Supports 5 million pixels and any reduction from 5 million pixels to any size, and supports embedded autofocus control
Product parameters:
Sensor size: 1/4 inch
Pixel: 5 million
Chip model: OV5640

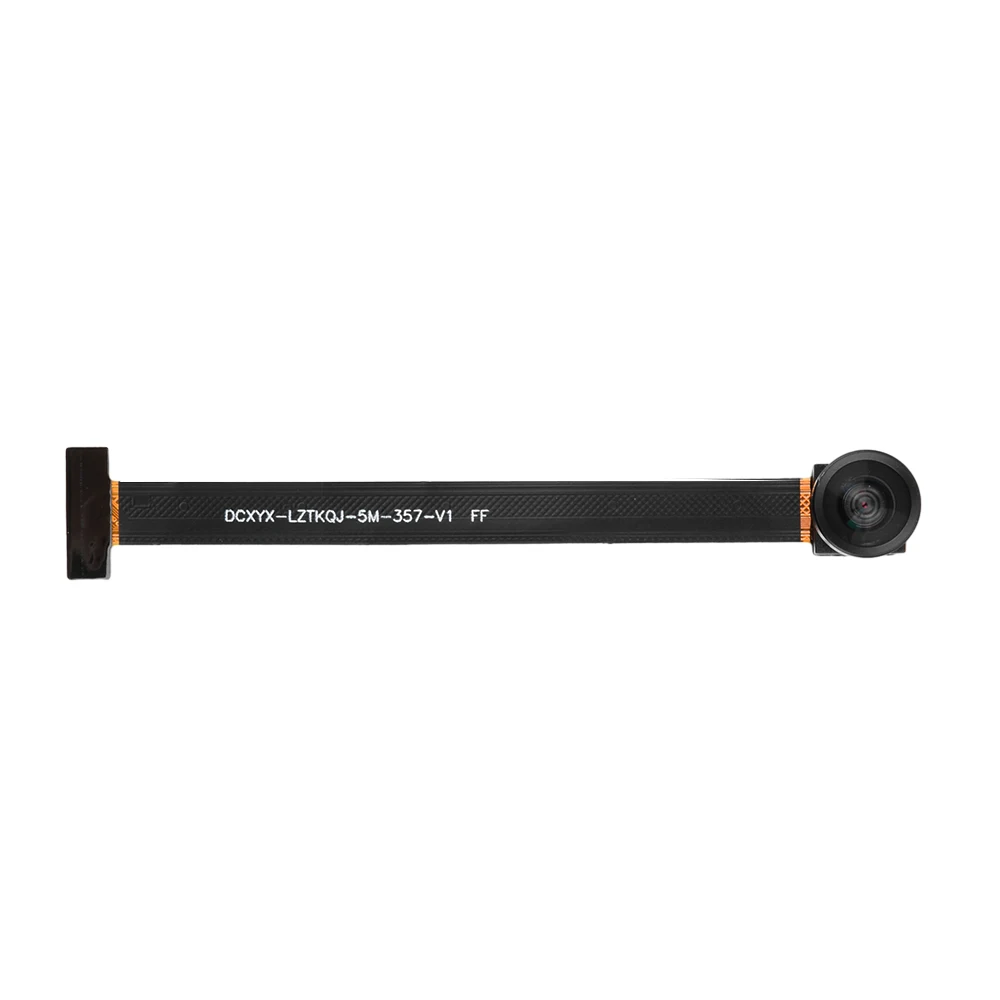

Product size length: 78mm
Pixel: 2592 * 1944
Interface voltage: DC1.8V/2.8V
Interface: DVP

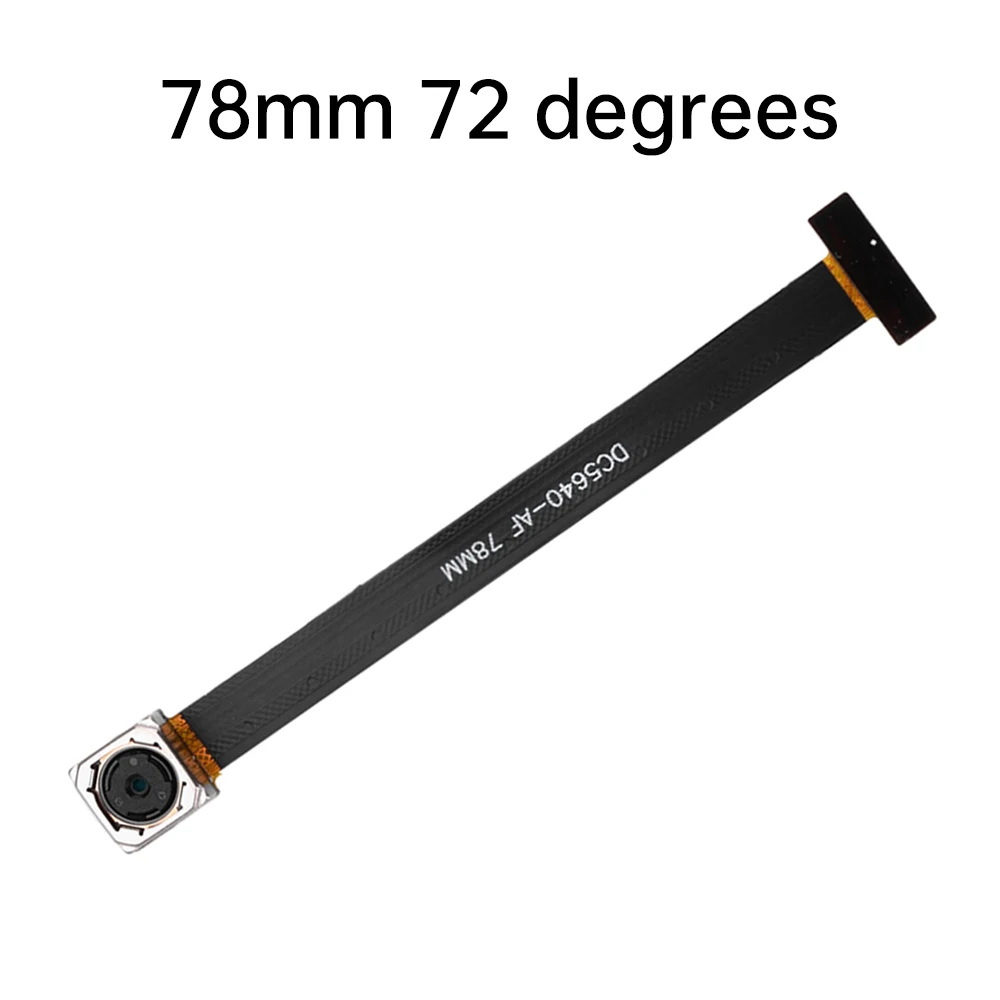

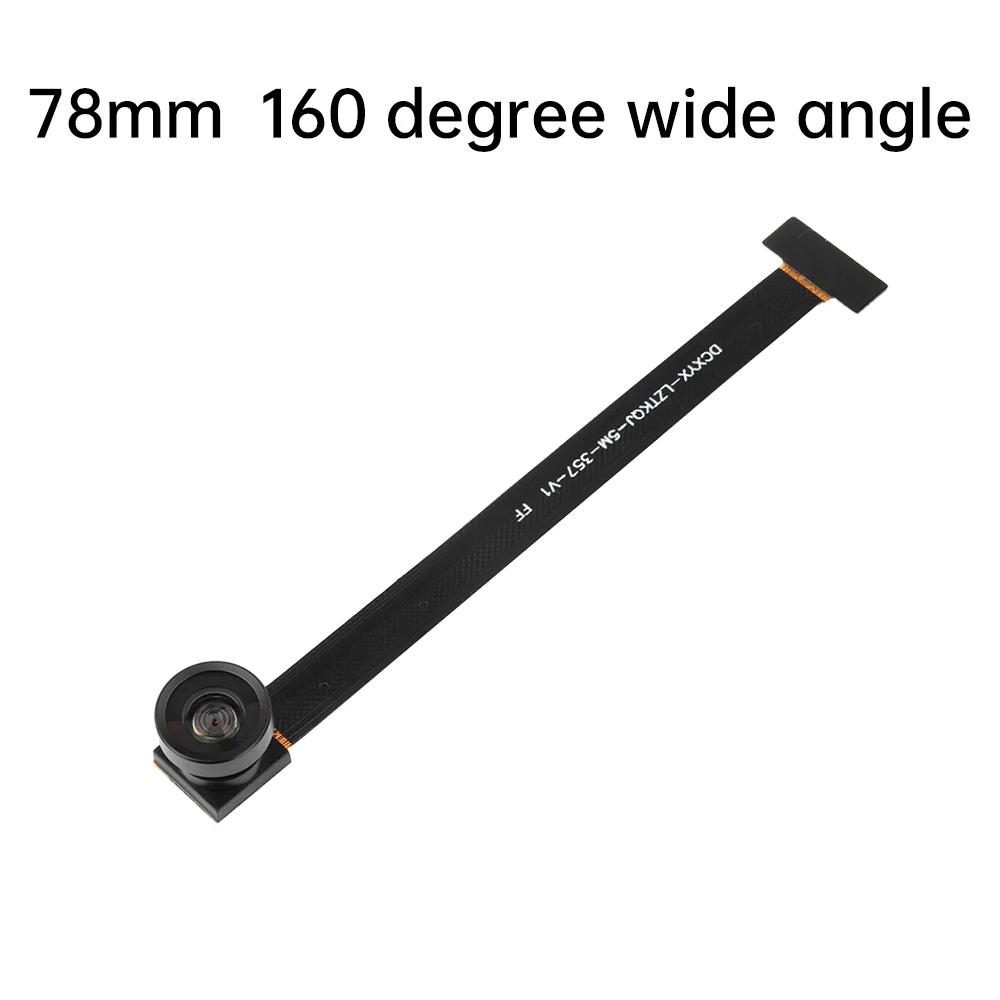

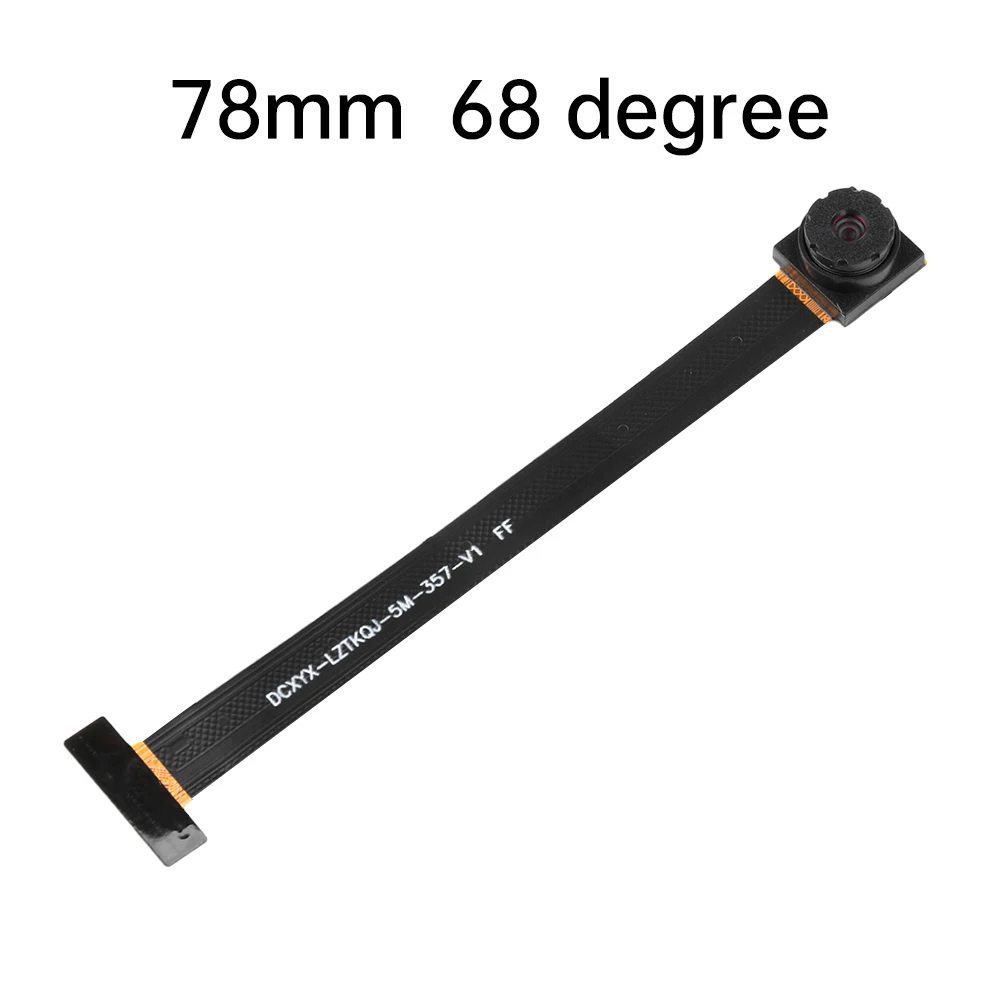

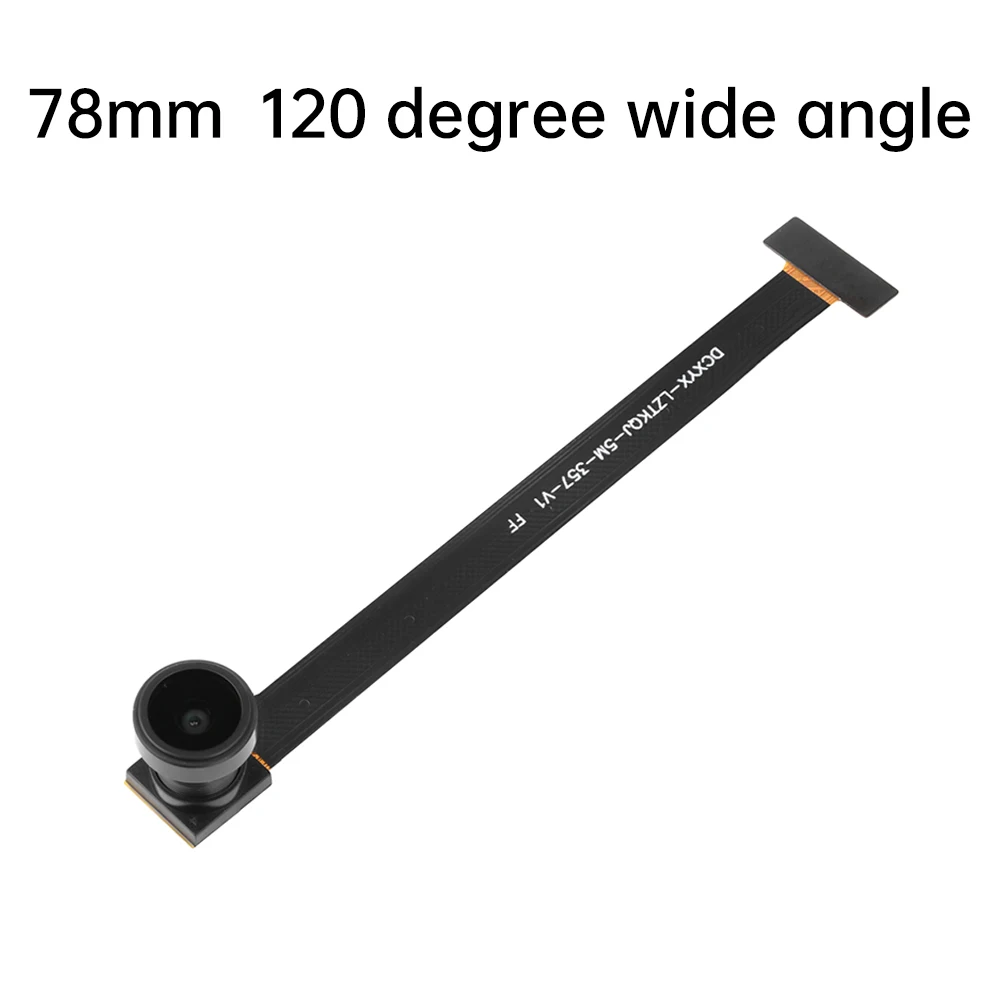

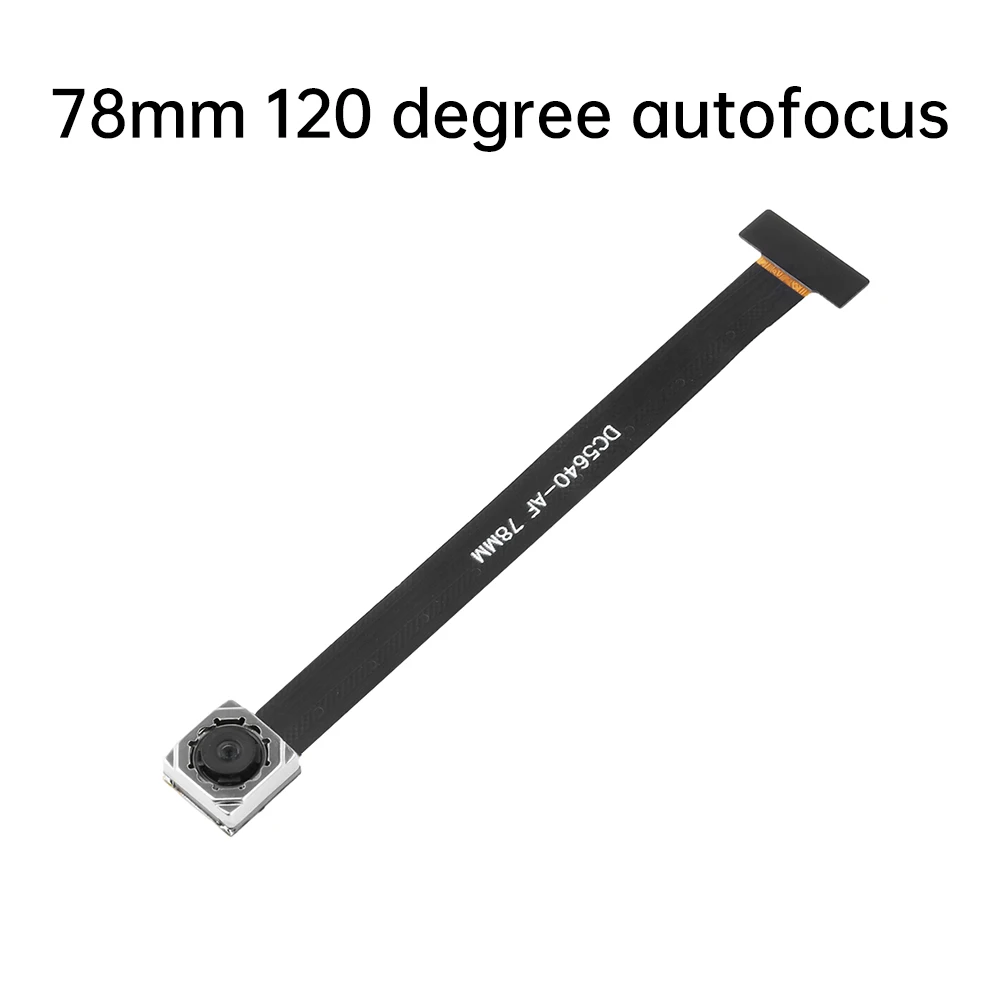

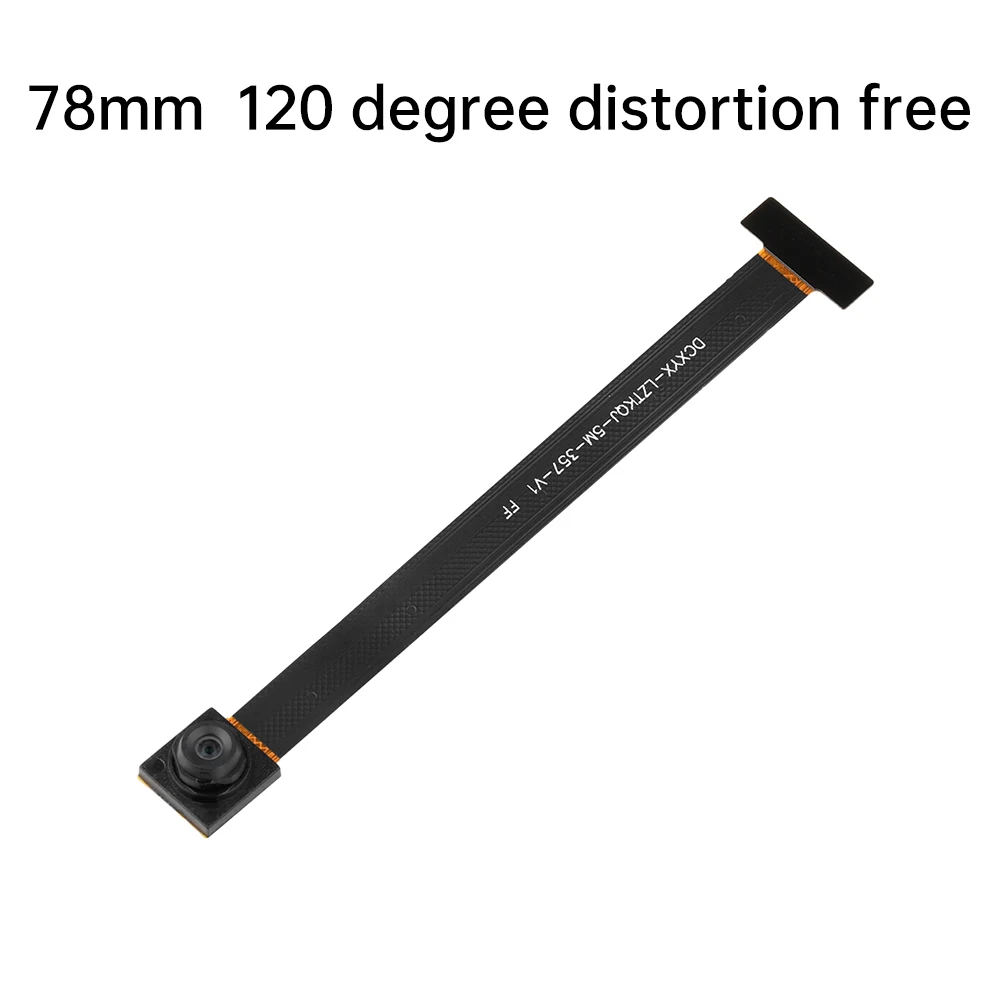

Perspective (diagonal): 68 ° lens/72 ° autofocus lens/120 ° autofocus lens/120 ° undistorted lens/120 ° wide-angle lens/160 ° wide-angle lens (optional)
Output format: YUV
Sensitivity: 60dB/mW
Shipping List
Camera module * 1
