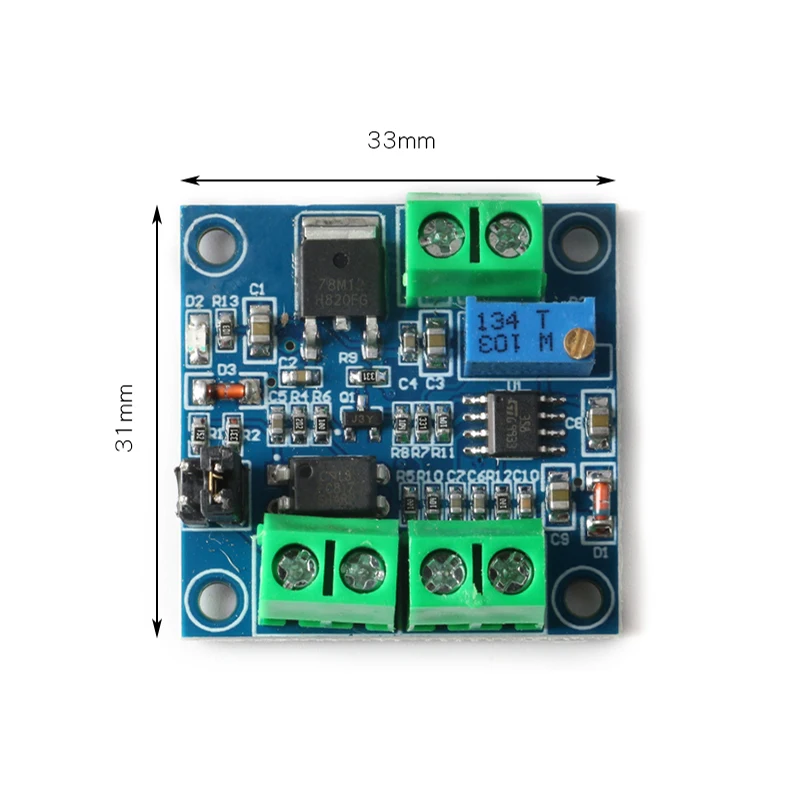

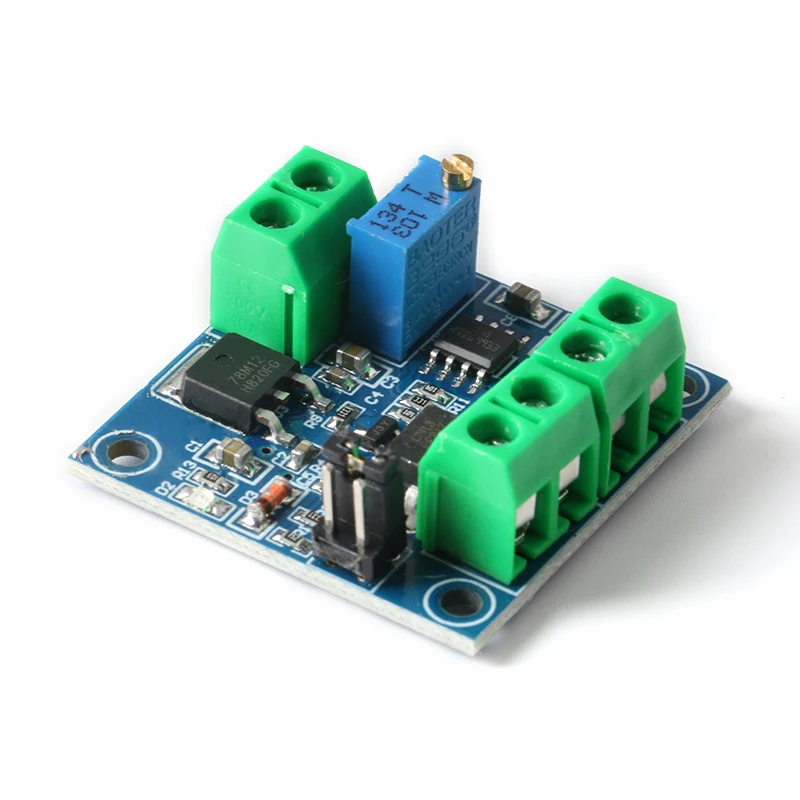

Product introduction:
This module is a module capable of converting voltage and PWM. The PWM digital signal is converted into 0 to 1OV analog signal. The output voltage is adjusted by the duty cycle of the entire PWM. V-PWM can convert 0-5V-10V voltage to 0%-100% PWM output, and adjust the PWM duty cycle by adjusting the voltage.
Product parameter:
PWM to voltage:
Module working voltage: DC 12V-30V: (power power requirement: greater than 100MA)
PWM signal receiving frequency range: 1KHZ-3KHZ:
PWM signal input level range:
Peak 4.5V to 10V level, jumper pin is inserted at 5V. This type of level signal is mainly aimed at the conventional industrial control card (such as MACH3 board) and the interface of 5V CPU;
Peak 12 to 24V level, jumper pin inserted at 24V. This type of level signal is mainly aimed at the conventional PLC interface.
Conversion range: 0%-1 00%PWM conversion to 0-10V voltage
Tolerance: 5%.
Voltage to PWM:
Module working voltage: DC 5V-12V
Output PWM frequency: about 50KHZ
PWM amplitude: 5V
Conversion range: 0-5V/0-10V
Voltage conversion: 0%-100%6PWM
Tolerance: 1%-3%
Pin description:
PWM to voltage:
VCC: Working power supply 12V-30V.
GND: working power ground.
PWM: Input the positive terminal of the PWM signal.
GND: Input signal negative terminal.
VOUT: output voltage 0-10V
GND: output voltage ground.
