503450/523450 3.7V 1000mAh Polymer Lithium Rechargeable Battery PH2.0 2pin For GPS Smart Phone MP5 Mobile phone, DVD,Camera
pay attention: Please note that when placing an order, 503450 and 523450 are the same model, and the battery size, capacity, voltage and other performance are exactly the same
Product Features:
1, Built-in protection circuit PCM for prevent over charging or over discharging
2,Rating: DC3.7V 1000mAh

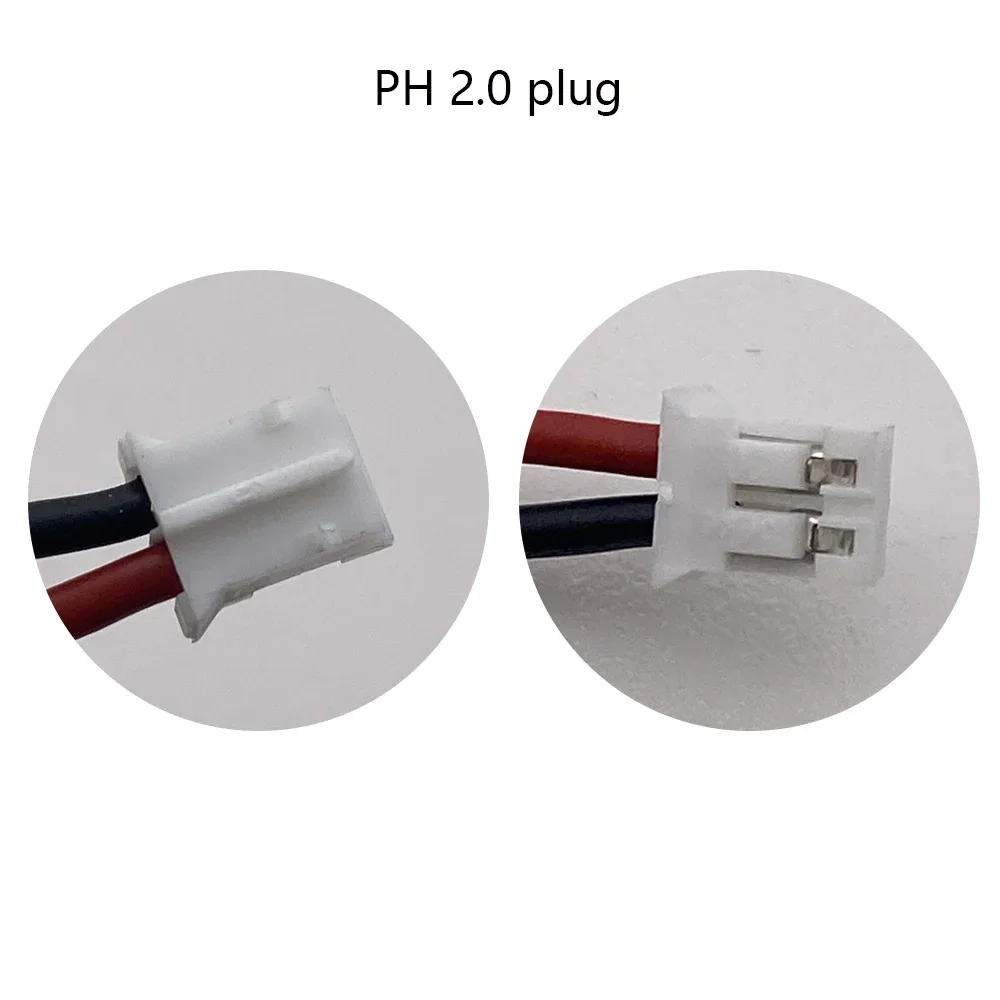

3,Plug:jst PH 2.0mm connector
4,Size: 5mm (H)*34mm (W)*50mm (L)
3,Plug:jst PH 2.0mm connector
4,Size: 5mm (H)*34mm (W)*50mm (L)
5,Charging current: standard charging, fast charging: 1.0C: 0.5C
6,Standard charging method: 0.5C CC (constant current) charge to 4.25V,then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.
7,Maximum discharge current: 1C
8,The maximum charge current: 1C
8,The maximum charge current: 1C
9,Discharge cut-off voltage: 2.75V
10,Charging time: 3-7hrs (standard); 3hrs (fast)
11,The discharge temperature: -20 degrees C~+60 degrees C
11,The discharge temperature: -20 degrees C~+60 degrees C
12,Protection function: over charge, over discharge, over current, short circuit protection, over temperature protection
13,Cycle charge:＞1000 times
14,Built-in protection circuit PCM for prevent over charging or over discharging.
