OSOYOO Nastro Flex Estensione 15Pin 1mm Passo Set 8 pollici/200mm per Raspberry Pi, Pellicola di copertura Flex anti-interferenza ad alta precisione

Feature:

• These FPC(Flexible Printed Circuit) cables which consist of multiple flat conductors insulated with a flexible plastic film that is laid out with conductors.

• High anti-interference, high flexibility and ultra-thin, soft, flexible and compact. FPCs can also be impedance controlled, which makes them a better choice for data cables.

• OSOYOO is a company who offers customized FPC cable design and manufacturing solution services for customers who want their products to be unique.

Specifications:

• Pins Number:  15

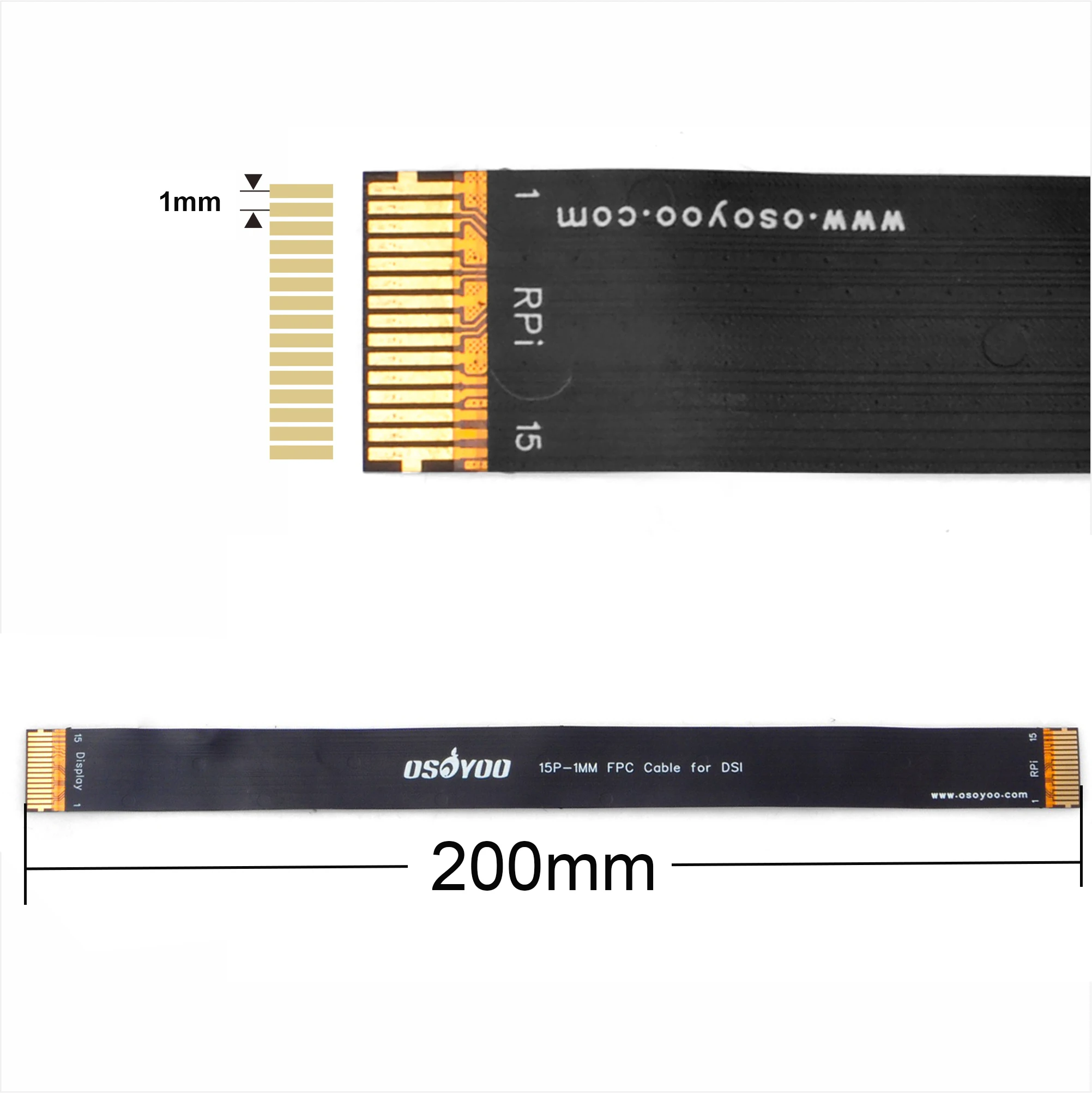

• Pitch : 1 mm

• Length : 8″/200mm

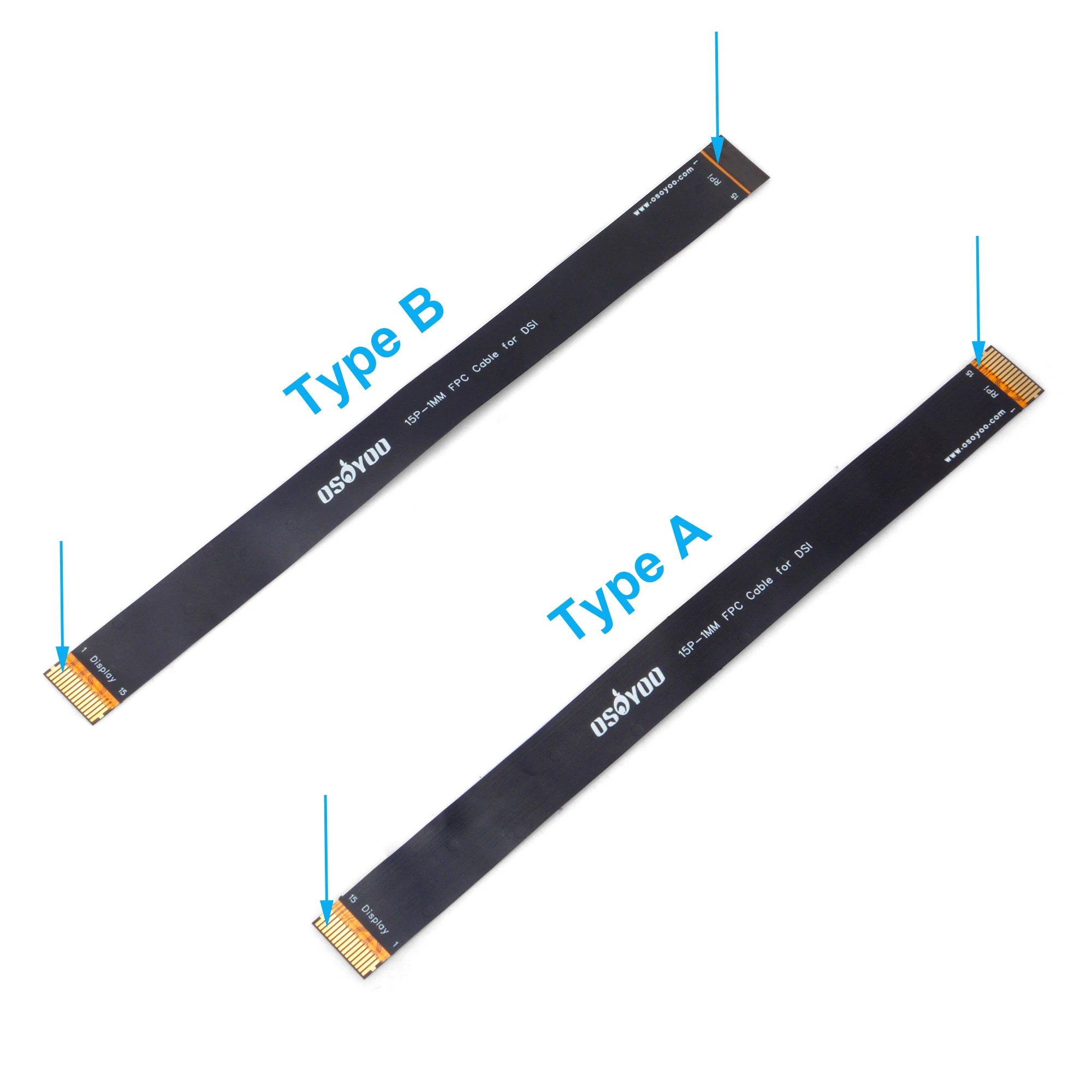

• Type: Type A & Type B

(Note:

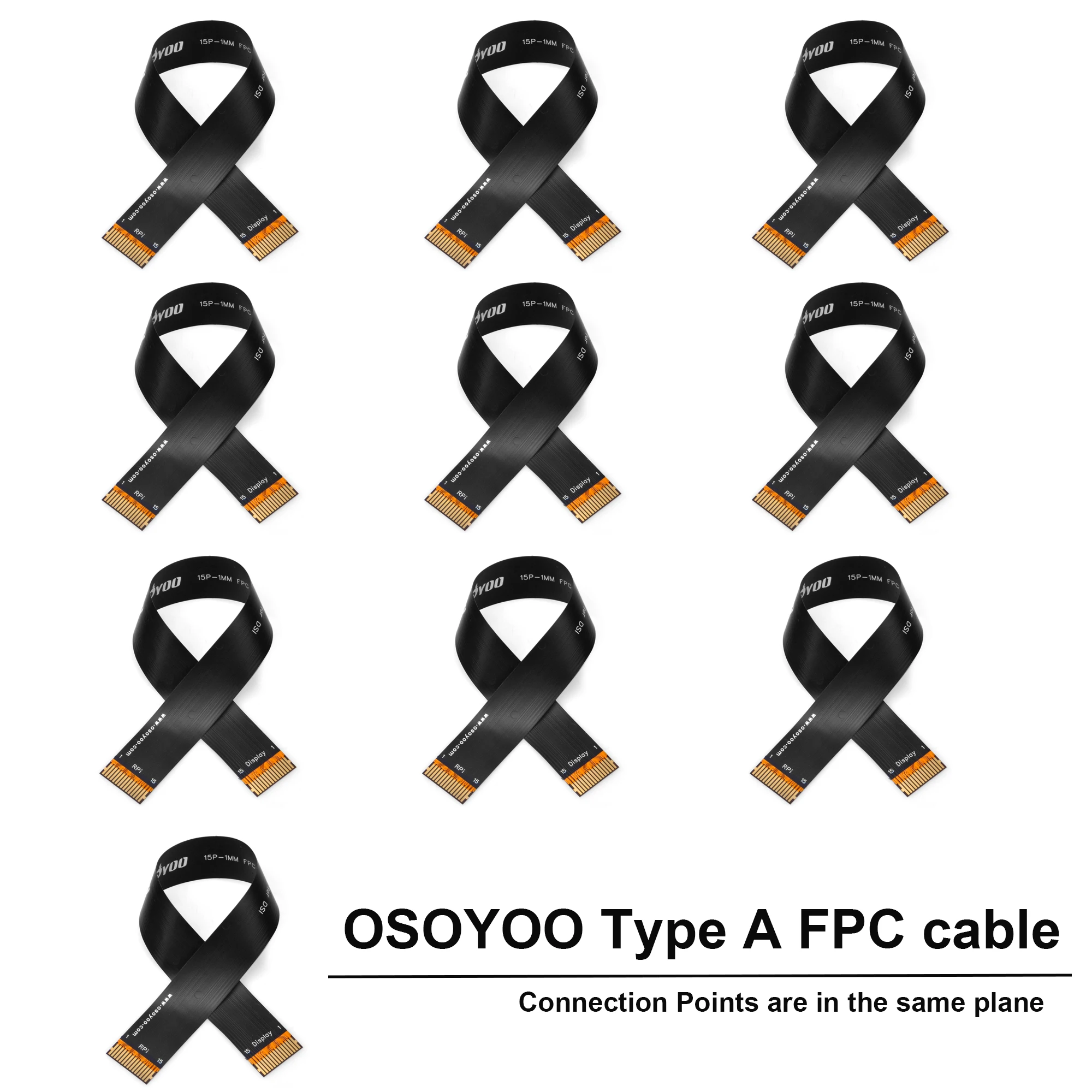

Type A : Connection Points are in the same plane

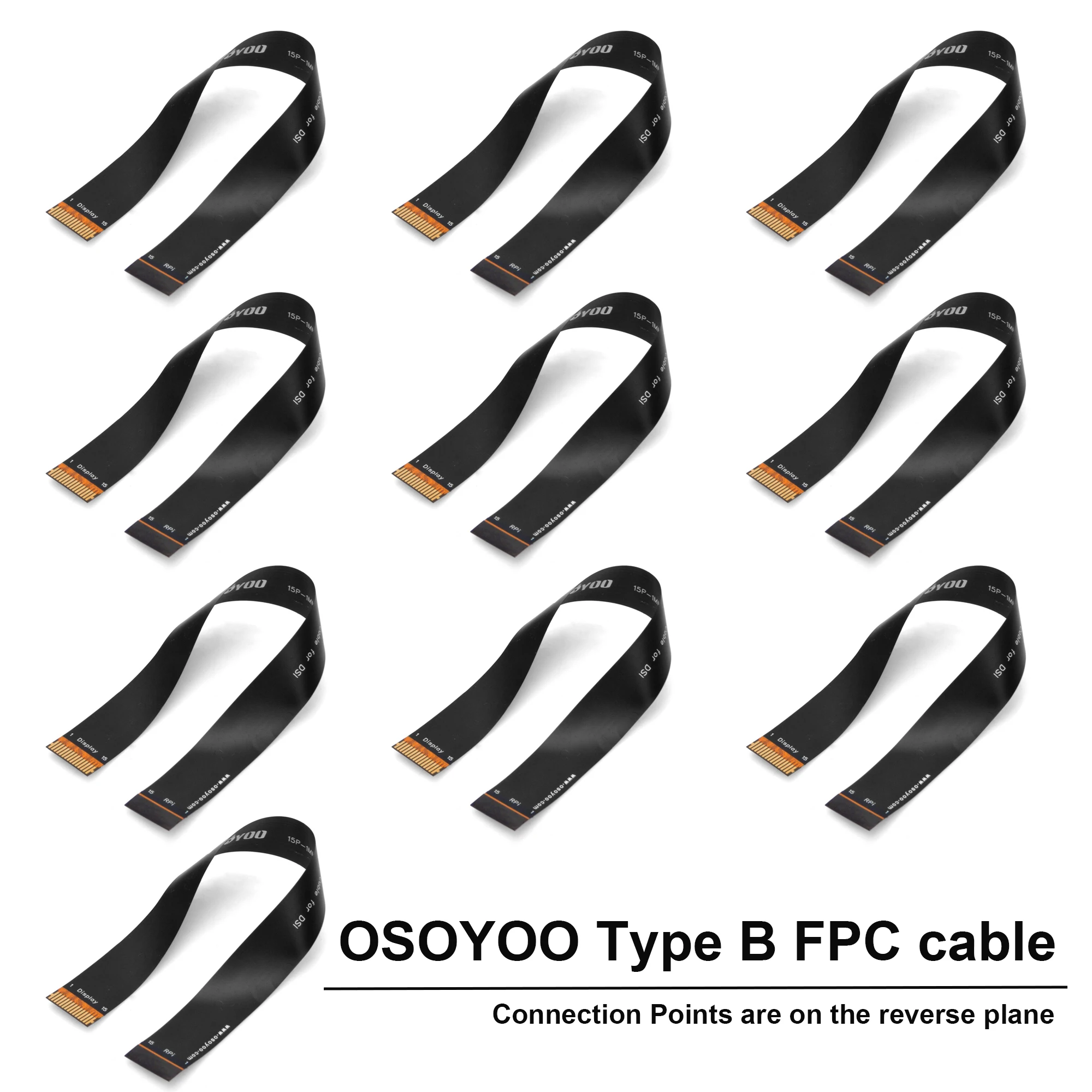

Type B : Connection Points are on the reverse plane).

• Material: PET

• Weight: approx. 5g

Selection Guide:

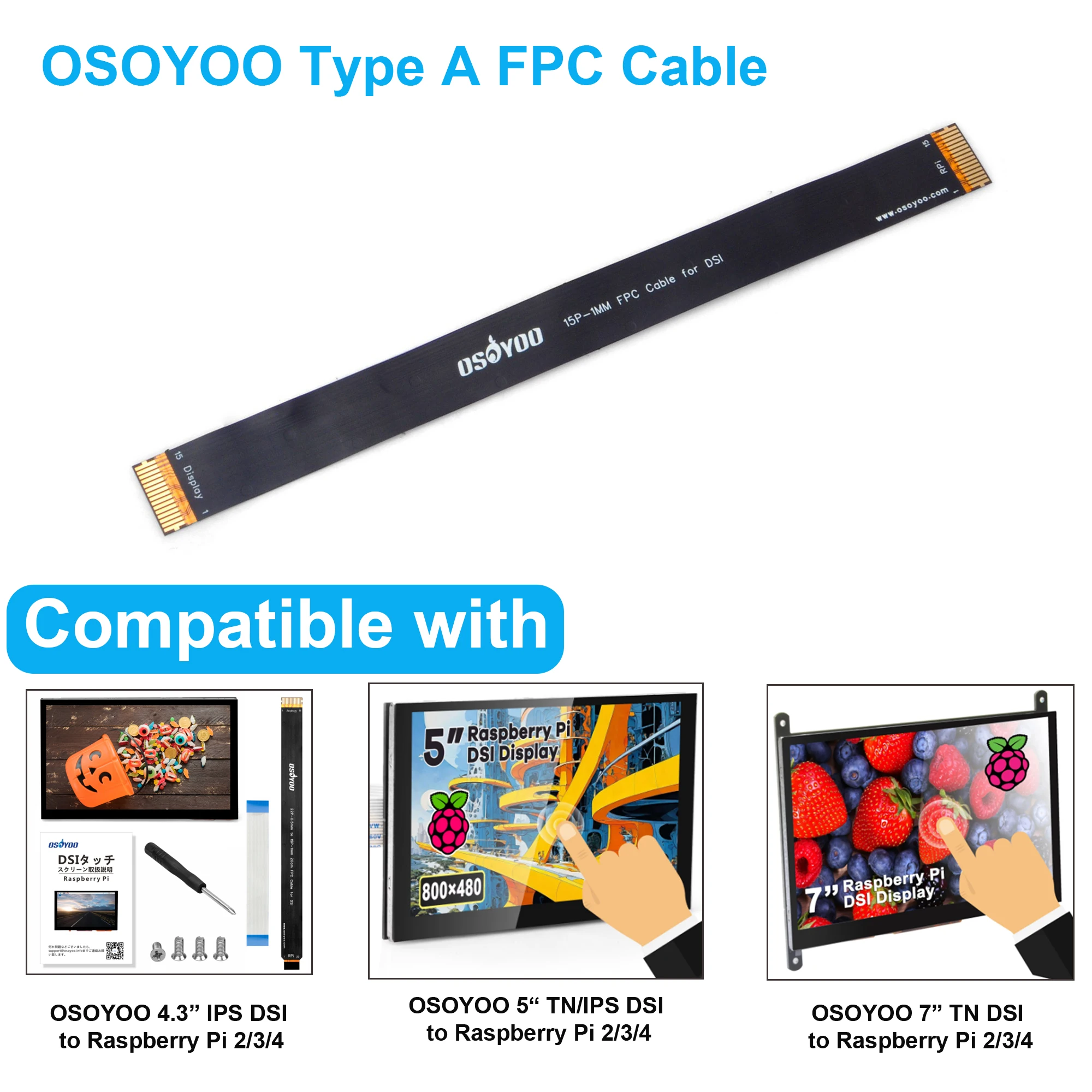

Type A:

• Connected point at two end are on the same side and the reinforcing plate is attached to the insulating tape.

• OSOYOO Type A FPC cable is compatible with OSOYOO 4.3″ IPS DSI, OSOYOO 5″ IPS/TN DSI and OSOYOO 7″ TN DSI to Raspberry Pi 2/3/4. If you are NOT sure about which type you want to select, please contact with OSOYOO customer service.

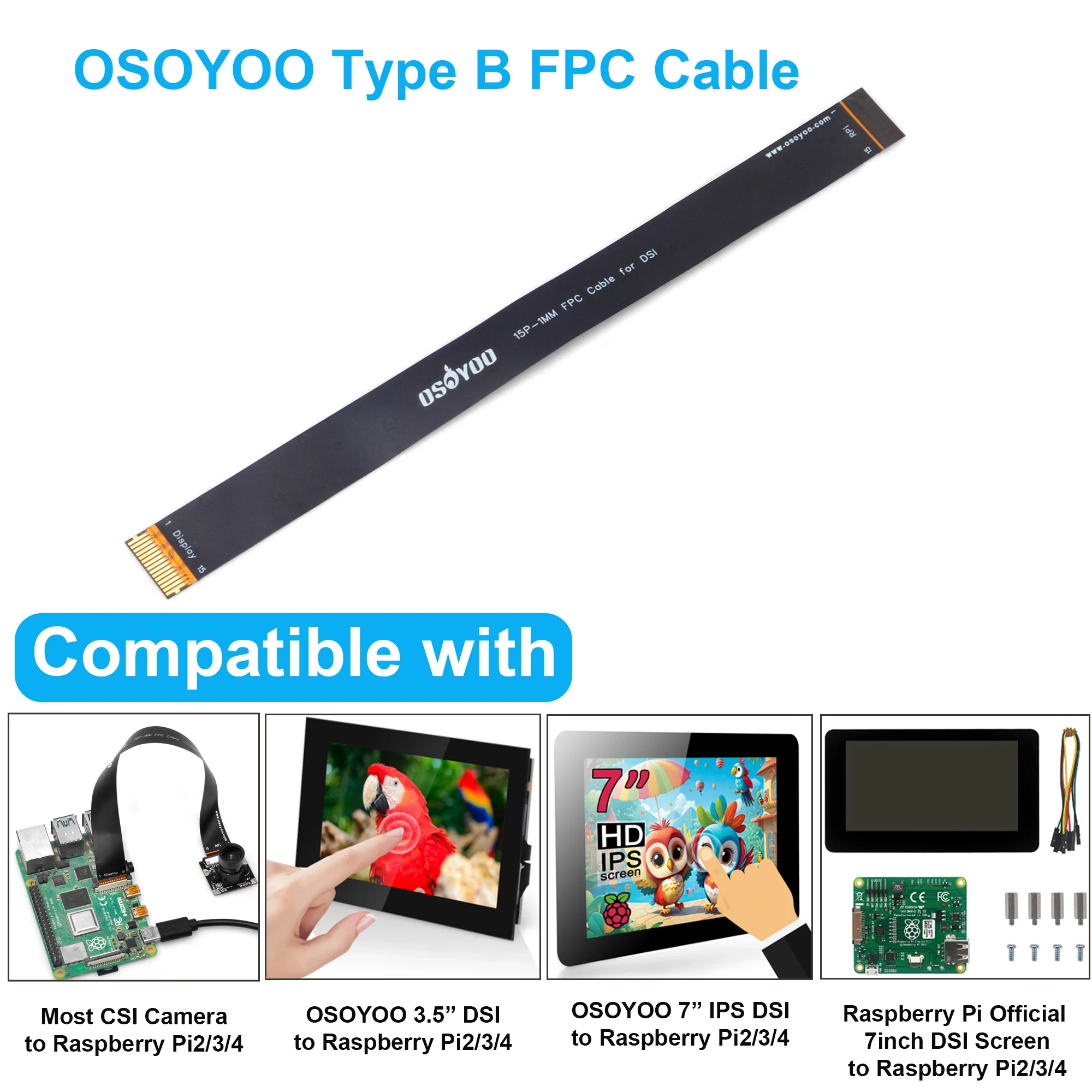

Type B:

• Connection Points at two end are on the reverse plane

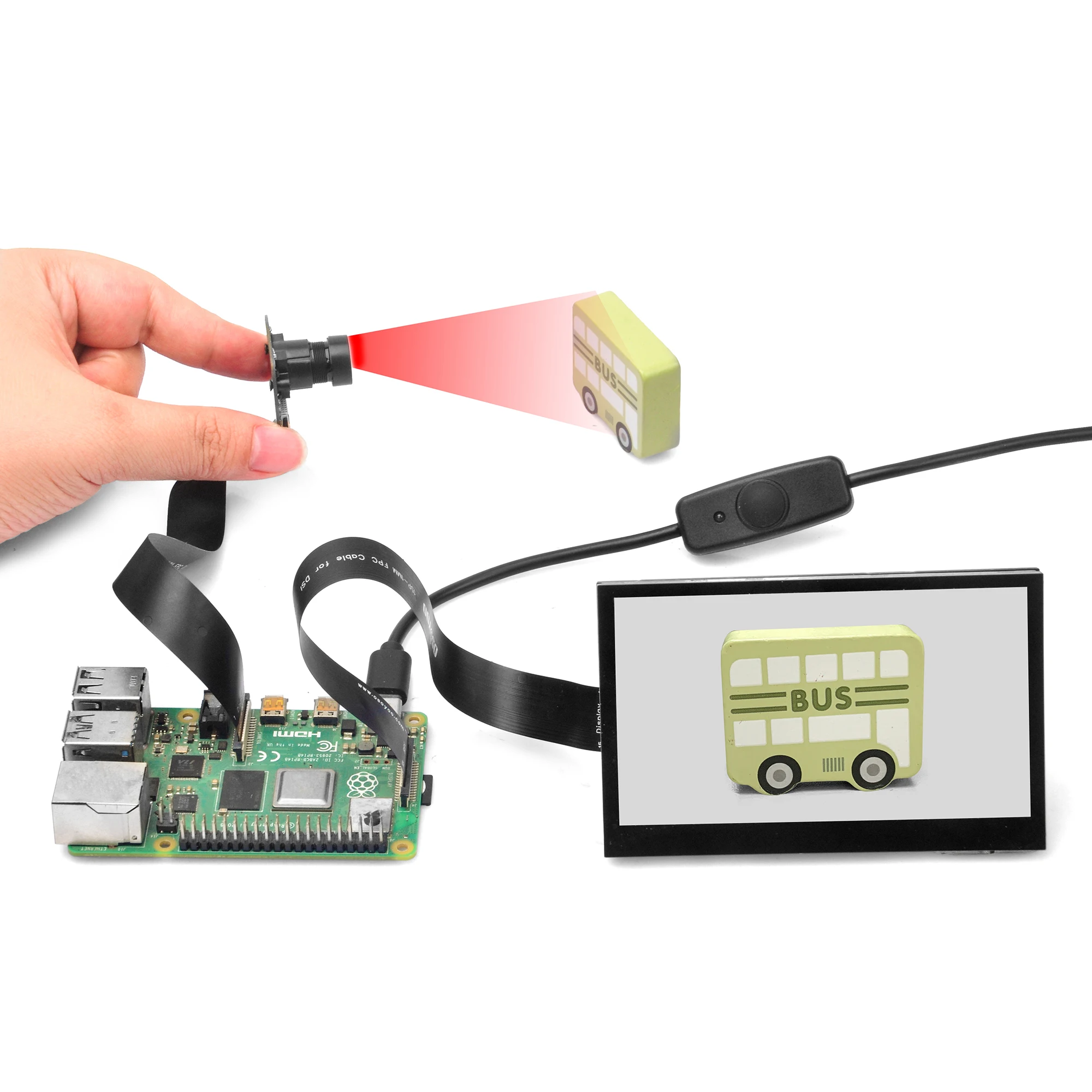

• OSOYOO Type B FPC cable is compatible with OSOYOO 3.5″ IPS DSI, OSOYOO 7″ IPS DSI and Raspberry Pi officail 7″ DSI, and Most CSI camera to Raspberry Pi 2/3/4. If you are NOT sure about which type you want to select, please contact with OSOYOO customer service.
