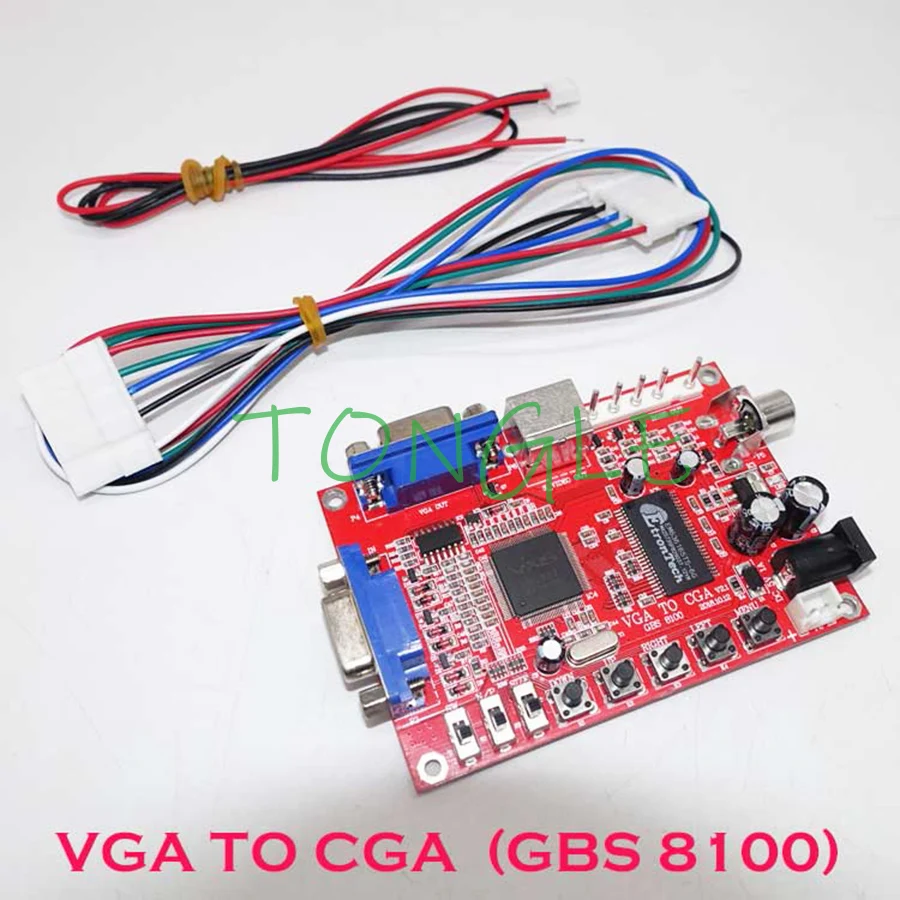

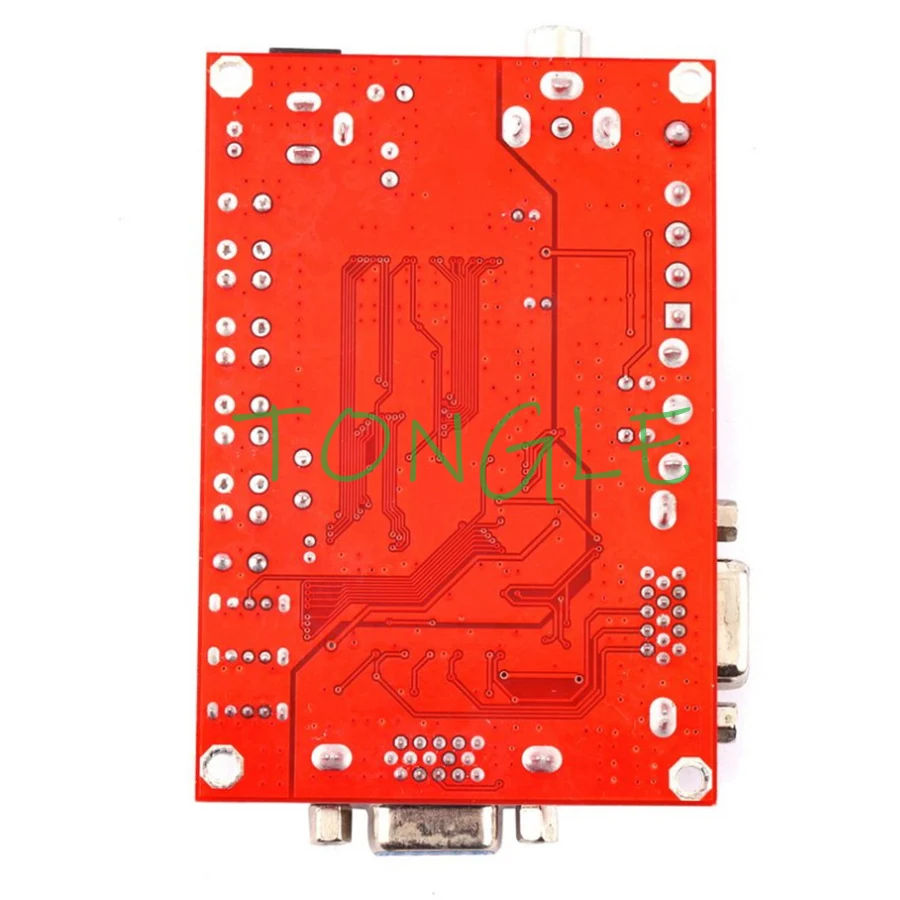

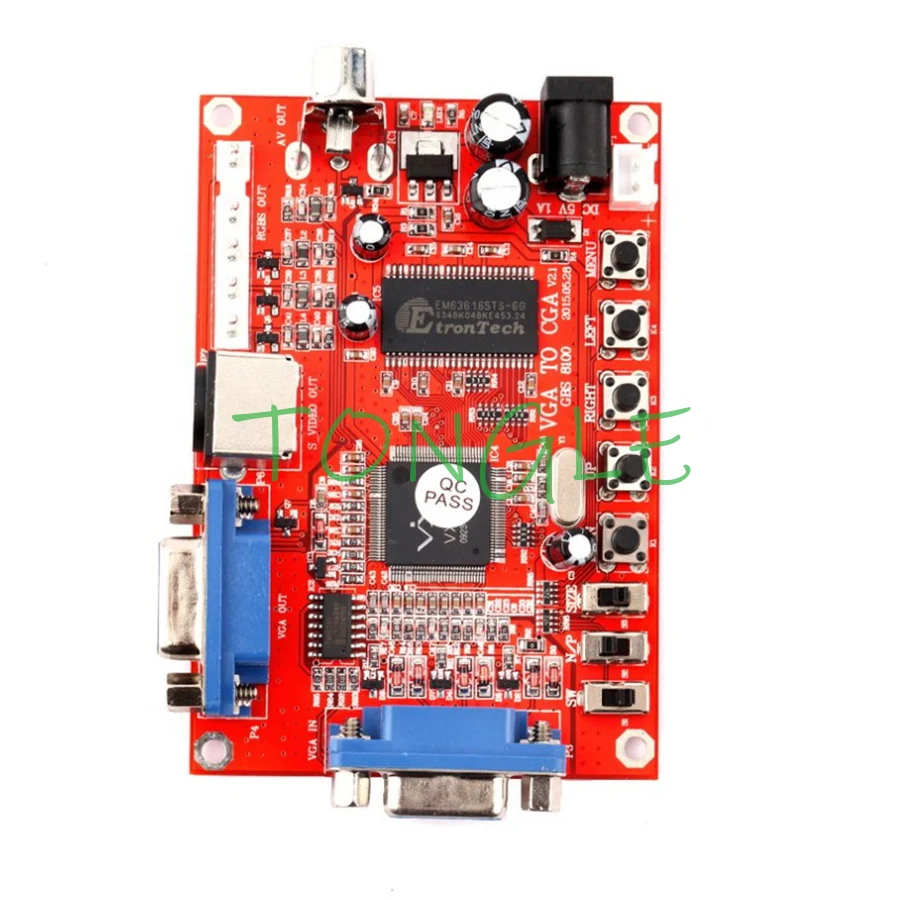

Hot New VGA to CGA/CVBS/S-Video HD Video Game Converter Board Hot Worldwide
Features:
Supports VGA / SVGA / XGA / SXGA (640 * 480, 800 * 600, 1024 * 768, 1280 * 1024) Component Signal Input.
Supports VGA output by pass.
CGA signal output (15K).
Video / S-video output.
Supports NTSC & PAL (you can freely change the mode between NTSC & PAL by press N / P button).
Supports image position control & image zoom control.
On Screen Display (English).
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports all types of VGA monitors (CRT, LCD, PDP, Projector, etc).
Specifications:
Input Power: DC 5V ±0.5V (2A) P1 or P2
Input signal:
640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80 / 85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3
Output Signal:
CGA: 640 * 480 P7
VGA: By Pass P4
Video: 480p NTSC & PAL P5
S-Video: 480p NTSC & PAL P6
User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust.
Color: Red
Main item size: approx. 9 x 6.1cm
Net Weight: 100g
|
Power input |
DC5V 1A |
P1 or P2 |
|
|
Input signal |
VGA in |
640*480@60/72/75/85 Hz 800*600@60/75 Hz 1024*768@60/75 Hz 1280*1024@60 Hz |
P3 |
|
Output signal |
RGBS out |
P7 |
|
|
CGA out |
By pass |
P4 |
|
|
AV Video out |
P5 |
||
|
S-Video Out |
P6 |
||
|
User control |
Output Switch, Image size, Image Position,Output adjust. |
Menu Key |
|
|
Dimensions |
100*70*20mm |
|
|
Package includes:

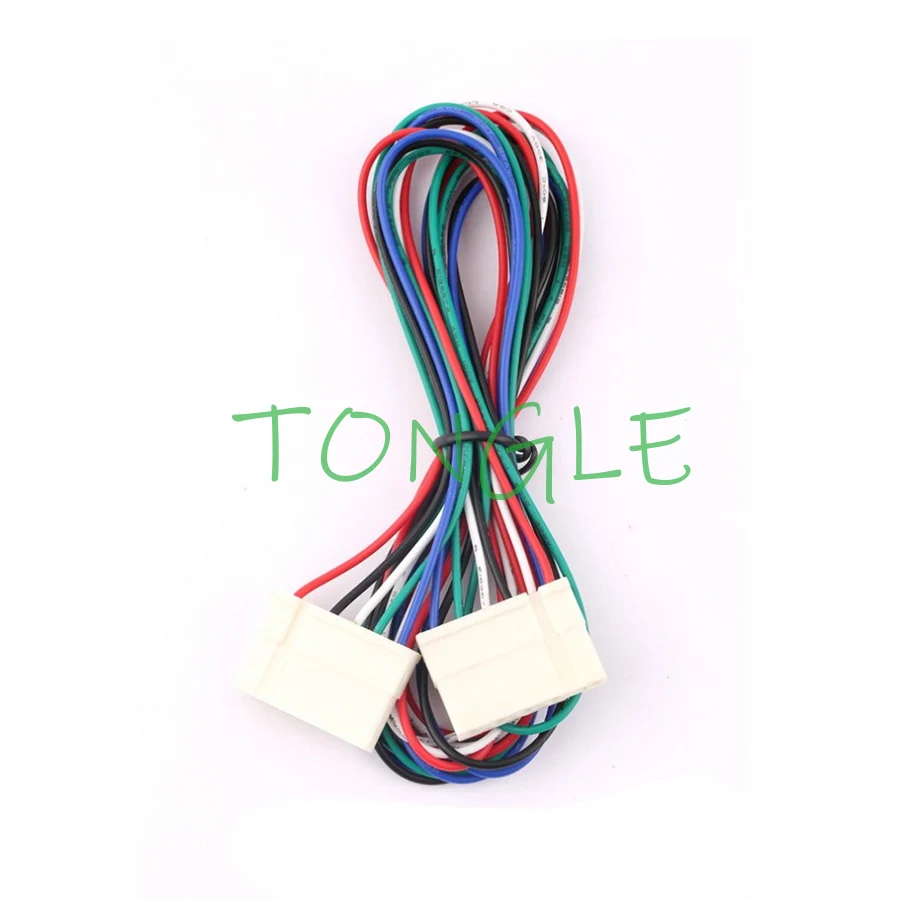

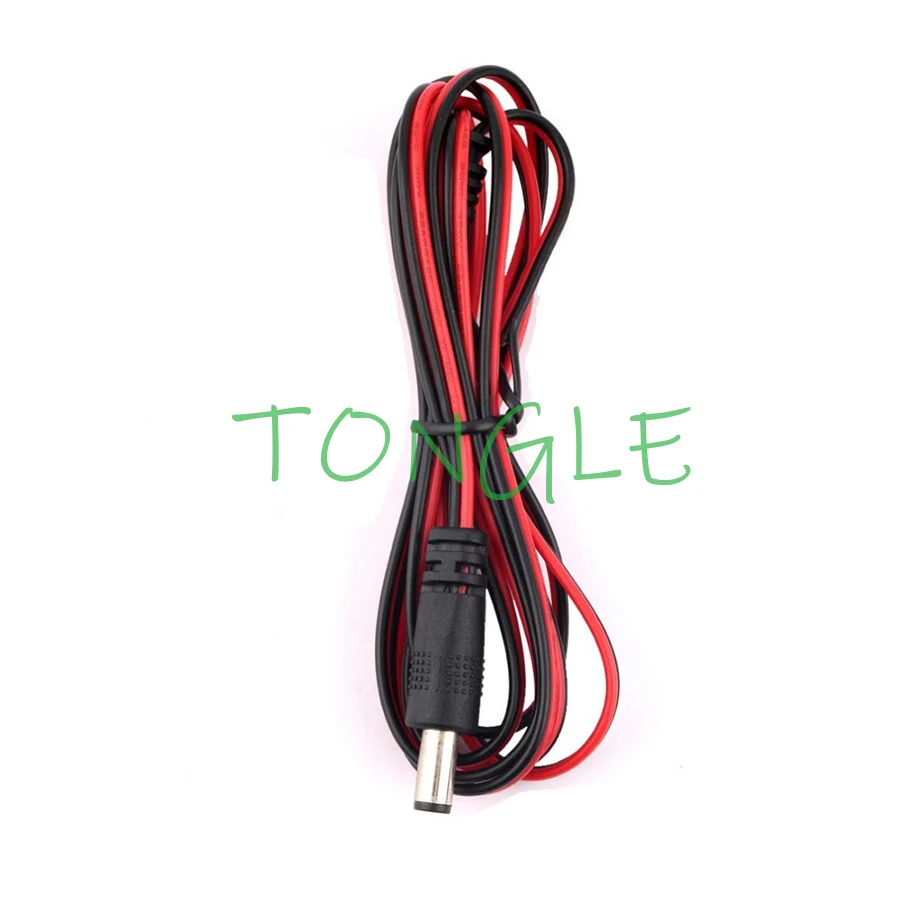

1 * VGA to CGA / CVBS / S-VIDEO High Definition Converter(With Cables)
