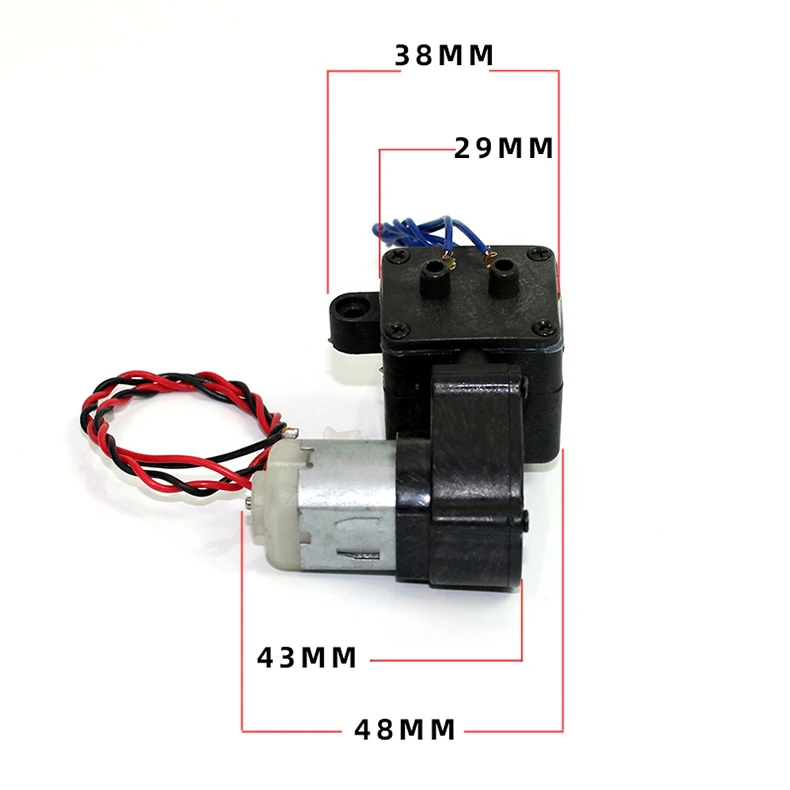

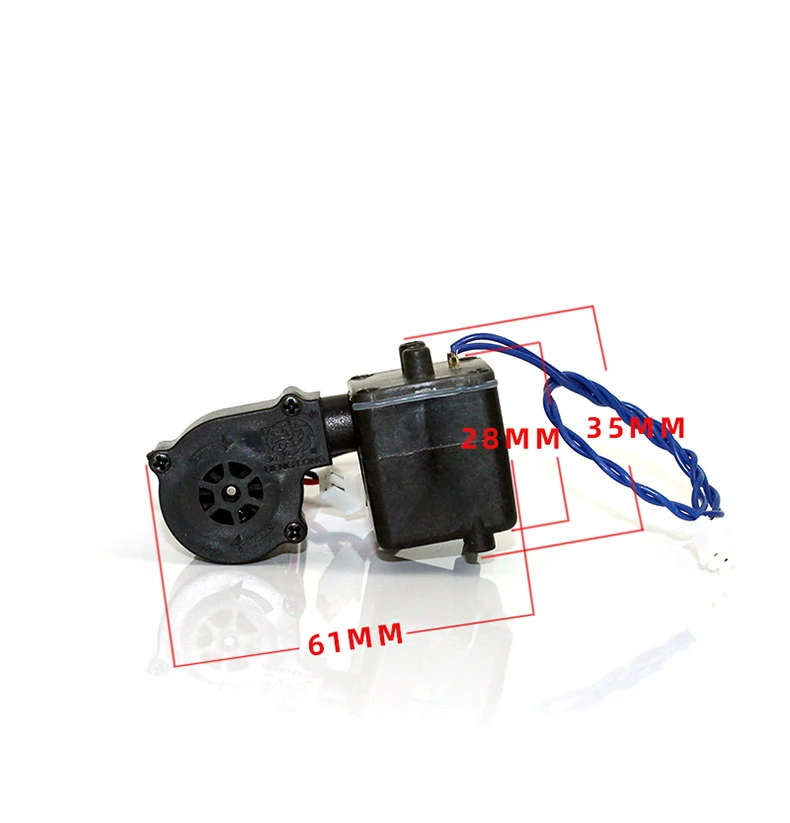

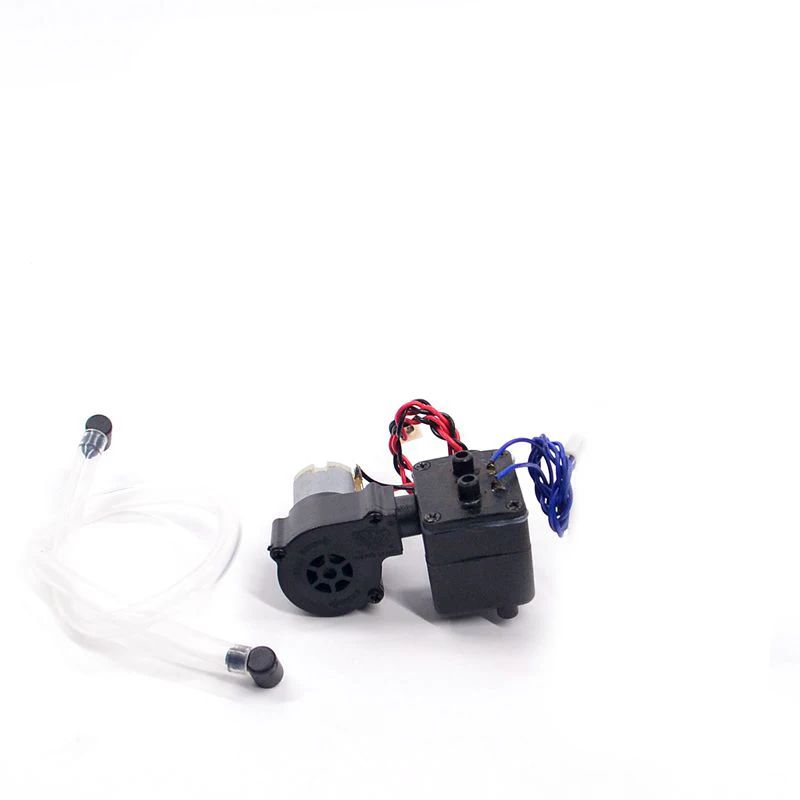

Henglong Smoke Generator W Liquid Oil Step Down Board Smoker Machine for 1/16 HL Tank 6.0S/6.1S/7.0/7.1 RC Trailer/Truck

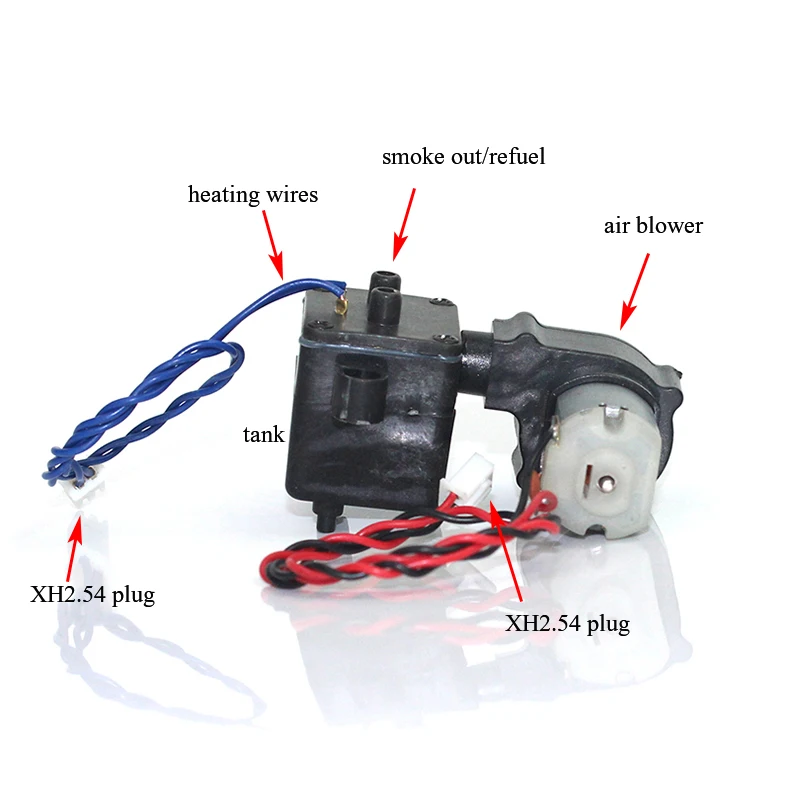

Smoke generator heat wire is 6V, blower voltage is 6V
Current for air blower is about 0.3A, heat wire requires about 1.2A
(It may be burnt if voltage is exceed 6V,it must use the voltage reduce plate if exceed 6V)

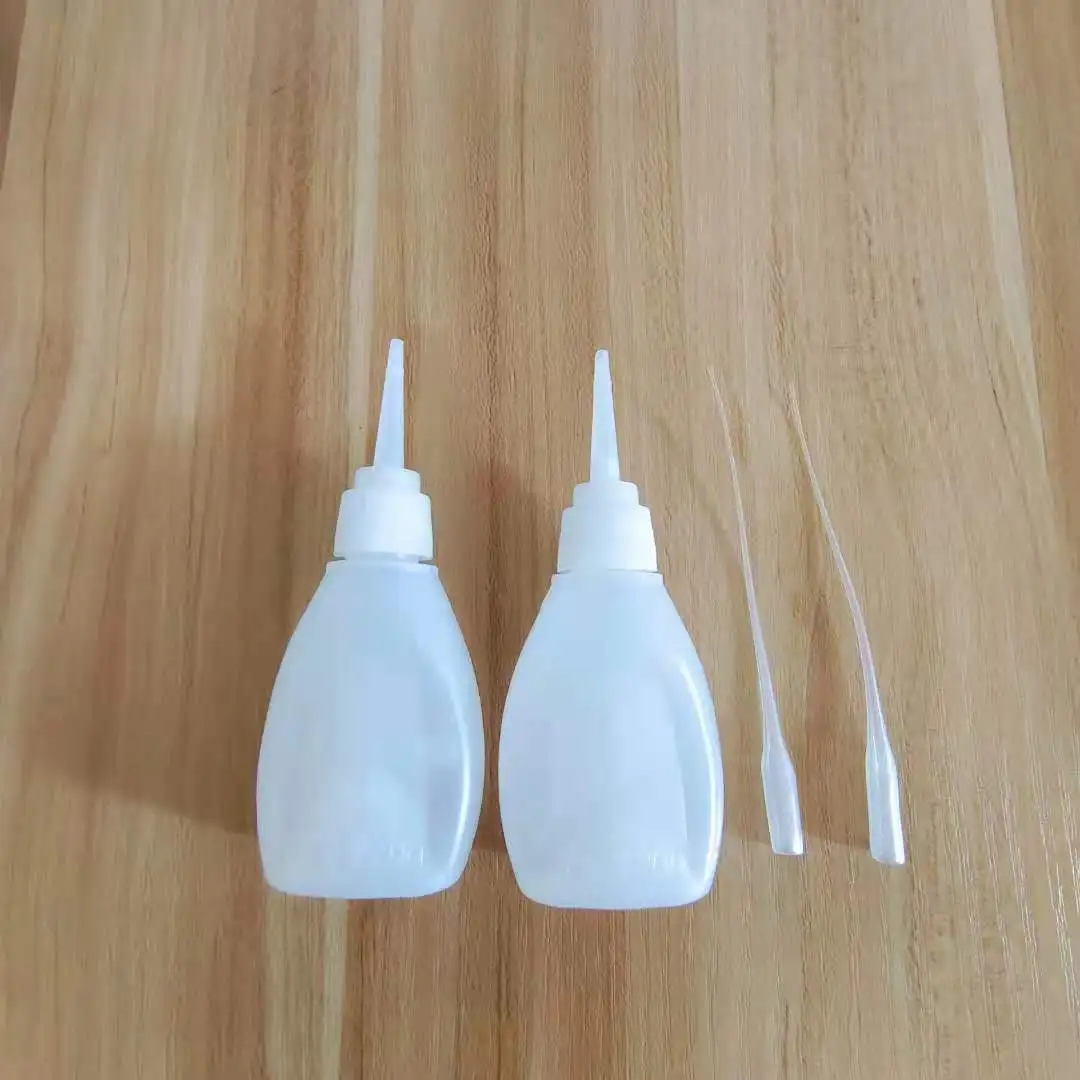

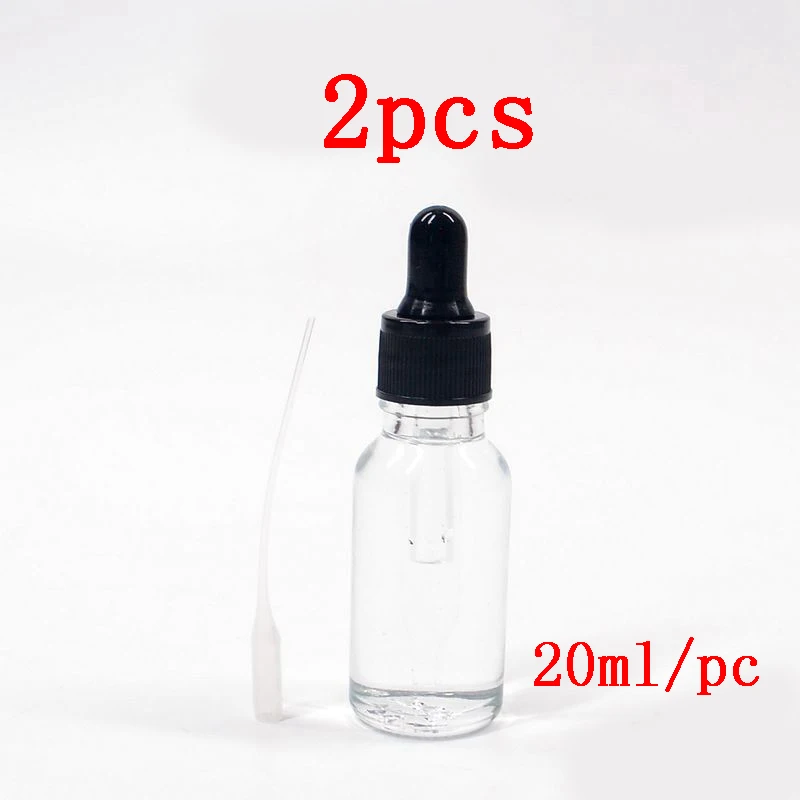

You need to add a little smoke liquid inside,so that it will come out smoke, if no liquid,no smoke can be generated. Do not add too much full!!!
It fit for 6.0S ,6.1S,7.0,7.1 main boards. If used for other trucks, please make sure voltage can not be exceed 6V!

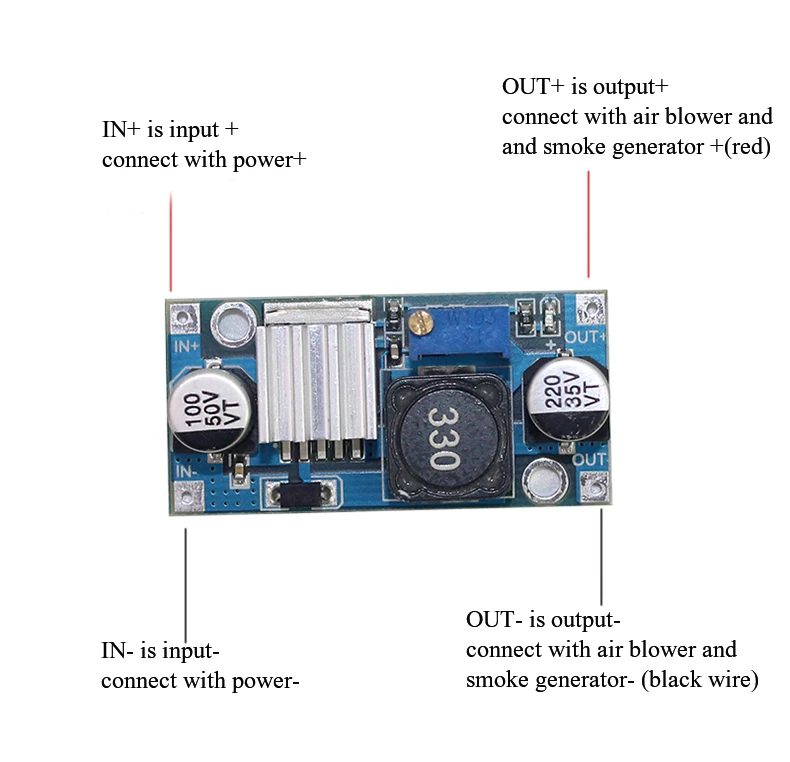

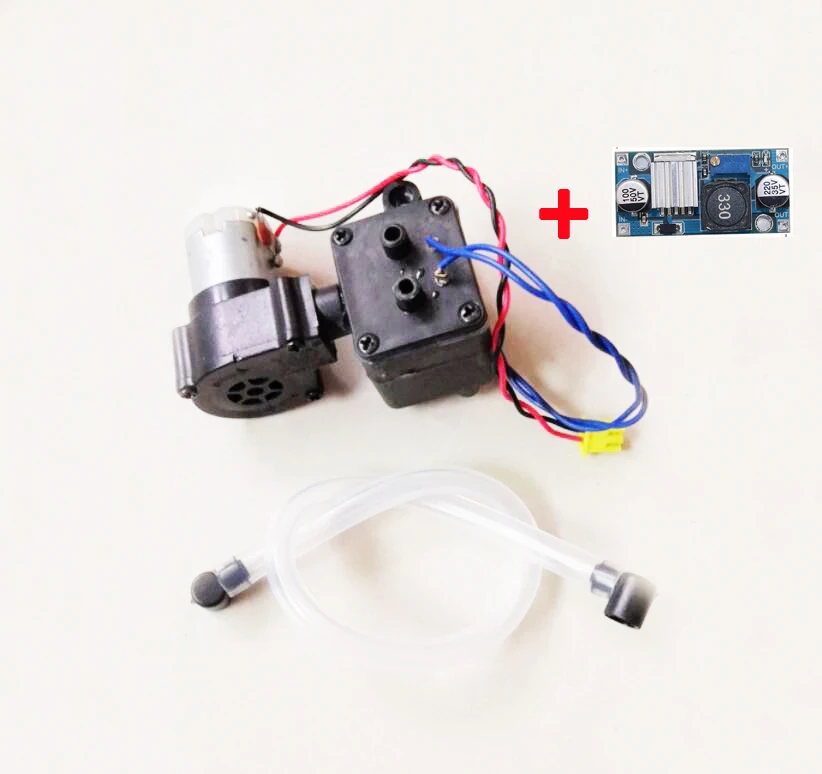

For 5.3,6.0 ,and 6.1S(without 160A letters on the shell) main board,it must be used with the voltage reduce plate, connect the heat wire to the voltage reduce plate(default output is 6V).Connect heating wire and blower motor in parallel to the voltage reduce plate OUT +-. Connect the IN+- with mainboard port for smoke generator
(the color for the plastic housing of the smoke machine maybe a little different as the picture shown, please kindly note this.)

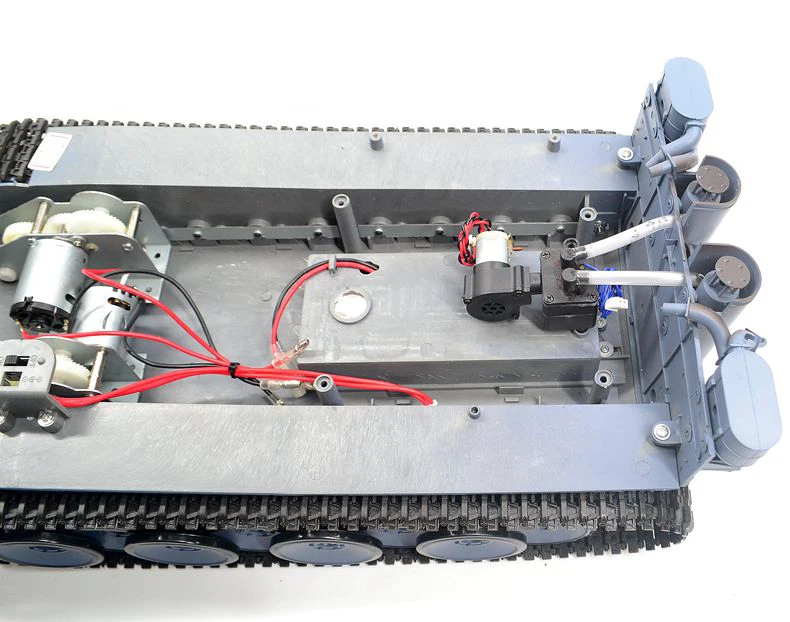

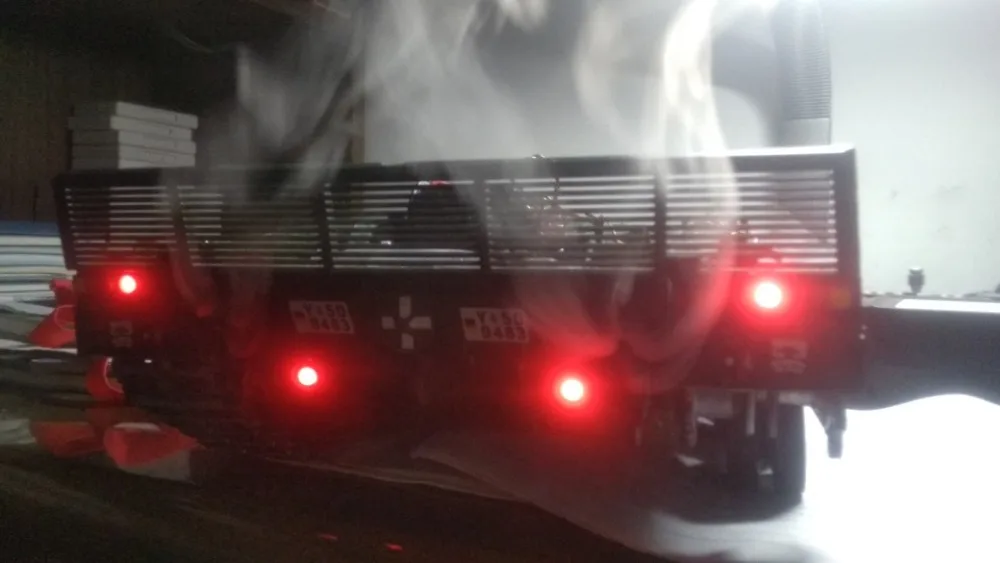

Installed show as below,

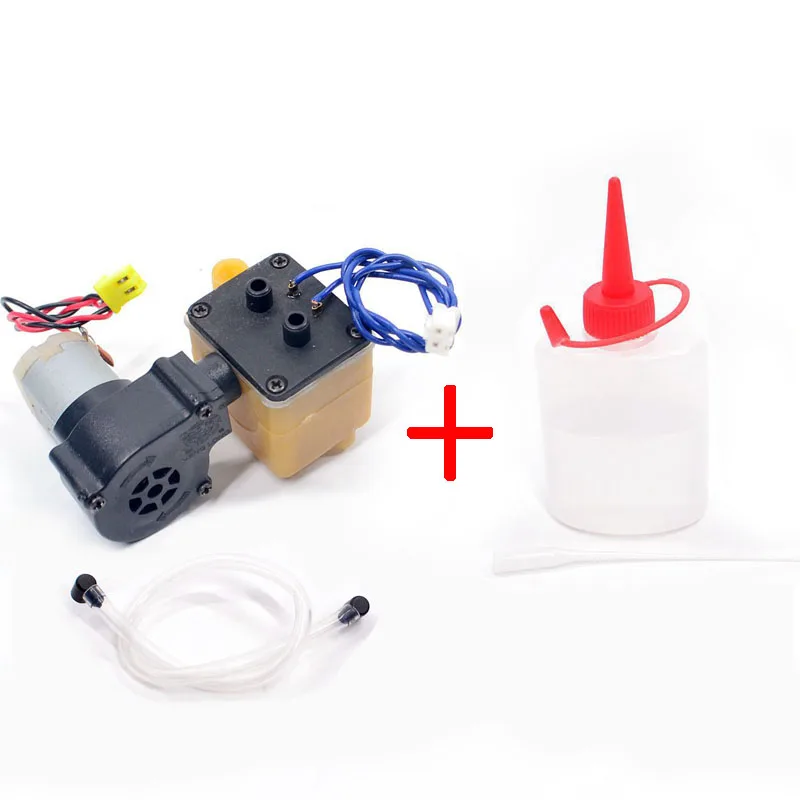

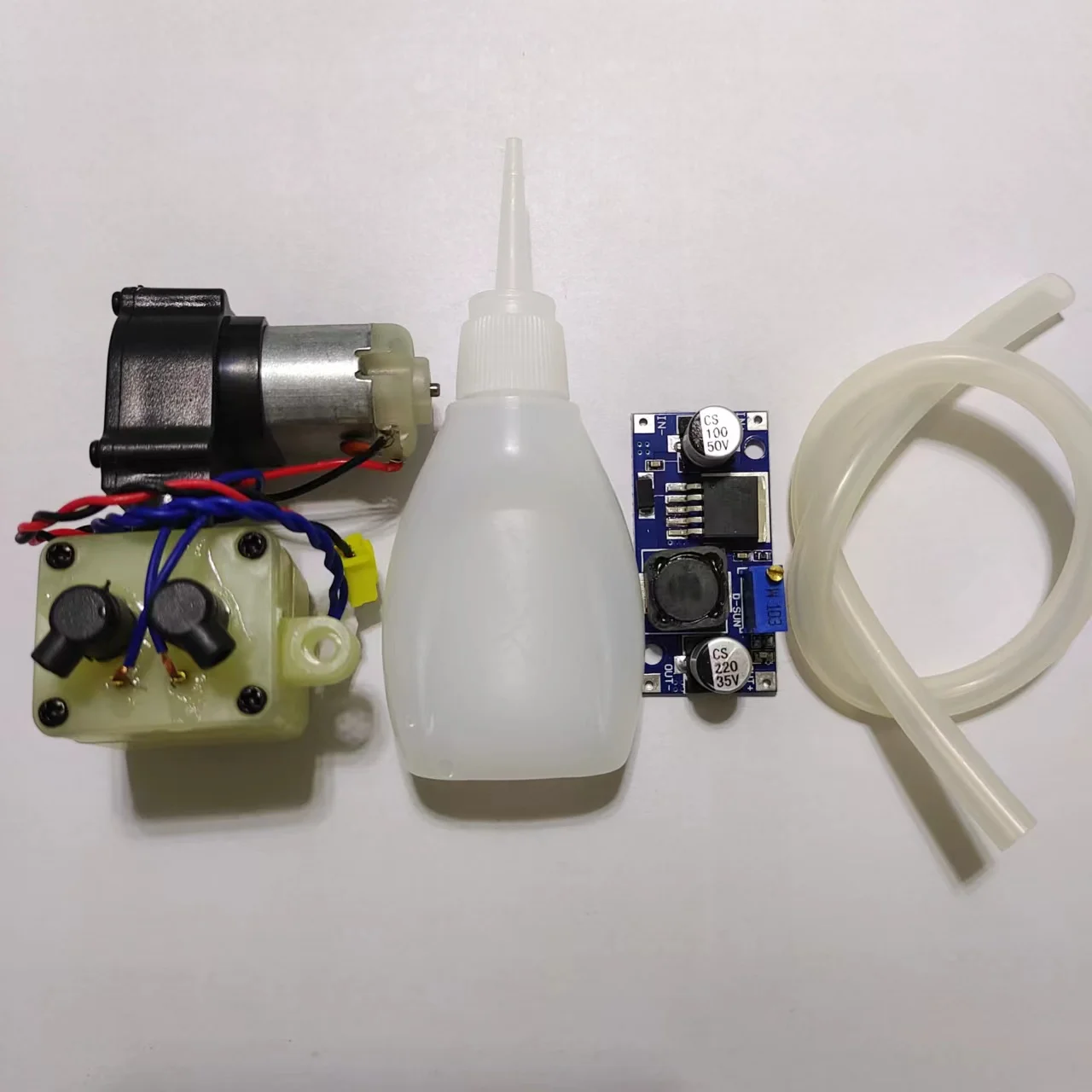

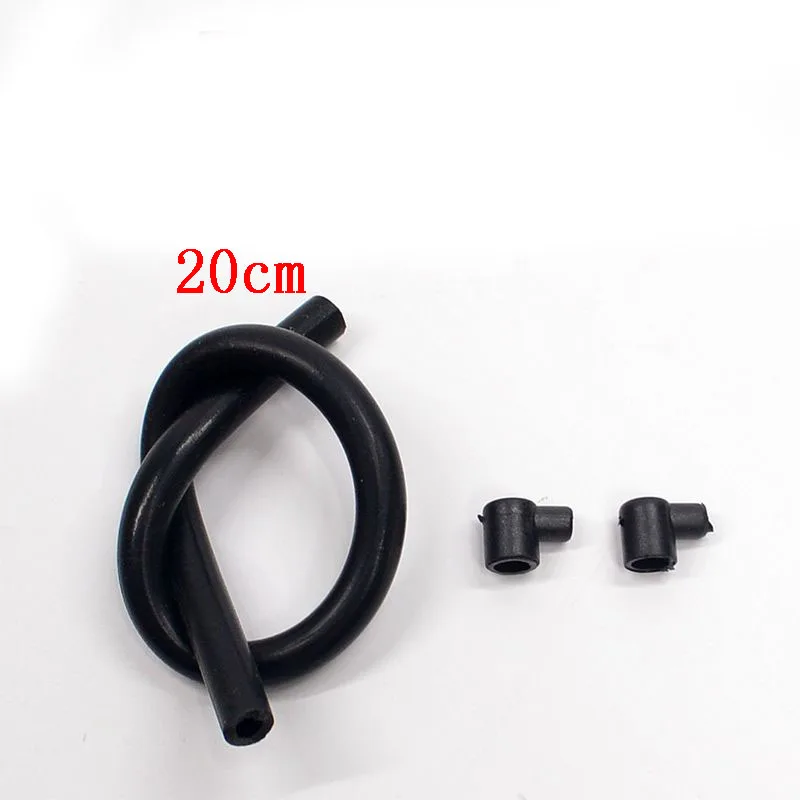

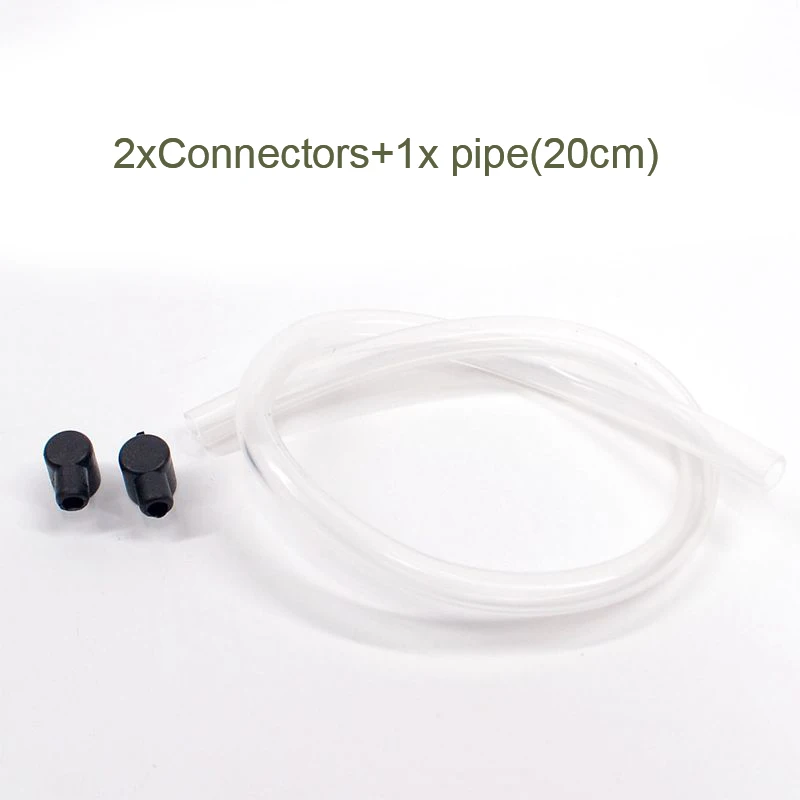

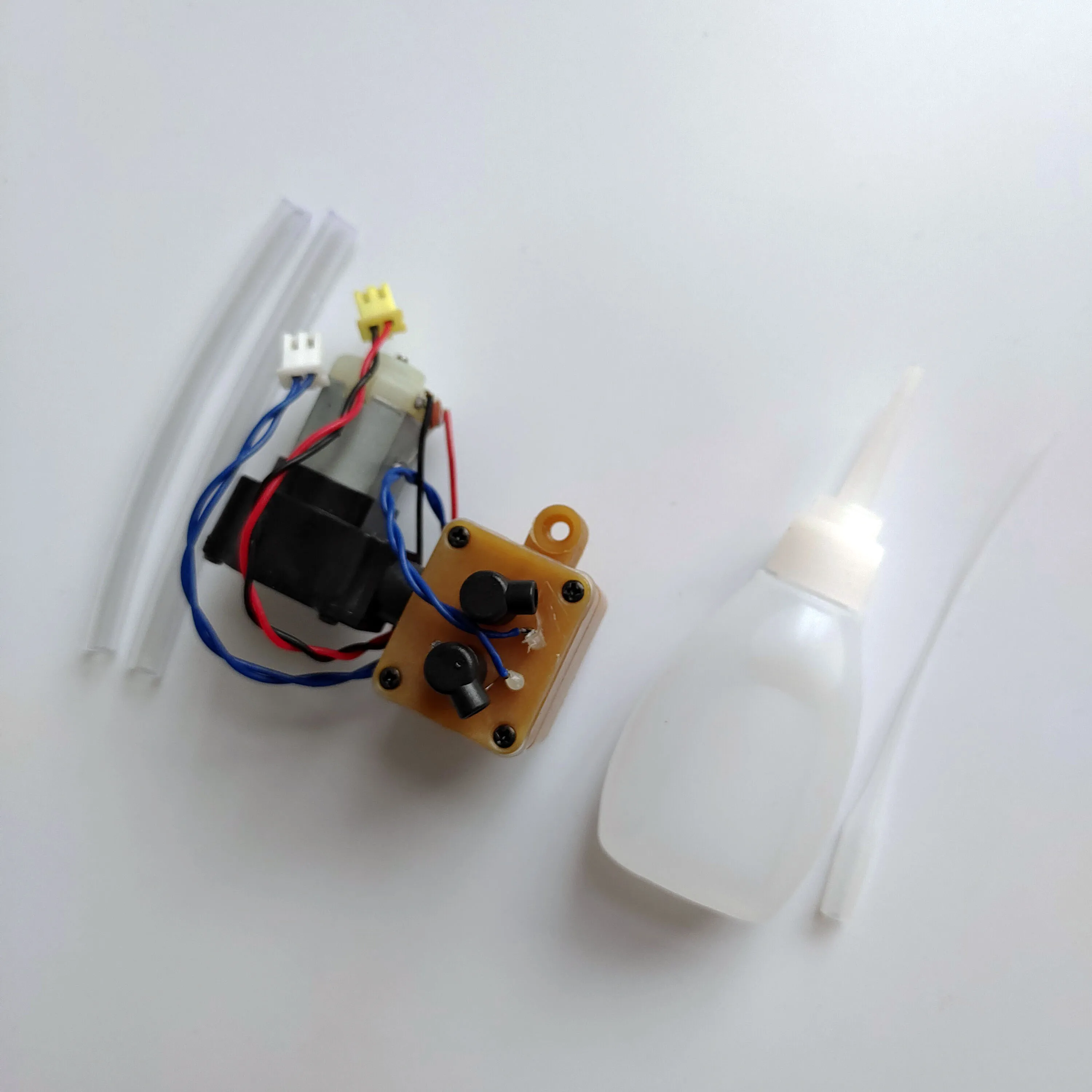

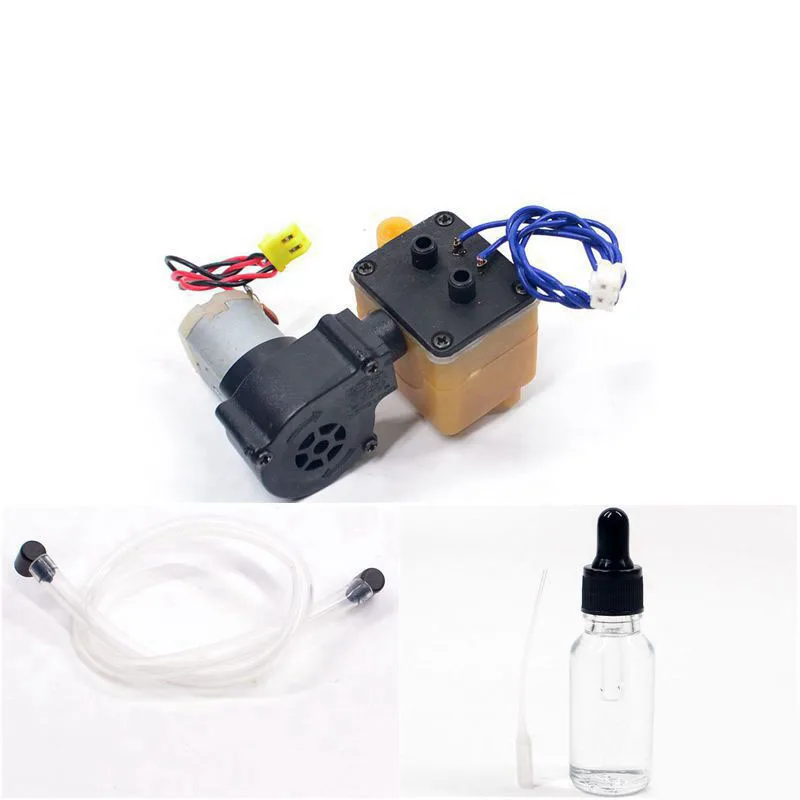

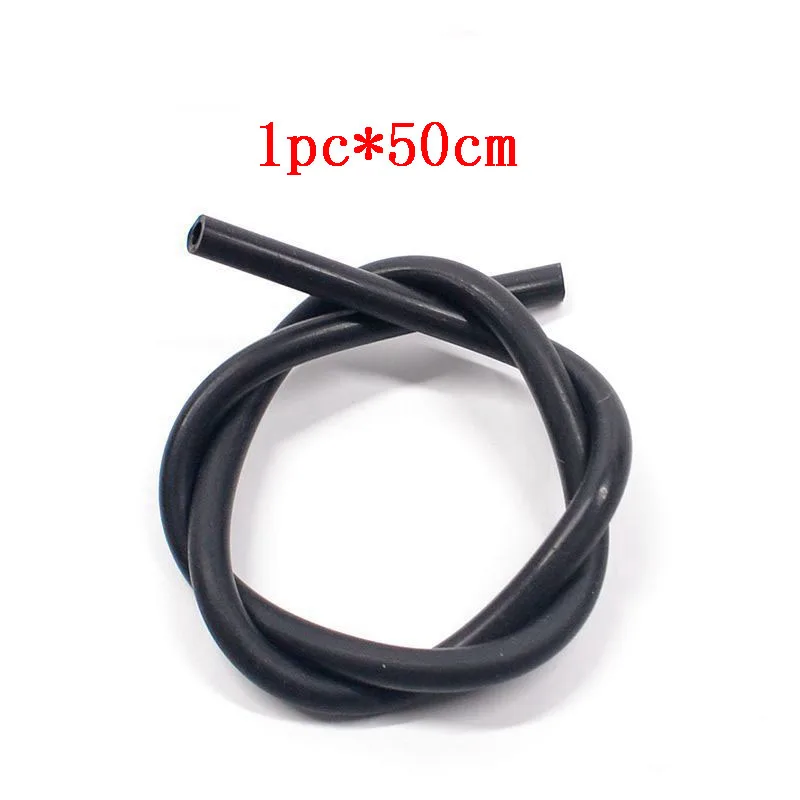

Package include items show in the option’s picture.
(the tank model in above pictures is excluded.)
