1-30 Mhz Manual Antenna Tuner Kit for HAM RADIO QRP DIY Kit QRP Manual Tuning kit with Standing Wave Indicator
Foreword:
Days can tune to the original non-resonant antenna by adding the appropriate inductance or capacitance so that the radio can work properly. The original resonant antenna, the antenna has changed due to outside influences, the SWR can be amended. Can be used as a band-pass filter, the emission can reduce unnecessary radiation outside the band, the cross-modulation and interference-band receiver can be reduced again.
Days tune kit comes with the standing wave directions, using a T-type topology network, shortwave 1-30MHz, can withstand the transmit power of 15W, the tuning range of approximately 40-300 ohms, can be very convenient for QRP communication, to ensure high efficiency radio transceiver in communication, but also allows you to fully enjoy the fun of DIY.
This kit requires some soldering electronic technology, will recognize the device, it will weld, the basic need debugging, as long as careful assembly according to package instructions can succeed. If the novice find weld on the error, intended to build the first not handle, please contact customer service personnel will get the appropriate technical guidance.
This kit welding, making easy to understand, easier to learn, easy to use. Comes with standing instructions, Q9 type interface (such as the need to be self to M-type interface), using T-topology networks, QRP facilitate communication with the low-power transceiver (shoes, frogs, octopus, etc.) used to make transceiver and antenna valid match, meet your emission requirements, ensure a highly efficient radio communications.
Key Features of this manual antenna turner:
Days when exposed to direct transfer power: <20W
Day tune tuning the input power: <3W
Tuning indication: LED display
Interface: Q9 type
Operating frequency: 1-30MHz
Antenna Interface: Q9 type
Match the antenna impedance range: about: 30 ~ 300Ω
Carrying RF power: less than 15W
Tuning required RF power: less than 3W
Instructions:
1. Dial the Key to the standing wave test, connect the transceiver and antenna
2. Press the power button to launch (the SSB machine makes a call), repeatedly adjust the multi-switch and two knobs, and stop tuning when the red LED has the lowest brightness
3. Turn the Key to normal use, and the antenna tuning is completed.
Note:
1. When punching the Q9 seat, be careful not to punch too much, you need to carefully repair the straight edge inside the hole
2. If you need to connect to the M head, you can change the Q9 to the M seat by yourself
3. Fix the LED with hot melt glue or glue
4. In actual use, the current tuning range is about 40-300 ohms. If you need other parameters, please adjust the number of turns of the inductor yourself.
5. When performing a standing wave test, the input power must not exceed 5W! Don’t test for a long time

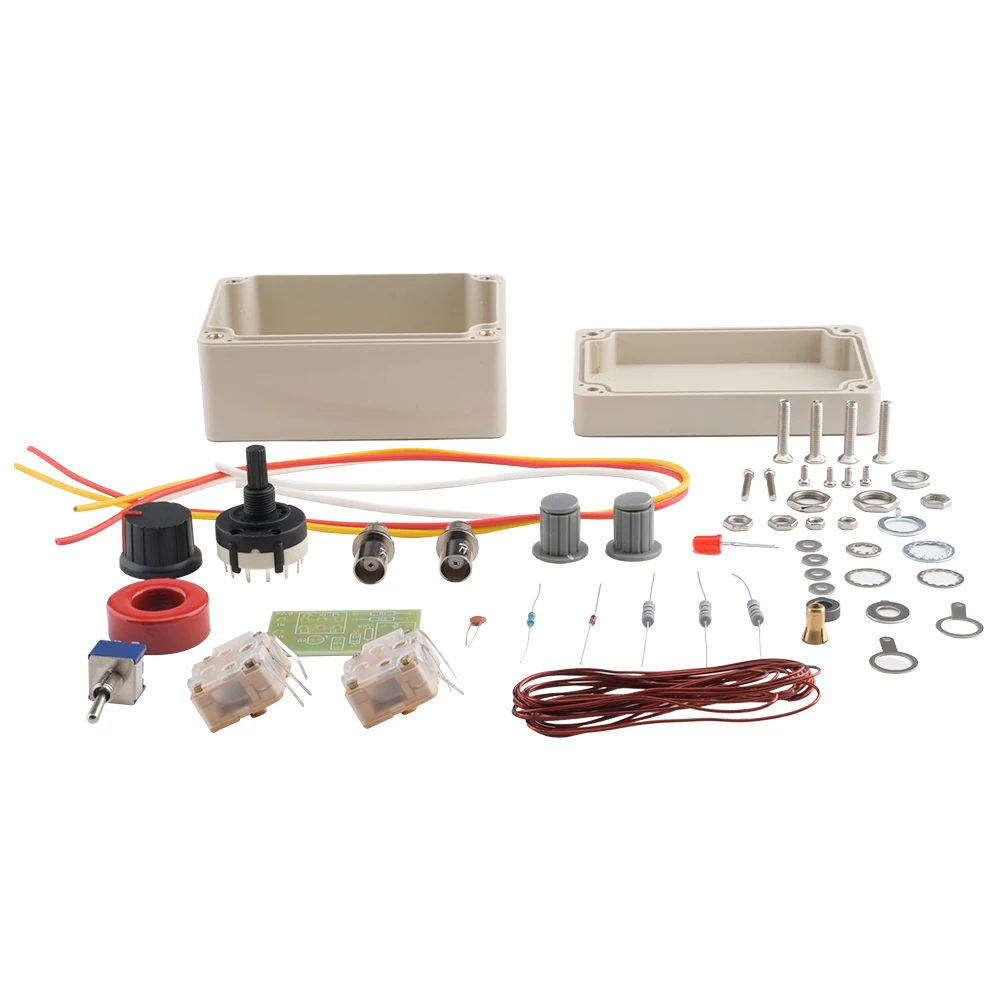

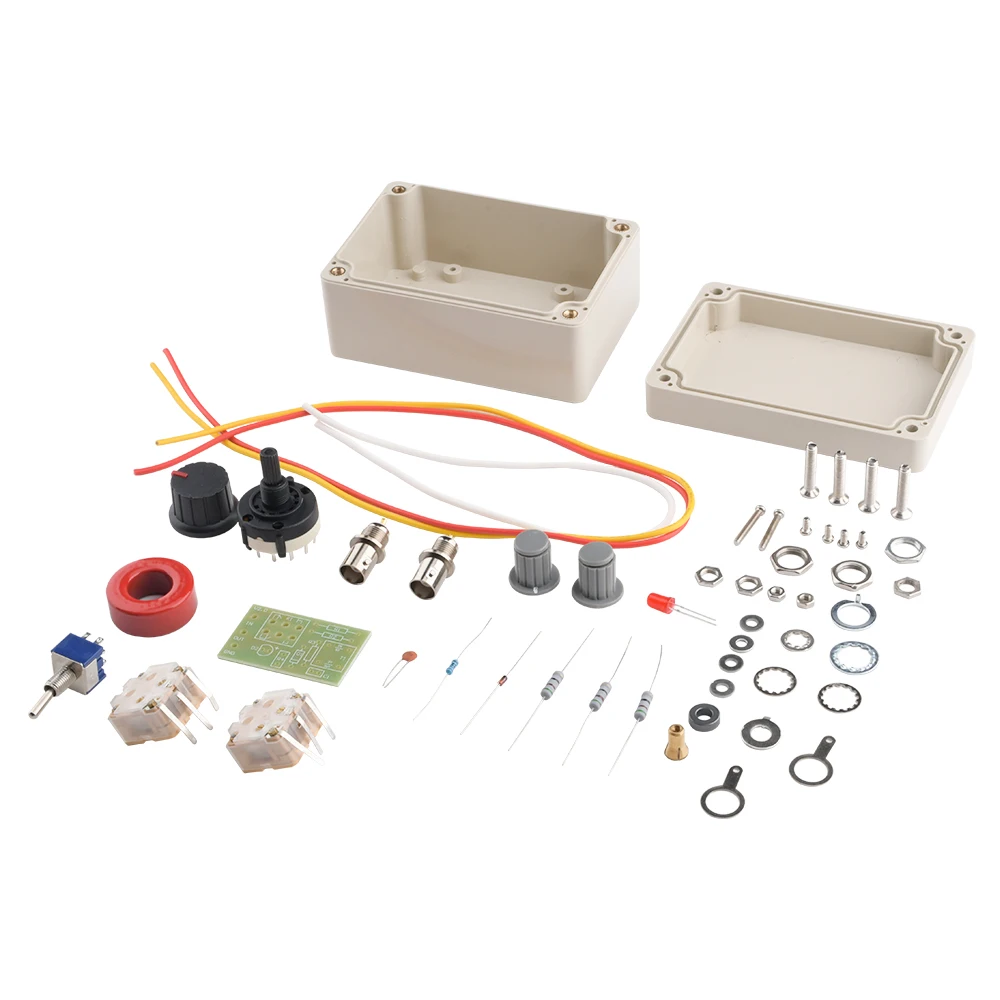

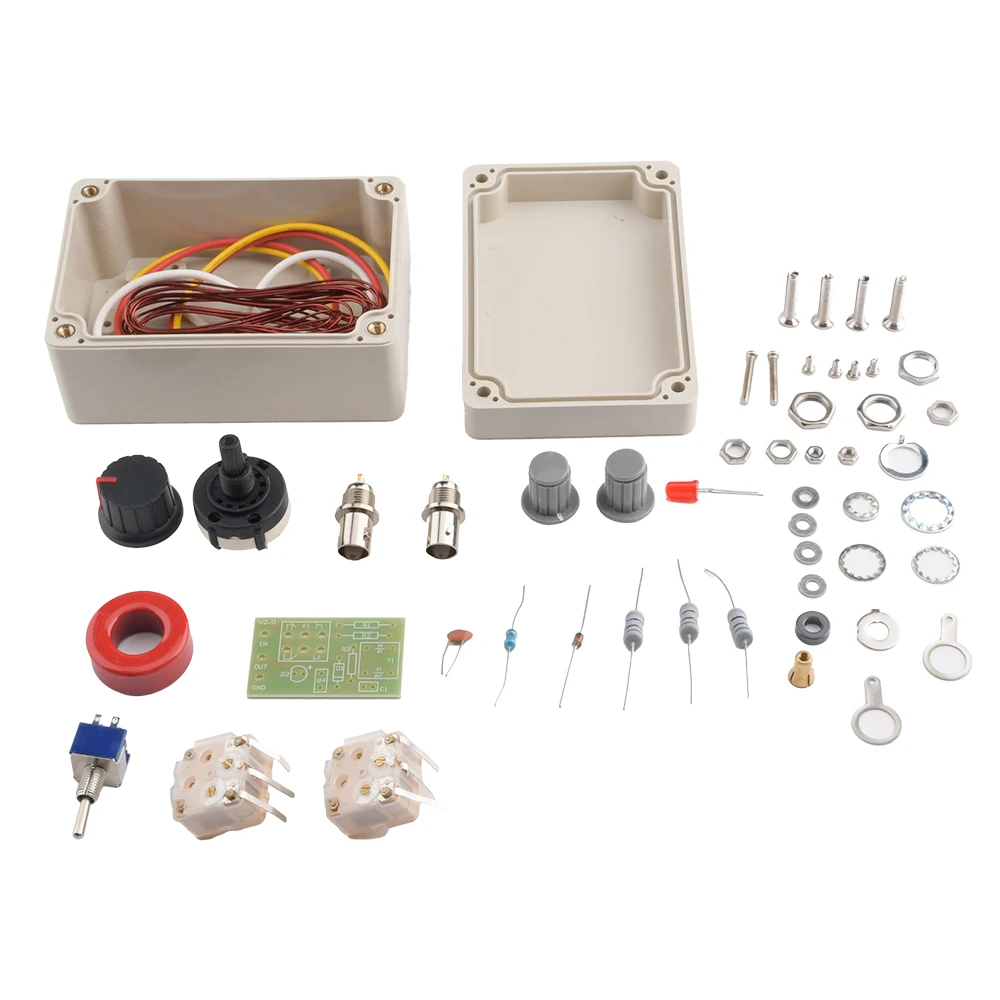

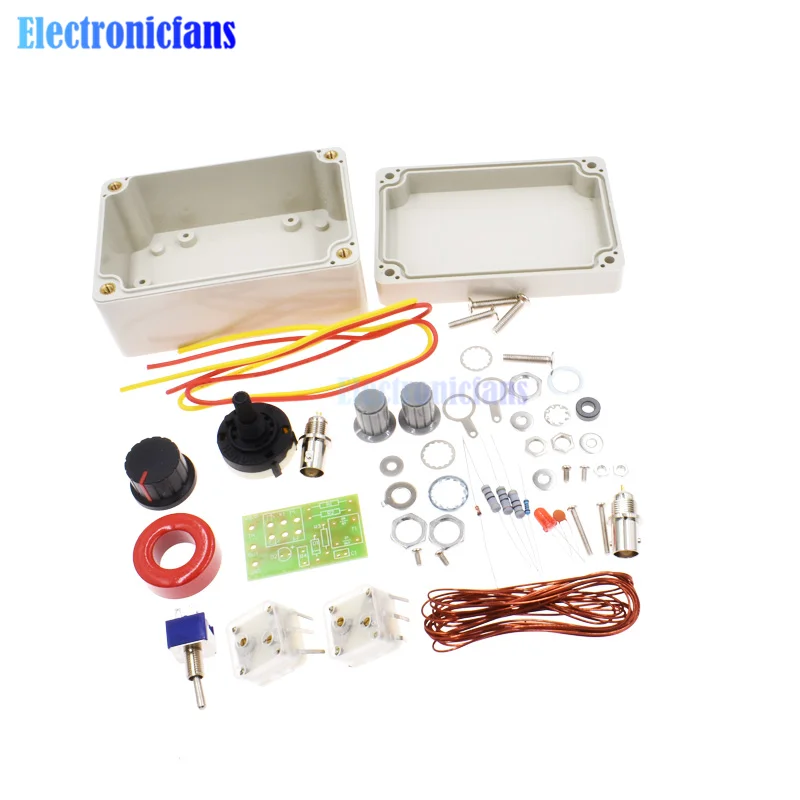

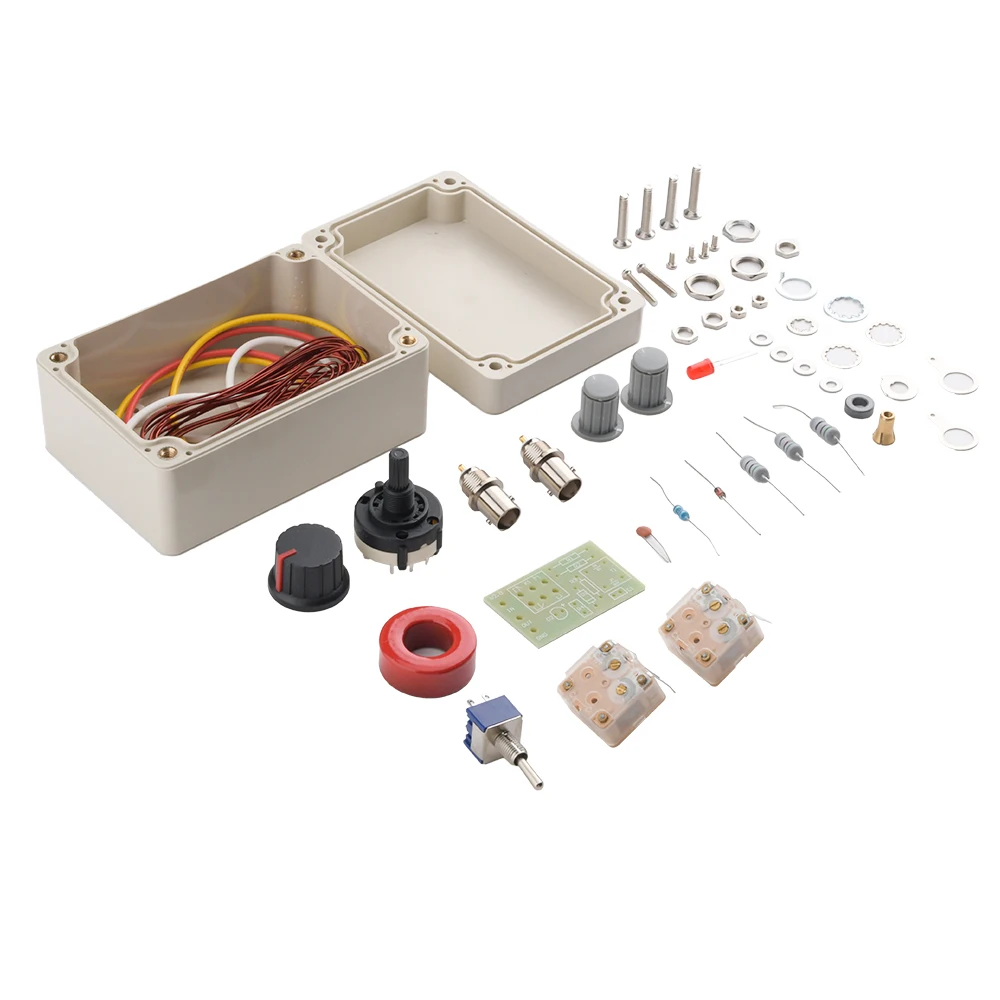

This kit includes the original as follows:

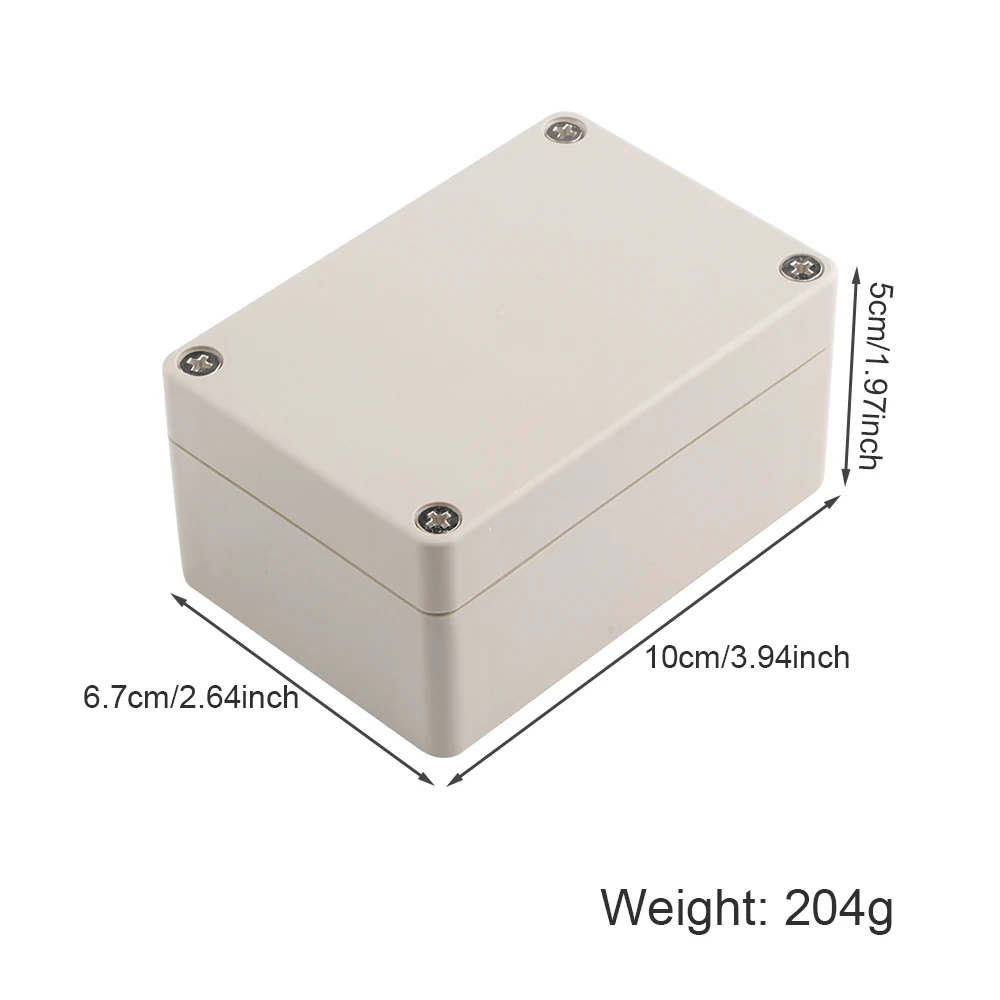

A waterproof sealed box
Stickers (used to determine the position of the transfer hole) 1
Q9 Block (lug) 2
Ordinary wire segment
Variable capacitor 2
2 small knob
0.25 countersunk head screws (for fixed variable capacitor) 4
The 0.25 head screws 2
0.3 gasket 4
0.3 nut 2
Multi-knife switch (12 stalls) a
A large knob
T106-2 the toroid (red) 1
0.5 enameled wire, Section 1,
A circuit board (standing wave indicator)
A stall switch
The red light emitting diode 1
51 ohm 2W resistor 3
FT37-43 toroid (Black) 1
1K resistor (light-emitting diode current limit) a
1N60 1
0.1u capacitor 1
