Convert your traditional bicycle into a powerful electric bike with our smart electric front bicycle wheel! It’s designed to replace normal wheel for longer mileage and faster speed. Powered by a 350W motor, it can achieve up to max 40km mileage at moped mode. And with the help of App, your cycling journey will be more wonderful than you expect.
Specification
● Brand: JUESHUAI iMortor
● Type: electric bike conversion kit Front Wheel
● Material: rubber tire, aluminum alloy hub, ABS + PC motor shell
● Applicable: 24″, 26″, 27.5″, 29″, 700C mountain bike, road bike, city bike etc.
● Applicable Condition: Front fork with a drop out of 10*100mm quick released
● Battery: 36V / 259.2Wh / 7200mAh lithium-ion battery ( included )
● Charger: EU/US/UK/AU Charger
● Motor: 350W brushless DC motor
● Max speed: 40km/h
● Range: 50km
● Net Weight: 8kg
● Gross Weight: 12.9kg
● Max load: 180kg
● Package Size(L x W x H): 70 x 70 x 22 cm
Choose Your Favorite Connection Mode
Option-A(one wire)
● The multifunctional LCD installed on the handlebar together with the throttle, enable your easy operate of the pedal assist, and view the speed, mileage etc.
● No PAS/ No Brake Sensor
Option-B( wireless)

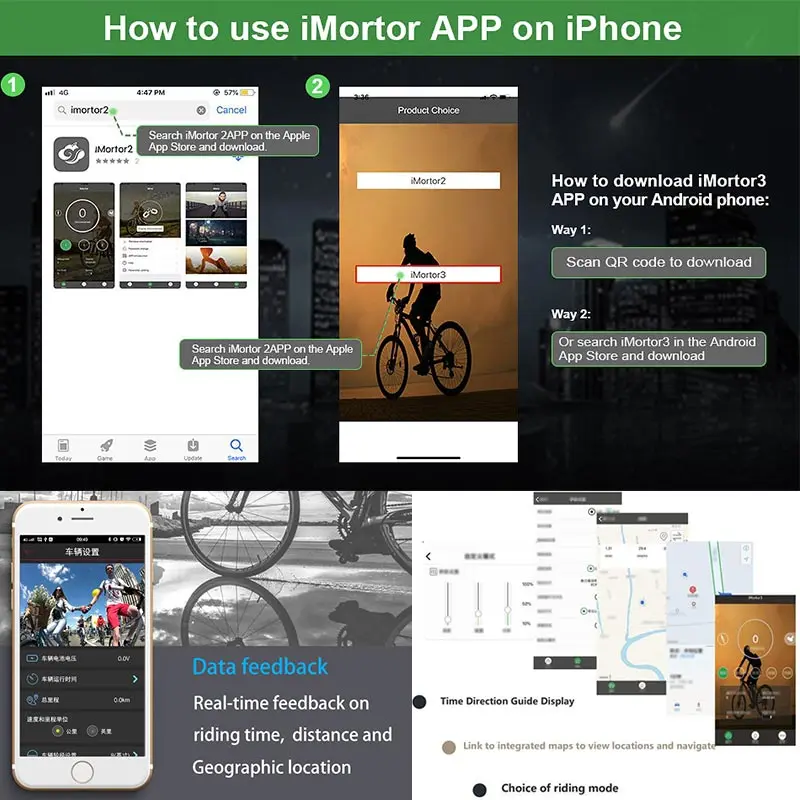

● Bluetooth APP, supporting Android and iOS system
● The mobile APP can show electricity, voltage, riding time, speed, mileage and so on.
● You do not need to connect any wires with the APP.
● No PAS, No Display, No Brake Sensor
Package Contents
1 * Hub Motor
1 * Front Wheel with Tire
1 * Charger ( EU/US/UK/AU plug)
1 * Battery
1 * Phone Holder ( for the APP version only)
1 * LCD display with thumb throttle ( for the LCD version only)
1 * Set of the Installation tool
1 * Manual
FAQ
If I choose the BlueTooth APP, could I use the throttle/ accelerator?
Re: No, there is no throttle/ accelerator, just pedal assist only. You could set the assist level on the phone APP (iMortor3).
Convert your traditional bicycle into a powerful electric bike with our smart electric front bicycle wheel!
Just 1-Click Button to turn on/off.
The battery & motor & controll are still all in the front wheel.
The electric Front wheel is compatible with all bluetooth versions & Android / IOS systems. It also supports languages: Chinese, Korean, Italian, English.
● The Detachable Lithium Battery of the Imortor 3.0 Electric Bike Front Wheel kit is upgraded from 3.2ah to 7.2ah which enables Longer Battery Life and Riding Distance: Rated Speed 25km/h, Max Range 40km
● Supplying with a cell phone holder with the USB port in the battery to charge your mobile device during a ride.
【Complete Authoritative Certification】We have obtained CE, ROHS, MSDS, UL, UN38.3 and other safety certificates, which not only to provide you with high-quality products, but more importantly, to protect your safety. In addition, the E-bike front wheel is fully enclosed treatment and IP65 waterproof, which enables stronger waterproof performance
【5 Speed Modes】Physical Exercise – 6.25-9.38/mile/h(10-15km /h) ,ECO – 9.38-12.5mile/h(15-20km /h) ,Economy – 12.5-18.75mile/h(20-30km /h) ,Sports – 18.75-21.88mile/h(30-35km /h), Climbing – 21.88-25mile/h(35-40km /h)
FOC intelligent drive controller for depth customization. Fully Intelligent Induction Control. Excellent Temperature Control Ability. More Stable Motor Performance
【Packaging List】Includes whole front E-bike Front wheel (including tire), lithium battery, charger, installation accessories, manual
LCD display with thumb throttle ( for the LCD version only)
Phone Holder ( for the APP version only)
Must-Read Before Purchase
● The width range of front fork should be 8.5CM-11CM. If it’s ledd tan 8.5CM or more then 11CM, then you will fail to install the iMortor E-Bike Wheel Kit
● Socket Groove should be 1CM in width. If not enough. Please polish it to the proper width yourself
FAQ
1. My bike is 28 inch, which one could I choose?
Re: Mostly, you could choose the 700C rim (inner diameter- 598mm, outer diameter- 652mm). But you Could send us the detailed specification of your tire for confirmation.
2. Could I choose a 20″ rim and tire?
Re: No. The iMortor 3 does not have the 20inch wheel because the 20inch rim too small to make a good wheel with the spokes.
3. Does the iMortor wheel fit my bike?
Re: The iMortor3 front ebike conversion kit available for various kinds of city bikes, mountain bike, road bike which with front fork dropouts of 100mm/10mm quick released, tire size 24″, 26″, 27.5″, 29″, 700C.
4. How to choose the right wheel and tire(tyre) size?
Re: To make sure you order the right size of tire, you can see the marks your bike tire
