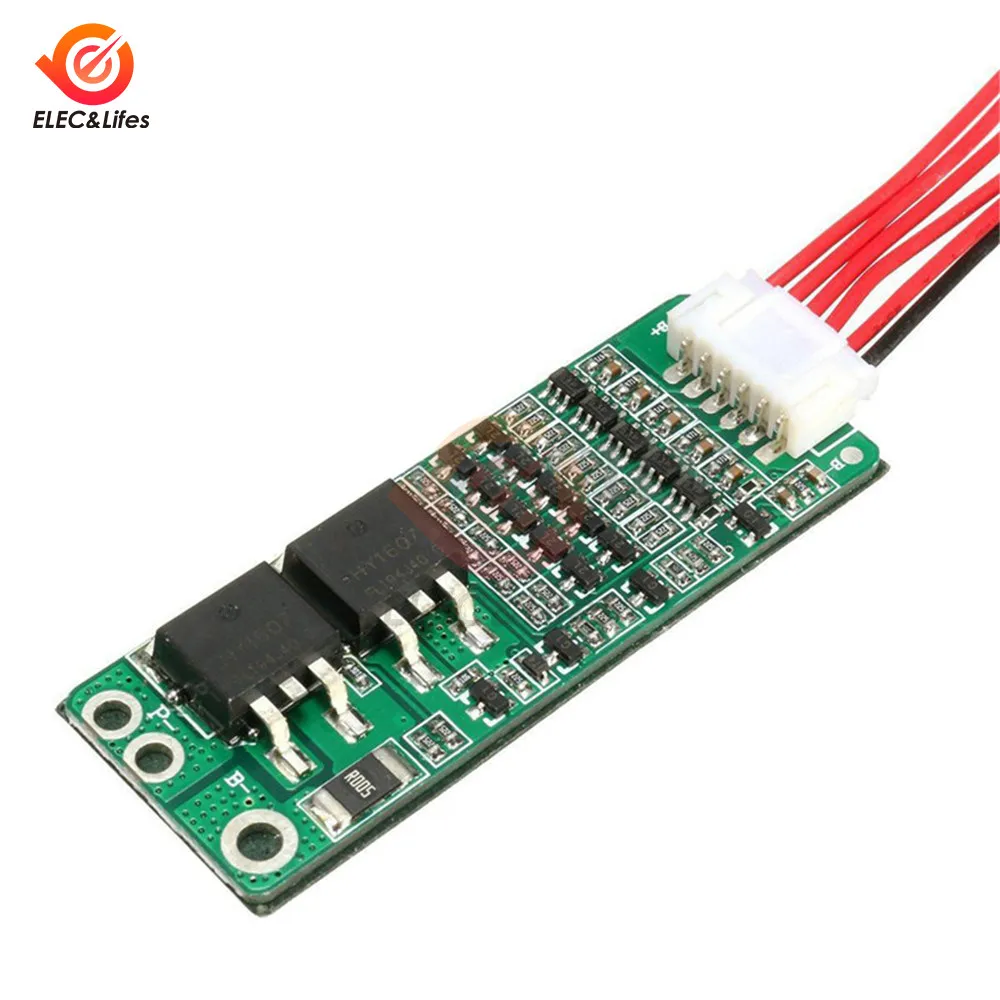

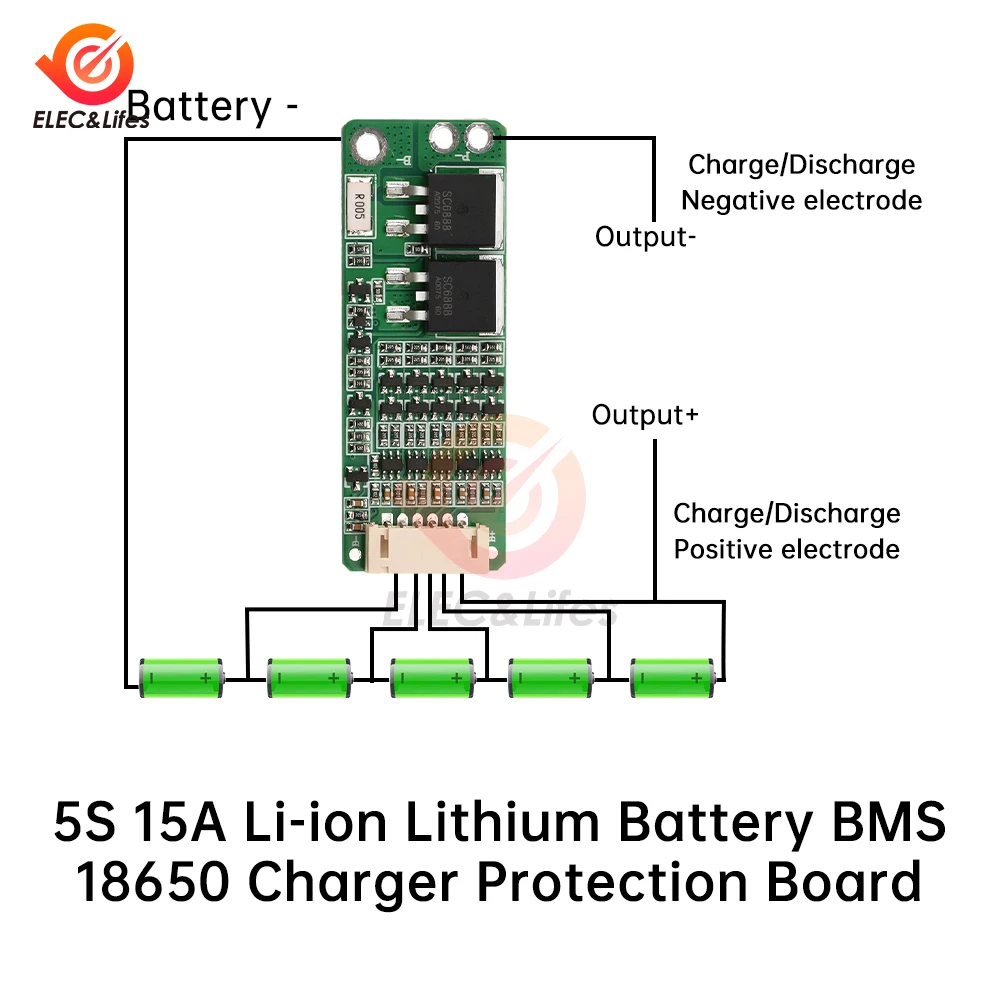

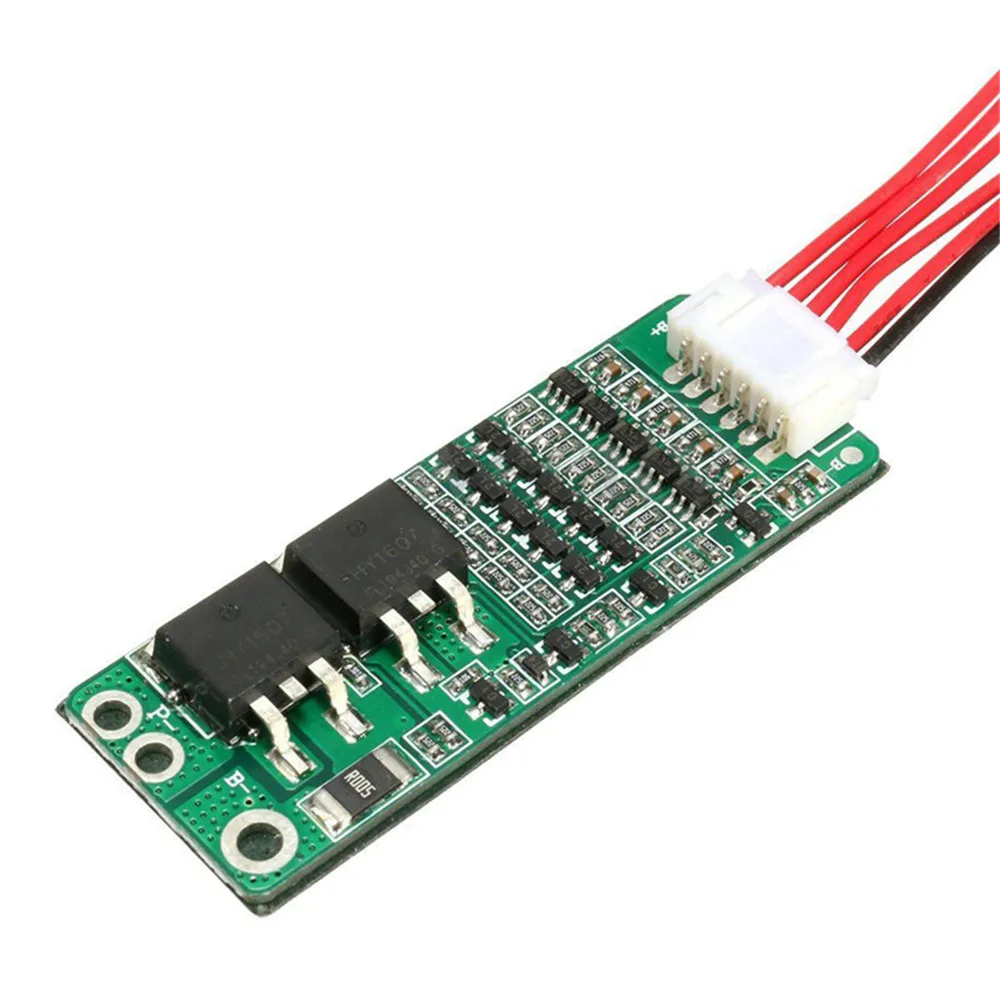

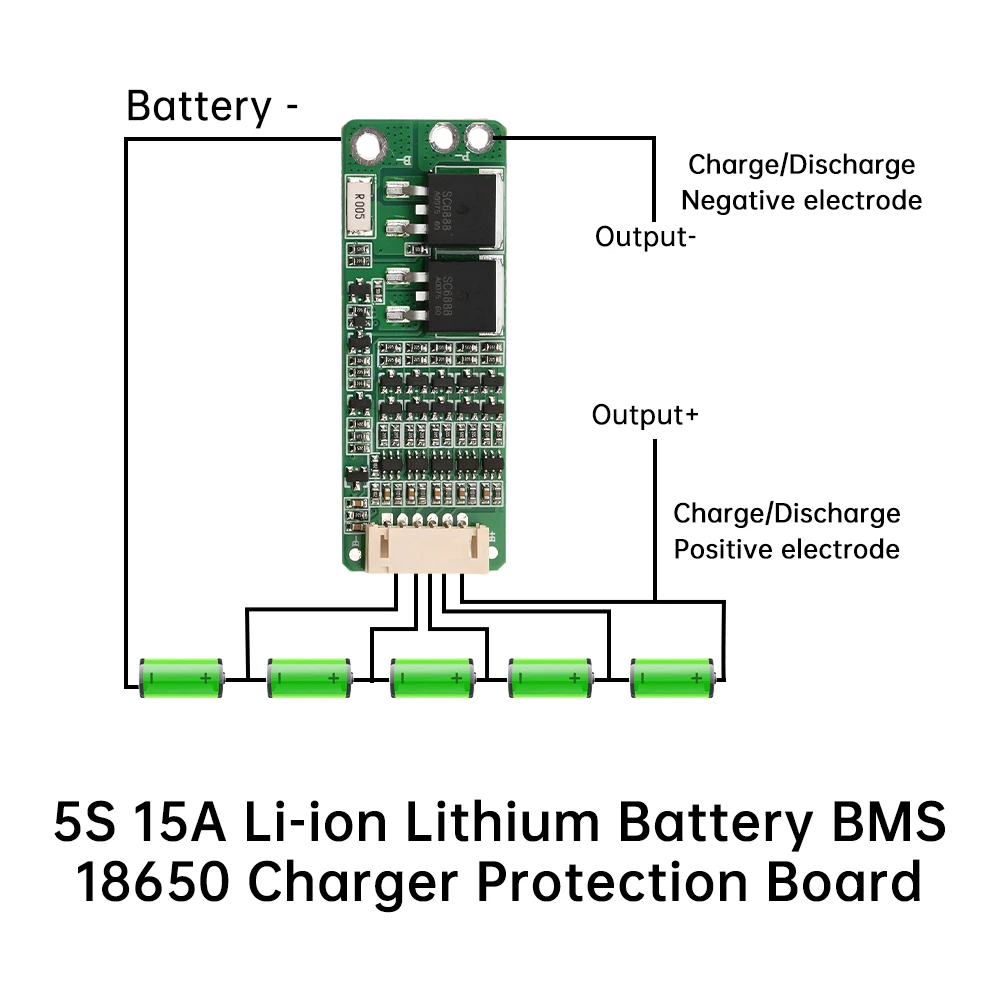

5S 15A lithium battery
Product selling points:
1.100% brand new high-quality products.
2. Made of high-quality materials, durable and practical.
3. Small size, simple application, and easy installation.
4. Efficient and stable performance, long working life.
5. Short circuit, overload, overcurrent, short circuit, overdischarge, overcurrent protection.
Product parameters:
Charging voltage: 21 V
Charging MOS pressure value: 35 V
Discharge MOS pressure value: 35 V
Charging current: 56A
Continuous discharge current: 15A
Overcurrent protection: 50/55/60 A
Overcurrent protection delay: 20/25/30mS
Single section self consumption: 30uA
Power consumption between single sections: 3uA
Single stage overcharge detection voltage: 4.18-/4.22V
Overcharging recovery voltage 4.05-4.15 V
Overcharge detection delay: 0.5/1.0/2.0 seconds
Single stage over discharge detection voltage: 2.75-2.85 V
Overdischarge recovery voltage: 2.90-3.20 V
Overdischarge detection delay: 0.5-2.0S
Working environment (humidity) Relative humidity: ≥ 98% (long-term stable humidity)
Working environment (temperature) -30~80 ℃ (stable for a long time in a lower temperature range)

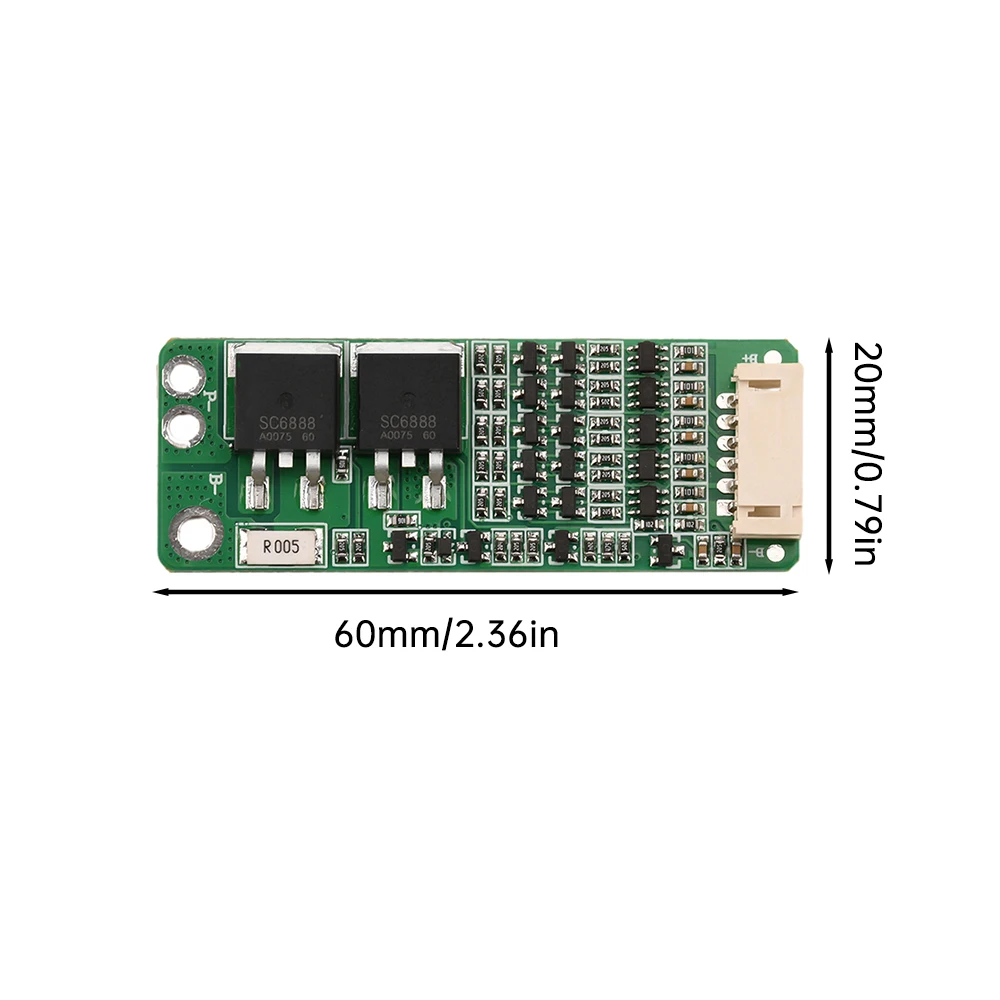

Size: Approximately 60 * 23 millimeters
Packing list:
Lithium battery protection board * 1

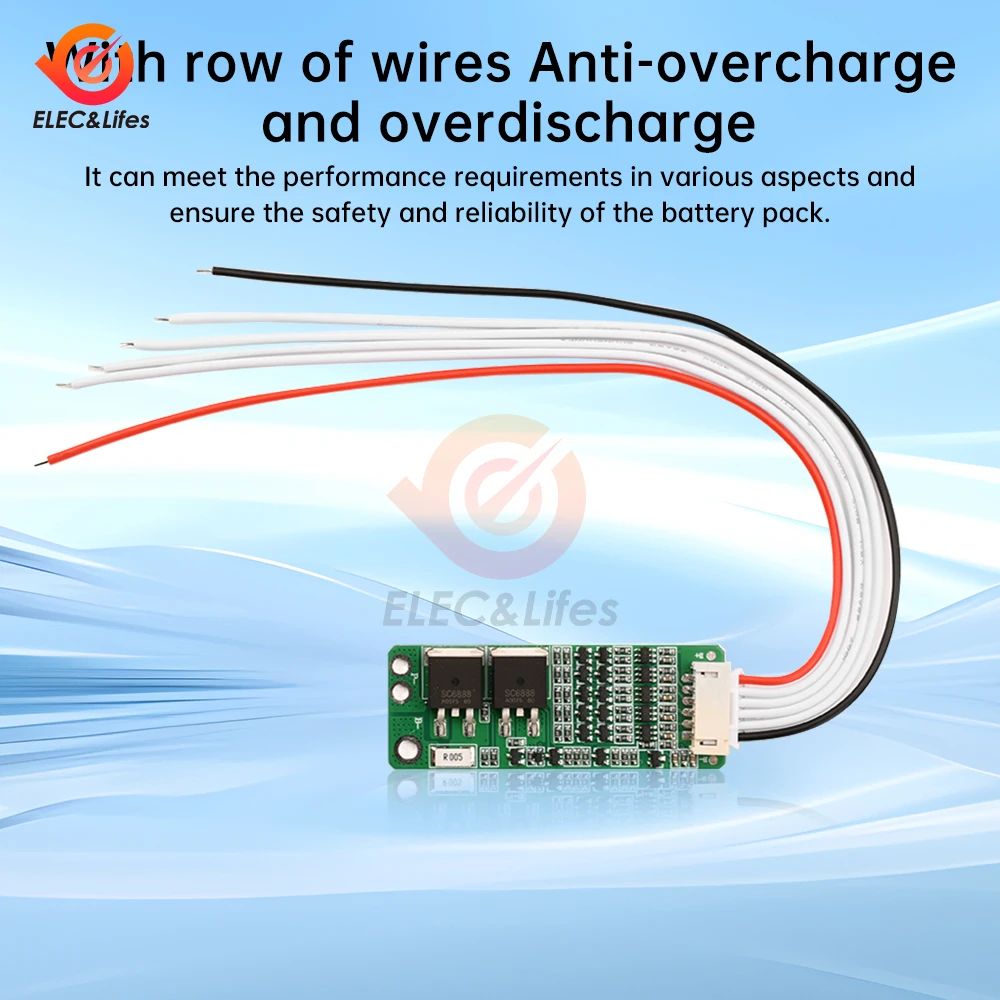

Wiring * 1

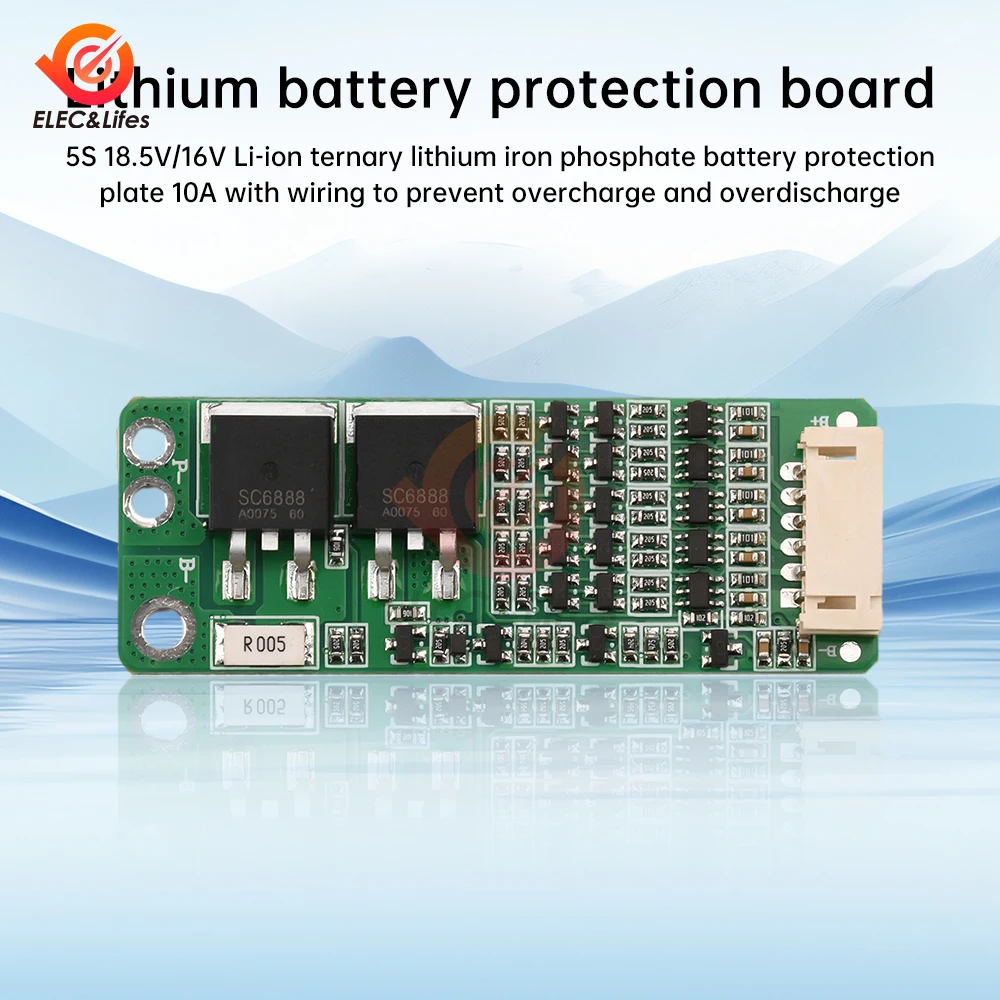

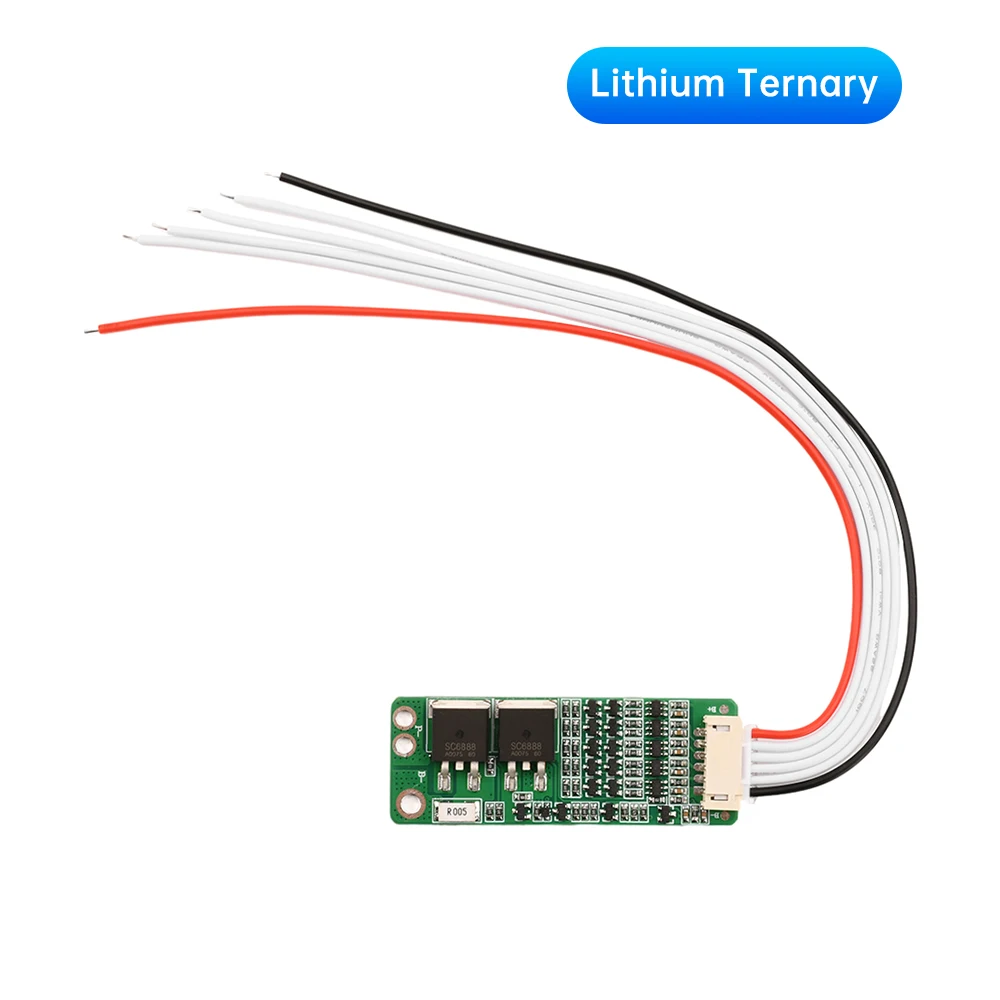

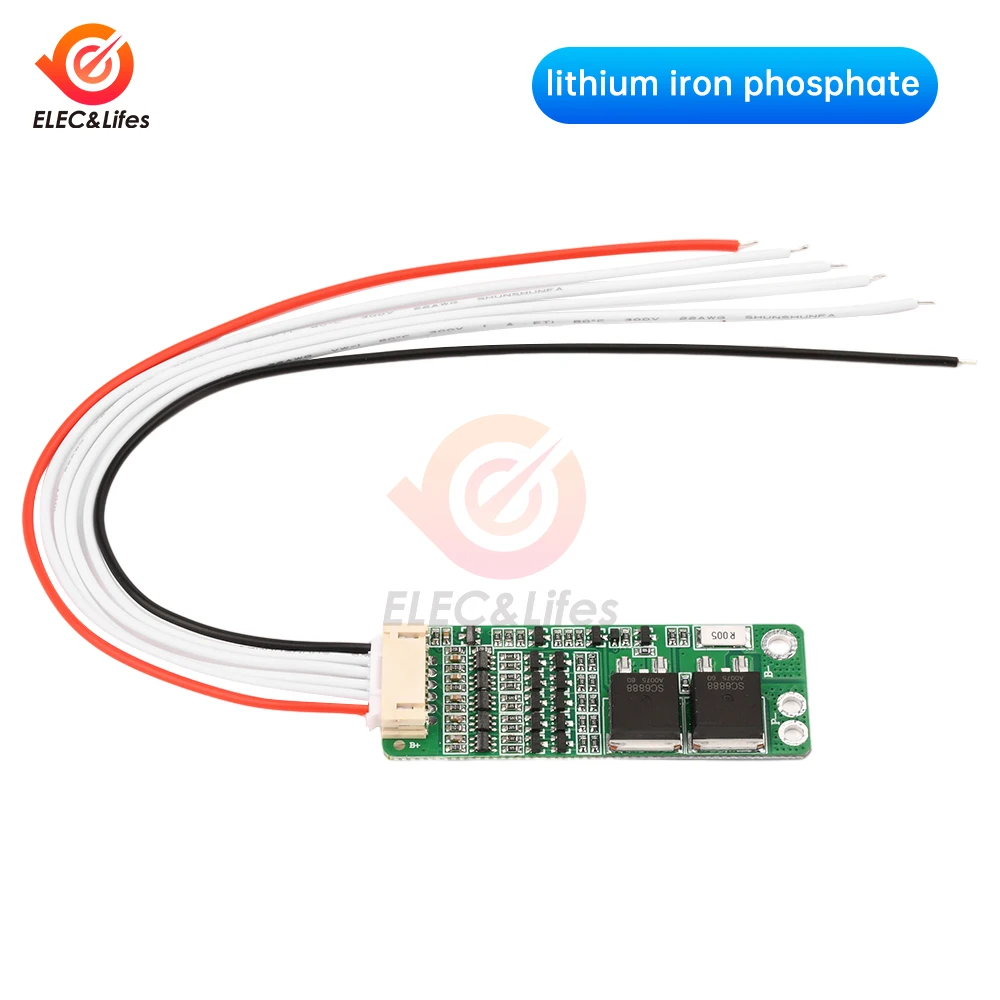

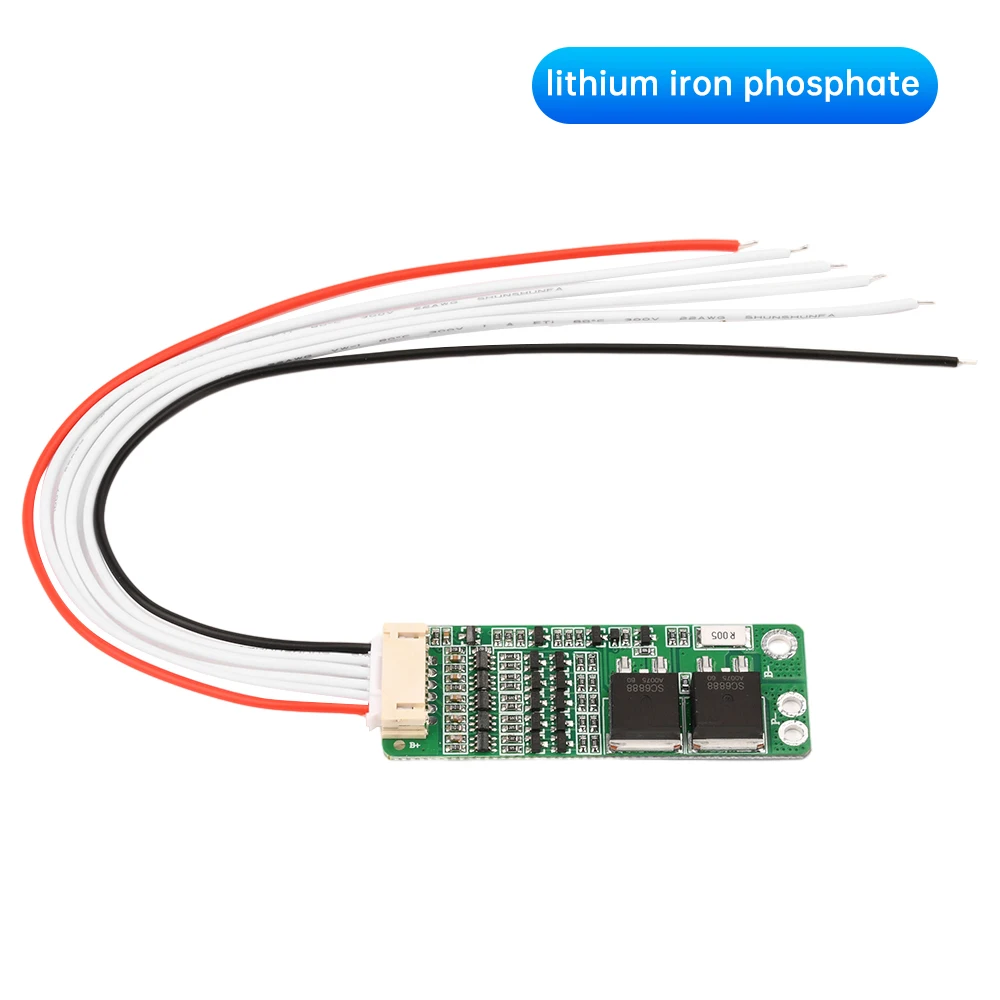

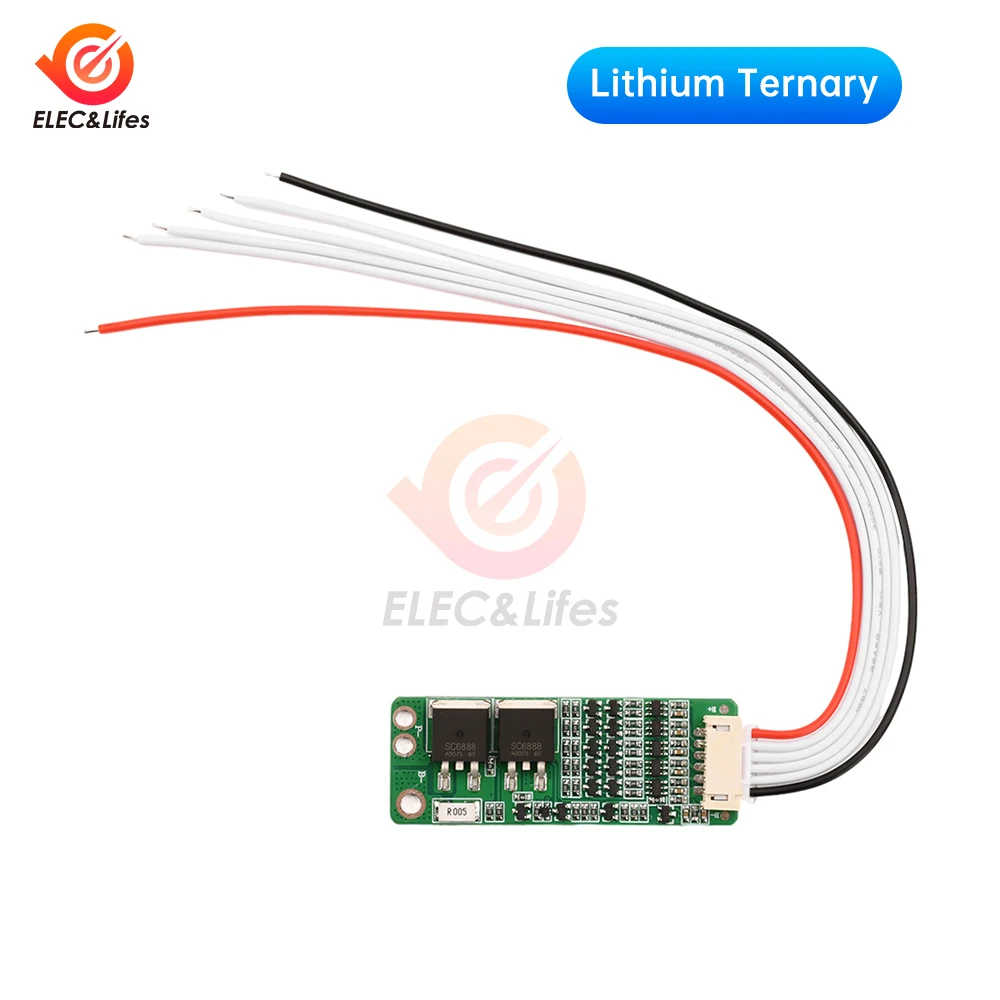

5S 18.5V 10A ternary lithium battery/5S 16V 10A lithium iron phosphate battery
Product selling points:
1. Carefully select high-quality materials and undergo multiple tests to ensure that customers can use them with comfort, peace of mind, and peace of mind
2. Compact size, exquisite appearance, and beautiful arrangement of components
3. The product comes with overcharge, overdischarge, short circuit, and overcurrent protection, with four major protection functions to ensure safety
4. Ultra large MOS transistor, higher and more stable power
5. It can meet various performance requirements and ensure the safety and reliability of the battery pack.
Product parameters:
Continuous working discharge current: 10A
Instantaneous (startup) discharge current: 20A
Charging voltage: 4.25 ± 0.025V
Continuous working charging current: 10A
Overcharge detection voltage: 4.25 ± 0.025V
Overcharge detection delay: 0.5S
Overcharge release voltage: 4.25 ± 0.05V
Working temperature range: -40+80 ℃
common problem:
1. Can I use this protective board for my battery?
Answer: There are two questions to consider when using this protective board: (1) How many strings are your batteries in, and you need to buy a protective board that corresponds to the number of strings. (2) What material is your battery made of. We have protection plates with two parameters: lithium iron phosphate and 18650. If your battery has a single lithium iron phosphate cell with a nominal voltage of 3.2V, you need to select the 3.2V protection plate for lithium iron phosphate in the classification; If the battery is 18650 (ternary, cobalt oxide, manganese oxide lithium battery) with a nominal voltage of 3.6V or 3.7V per cell, the protection plate in the 18650 3.7V classification needs to be selected.
2. How do I determine what material my battery is made of?
Answer: You can check the nominal voltage of your battery. Lithium iron phosphate batteries are usually rated at 3.2V, while other batteries are usually rated at 3.6V or 3.7V.
Shipping List:
Protective board X1
Cable X1
