8K 48MP Specification parameter
|
Module model: |
48MP |
||
|
Sensory model |
ISOCELL G M 1 |
||
|
Module size |
Double-layer (± 1mm) |
||
|
Sensory light size |
1/2″ 1/4″ |
||
|
Pixel Size |
0.8µm X 0.8µm |
||
|
working temperature |
-20°C to 70°C |
||
|
equilibrium temperature |
0°C to 50°C |
||
|
production engineering |
S M T (R O S H) |
||
|
Imaging distance |
1C M ~ ∞ |
||
|
Standard interface |
USB 2.0 High Speed |
||
|
working current |
460mA (VGA) |
||
|
working voltage |
DC5V |
||
|
Drive-away agreement |
USB Video Class(UVC) |
||
|
operating system |
Windows XP / 7 / 8 / 10, Linux (UVC protocol supported), Android (UVC protocol supported), MAC-ios |
||
|
adjustable parameter |
Brightness, contrast, hue, saturation, and clarity Gamma, white balance, backlight contrast, gain, and exposure value |
||
|
automatic exposure AEC |
support |
||
|
automatic white balance AEB |
support |
||
|
output format |
MJPG / YUY2 |
||
|
Corresponding to the resolution of the frame speed |
resolution ratio |
MJPG frame rate |
YUY2 frame speed |
|
640X480 |
|
20fps |
|
|
800X600 |
30fps |
25fps |
|
|
1280X 720 |
30fps |
|
|
|
1920X 1080 |
30fps |
5fps |
|
|
2480X 1536 |
15fps |
There is no such resolution |
|
|
2592X 1944 |
30fps |
There is no such resolution |
|
|
3840X 2160 |
30fps |
There is no such resolution |
|
|
4000X 3000 |
15fps |
There is no such resolution |
|
|
8000X 6000 |
15fps |
There is no such resolution |
|
|
Shutter mode |
Roll shutter (Rolling shutter) |
||
|
Drive way |
Free drive |
||
|
Whether waterproof |
The camera module is not waterproof, |
||
|
Lens support |
The 1 / 2-inch target faces are autofocus |
||
|
Whether the SDK is provided |
|
||
|
Development interface can be supported |
Windows DirectShow, Halcon, OpenCV, LabView, et al |
||
|
development language |
No, support multiple development languages |
||
|
Product weight |
Camera module + 1.3m USB2.0 line |
||
|
dispatching list |
1 camera module, 1.3 m USB2.0 line |
||
|
manner of packing |
wrapped foam, cardboard box shipment |
||
|
Camera application reference |
Hd shooting, file shooting, high-definition portrait shooting, logistics and scanning code, etc |
||
————————————————————————————
8K 50MP Specification parameter
|
Module model: |
50MP |
|
|
brand |
HQCAM |
|
|
Sensory model |
Sony IMX766 CMOS |
|
|
Module size |
Double layer |
|
|
Sensory light size |
1/1.56″ 1/4″ |
|
|
Pixel Size |
1.0µm X 1.0µm |
|
|
production engineering |
SMT (ROSH) |
|
|
Imaging distance |
1CM~ ∞ |
|
|
Standard interface |
USB 2.0 High Speed (type-C interface) |
|
|
working current |
610mA (VGA) |
|
|
working voltage |
USB-DC5V |
|
|
Drive-away agreement |
USB Video Class(UVC) |
|
|
operating system |
Windows XP / 7 / 8 / 10, Linux, Android, MAC-ios, Raspberry Pi, etc |
|
|
adjustable parameter |
Brightness, contrast, hue, saturation, and clarity White balance, backlight contrast, and exposure value |
|
|
automatic exposure AEC |
support |
|
|
automatic white balance AEB |
support |
|
|
output format |
MJPG /YUY2 |
|
|
Corresponding to the resolution of the frame speed |
resolution ratio |
MJPG frame rate |
|
640X480 |
30fps |
|
|
1280X 720 |
30fps |
|
|
1920X 1080 |
30fps |
|
|
|
|
|
|
2560X 1440 |
30fps |
|
|
3840X 2160 |
30fps |
|
|
4080X 3060 |
20fps |
|
|
|
|
|
|
8160X6120 |
5fps |
|
|
Shutter mode |
Roll shutter shutter (Rolling shutter) |
|
|
Drive way |
Free drive |
|
|
working temperature |
-20°C to 70°C |
|
|
equilibrium temperature |
0°C to 50°C |
|
|
Lens support |
The standard lens focal length is 4.2mm |
|
|
FOV |
(H) About 72 degrees |
|
|
|
(V) About 55 degrees |
|
|
|
(D) About 84 degrees |
|
|
Whether the SDK is provided |
|
|
|
Whether waterproof |
The camera module is not waterproof, |
|
|
Development interface can be supported |
Windows DirectShow, Halcon, OpenCV, LabView, et al |
|
|
development language |
No, support multiple development languages |
|
|
Product weight |
Camera module + 1 m USB 2.0 line |
|
|
dispatching list |
1 camera module, 1 m USB2.0 line |
|
|
manner of packing |
|
|
|
Camera application reference |
HD shooting, file shooting, high-definition portrait shooting, logistics scanning code, etc |
|

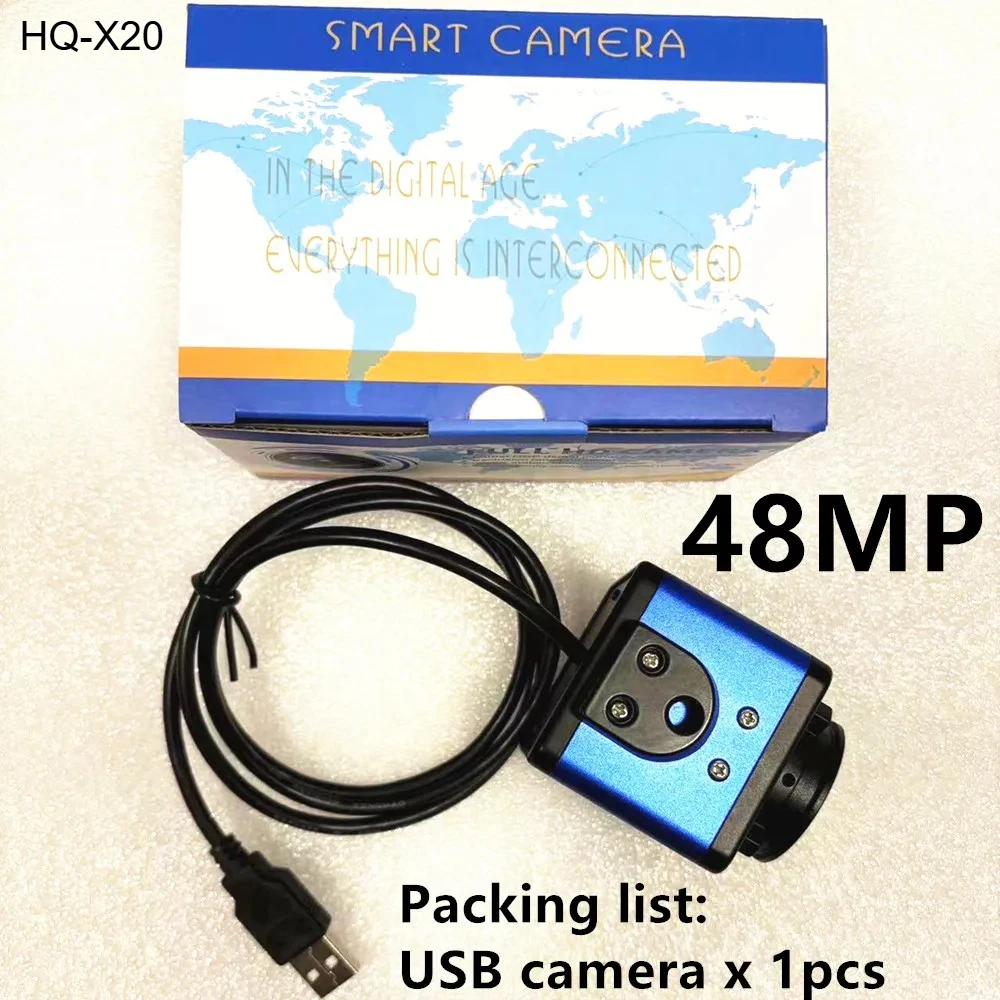

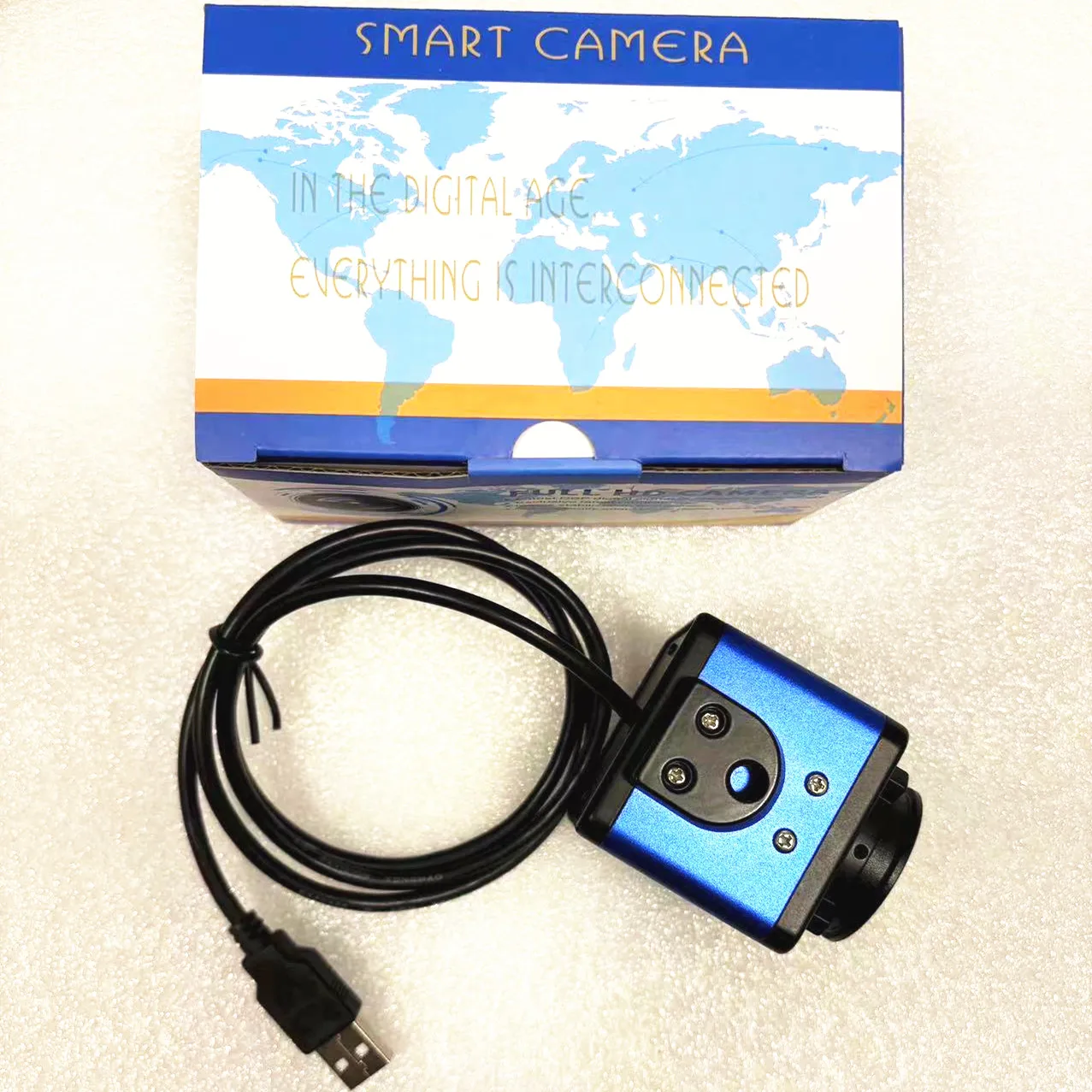

Packing list:

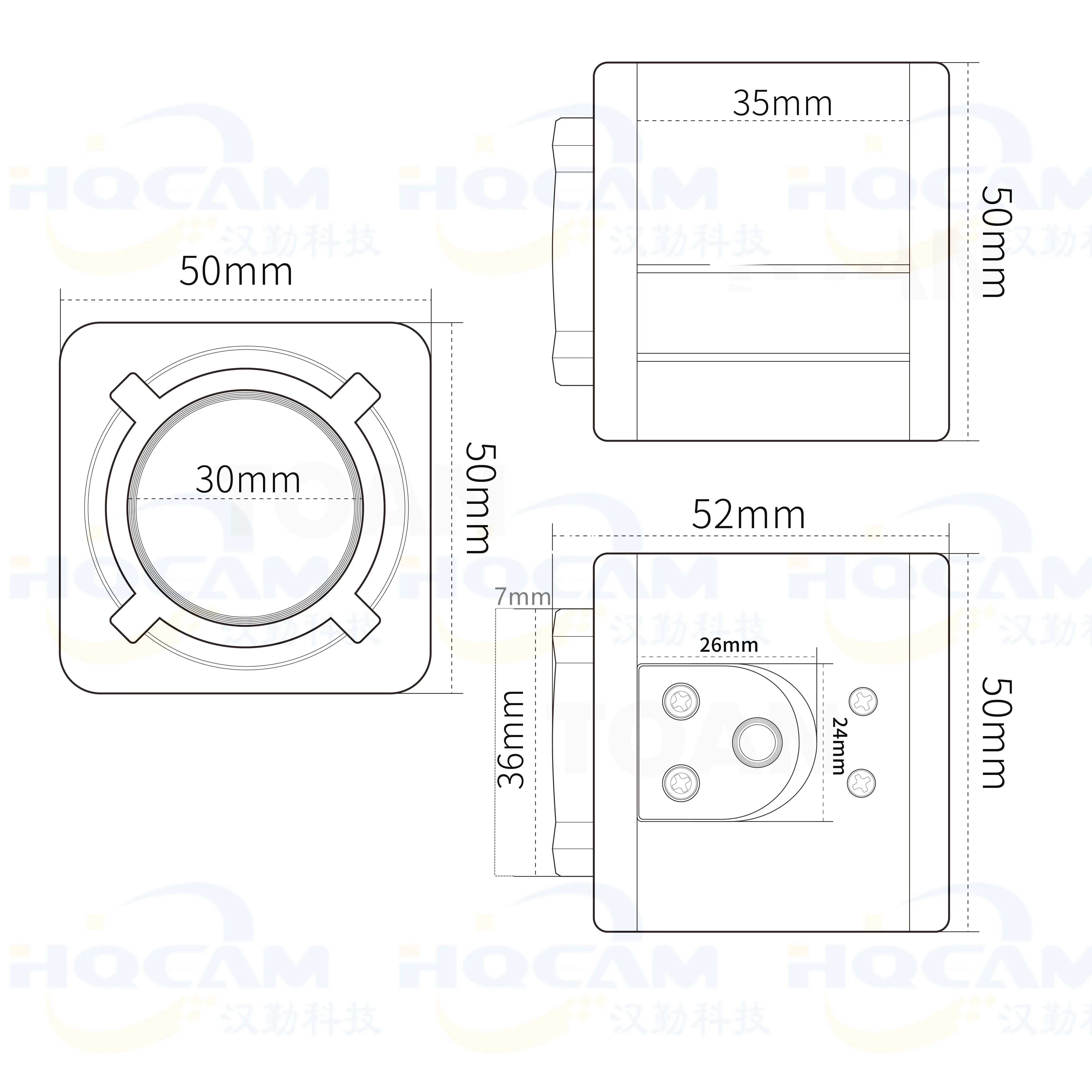

size：
The main uses of this camera:
Static object high-definition photography, text recognition, image recognition, two-dimensional code recognition, certificate photography and so on
Note: This is a high pixel camera, if it is connected to a computer to work, the need for high bandwidth, for very old computers or very low configuration of the computer may not be friendly, will lead to black screen and other problems
