Display OLED 1602 162 caratteri Modulo LCD parallelo Schermo LCM integrato WS0010 Seriale SPI Ovest Europeo Scandinavo Europeo

Original price was: € 36,99.Current price is: € 26,99.

Blue oledGreen oledRed oledWhite oledYellow oled
Clear
SKU: 1005005702248766 Category:
Spedizione gratuitaVia Spedizione VitacomodaConsegna: ago 21 - 29

Impegno di servizio

Controller:WS0010
Wide viewing angle:175
Working voltage: 3.3v~5.0v

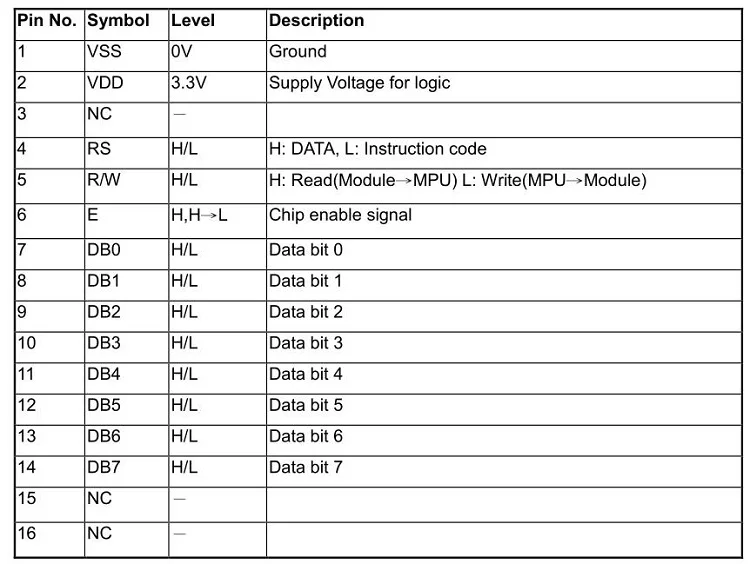

Interface:SPI or 6800/8080 parallel

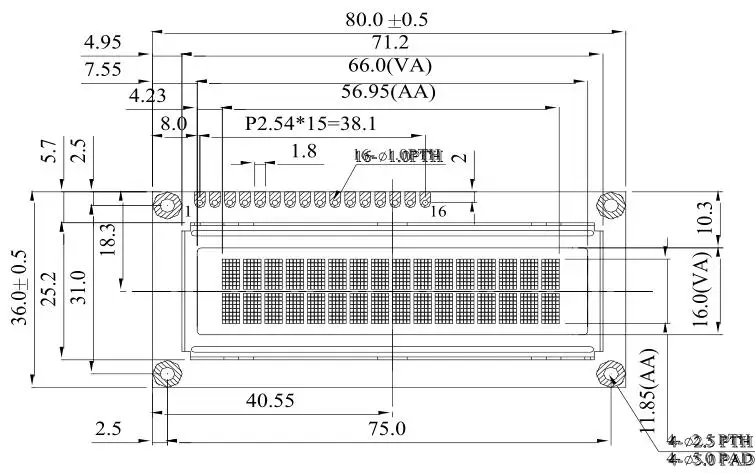

View area:99.0×24.0 mm
Active area:91.14×18.98 mm
Built-in font library: English font, Russian font, Japanese font, Western European font


The product default is 6800 parallel port

Change to SPI:

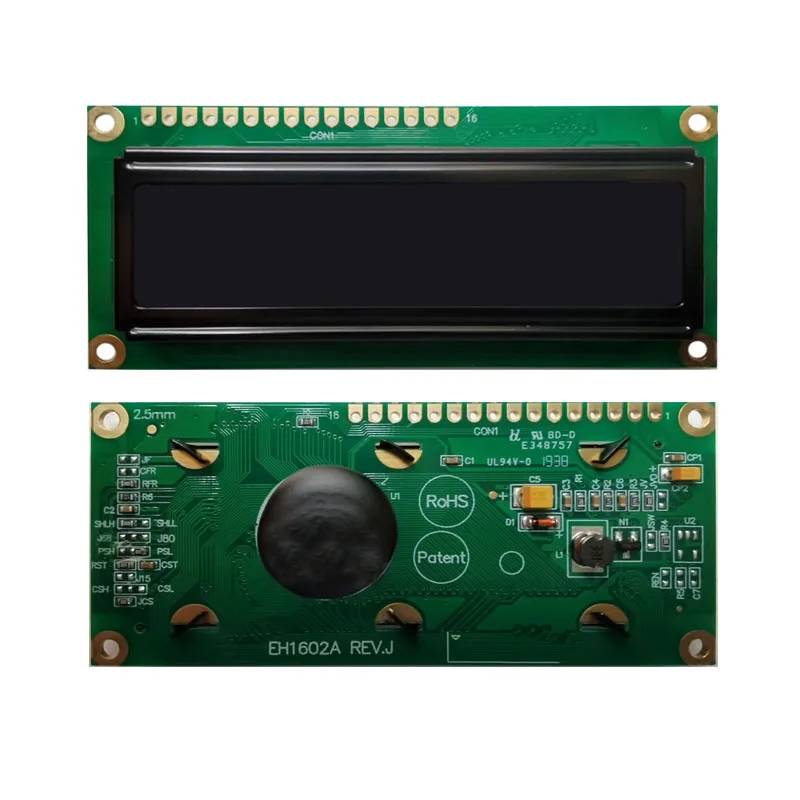

Remove the resistance of position PS_H J68 L_CSSimultaneously soldering zero ohm resistor at position L_PS JCS


Weight 0,100 lbs
Dimensions 8,00 × 8,00 × 8,00 in
Marca

NONE

Origine

CN (Origine)

Modalità di visualizzazione

WEH001602A

Prodotti chimici ad alto impatto

Nessuno

Risoluzione

16*2

Numero di modello

EH1602A

è_personalizzato
