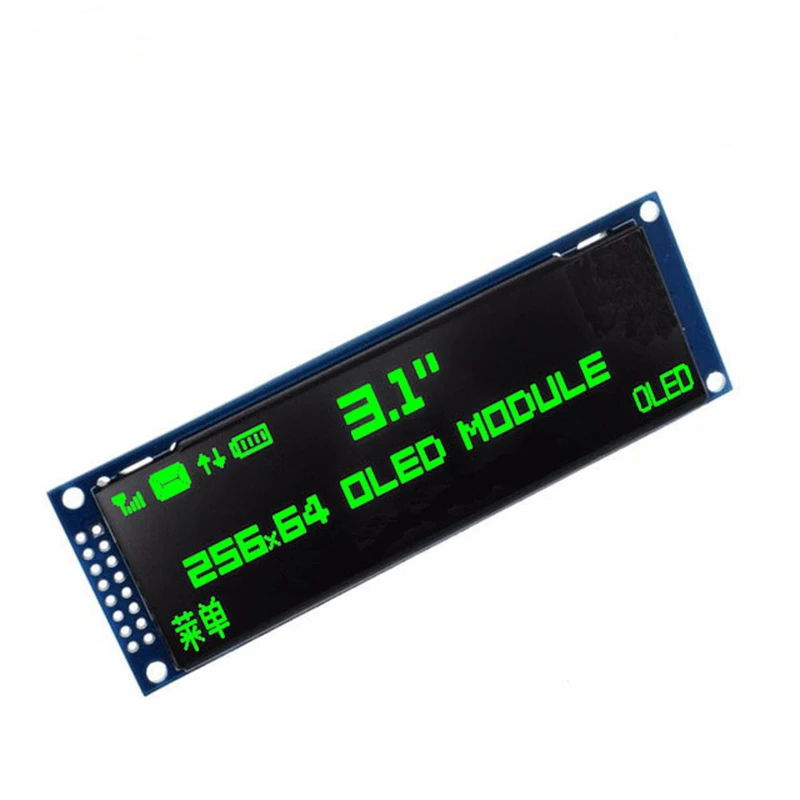

This is a 3.12 inch OLED display module.
256X64 pixel, driver ic SSD1322, SPI interface, Blue/white/yellow / green display colors optional for you.
Driver chip: SSD1322
Support interface: 6800, 8080 parallel interface, 3, 4-wire SPI
Resolution: 256×64
Display size: 3.12 inch

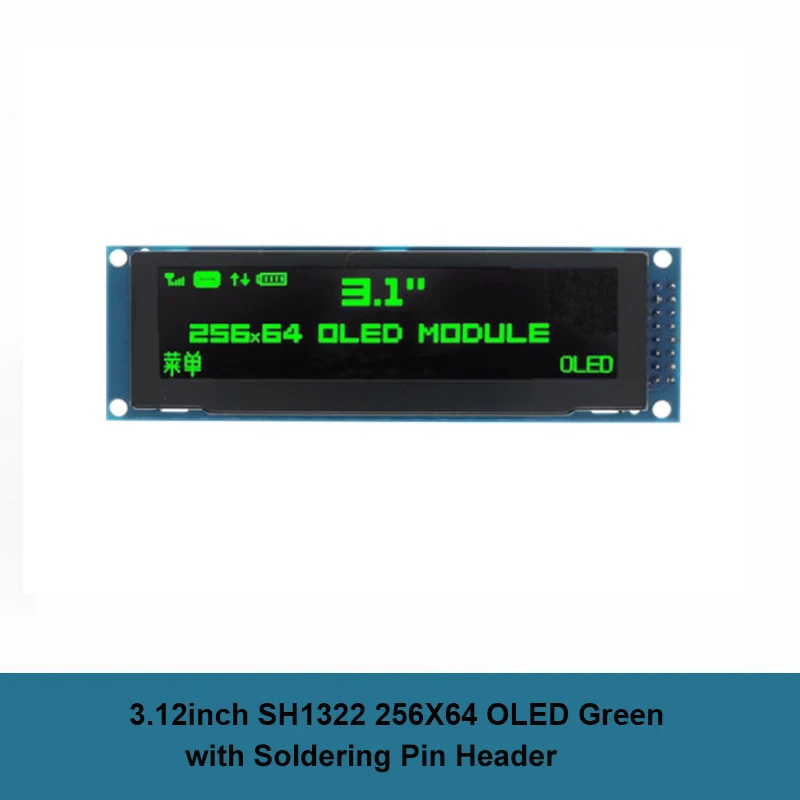

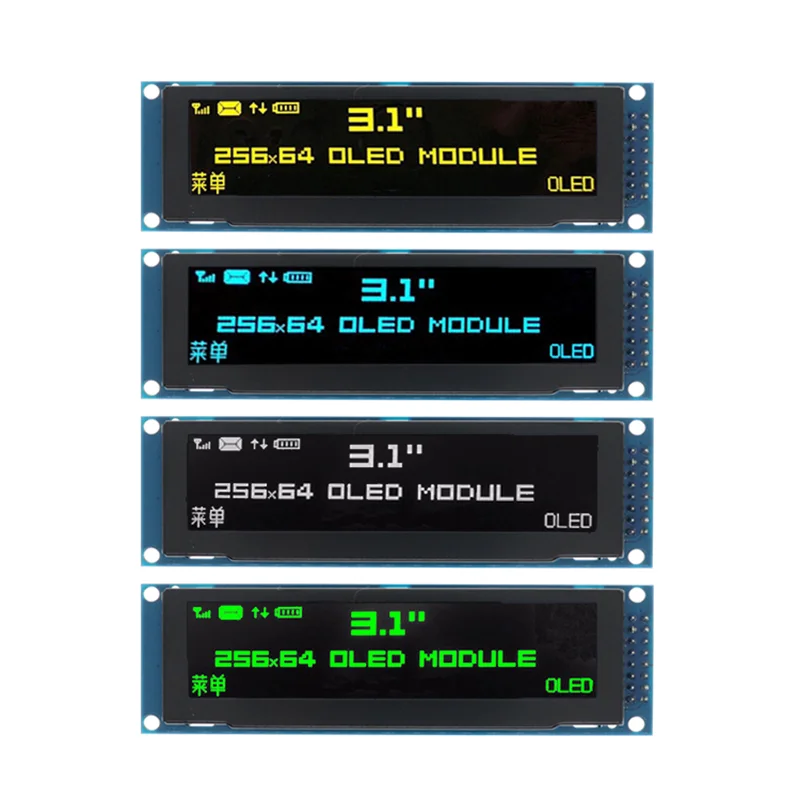

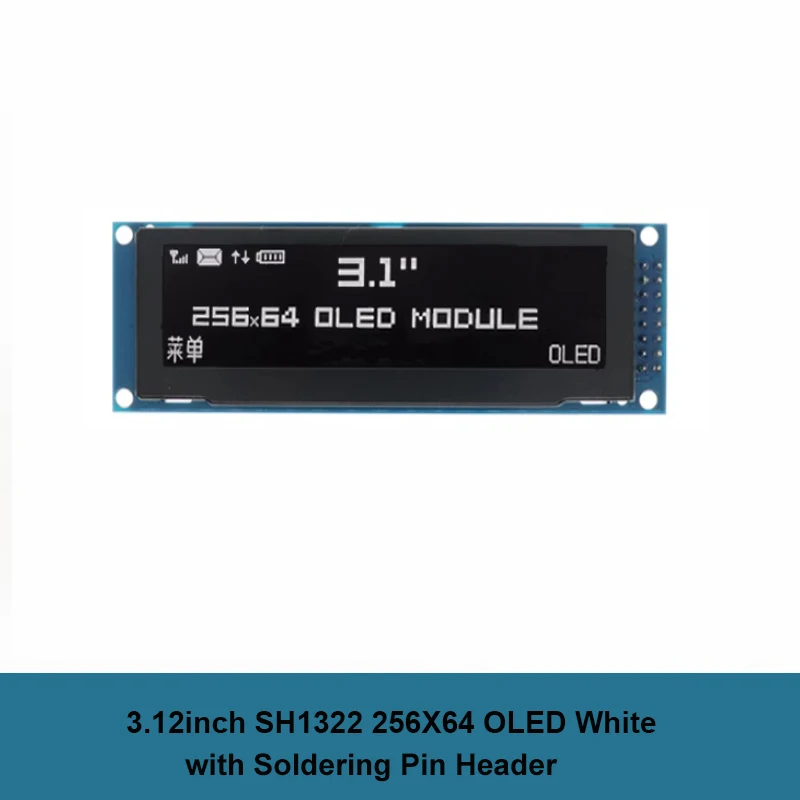

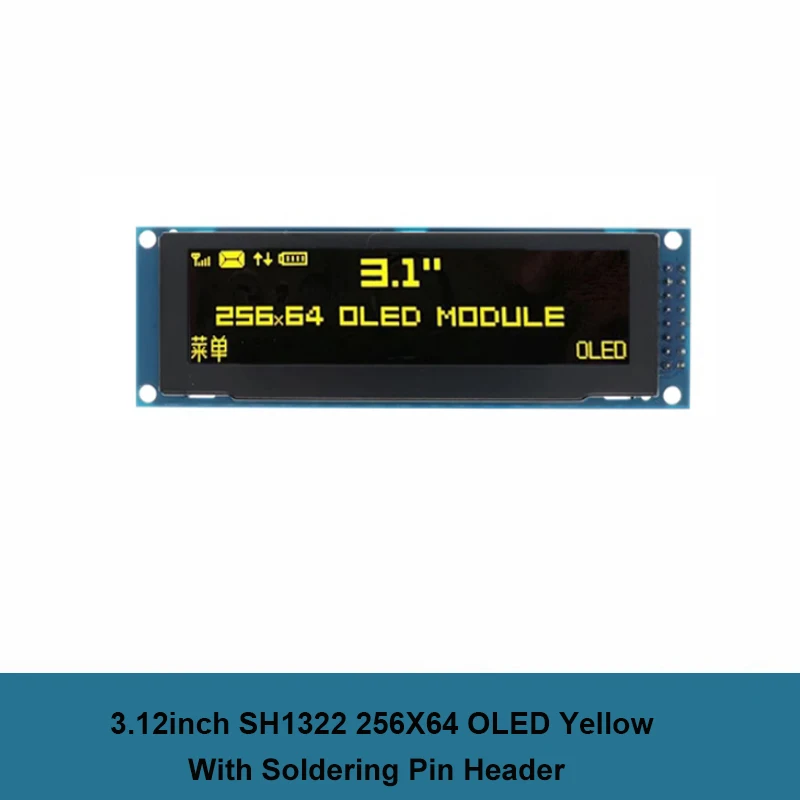

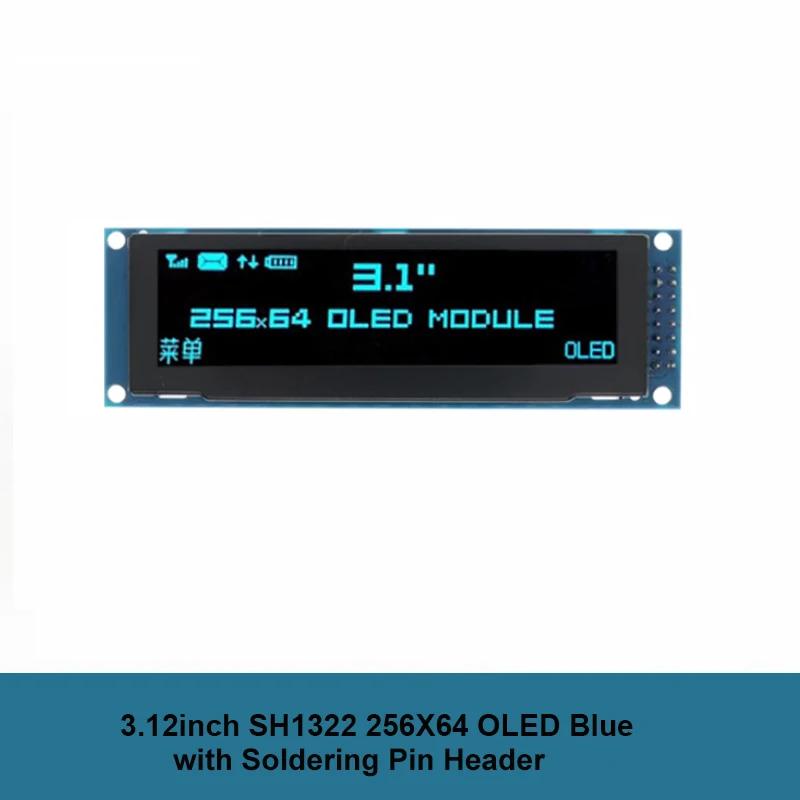

Display Color: White/Blue/Yellow/Green
OLED mode: Negative, fully transparent
Gray scale type: 16 steps grayscale
Operating Temperature: -30°C~85°C
Storage Temperature: -40°C~90°C

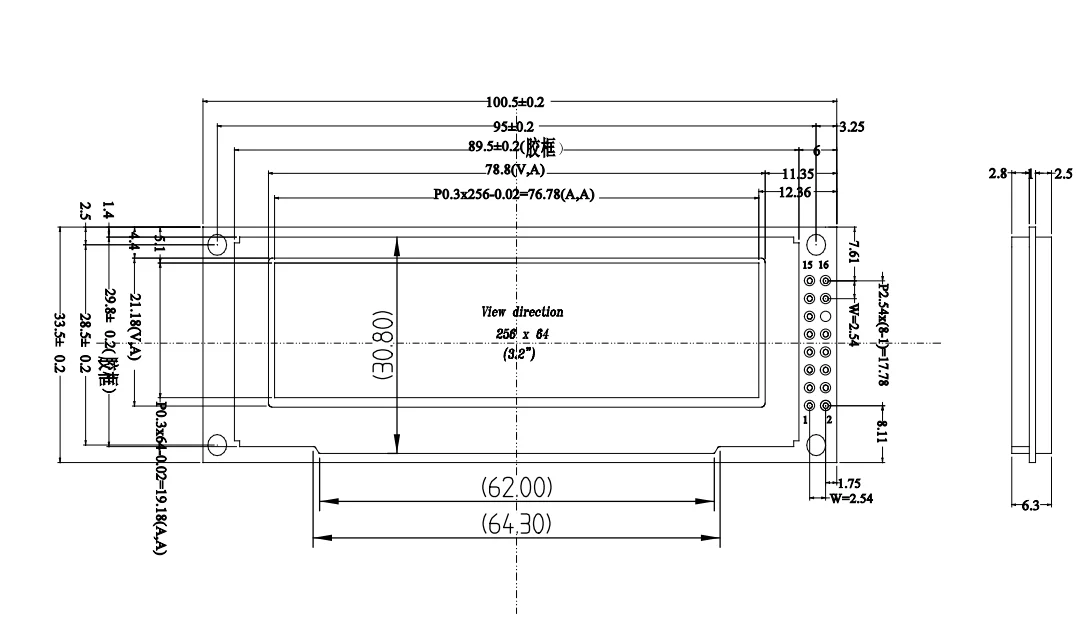

Module Size: 100.5mm×33.5mm×6.3mm
Visible area: 78.8mm×21.18mm
Effective area: 76.78mm×19.18mm
Dot distance: 0.30mm×0.30mm
Dot size: 0.28mm×0.28mm

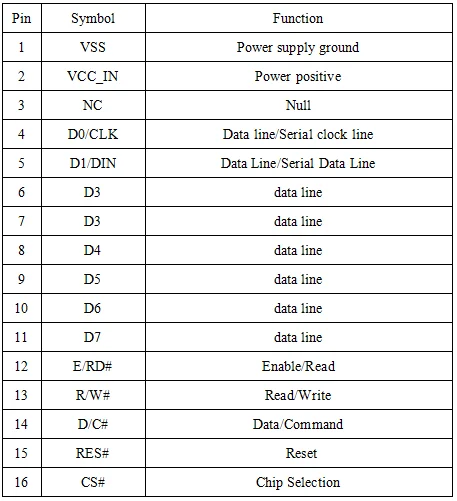

Pin Definition
1* 3.12inch OLED display module with Soldering Pin Header(Blue/White/Yellow/Green optional)
