Technical Parameters:
1. Sensing distance: 20 metre
2. Induction method: on the type of shot (non-transparent)
3. Working voltage: DC 5V
4. Working current: 10MA

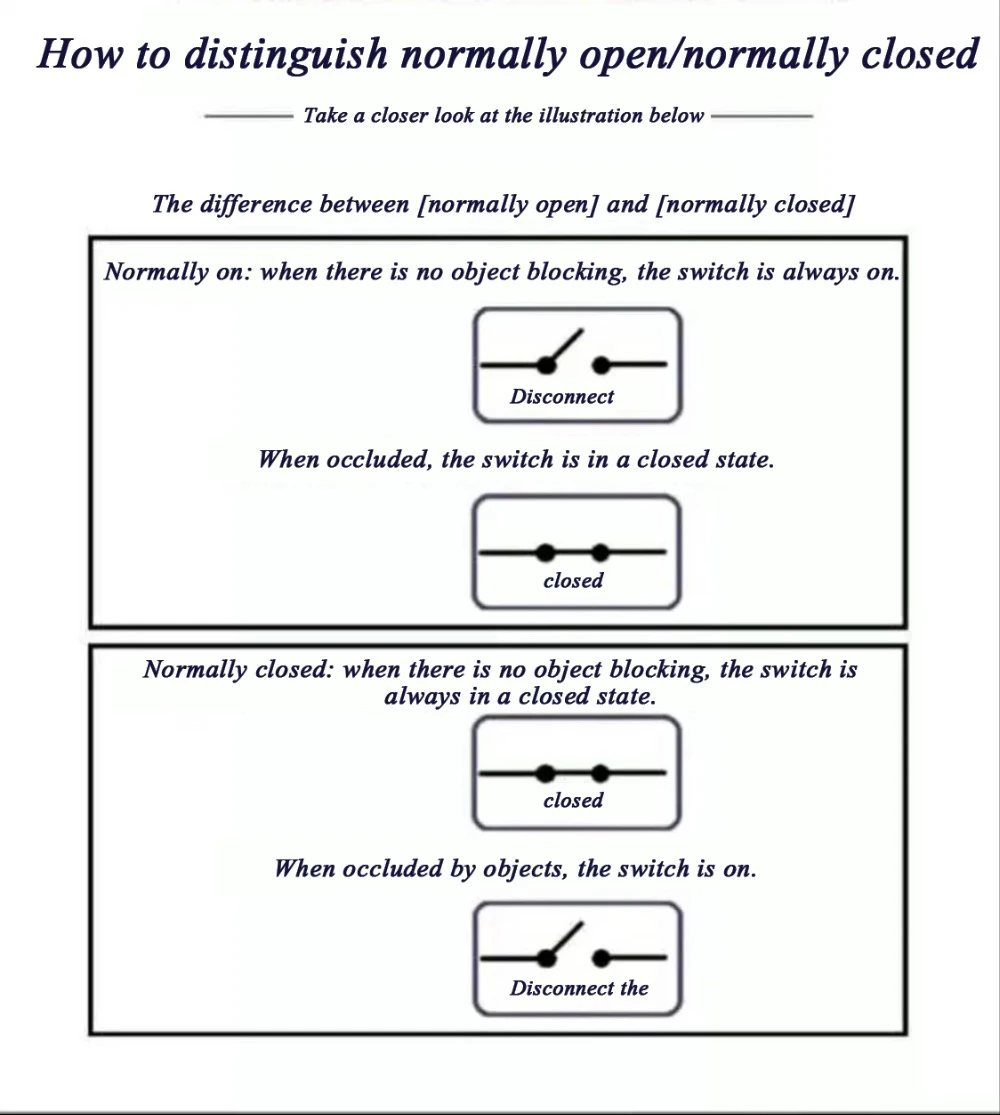

5. Output mode: 0V or 5V NPN/PNP normally open (normally closed to be customized)
6. Output current: 100mA (can directly drive the relay)
7. Launch angle: straight line (laser light)
8. Receiving angle: <10 degrees
9. Response time: 2ms
10. Working temperature: -25 degrees 60 degrees
11. Working environment: indoor (not waterproof)

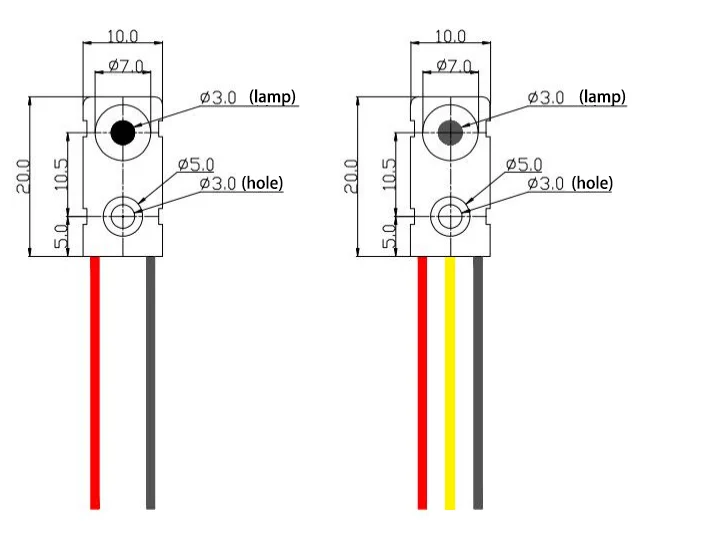

12. Dimensions: Length 20mm Width 10mm height 8mm
13. Line length: 80cm(Customizable)

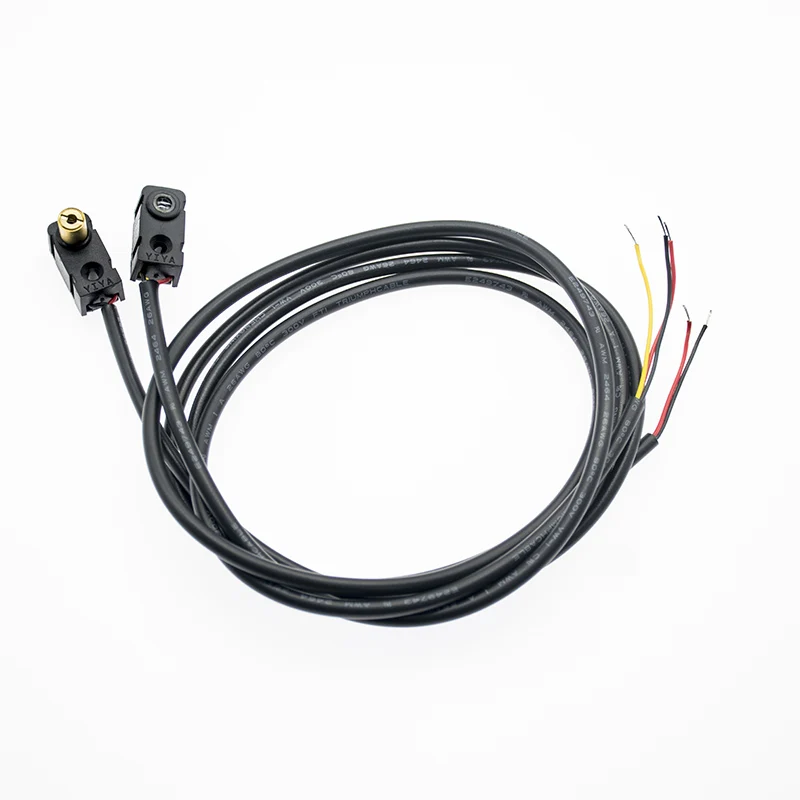

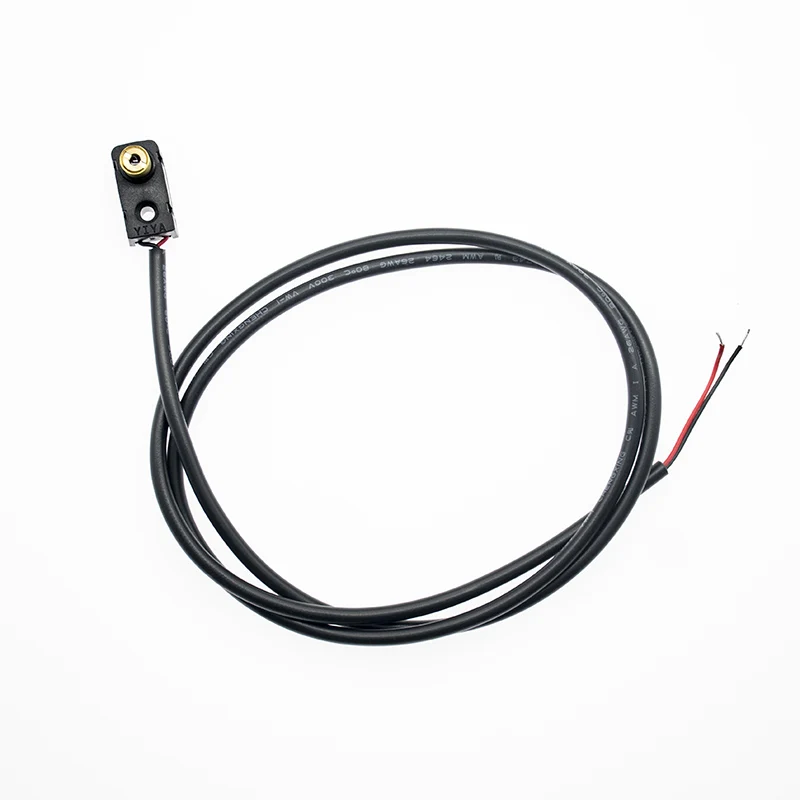

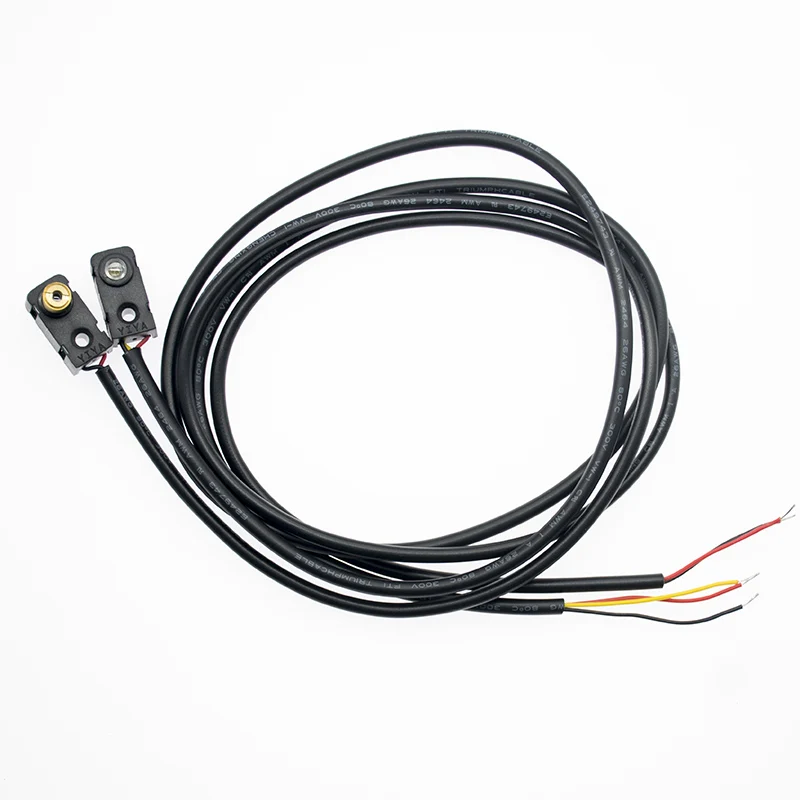

Launch: Red line = 5VCC / black line = GND

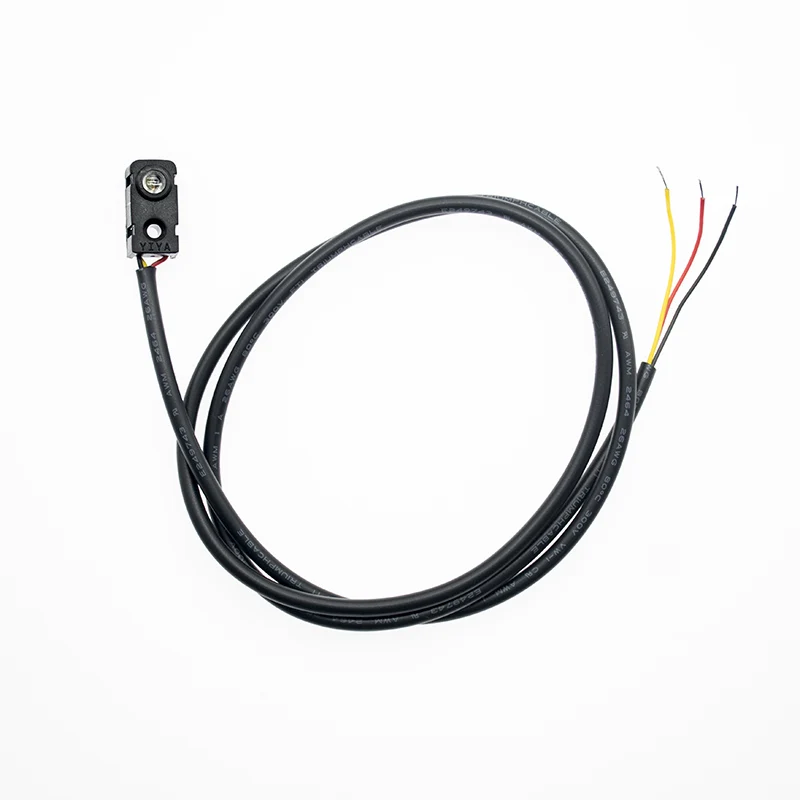

Receive: Red line = 5VCC / Yellow line = OUT (NPN) / Black line = GND
