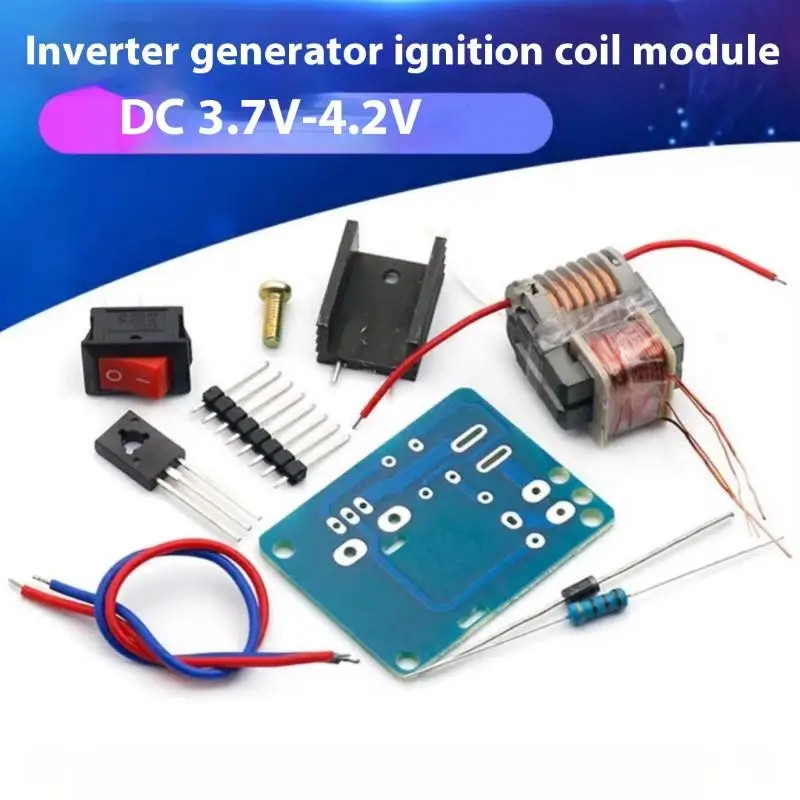

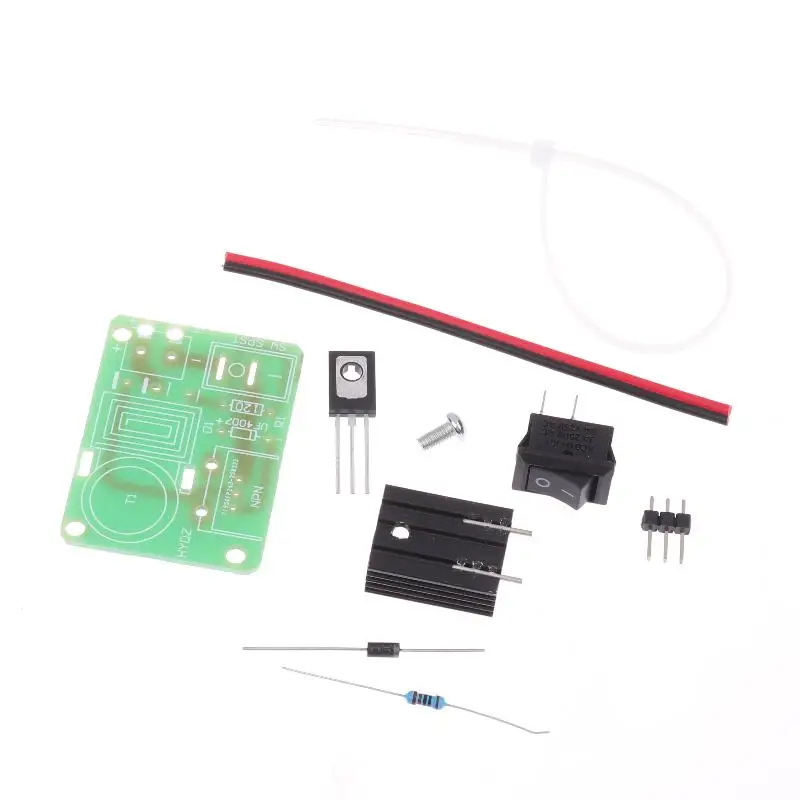

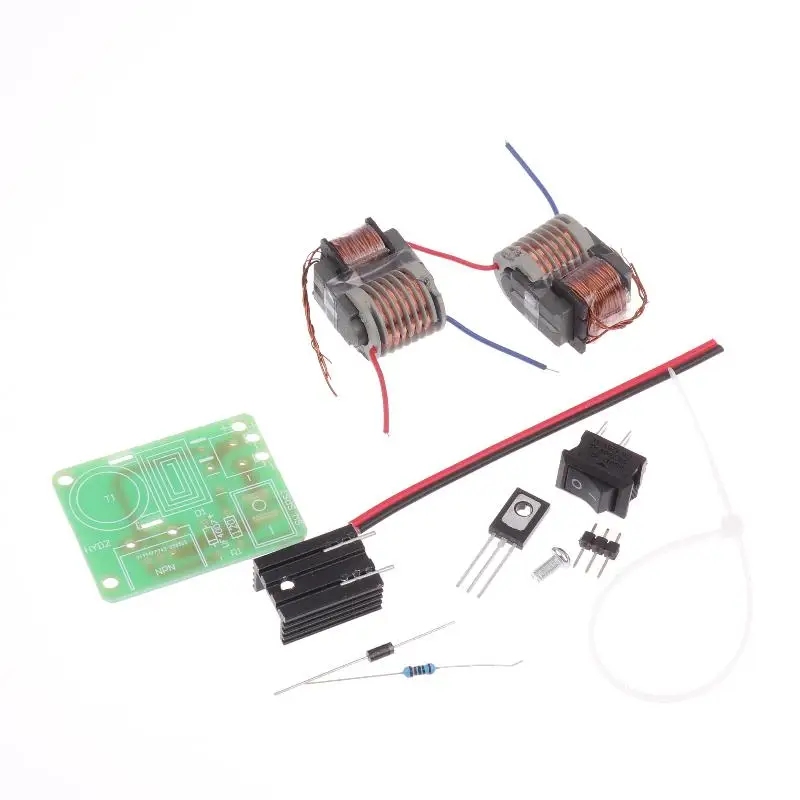

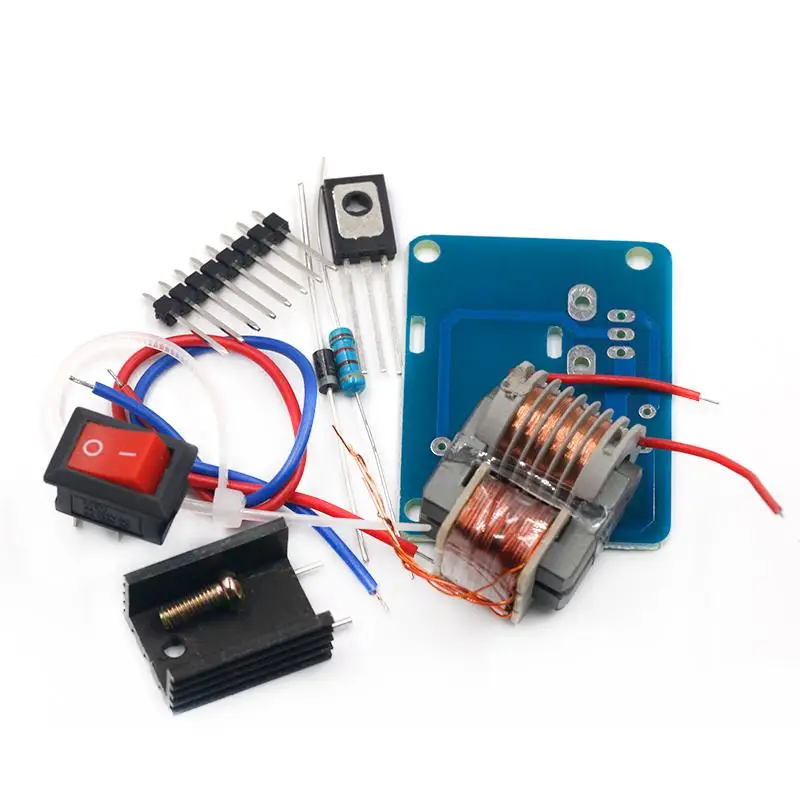

Inverter Boost Step Up 18650 DIY Kit 1 Set U Core Transformer Suite 15KV High Frequency DC High Voltage Arc Ignition Generator

Description

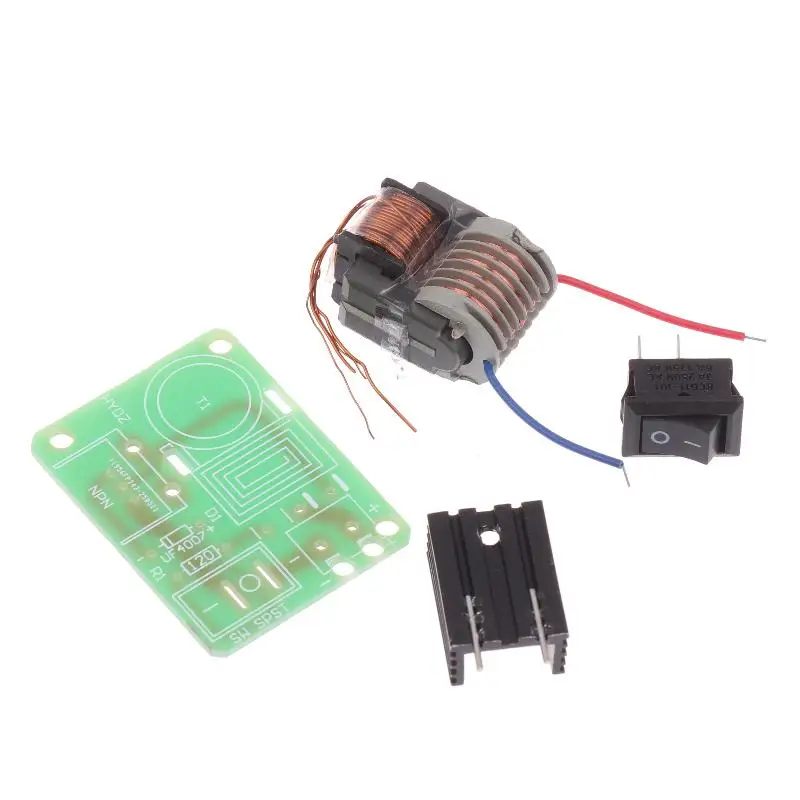

This product is a booster coil production suite, the circuit is simple and reliable, electronic research convenience enthusiasts

Uses: high school science experiment, electronic equipment, negative ion generator, scientific small production. This circuit is generated when the stable high frequency arc, high temperature, can easily ignite combustible materials, so it was called the plasma lighters.

Parameter:

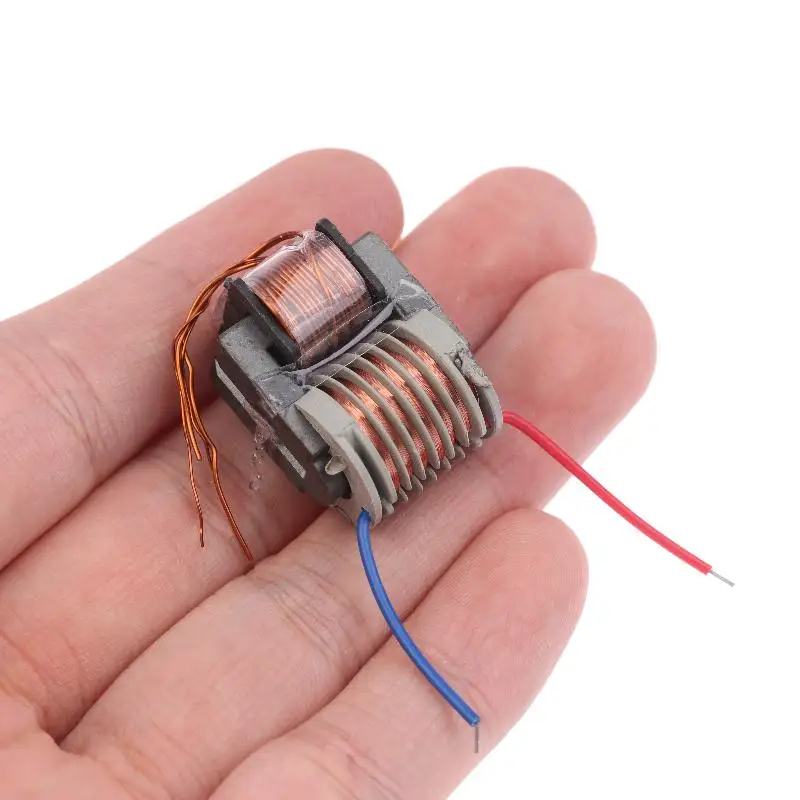

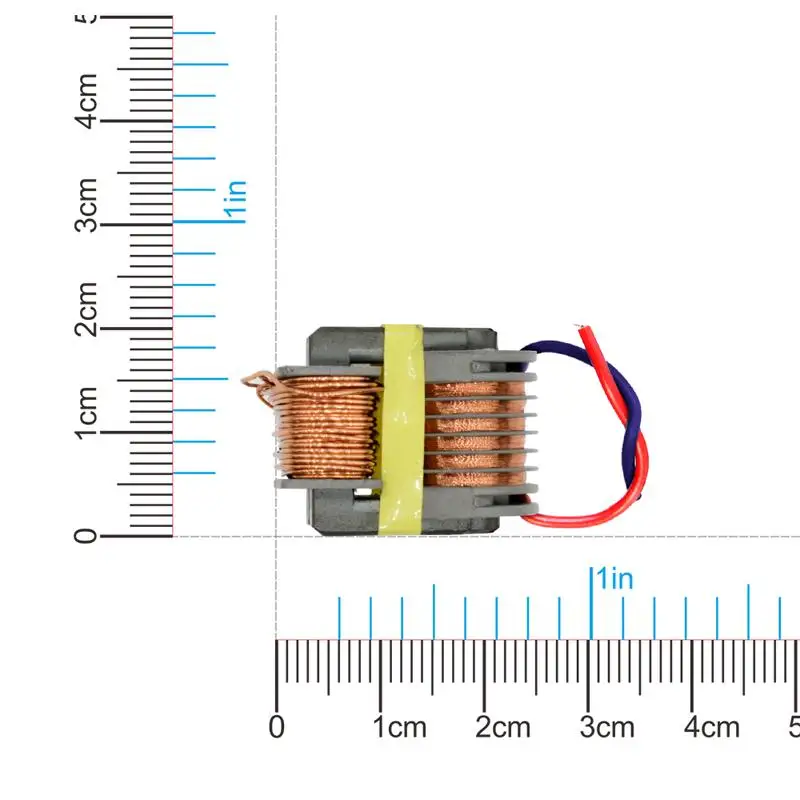

1.15KV transformer outside dimensions of approximately: 27x16x21mm

2.Input voltage: DC 3.7V-4.2V (limit 12v, easy to damage not recommended, this transformer is equally applicable to 12V input voltage, but requires a corresponding increase in the base of the feedback resistor to about 1500 ~ 1.5K0, its resistance should be large to replace a small adjustment, or burned transistor or transformer)

3.Input Current: <2A

4.Output voltage: approximately 15KV (please pay attention to safety when used)

5.Output Current: S0.4A

6.High voltage bipolar ignition distance:≤0.5 cm When the product input termination 3.7V-4.2V power supply, the secondary high voltage output is not connected to high-voltage rectifier diodes and capacitors, output terminals levels≤1.5cm long can produce purple high temperature arc, no crackling but the temperature is very high , you can easily and instantly point cigarette paper, or even very thin wire burned Sparks (such as junior high school chemistry experiment thin wire in oxygen combustion scene, but not as good as oxygen so intense.)

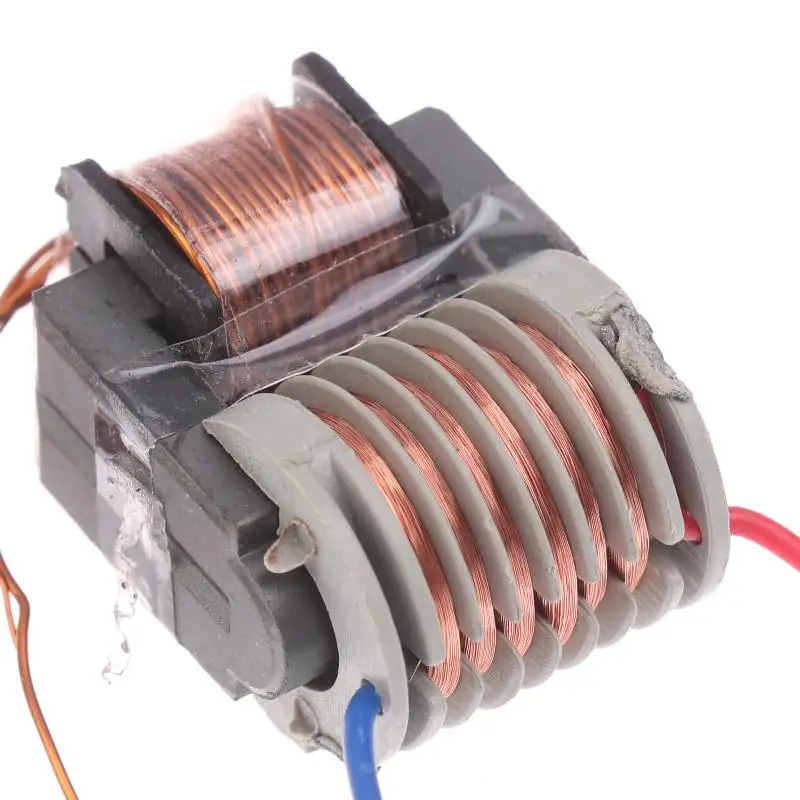

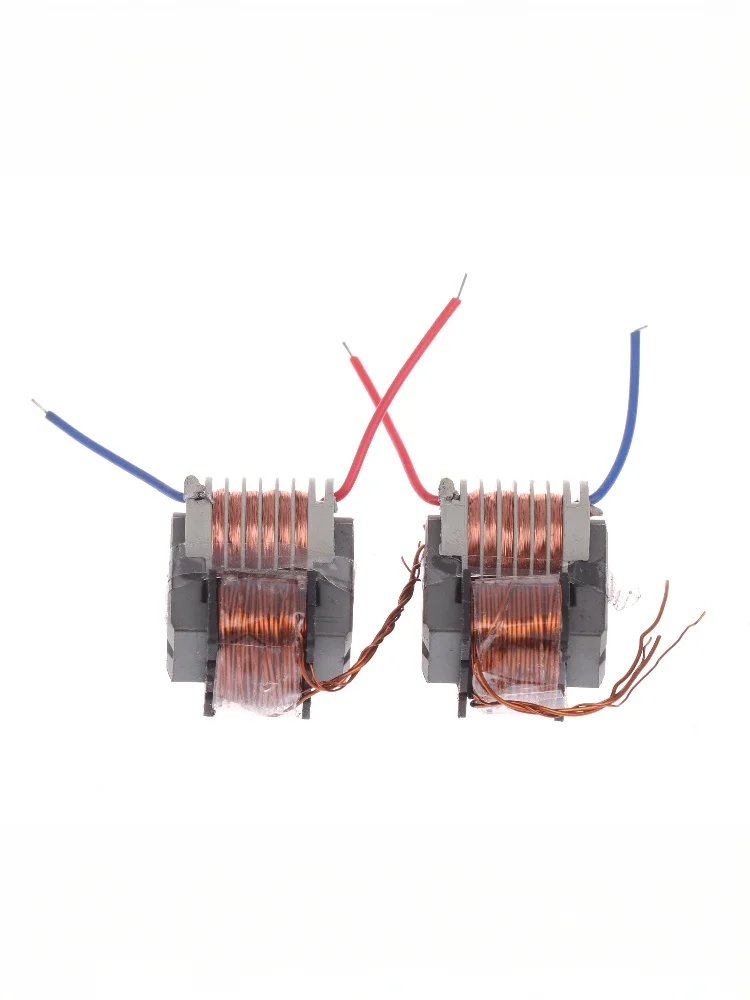

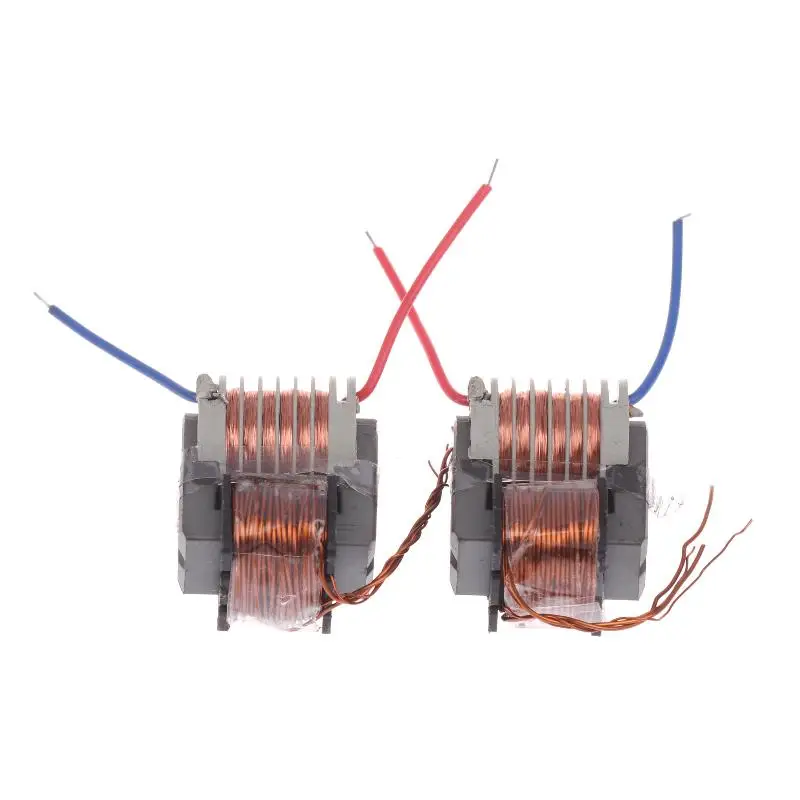

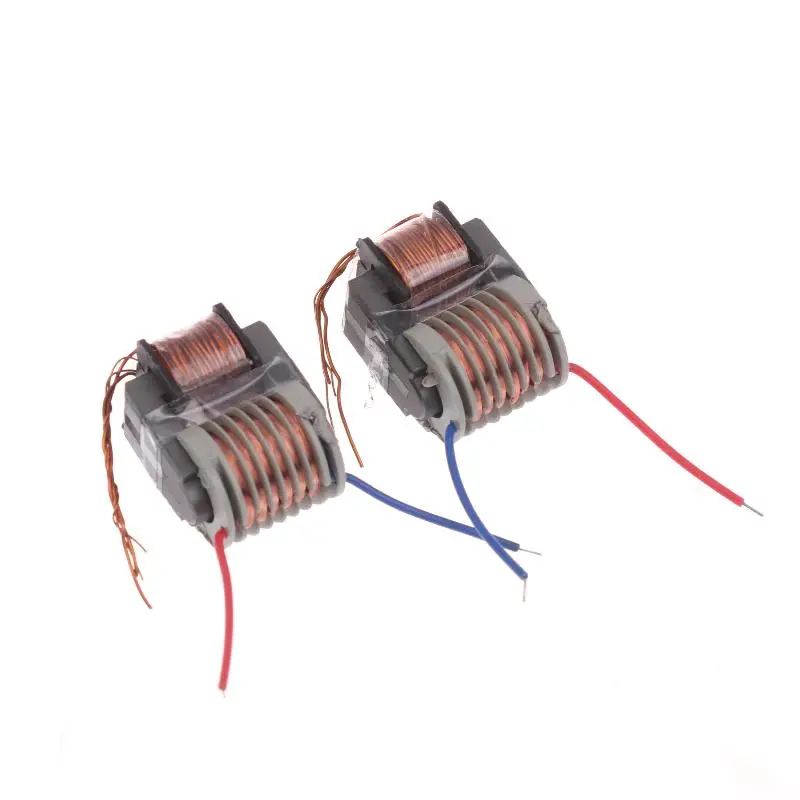

Transformer structure:

There are two primary windings, a primary winding, a feedback winding, the secondary output of high pressure. : 15KV transformer designed for maximum output, limit output can not exceed 15KV, is one centimeter arc, a higher output voltage is likely to damage the transformer.

PCB board size: 4.2* 3.2 * 0.16CM

Specifications:

Material: Metal

Size: As picture

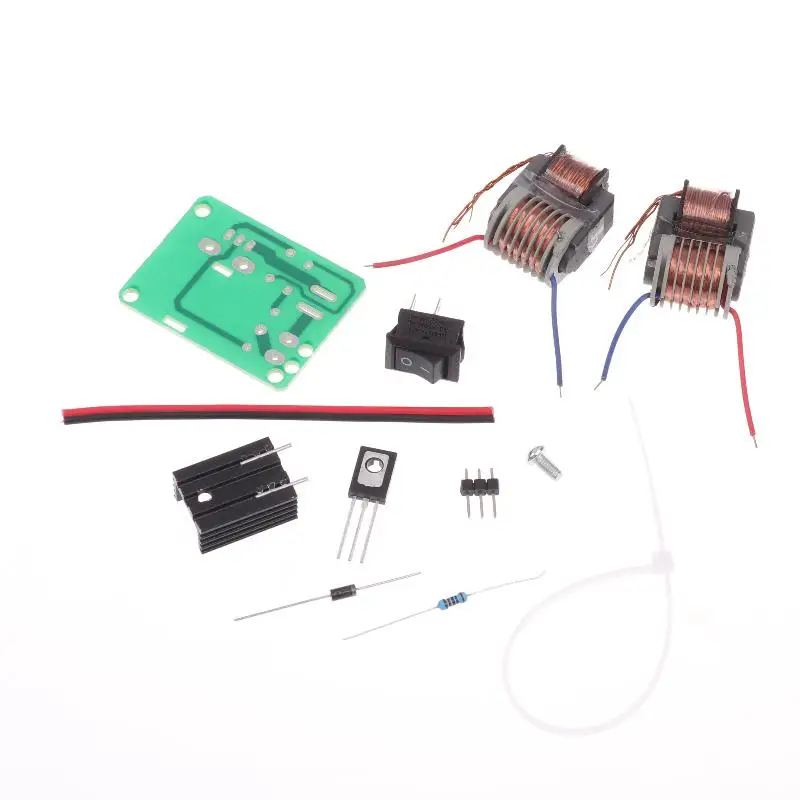

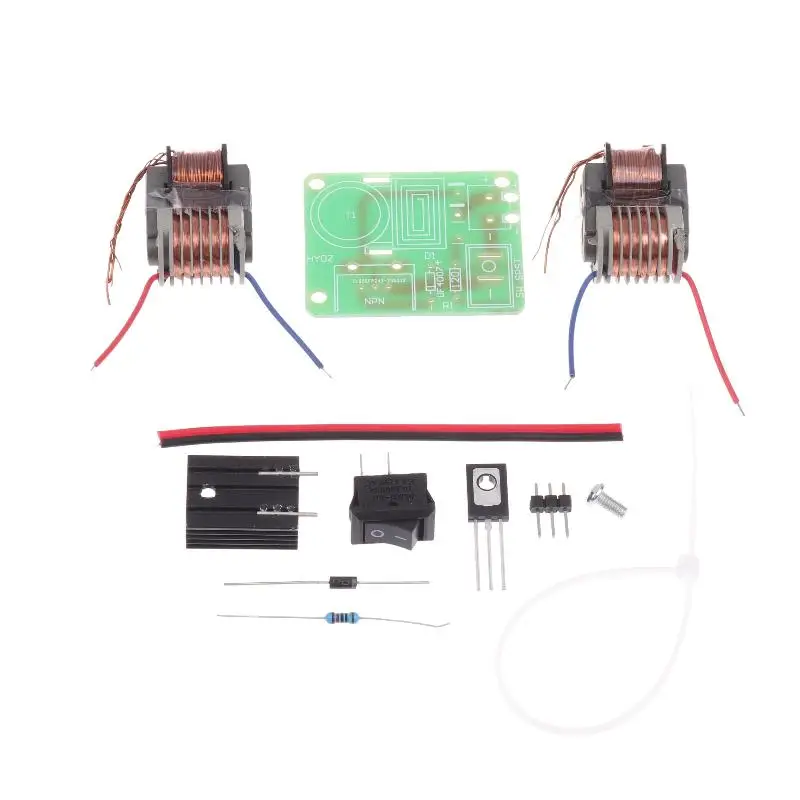

Packing: 1 set

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
