JHEMCU ExpressLRS RX24T 2.4G ELRS Radio Nano Ricevitore a lungo raggio Antenna tipo T 11X18mm per RC FPV Racing Freestyle Drone

JHEMCU ExpressLRS RX24T 2.4G ELRS Radio Nano Long Range Receiver T-type Antenna 11X18mm for RC FPV Racing Freestyle Drone

2.4G ISM type

• ESP8285 MCU

• SX1280IMLTRT RF

• Frequency range: 2400 MHZ To 2500 MHZ

• Maximum receiving refresh rate: 500HZ

• Minimum receiving refresh rate: 25HZ

• Working voltage: 5V

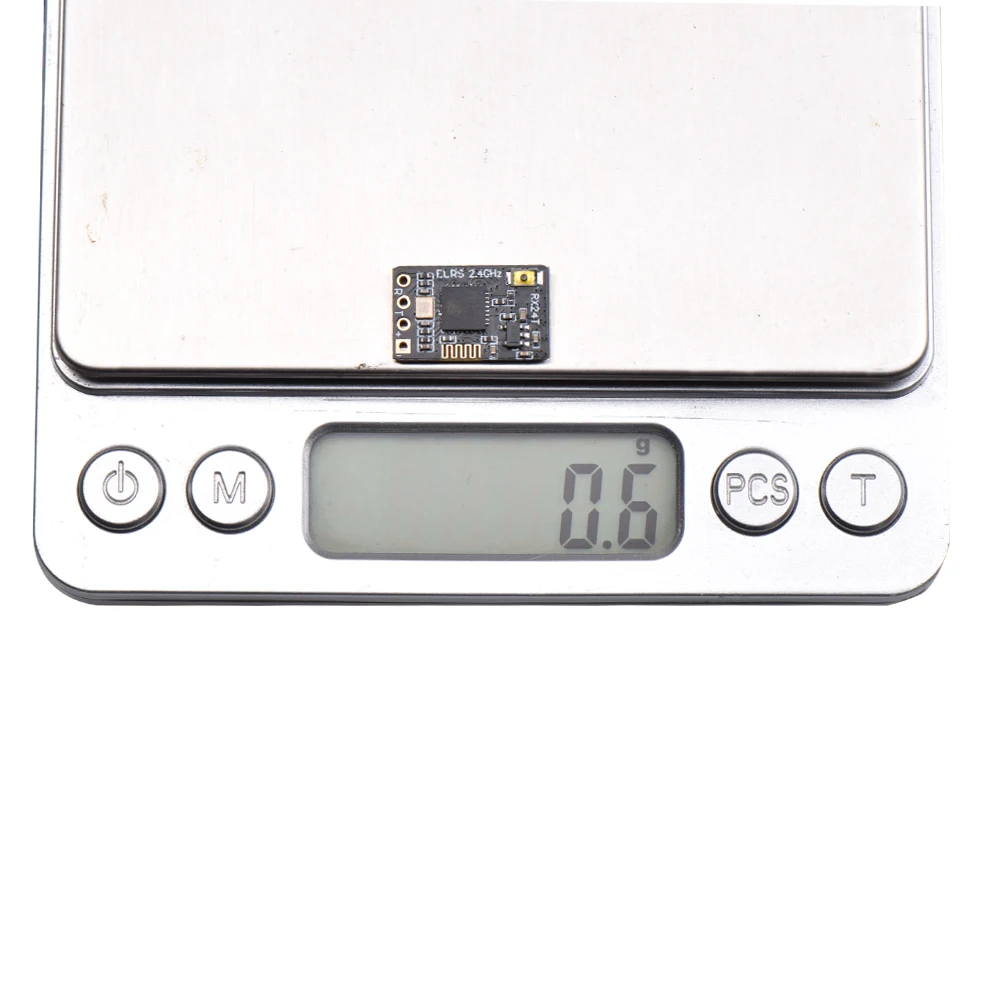

• Weight: 0.6g (without antenna)

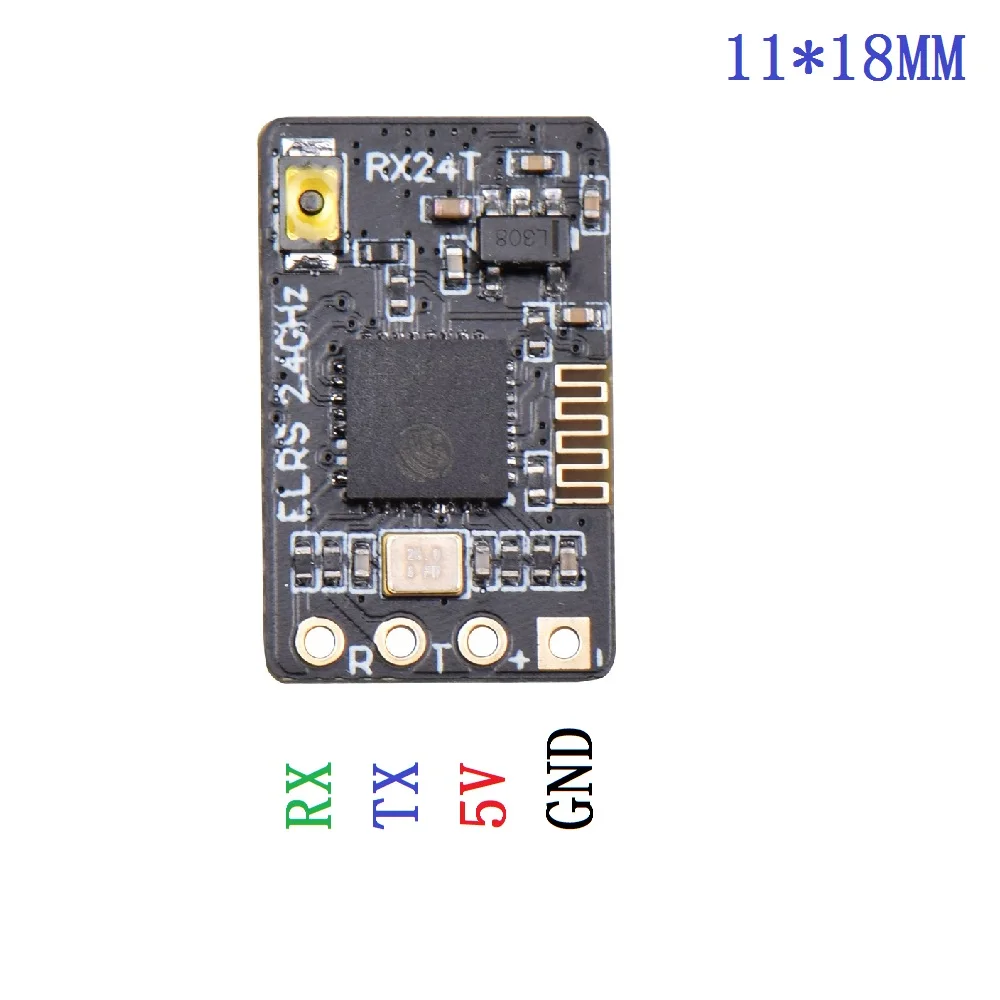

• Size: 11mm*18mm*3mm

• RX24T: Half-wave dipole omnidirectional T-shaped antenna

• Peak gain: 3.16dB

• BetafPV firmware version: 3.0.0

Indicator status:

• Double flash: code matching mode

• Slow flashing: No transmission signal is received

• Steady on: receive the transmit signal

• Fast flashing: WIFI upgrade mode

Linking steps:

• 1. After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time,

• disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the

• LED will start to flash double, and the receiver will enter the code matching mode.

• 2. After correctly connecting the 2.4G ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control,

• the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.

• 3. After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

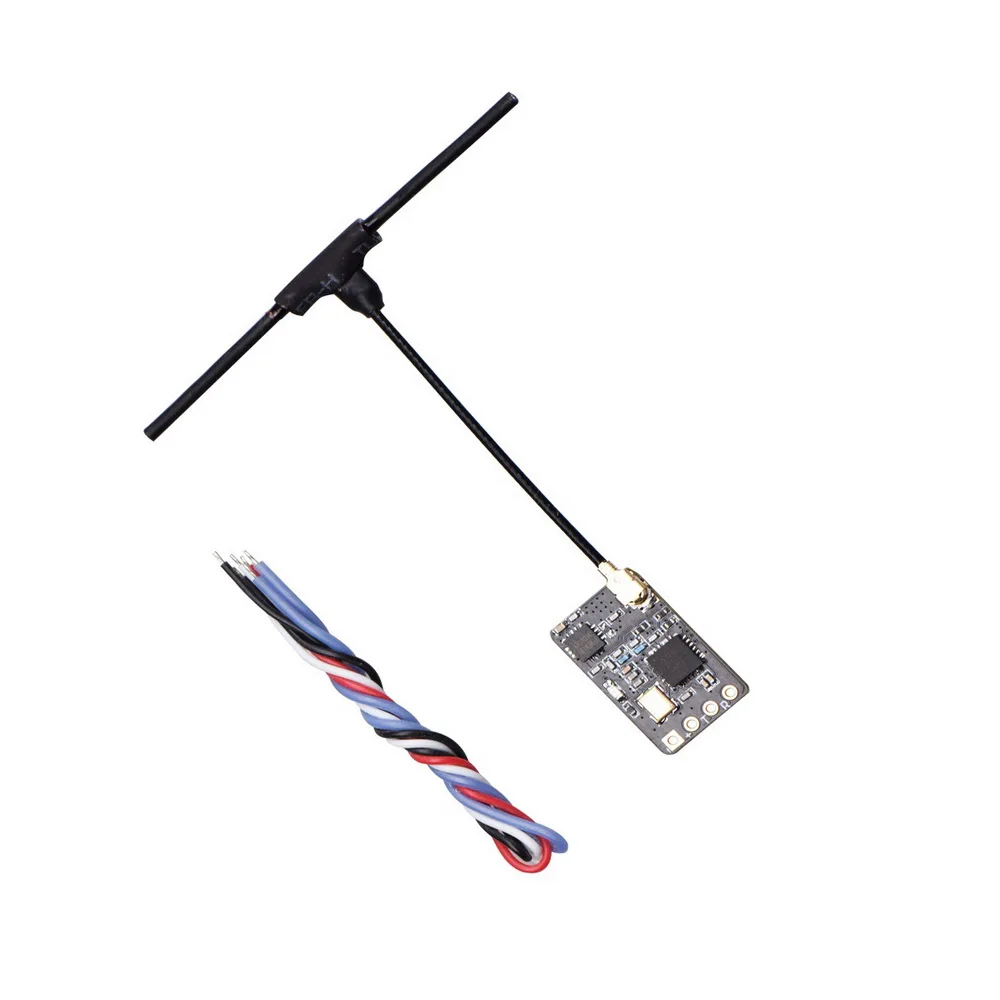

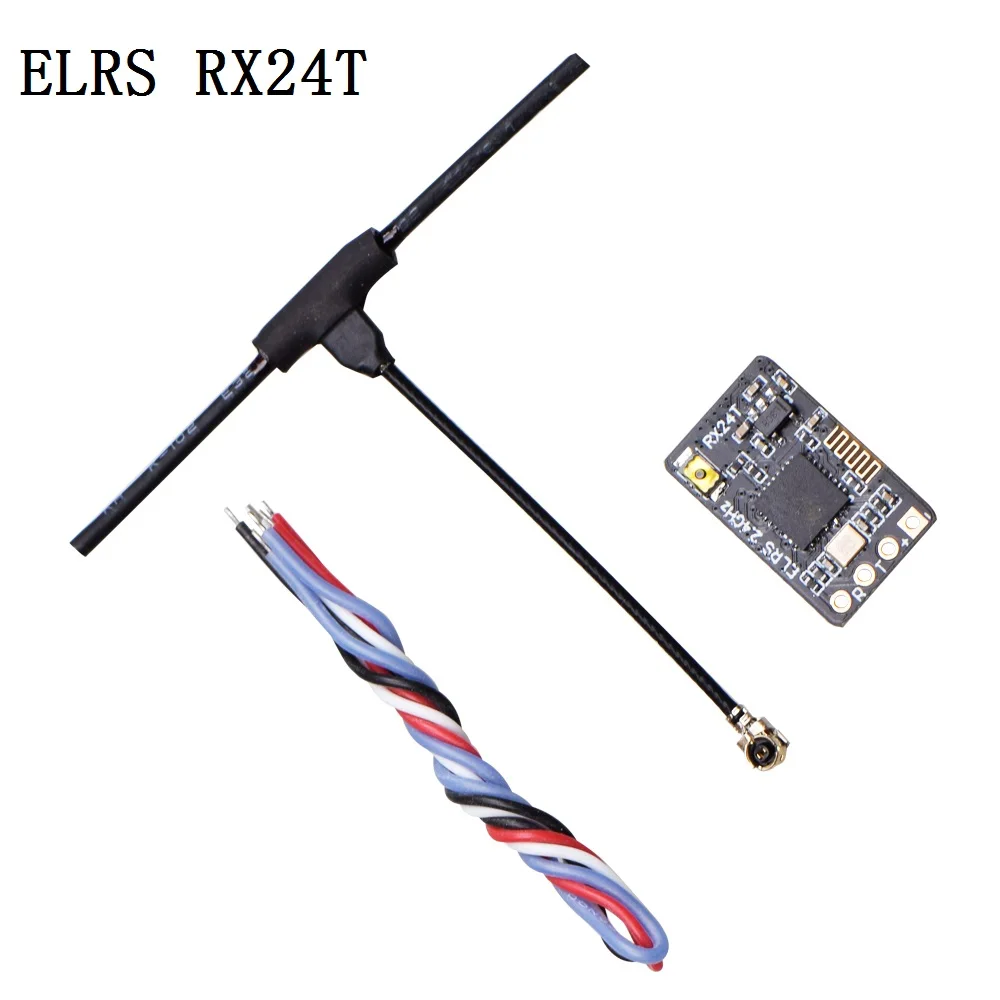

Shipping package:

• Receiver * 1

• Wire * 4

• T-type antenna *1
