Description:
Input voltage: 3.3-5.5V
Power consumption
Normal mode: 50 mA
Power saving mode: 30 mA
Operating Temperature -40 ° C to + 85 ° C
Feature:
Module comes with ceramic antenna and IPEX interface can be connected to other active antenna
Module increases the RF amplifier circuit, is conducive to speed up the search star
The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data
Module compatible with 3.3V / 5V level, easy to connect a variety of microcontroller systems
Storage temperature -55 ° C to + 100 ° C
With Micro USB interface, you can directly use the phone data cable in the computer point of view positioning effect. USB directly connected to the computer, that is, with the host computer-owned serial port function, no external serial module

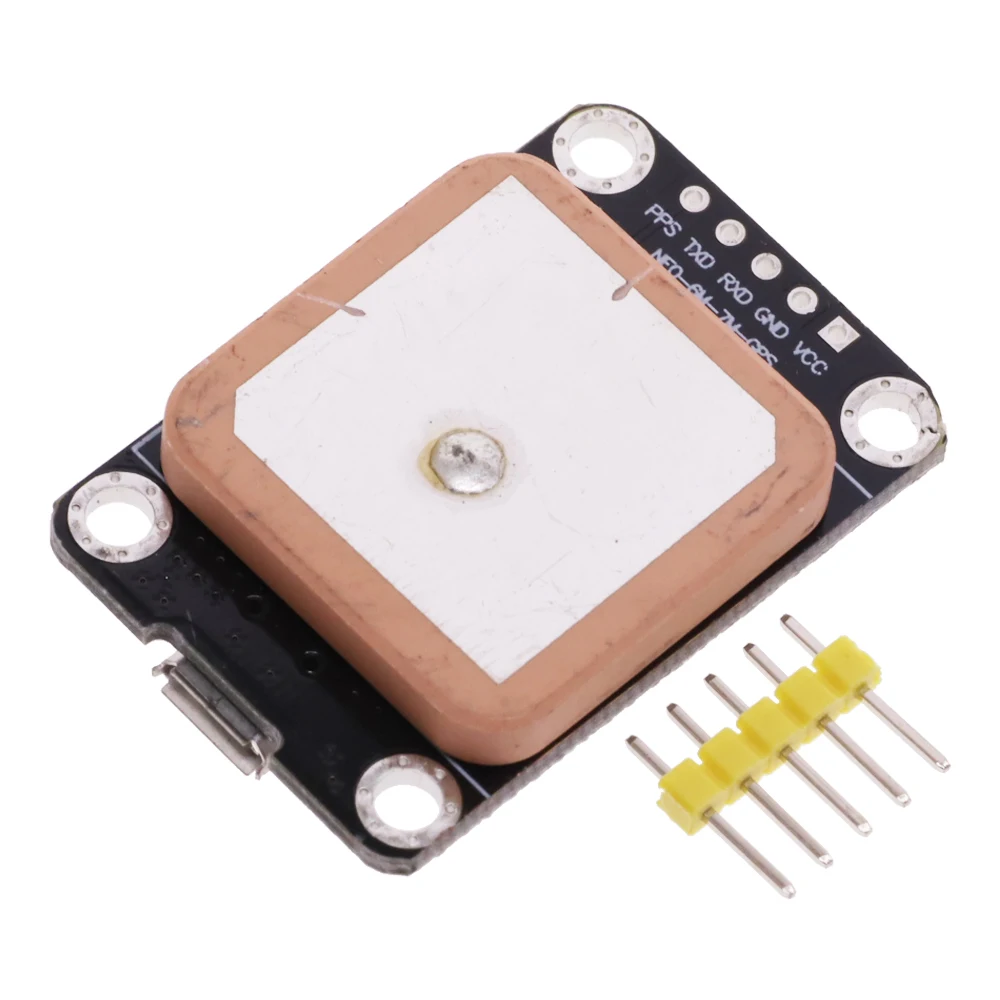

With a passive ceramic antenna and passive antenna amplifier circuit, alone with better results.
With IPX interface, you can directly access IPX active antenna
Increase the MAX2659 signal amplification, search signal stronger
Package Included:

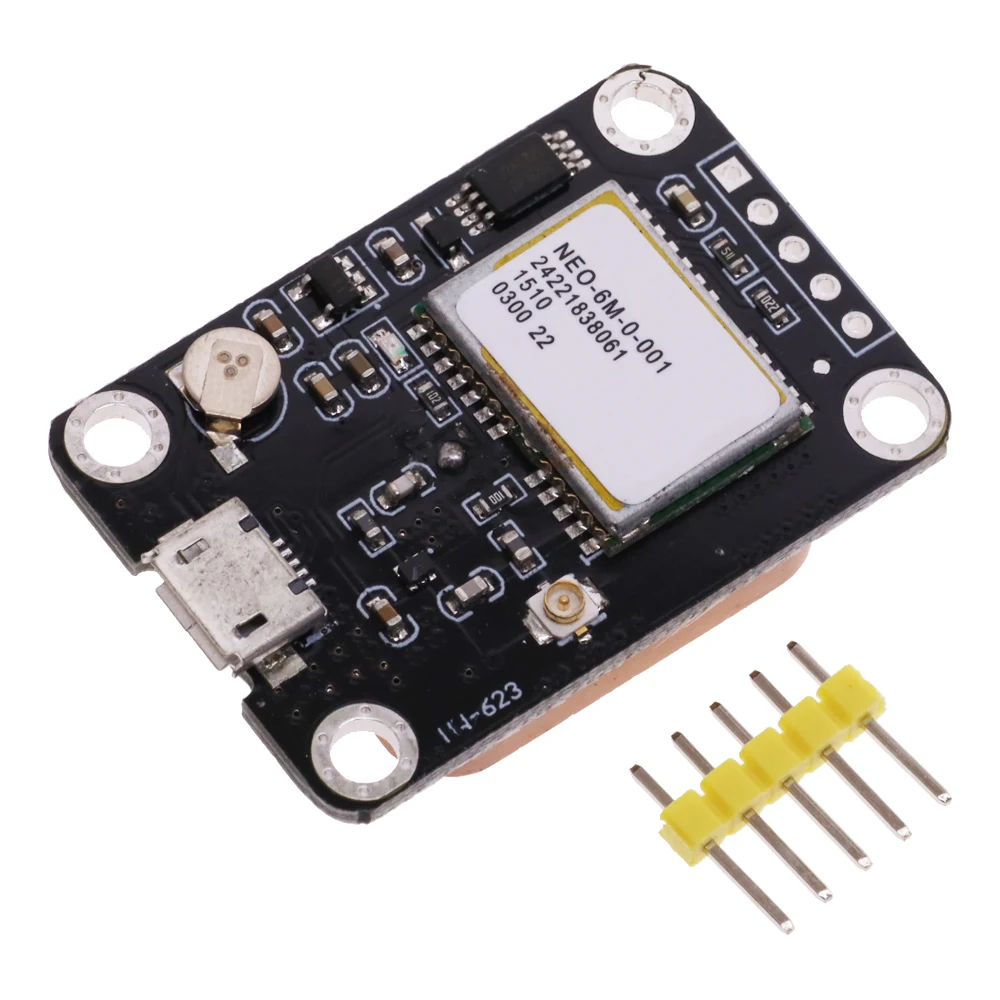

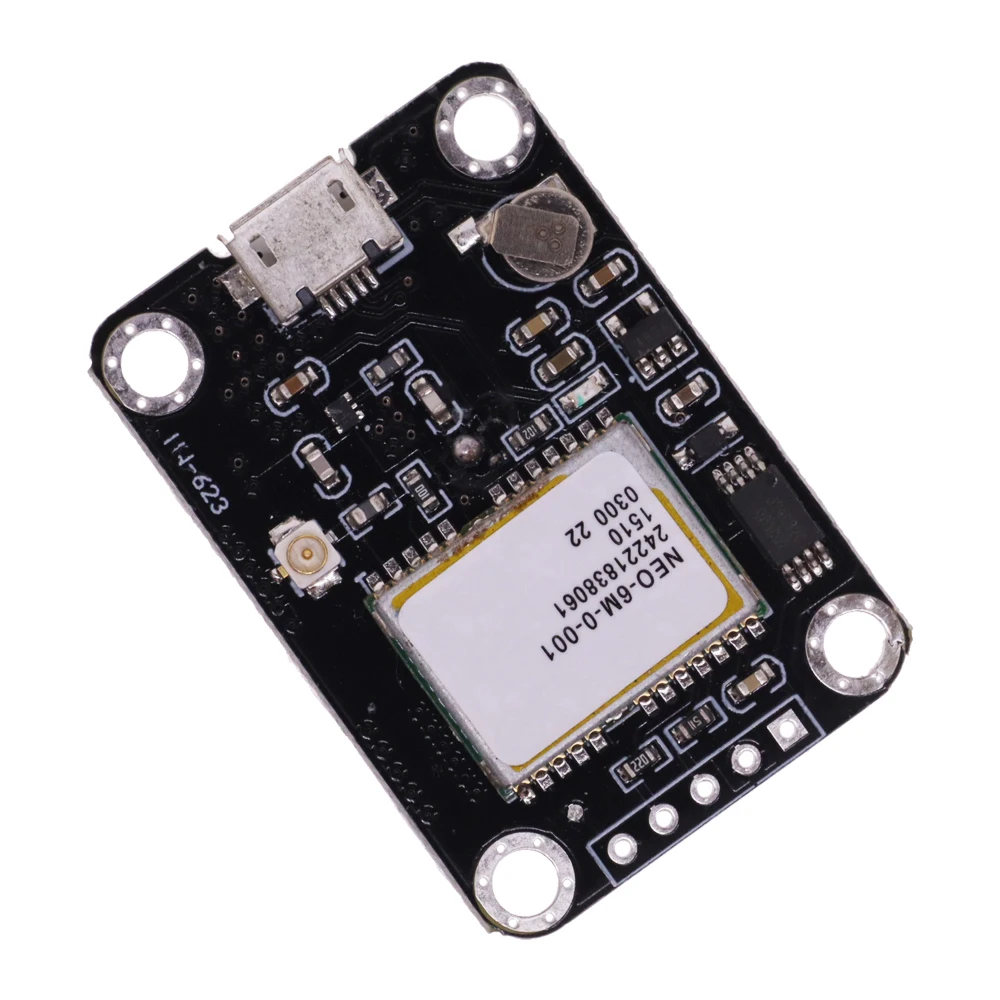

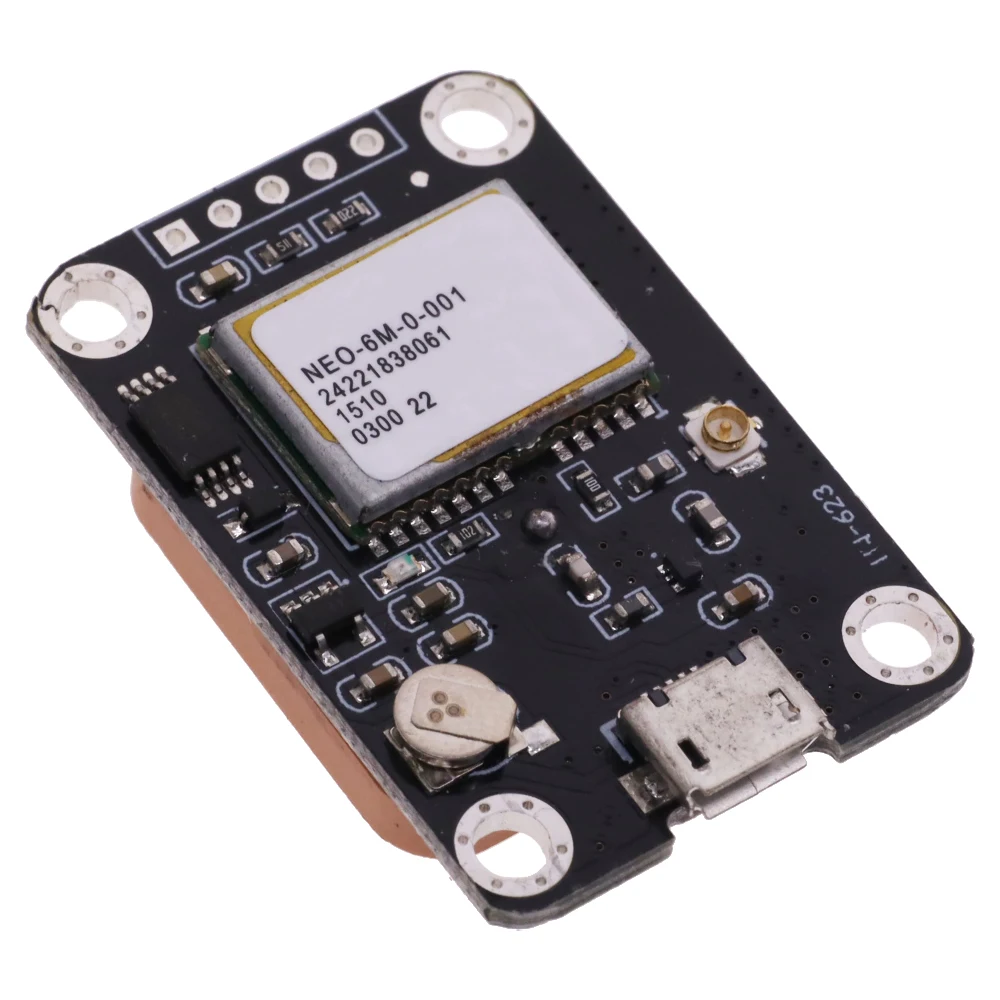

1 X NEO-6M APM2.5 GPS Module
