Modulo telecamera IP CMOS IMX179 Messa a fuoco automatica 76 gradi 125 gradi Ad alta velocità 30fps USB Plug Play con cavo da 1 M Kit elettronico

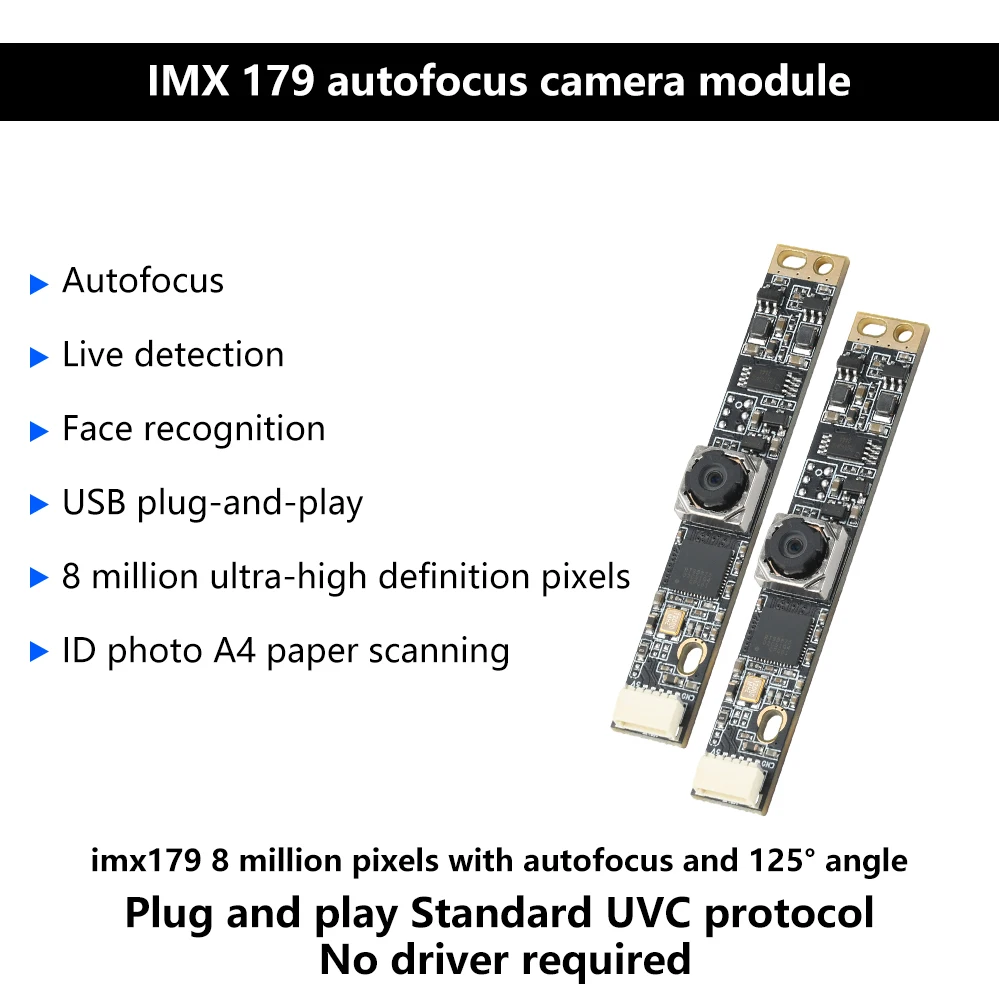

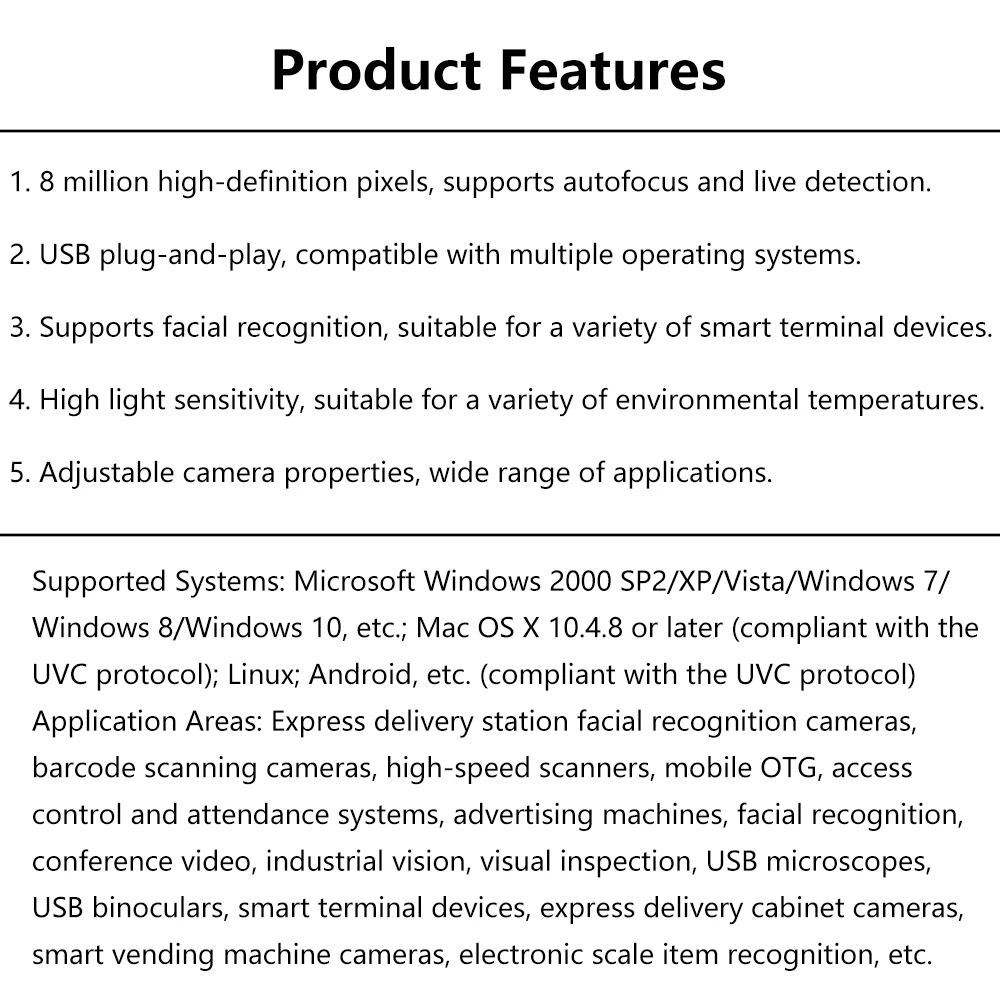

Features:

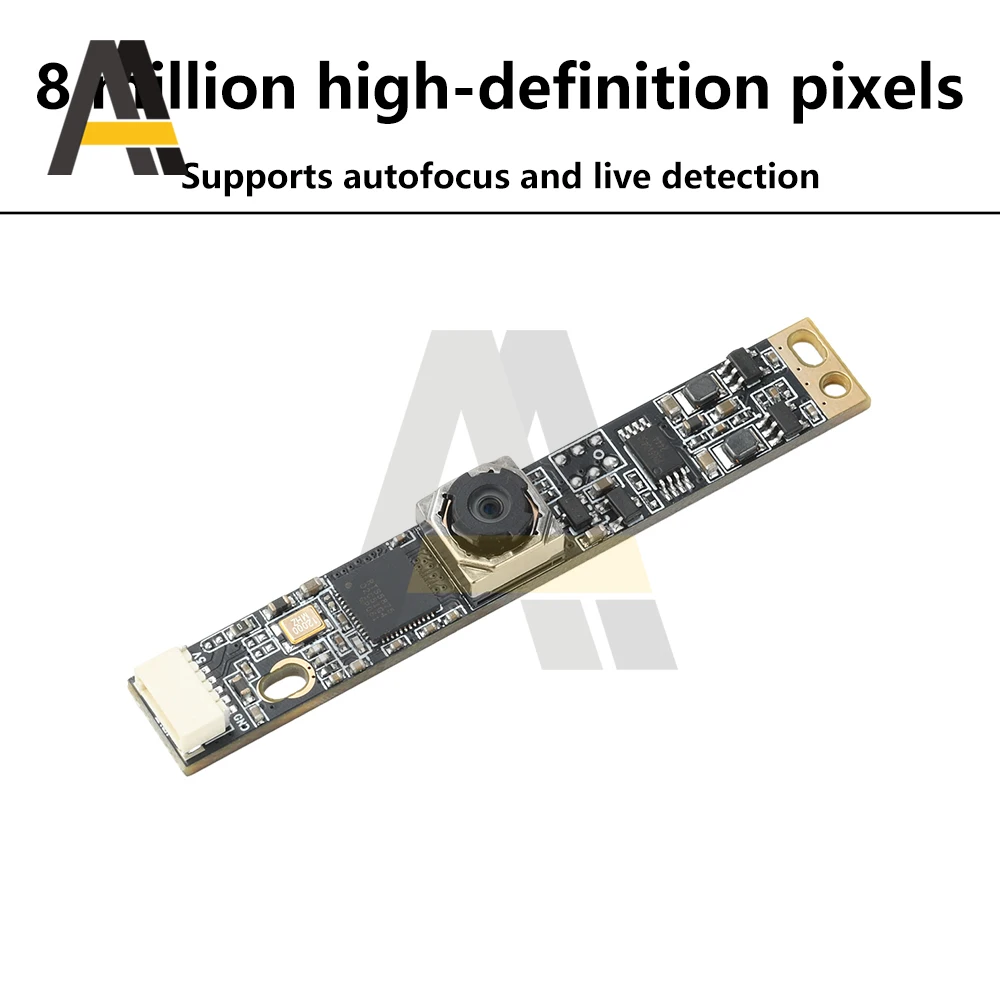

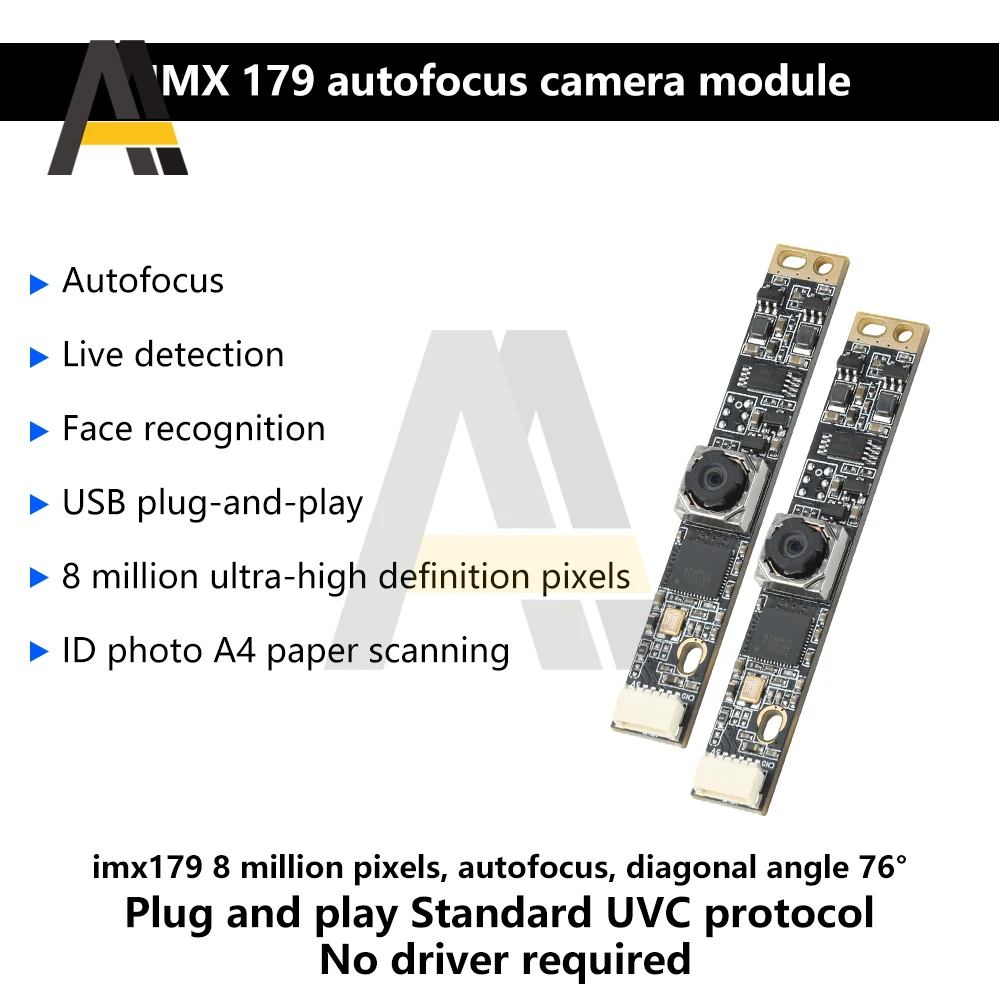

1. 800 high-definition pixels, supporting autofocus and liveness detection.
2. USB plug and play, compatible with multiple operating systems.

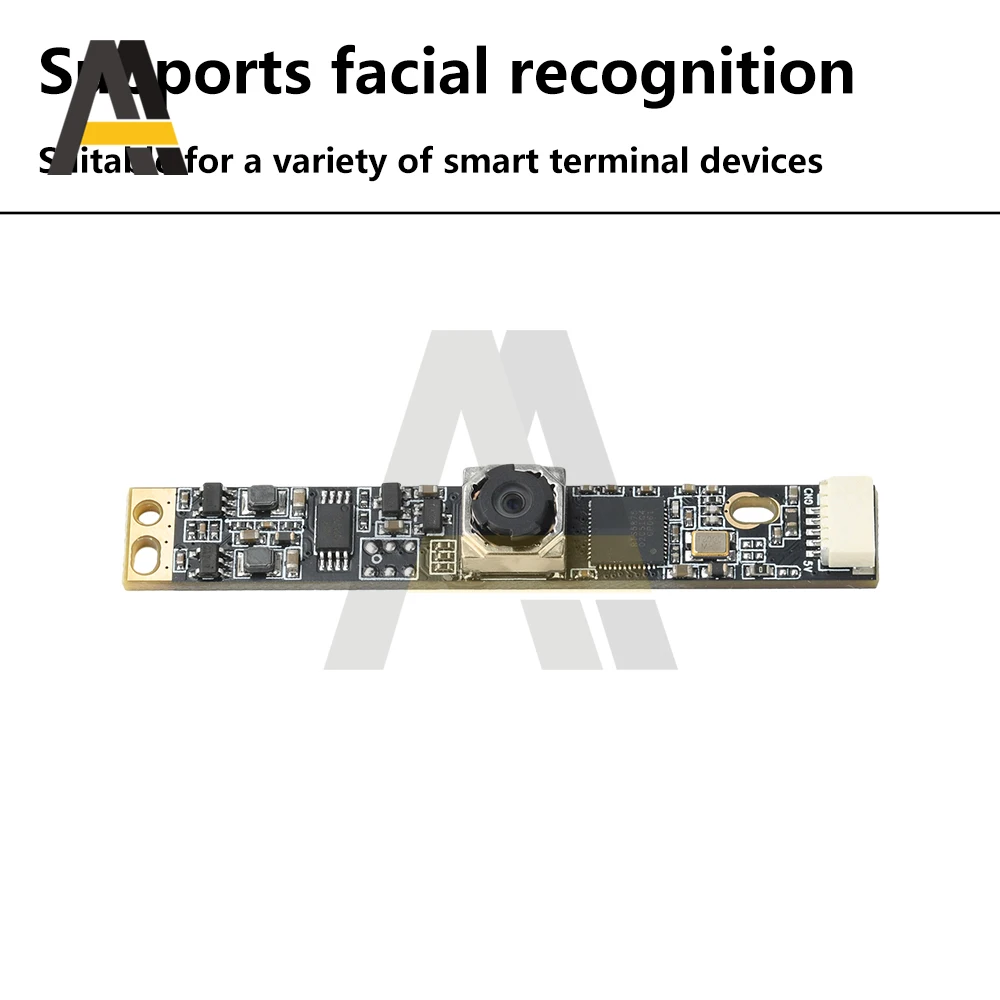

3. Supports facial recognition and is suitable for various intelligent terminal devices.

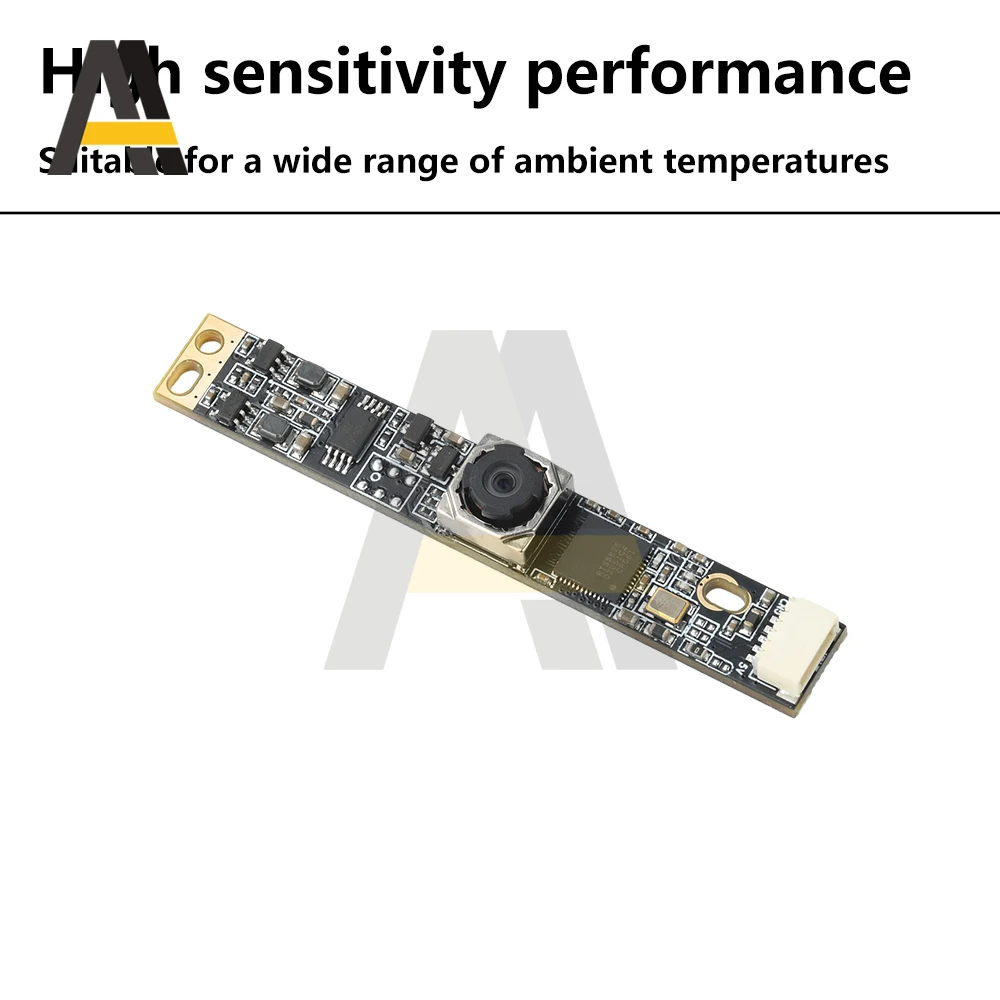

4. High sensitivity performance, suitable for various environmental temperatures.

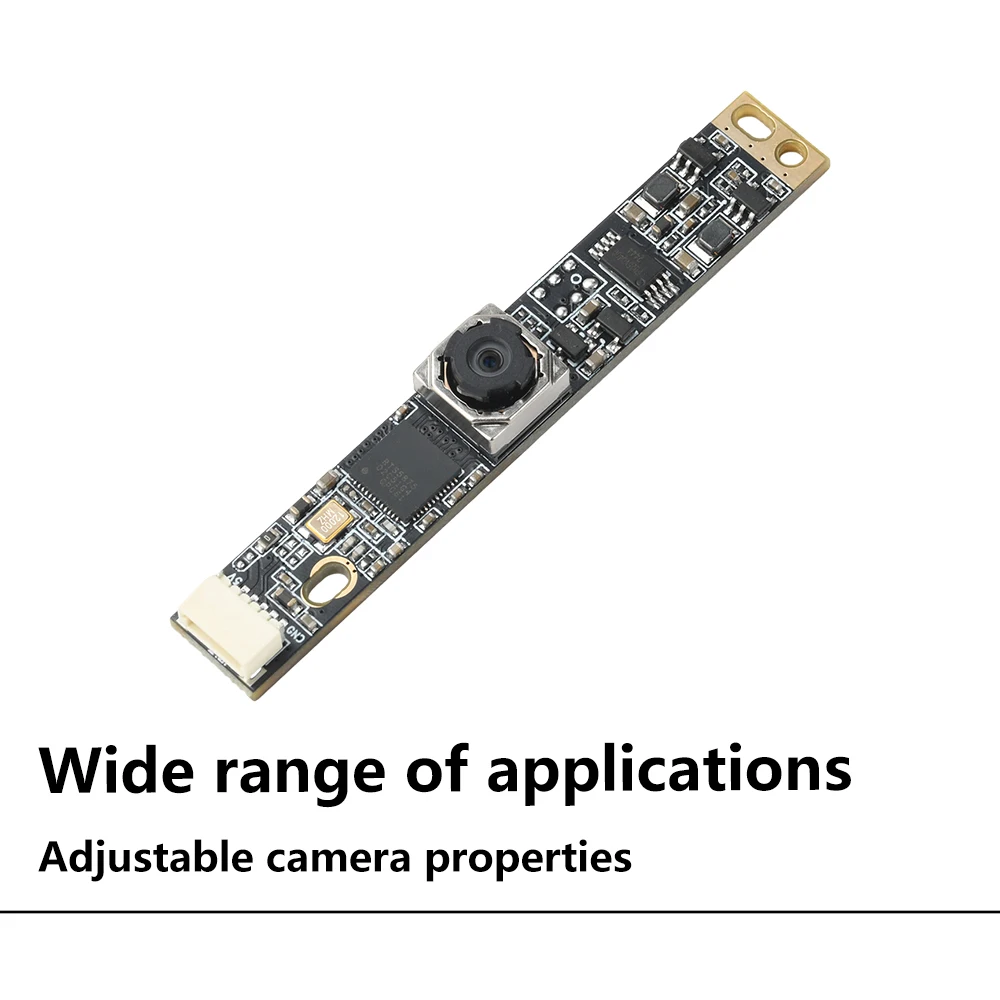

5. Adjustable camera properties, widely applicable in various fields.

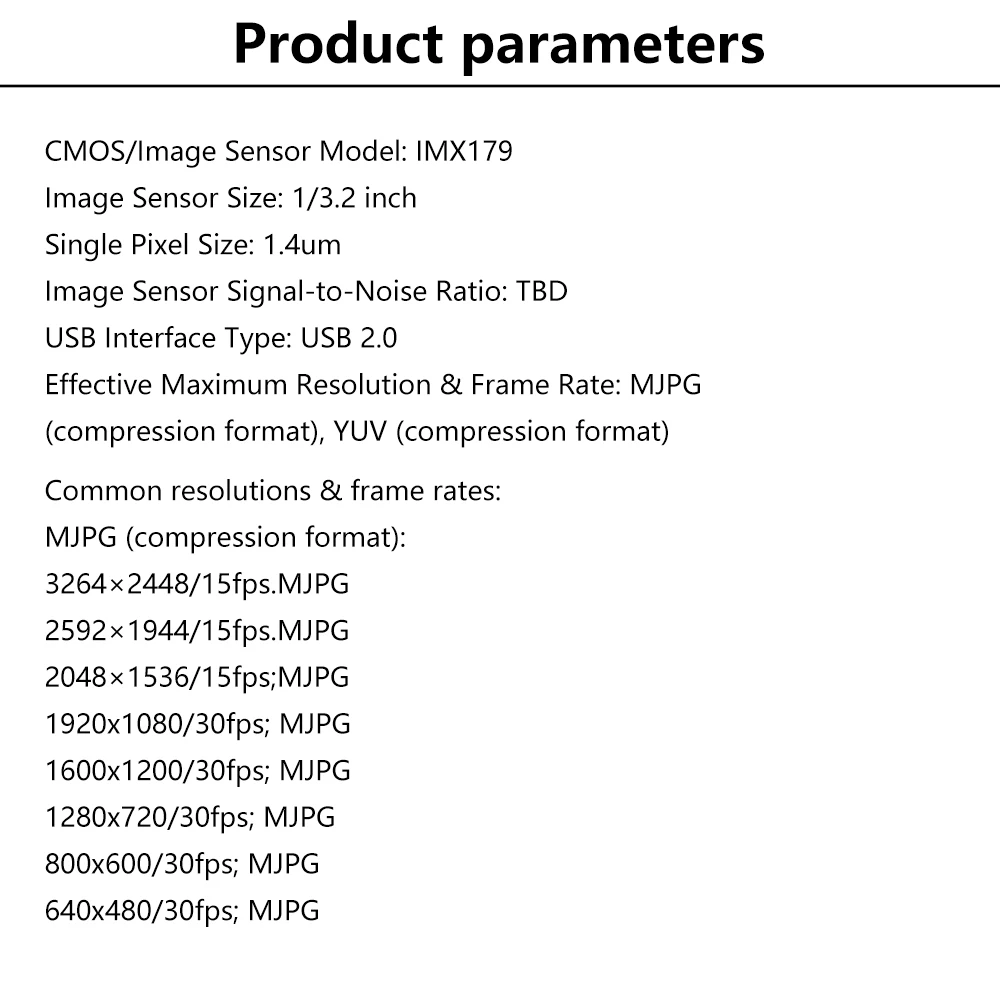

Parameter:
CMOS/photosensitive model: IMX179
Sensitivity size: 1/3.2 inch
Single pixel size: 1.4um
Sensitivity signal-to-noise ratio: TBD
USB interface type: USB 2.0
Effective maximum resolution&frame rate: MJPG (compressed format), YUV (compressed format)
Common resolutions and frame rates:
MJPG (compressed format):
3264*2448/15fps.MJPG
2592*1944/15fps.MJPG
2048*1536/15fps; MJPG
1920*1080/30fps; MJPG
1600*1200/30fps; MJPG
1280*720/30fps; MJPG
800*600/30fps; MJPG
640*480/30fps; MJPG

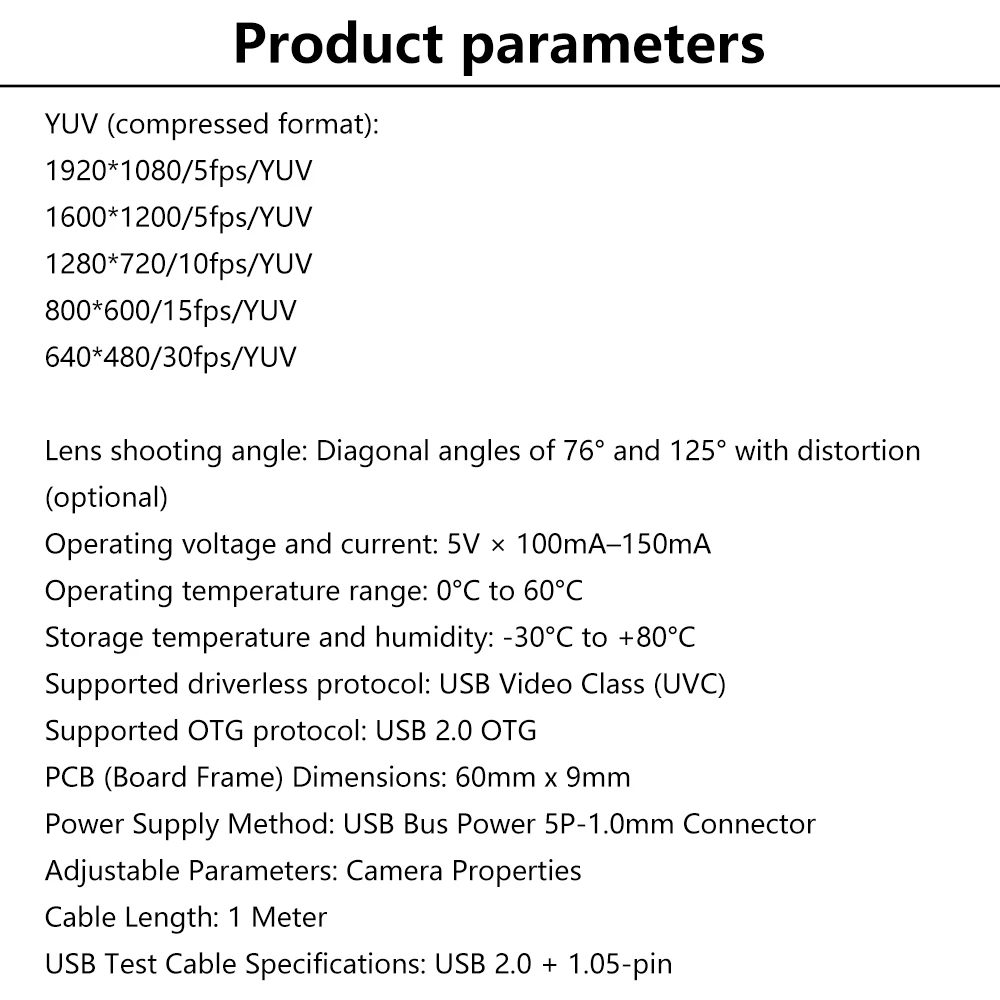

YUV (compressed format):
1920*1080/5fps/YUV
1600*1200/5fps/YUV
1280*720/10fps/YUV
800*600/15fps/YUV
640*480/30fps/YUV

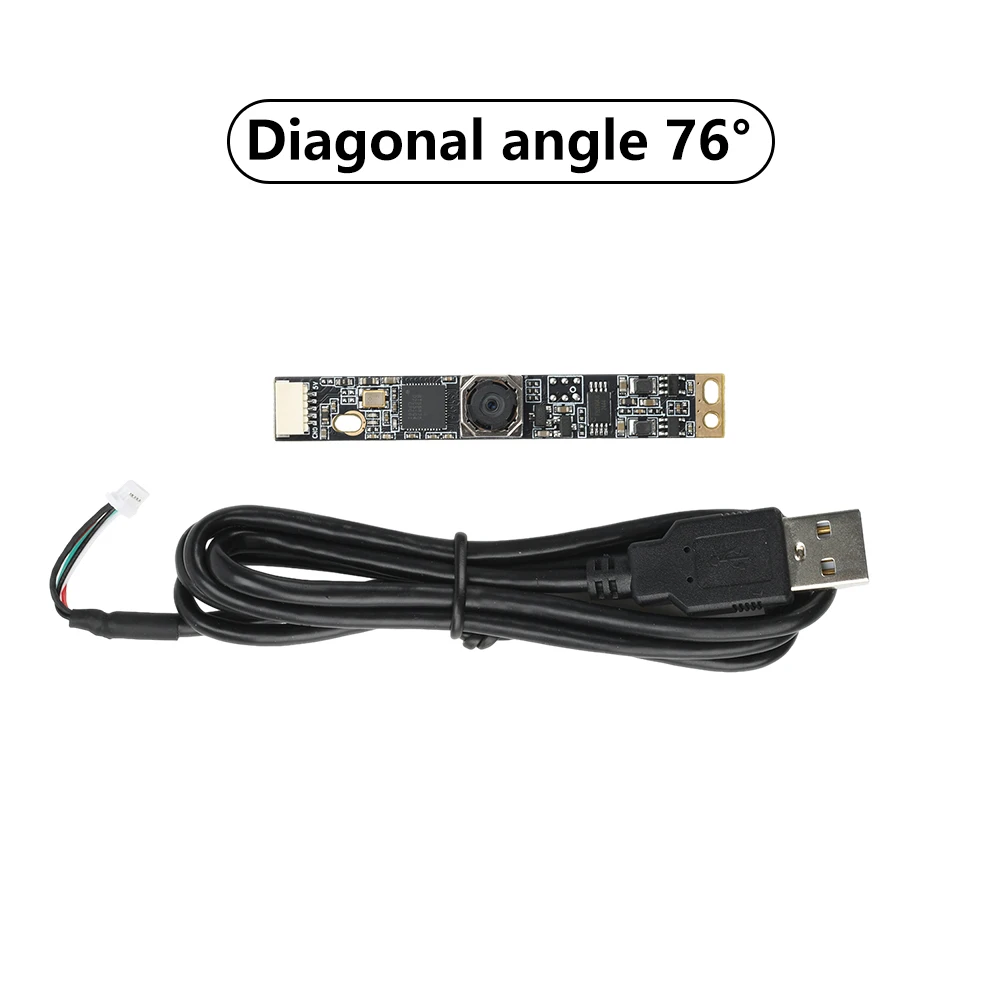

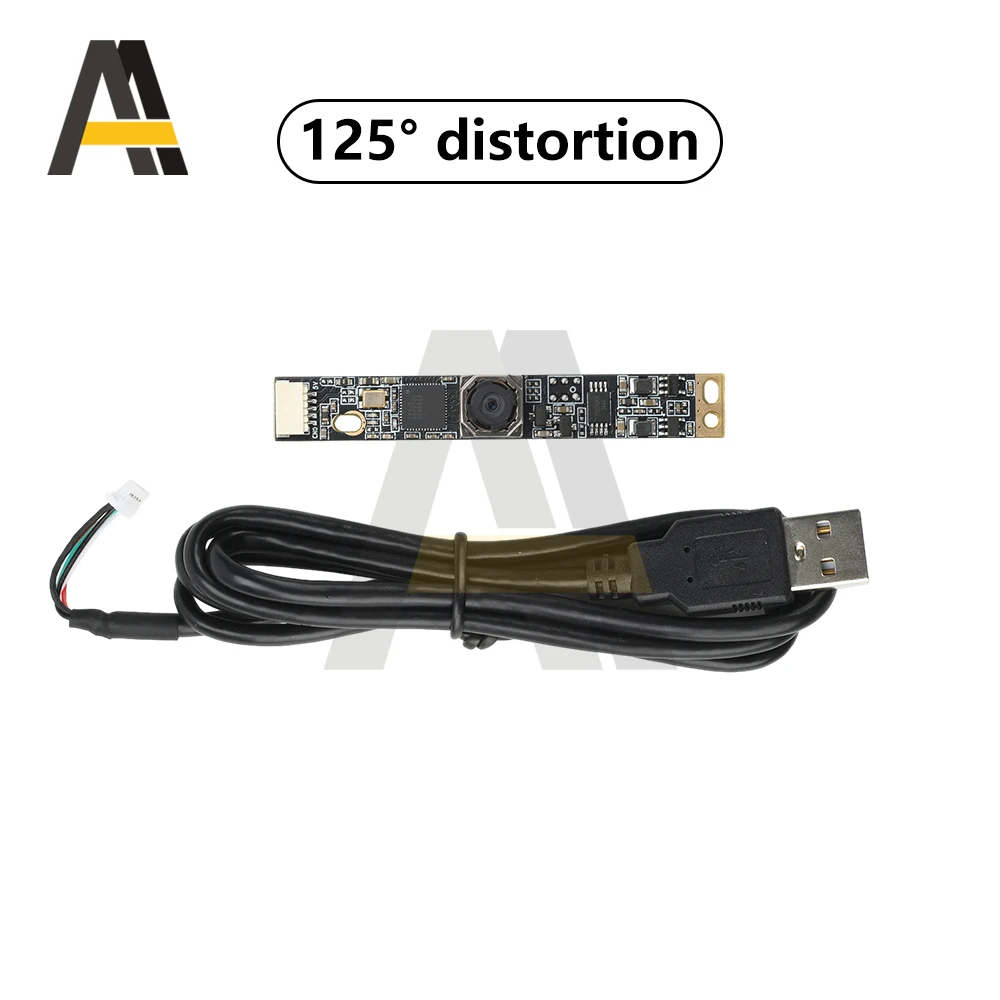

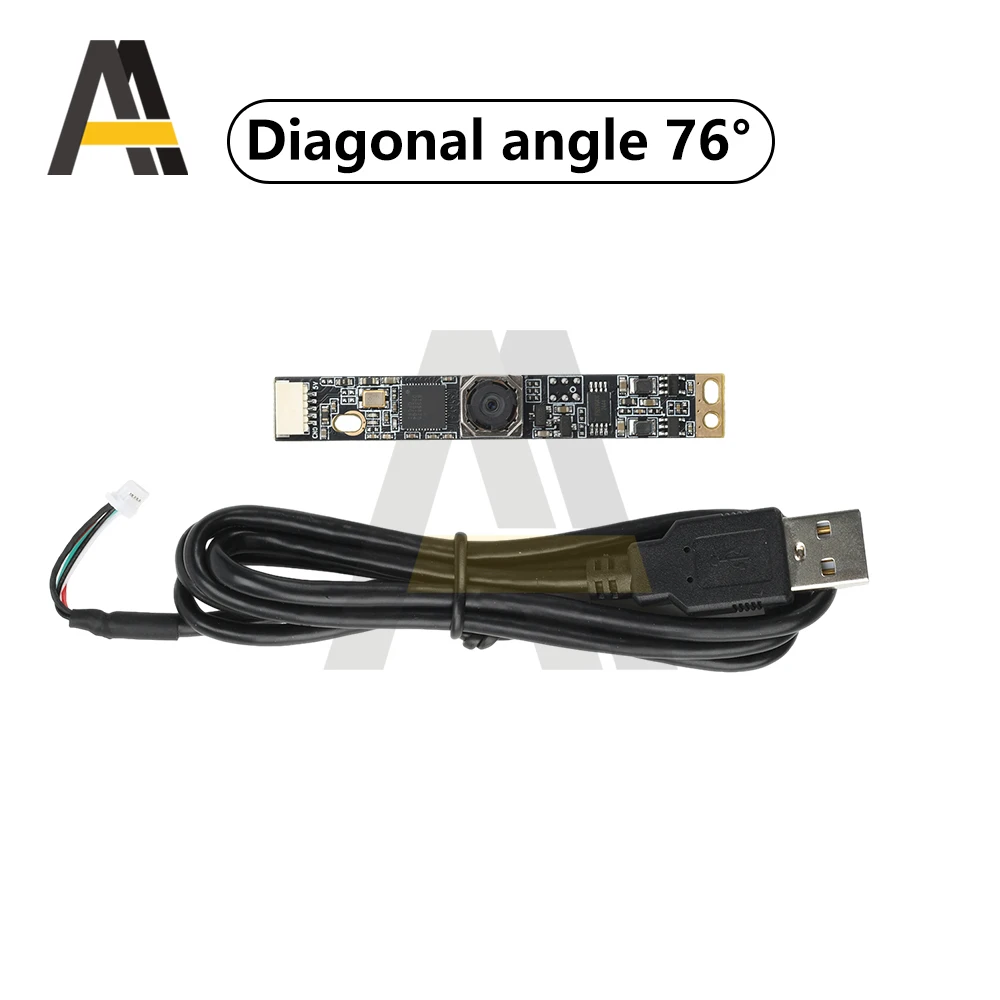

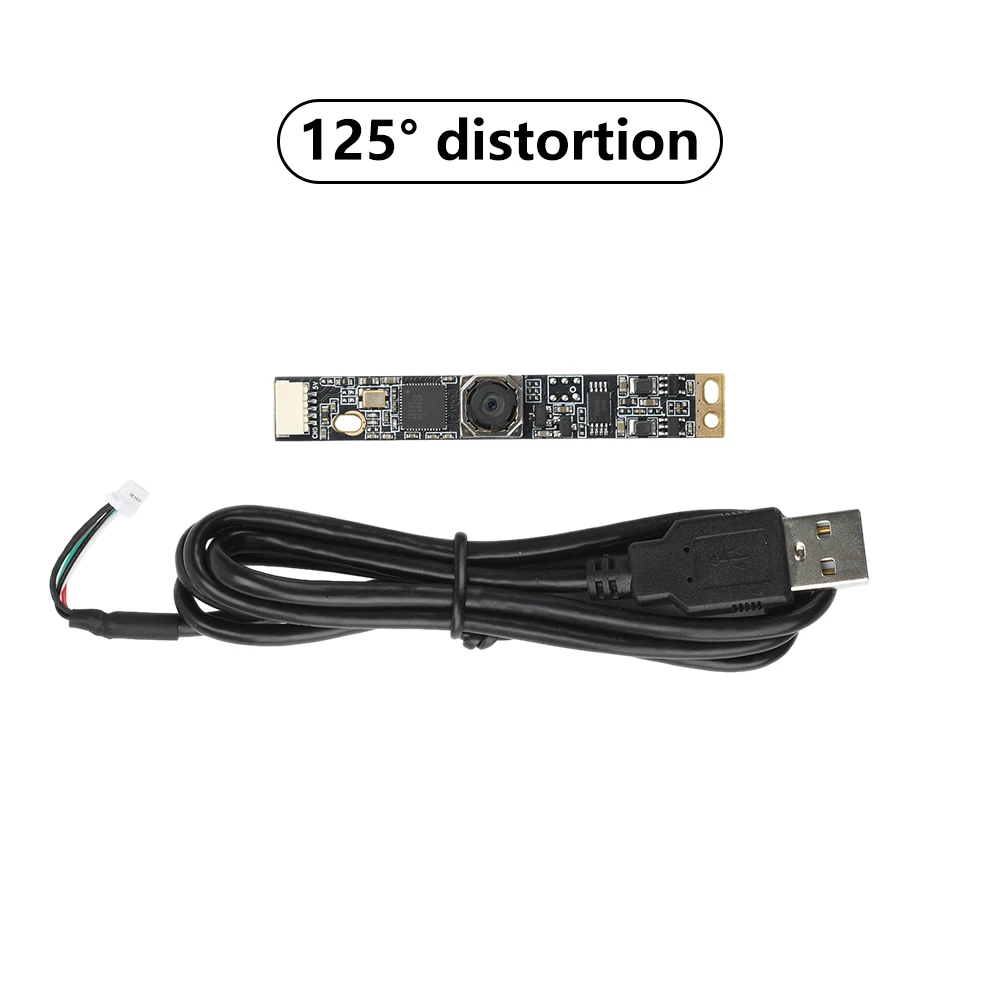

Camera shooting angle: Diagonal angles of 76 ° and 125 ° with distortion (optional)
Working voltage and current: 5V * 100mA-150mA
Adapt to working environment temperature: 0 ° C~60 ° C
Storage temperature and humidity: -30 ° C~+80 ° C
Support for Drive Free Protocol: USB Video Class (UVC)
Supports OTG protocol: USB 2.0 OTG

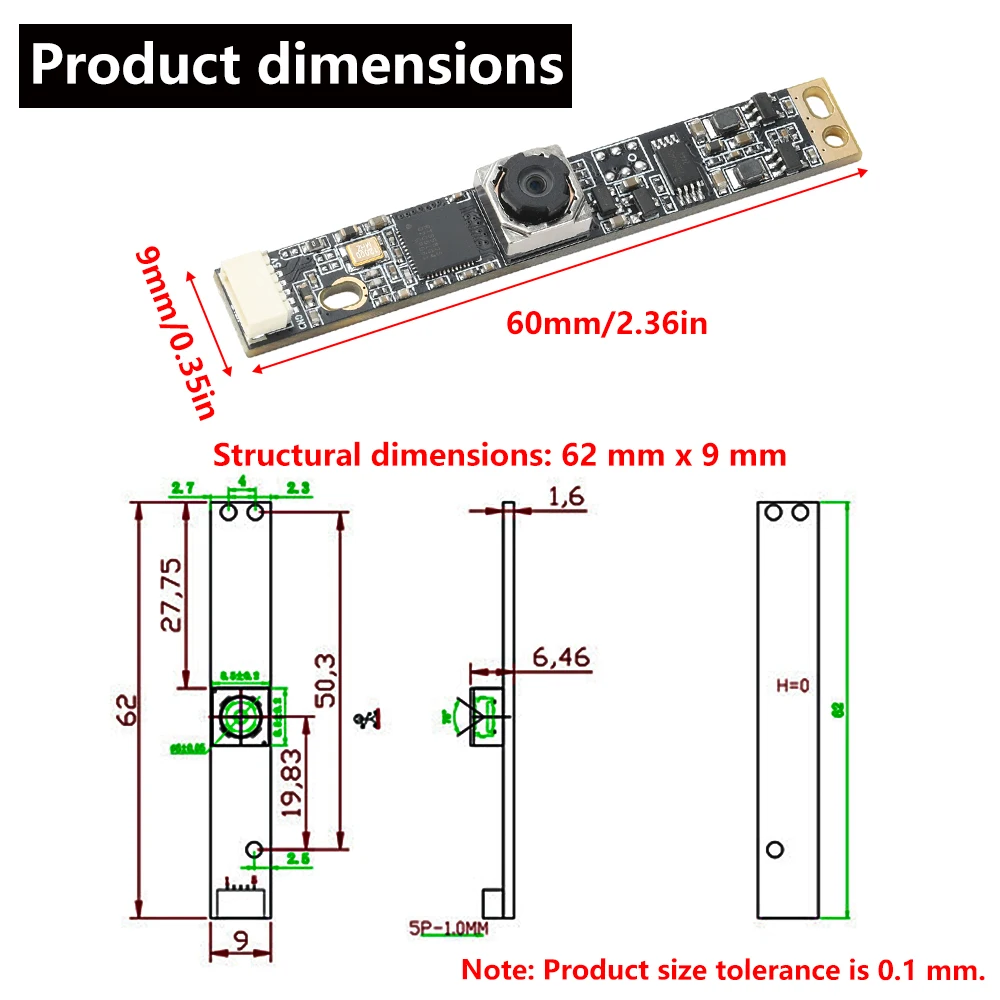

PCB (board frame) size: 60mm * 9mm
Power supply mode: USB BUS POWER 5P-1.0mm socket
Adjustable parameters: Camera properties
Line length: 1 meter
USB test cable specifications: USB 2.0+1.05pin
Supporting systems: Microsoft Windows 2000 sp2/XP/Vista/Windows 7/Windows 8/Windows 10, etc; Mac OS x 10.4.8 or above (compliant with UVC protocol); Linux； Android, etc. (compliant with UVC protocol)
Application area: Facial camera for express delivery stations Scan code camera High speed camera Mobile OTG. Access control attendance, advertising machines, facial recognition Conference video Industrial vision Visual inspection USB microscope USB goggles Intelligent terminal devices Delivery cabinet camera Smart vending machine camera Electronic scale item recognition, etc ..

Package Include:
1X camera module
1X test line
