Inductive energy transfer balanced module , large current 1.2a energy transfer battery voltage equalizer, significantly balance the battery voltage, improve the overall efficiency of the battery pack!

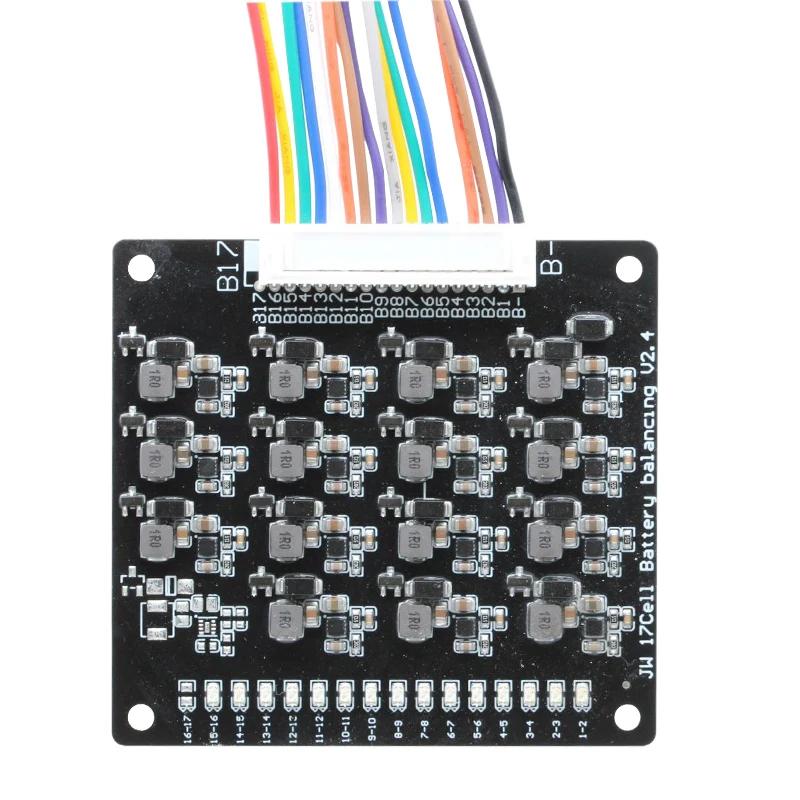

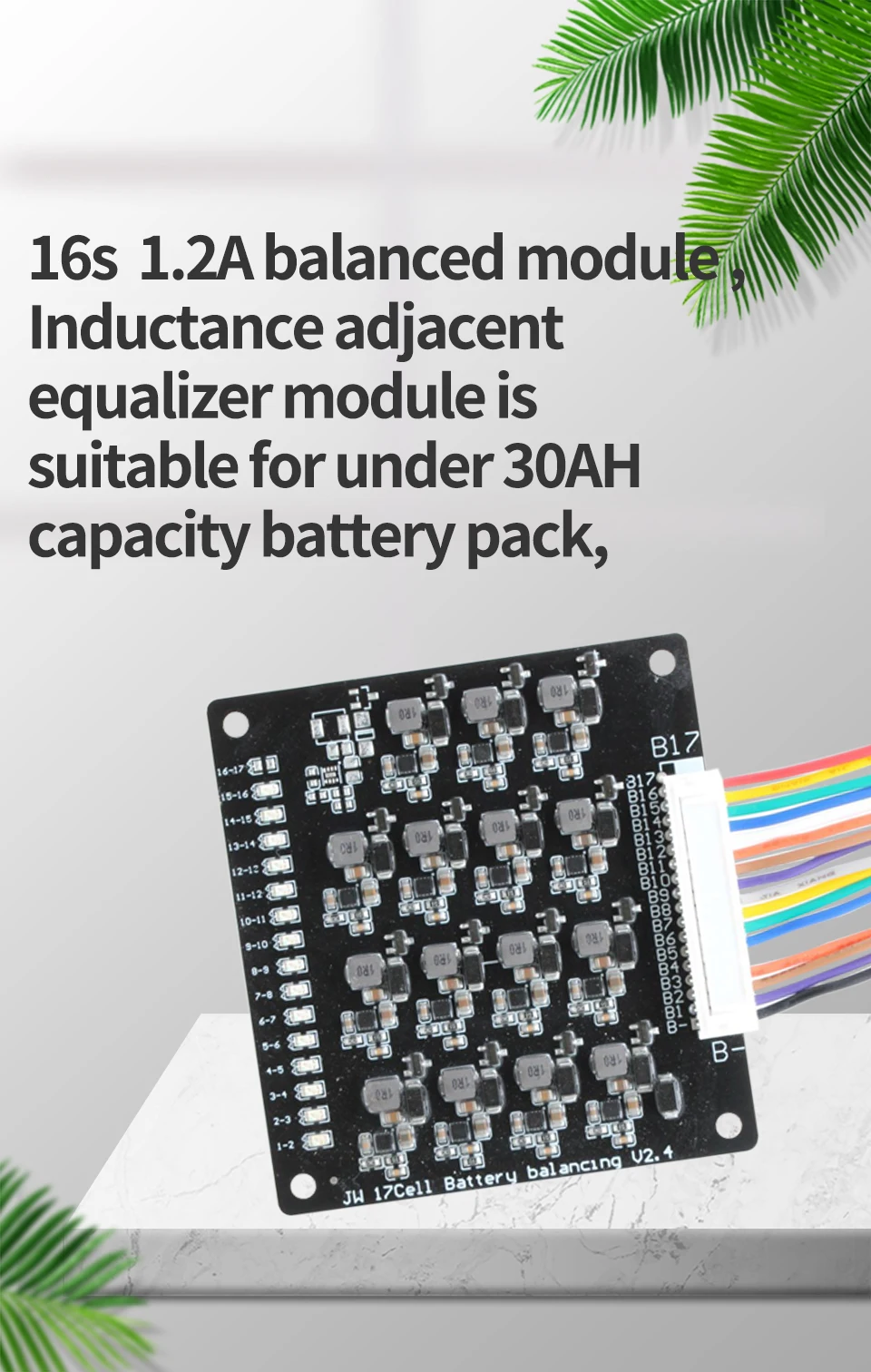

Inductance adjacent equalizer module is suitable for under 30AH capacity battery pack, above 30AH please buy the high efficiency capacitor equalizer!

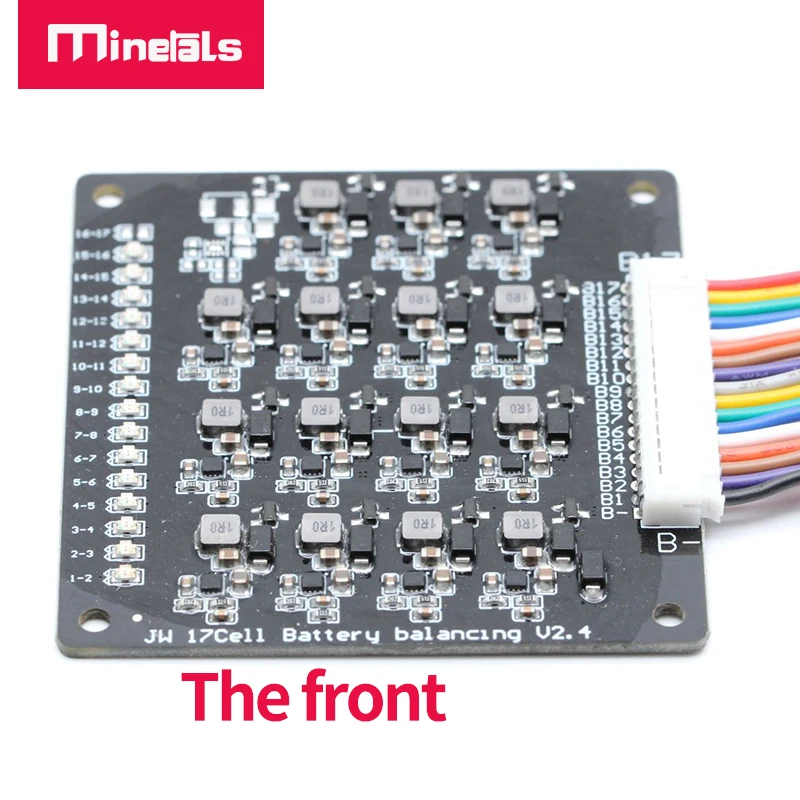

Equalization indicator:
1. When the equalizer light is on, the equalizer work is turned on.
2. Equalizing light is off, equalizing circuit sleep state,
3. Equalizing light flashes, battery drop indication , or circuit failure.
Equalization principle:
This module is adjacent voltage difference equilibrium, if adjacent cell voltage difference is above 0.1 V, chipset will trigger the balanced work until the adjacent voltage difference is within 0.03 V, If there is a neighboring voltage difference when charging and discharging on the battery pack, the voltage error of the battery pack will also be turned back to a more ideal value, reducing the battery maintenance cost.

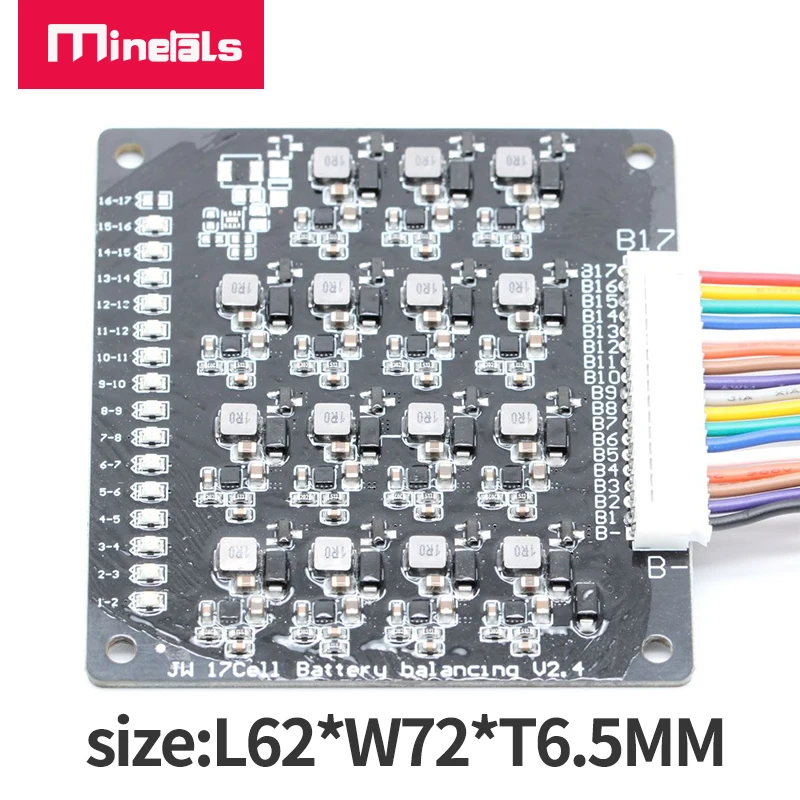

Technical parameters:
The working voltage is 2.0V-4.5V, it’s commonly used on both L-ion and LiFePo4 batteryies, it can to used on the LTO lithium titanate battery.
Equalizing current:
The adjacent voltage difference is above 0.1V (the current is around 0.5-0.7A);
The adjacent voltage difference is more than 0.2V (reaching the maximum equilibrium current 1.2a);
The smaller the voltage difference, the smaller the equalization current.
Accessory wire length: 30cm, pure copper 22AWG cable,
High precision energy transfer equalization, exclusive equalization IC!

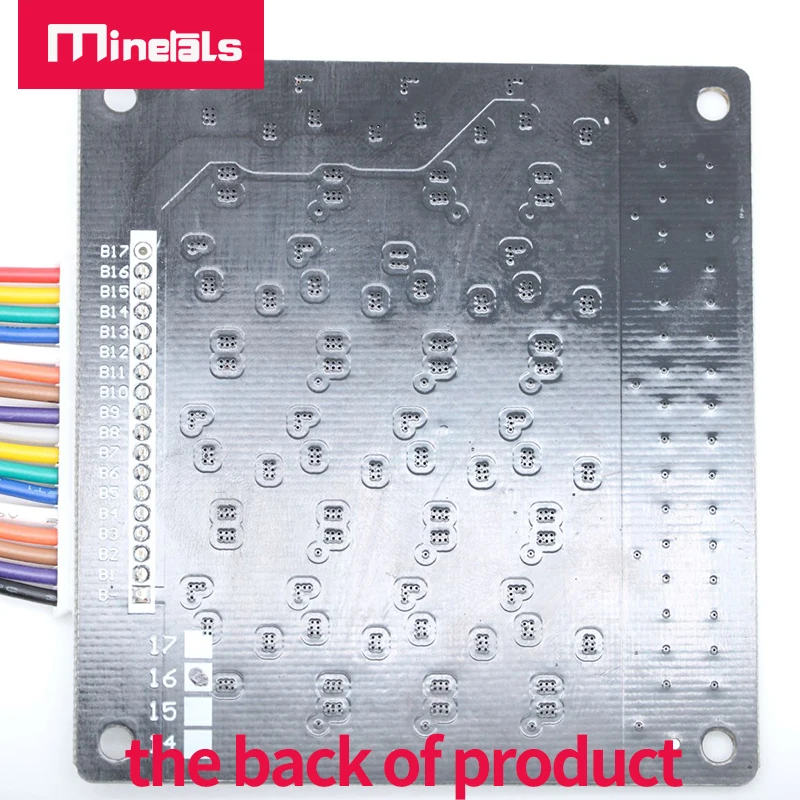

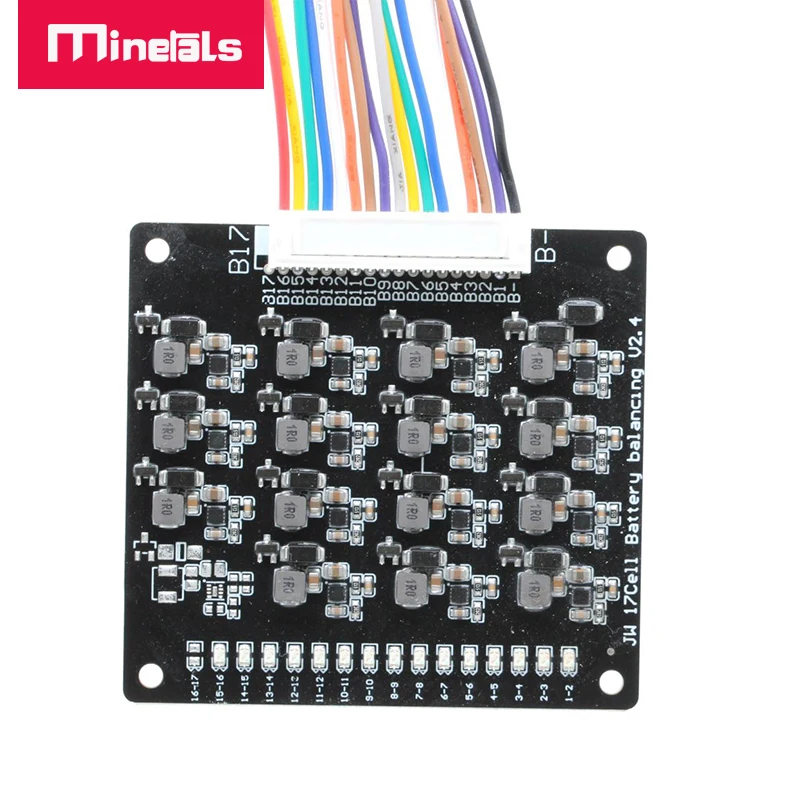

Connection definition:
BC- Connect the first string of positive pole of the battery pack
BC2 Connect the second string of positive pole of the battery pack
BC3 Connect the 3rd string of positive pole of
the battery pack.
BC4 Connect the 4th string of positive pole of
the battery pack.
BC5 Connect the 5th string of positive pole of
the battery pack.
BC6 Connect the 6th string of positive pole of
the battery pack.
BC7 Connect the 7th string of positive pole of
the battery pack.
BC8 Connect the 8th string of positive pole of
the battery pack.
BC9 Connect the 9th string of positive pole of
the battery pack.
BC10 Connect the 10th string of positive pole of
the battery pack.
BC11 Connect the 11th string of positive pole of
the battery pack.
BC12 Connect the 12th string of positive pole of
the battery pack.
BC13 Connect the 13th string of positive pole of
the battery pack.
BC14 Connect the 14th string of positive pole of
the battery pack.
BC15 Connect the 15th string of positive pole of
the battery pack.
BC16 Connect the 16th string of positive pole of
the battery pack.
the total positive pole of the battery pack
