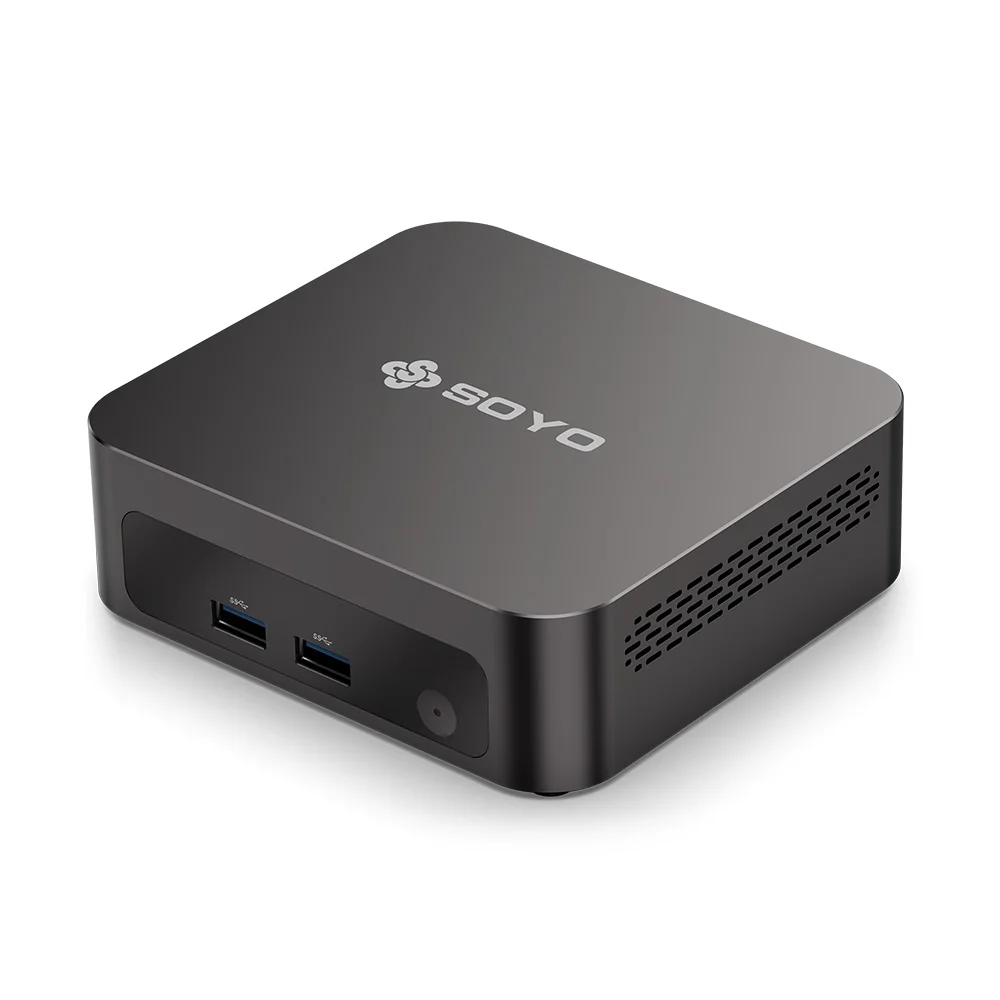

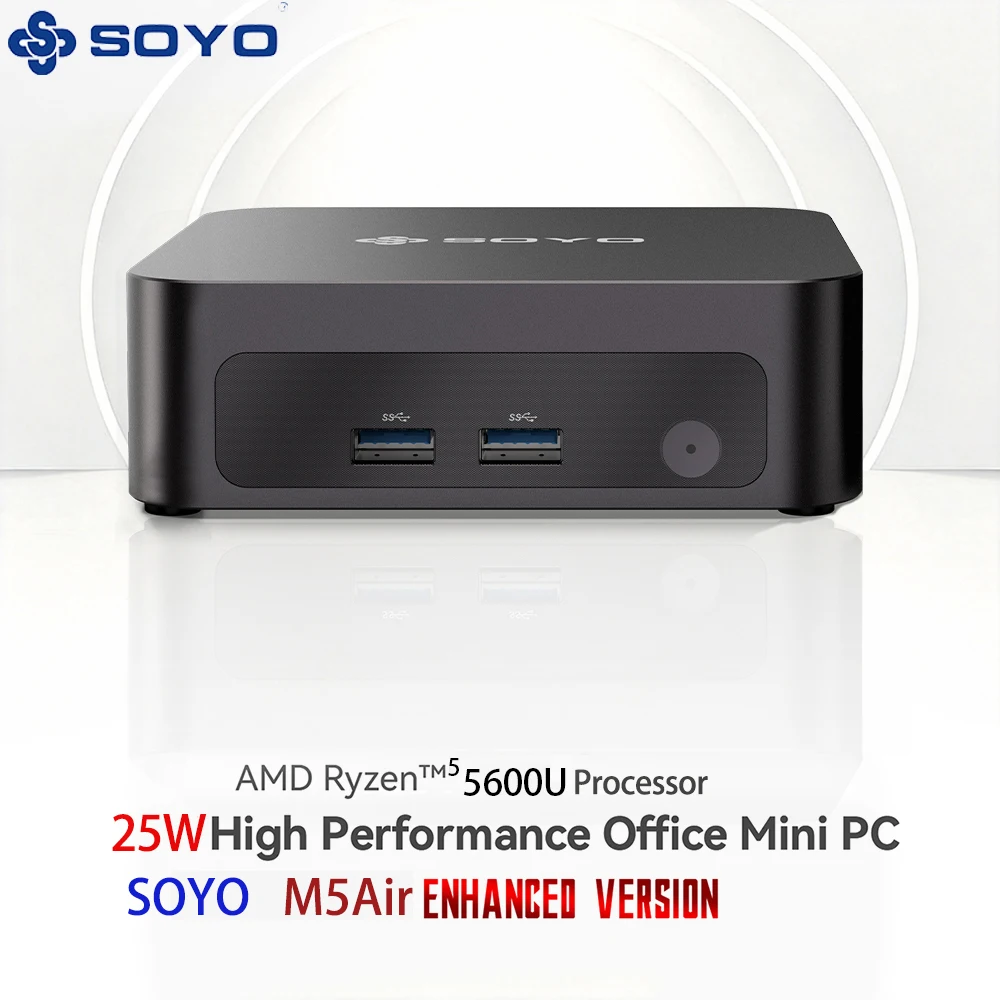

SOYO M5Air Enhanced Version – 25W High Performance Office Mini PC

Powered by the AMD Ryzen™ 5 5600U processor with TSMC 7nm technology, the M5Air Enhanced Version delivers exceptional efficiency and performance in a compact, space-saving design. Ideal for office work, creative tasks, and multi-screen productivity.

---

🚀 Core Highlights

⚡ AMD Ryzen™ 5 5600U – Power Meets Efficiency

• 6 Cores / 12 Threads – TSMC 7nm process

• Max Turbo Frequency: 4.2 GHz | Base Frequency: 2.3 GHz

• TDP up to 25W – optimized for performance and power efficiency

• AMD Radeon™ Graphics with up to 1800 MHz graphics frequency

• Supports up to 64GB DDR4 RAM (dual-channel, 3200MHz)

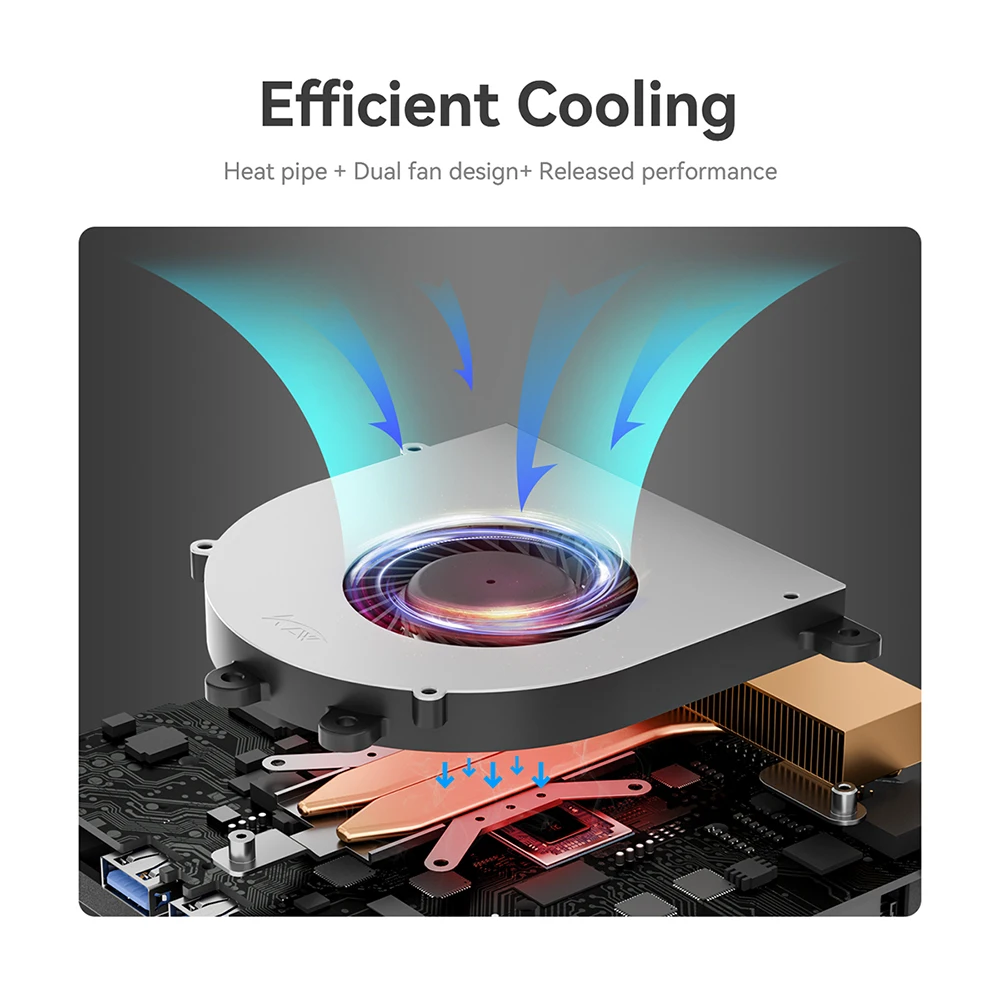

💨 Efficient Cooling – Dual Fan Design

• Heat pipe + dual fan cooling (CPU fan + system fan)

• Optimized airflow for sustained performance under 25W TDP

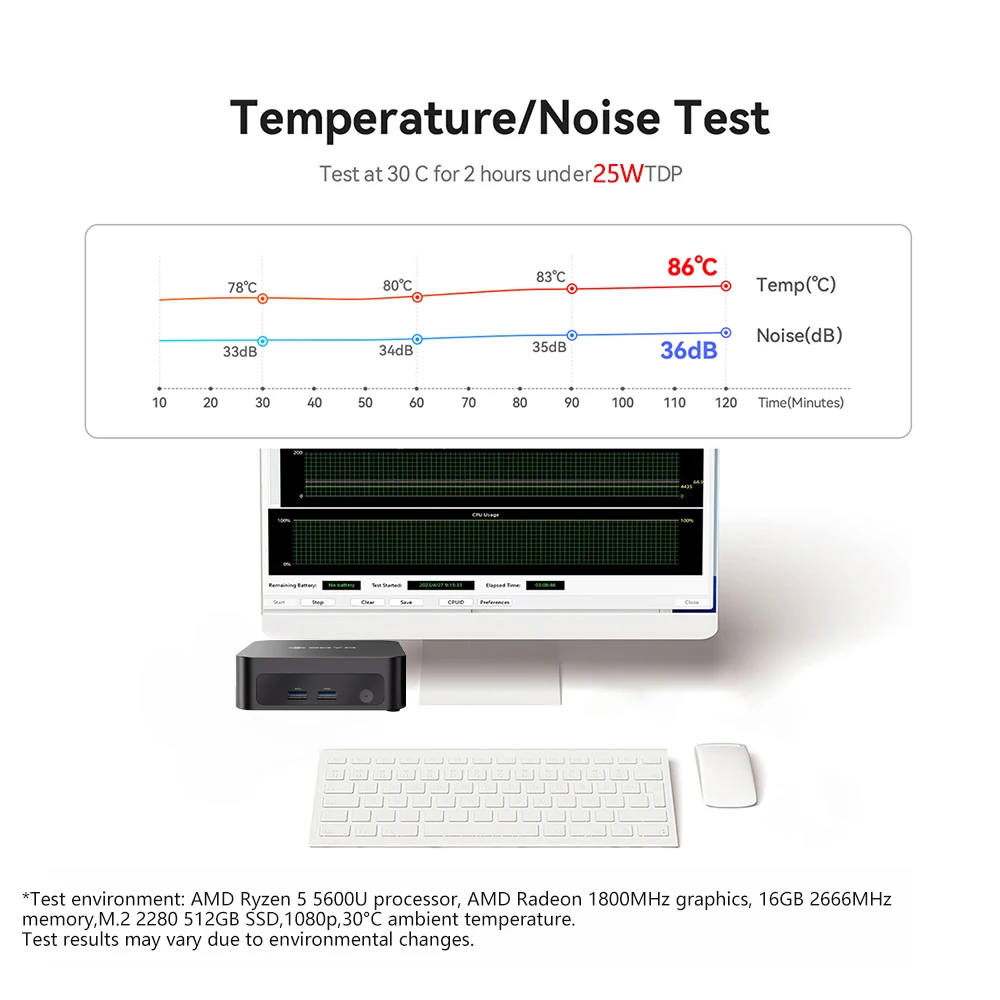

• Noise level: only 33–36 dB under full load (tested at 30°C ambient)

💾 High-Speed Storage & Memory

• Up to 64GB DDR4 RAM – dual-channel SO-DIMM, 3200MHz

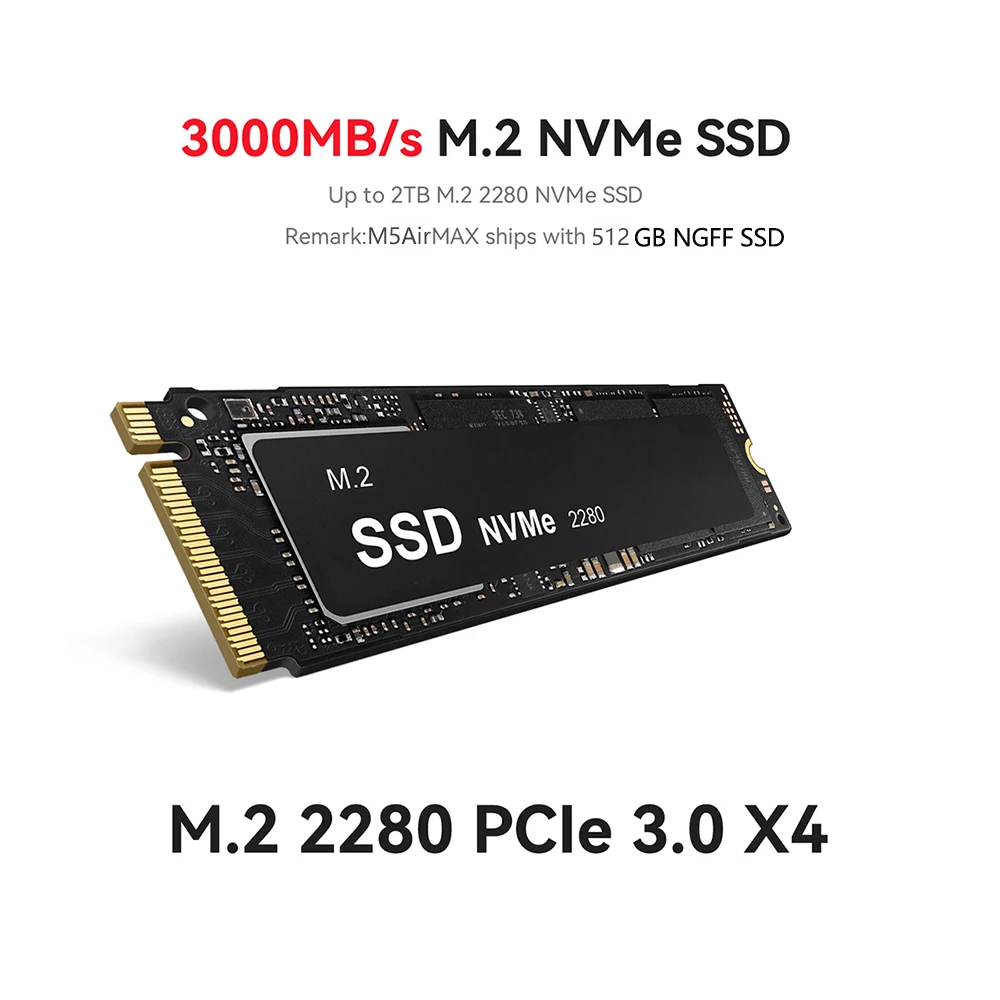

• M.2 2280 PCIe 3.0 x4 NVMe SSD – read speeds up to 3000 MB/s

• Supports up to 2TB storage expansion

• Pre-configured: 16GB DDR4 + 512GB NGFF SSD (varies by version)

🖥️ Triple Screen Display – Maximize Productivity

• Supports triple display output for multitasking efficiency

• 4K @ 60Hz support – 4x clearer than 1080P

• Ideal for stock trading, coding, design, and creative workflows

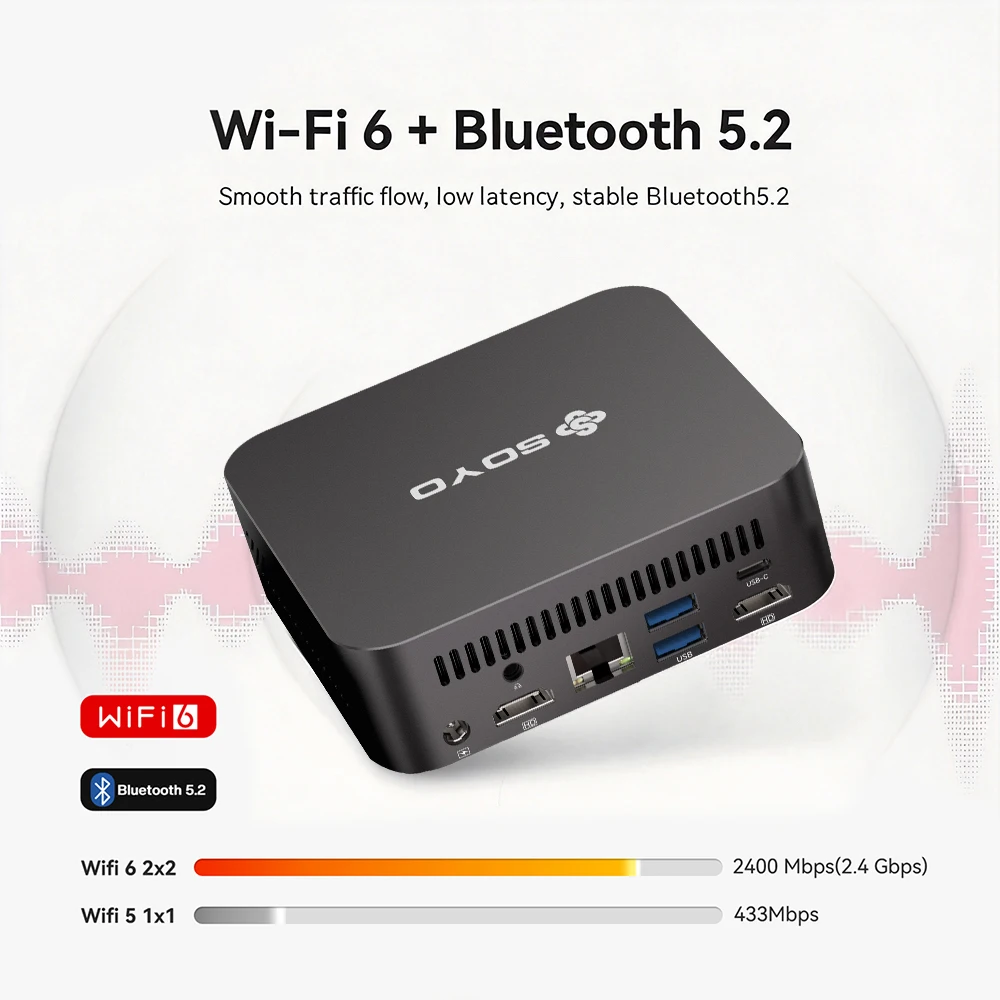

📡 Wi-Fi 6 + Bluetooth 5.2 – Next-Gen Connectivity

• Wi-Fi 6 (2×2) – speeds up to 2400 Mbps (vs Wi-Fi 5 1×1 at 433 Mbps)

• Bluetooth 5.2 – low latency, stable connection for peripherals

• Faster, more stable wireless experience

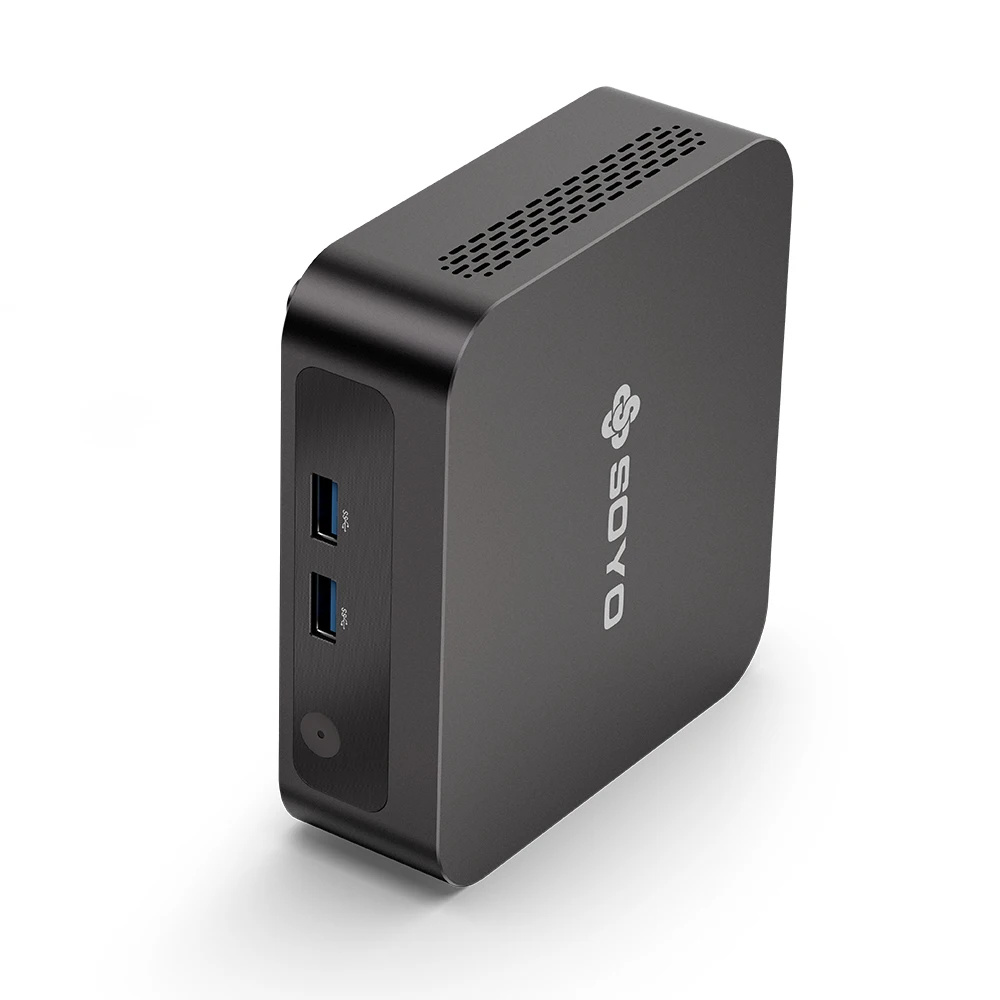

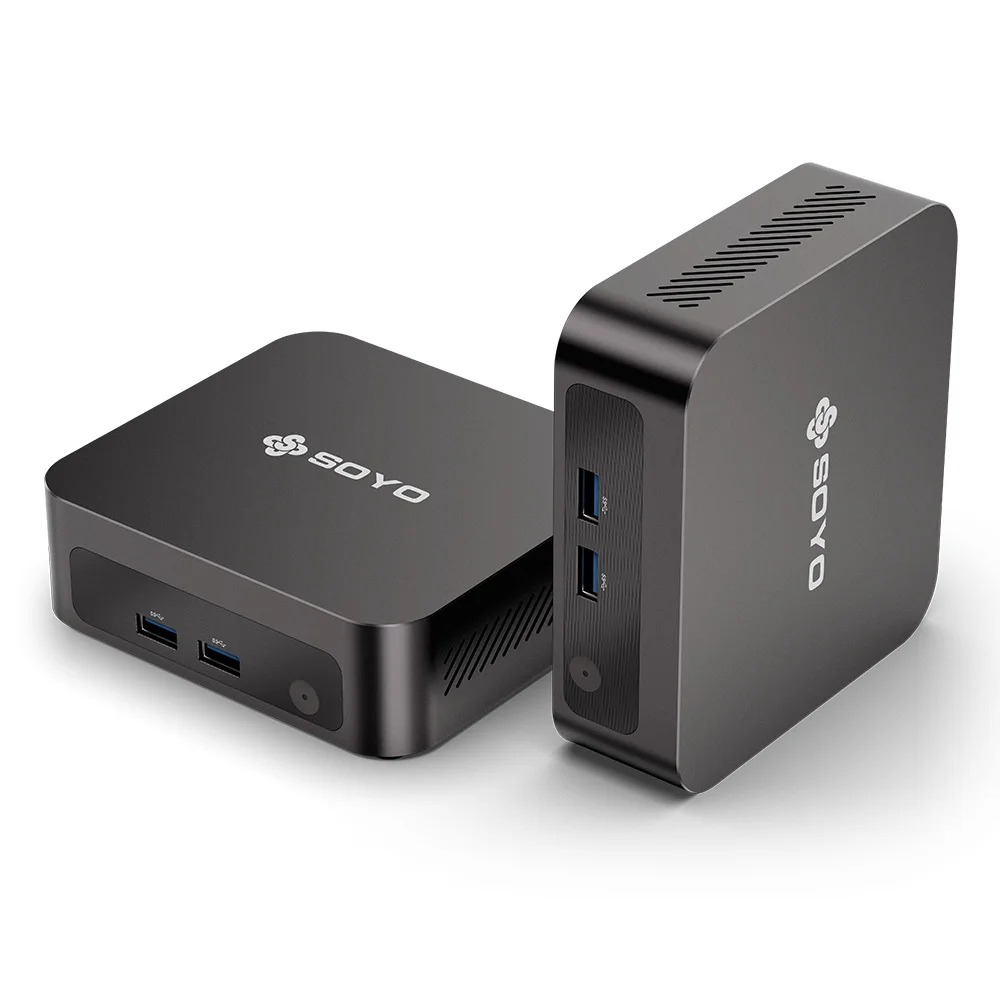

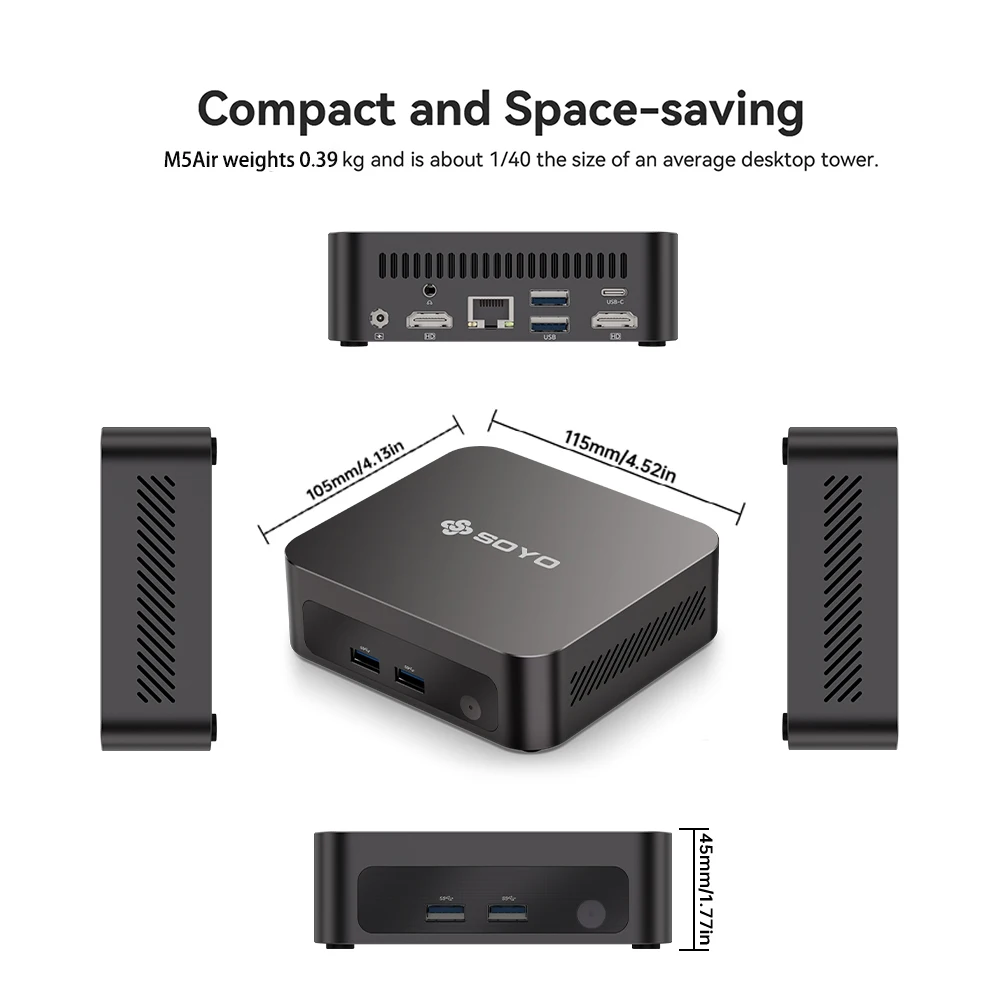

📦 Compact & Space-Saving Design

• Weight: 0.39 kg – about 1/40 the size of a traditional desktop tower

• Dimensions: 115 × 105 × 45 mm (4.52 × 4.13 × 1.77 in)

• Fits any desk setup, easy to carry or VESA-mount

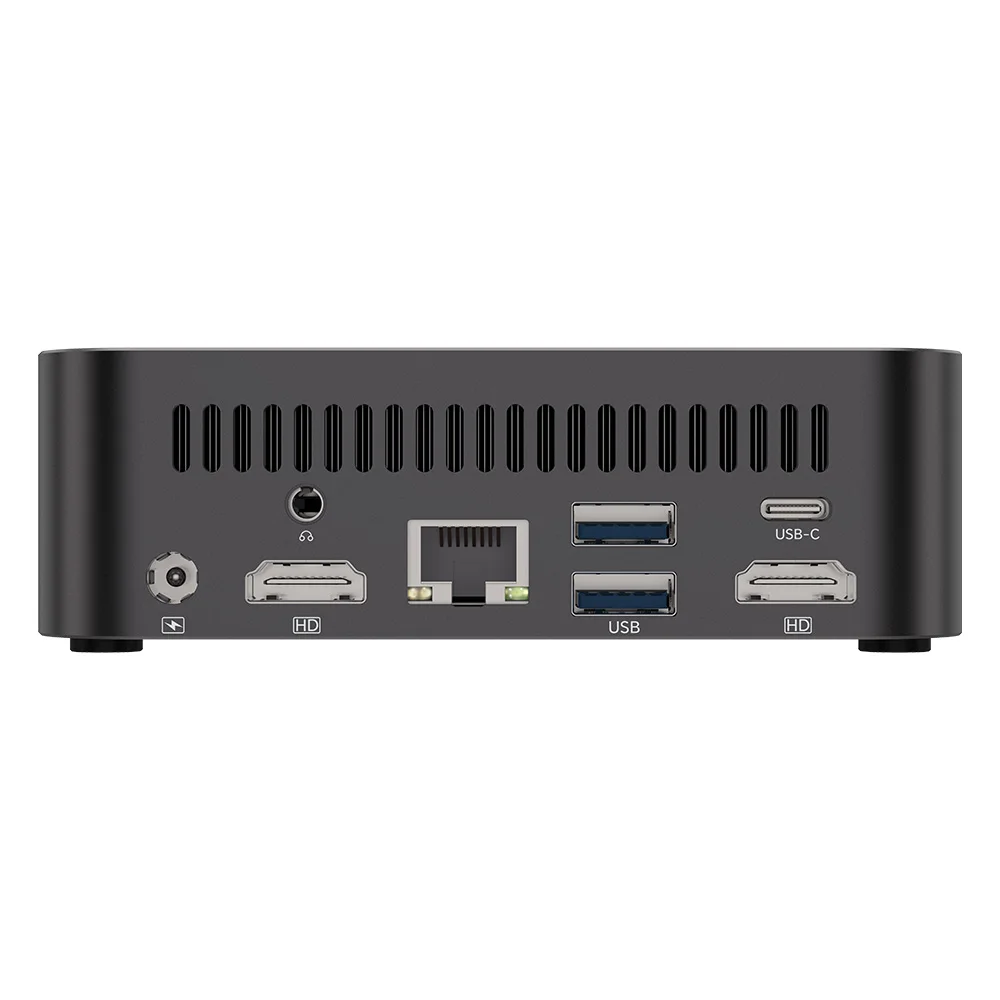

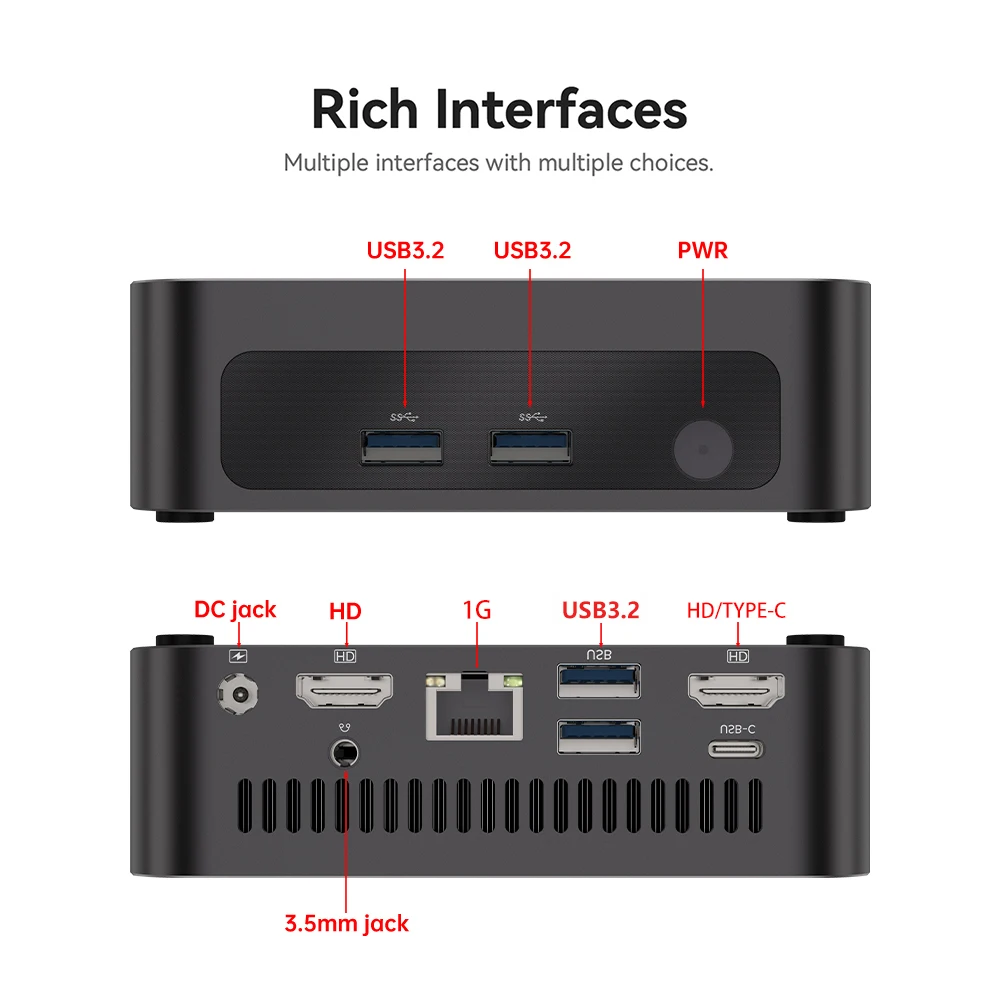

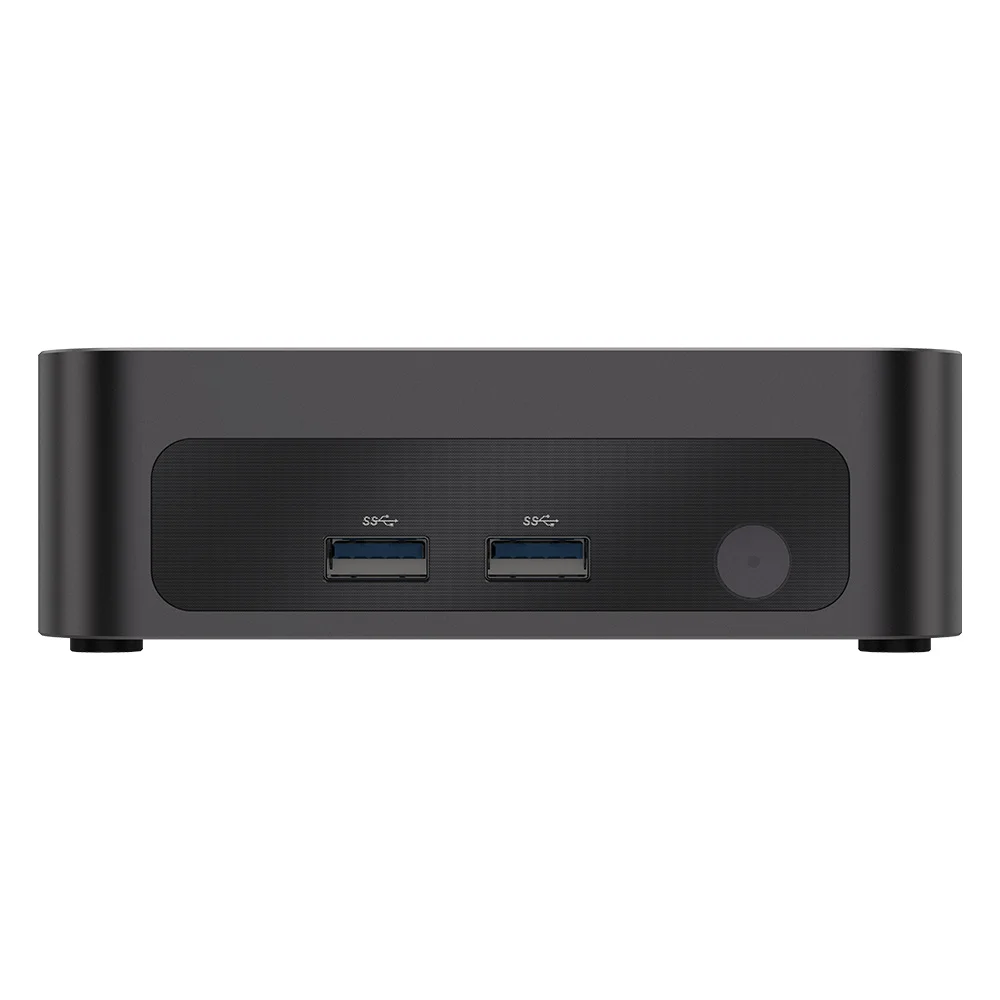

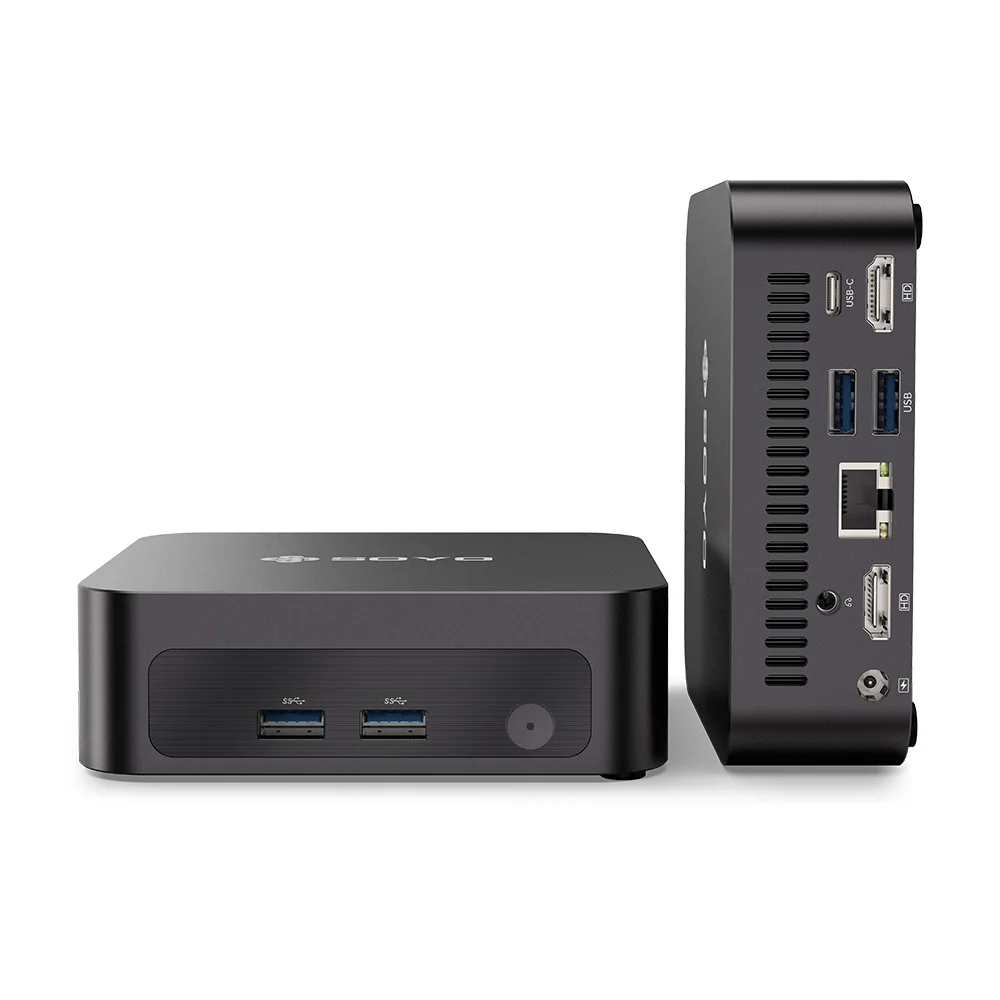

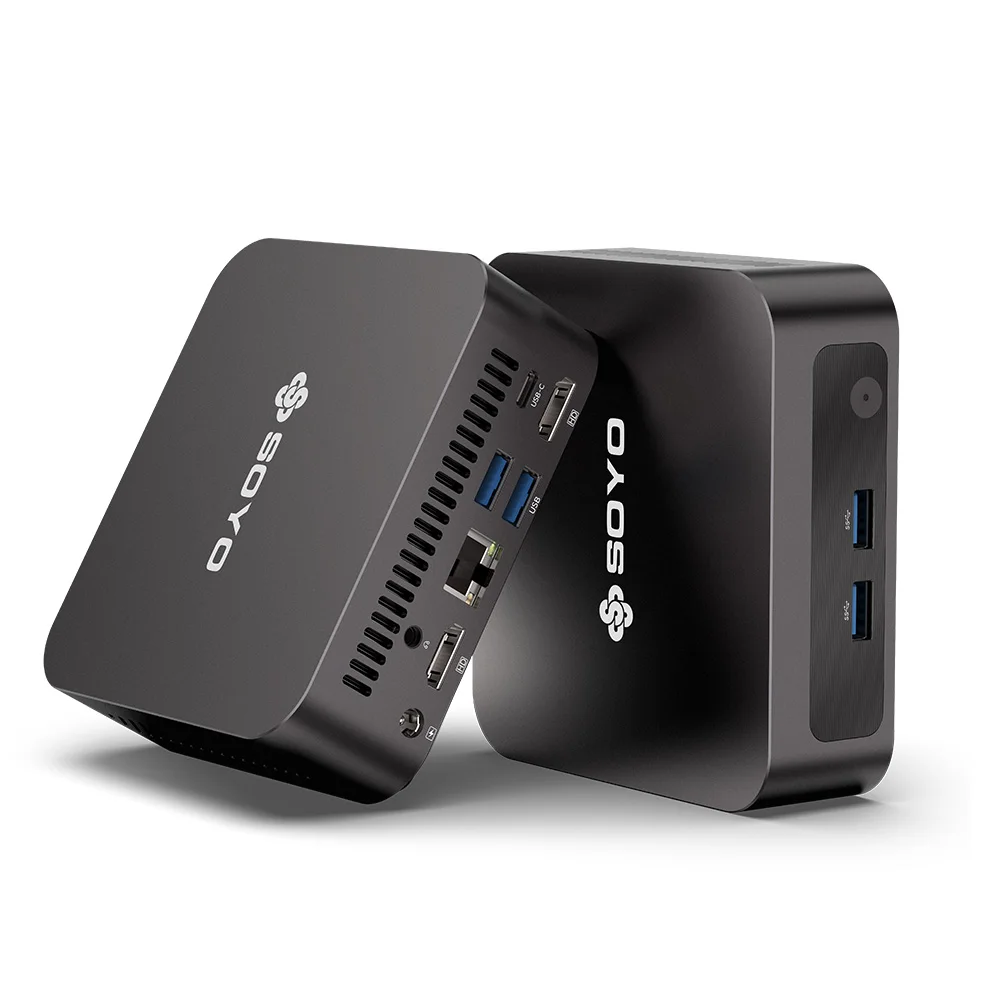

🔌 Rich Interfaces – Multiple Choices

• Video: HDMI × 2, Type-C (HDMI/TYPE-C support)

• Data: USB 3.2 × multiple

• Network: Gigabit Ethernet (RJ45)

• Audio: 3.5mm combo jack

• Power: DC jack

---

📊 Main Specifications

Model	M5Air Enhanced Version
Processor	AMD Ryzen™ 5 5600U (6 cores / 12 threads, 7nm, up to 4.2 GHz)
Graphics	AMD Radeon™ Graphics (up to 1800 MHz)
Memory	Up to 64GB DDR4 (dual-channel SO-DIMM, 3200MHz)
Storage	M.2 2280 PCIe 3.0 x4 NVMe SSD (up to 2TB, read up to 3000 MB/s)
Wireless	Wi-Fi 6 + Bluetooth 5.2
Video Output	HDMI × 2, Type-C (supports triple display, 4K@60Hz)
Audio	3.5mm audio jack
Ethernet	RJ45 Gigabit Ethernet
USB Ports	USB 3.2 × multiple
Dimensions	115 × 105 × 45 mm (4.52 × 4.13 × 1.77 in)
Weight	0.39 kg
Cooling	Heat pipe + dual fan design

---

🎯 Ideal Use Cases

• Office & Productivity: Email, documents, spreadsheets, multitasking

• Creative Work: Photoshop (Ps), After Effects (Ae), Premiere (Pr), Illustrator (Ai), AutoCAD (Dw), XD

• Home Theater: 4K streaming, media server

• Gaming: Light to medium gaming with AMD Radeon graphics

• Education: Online classes, research, assignments

• Meeting & Collaboration: Video conferencing, presentations

• Audio Production: Music editing, recording

• Design & Drafting: Graphic design, 3D modeling

---

✅ Summary

The SOYO M5Air Enhanced Version combines the powerful AMD Ryzen™ 5 5600U processor, efficient dual-fan cooling, and support for up to 64GB RAM and high-speed NVMe storage—all in a compact 0.39kg chassis. Whether you’re working from home, managing multiple displays, or enjoying 4K content, the M5Air delivers reliable performance with whisper-quiet operation.

---

* Performance test results are based on internal lab tests at 30°C ambient temperature with 25W TDP. Actual performance may vary by configuration, software, and environment. OS not pre-installed unless specified. Storage and memory configurations vary by model version.
