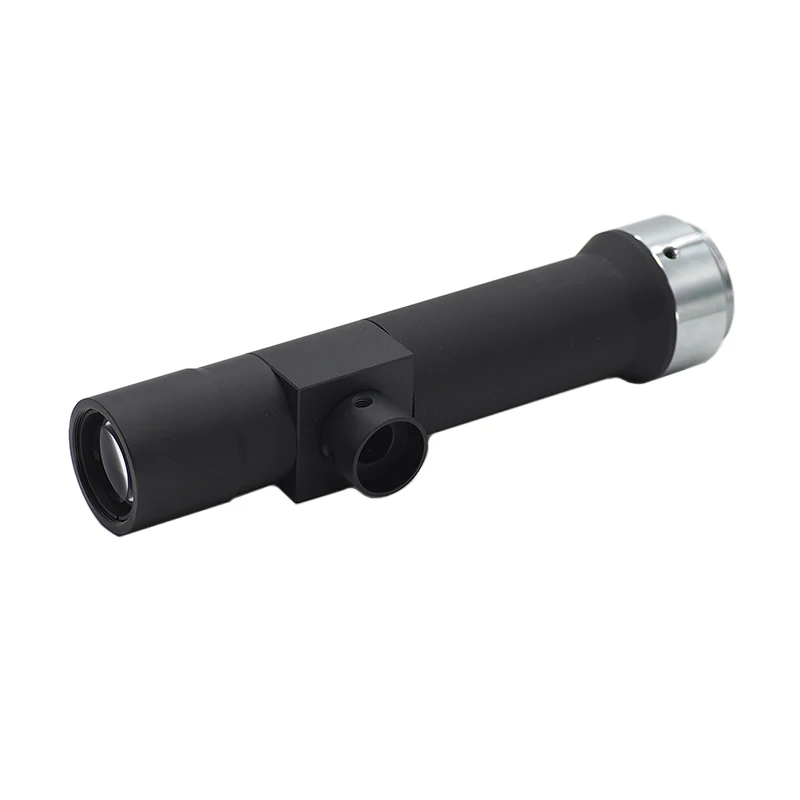

Parametri dell’obiettivo telecentrico:
|
Modello |
Ingrandimento |
Dimensioni dell’immagine |
Telecentricità |
Distorsione |
F/NO |
Supporto per obiettivo |
Risoluzione |
Distanza di lavoro |
|

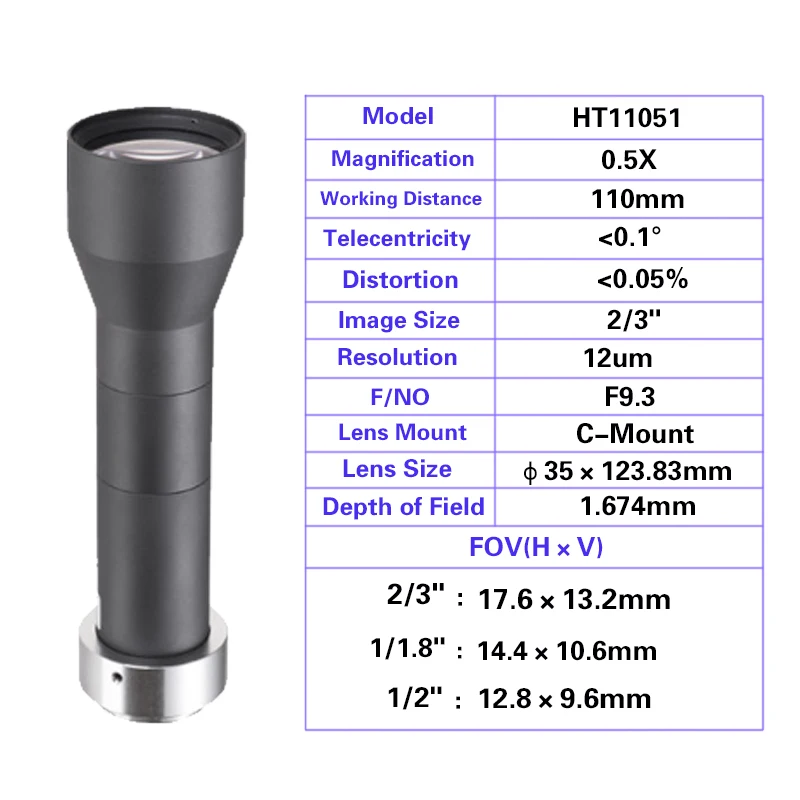

HT11051 |
0.5X |
2/3″ |
<0.1 |
<0.05% |
F9.3 |
C-Mount |
12um |
110mm |
|

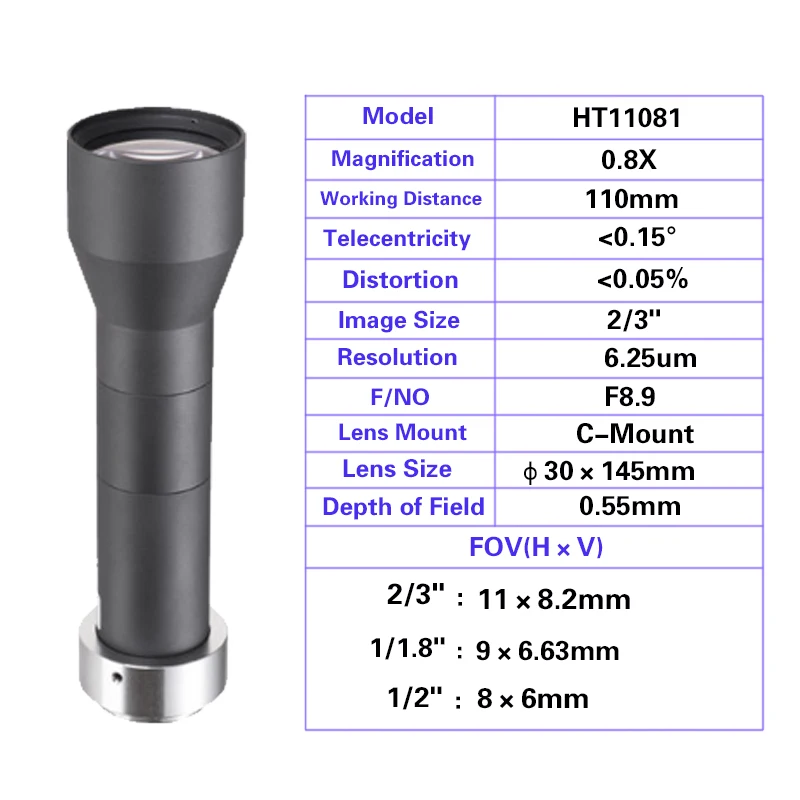

HT11081 |
0.8X |
2/3″ |
<0.15° |
<0.05% |
F8.9 |
C-Mount |
6.25um |
110mm |
|

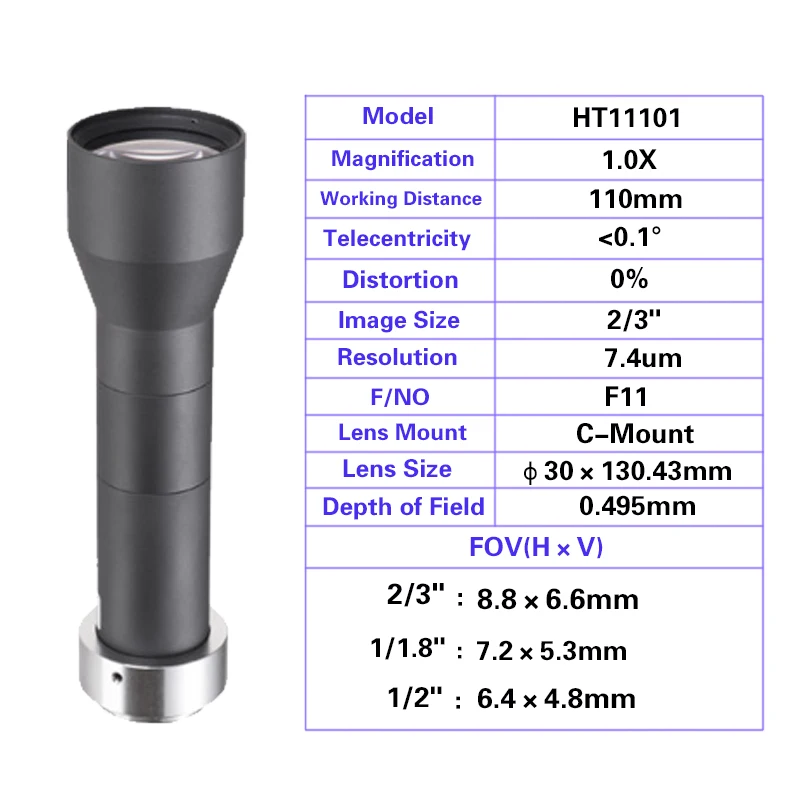

HT11101 |
1.0X |
2/3″ |
<0.1° |
0% |
F11 |
C-Mount |
7.4um |
110mm |
|

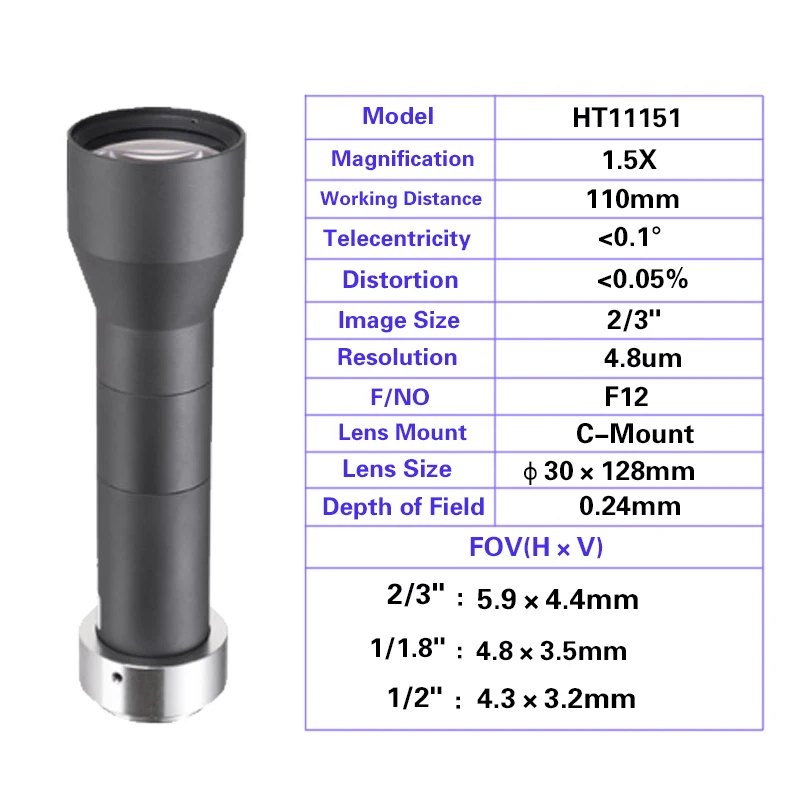

HT11151 |
1.5X |
2/3″ |
<0.1° |
<0.05% |
F12 |
C-Mount |
4.8um |
110mm |
|
HT11201 |
2.0X |
2/3″ |
<0.1° |
<0.05% |
F13.6 |
C-Mount |
4.5um |
110mm |
|

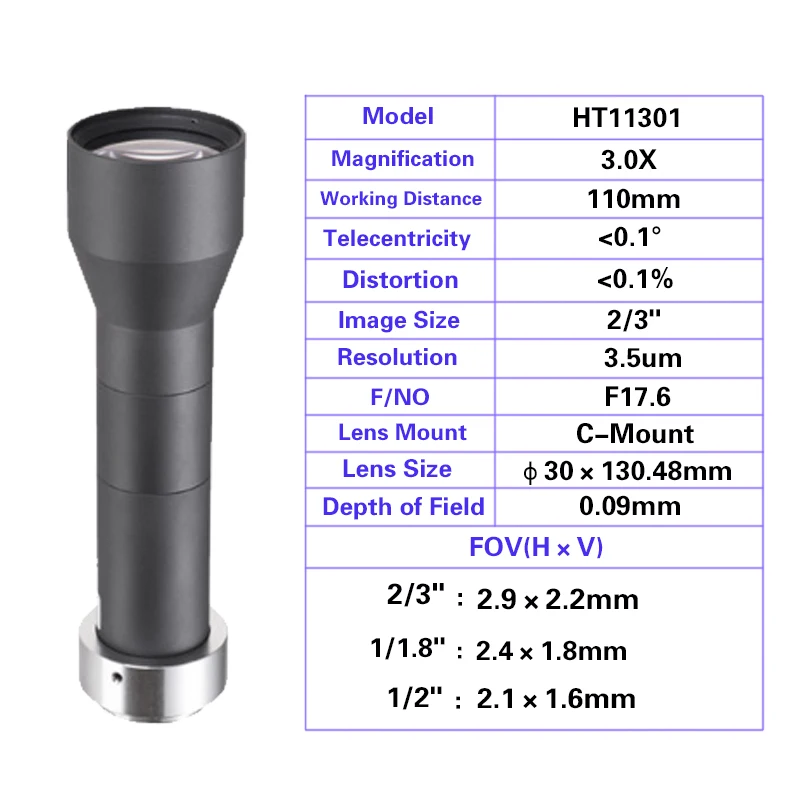

HT11301 |
3.0X |
2/3″ |
<0.1° |
<0.1% |
F17.6 |
C-Mount |
3.5um |
110mm |
|
HT11401 |
4.0X |
2/3″ |
<0.1° |
<0.05% |
F22 |
C-Mount |
3.7um |
110mm |
|
HT11601 |
6.0X |
2/3″ |
<0.02° |
<0.05% |
F35 |
C-Mount |
4um |
110mm |
|
HTC0501 |
0.188X |
2/3″ |
<0.08° |
<0.014% |
F6.8-40 |
C-Mount |
10.6um |
167mm |
|

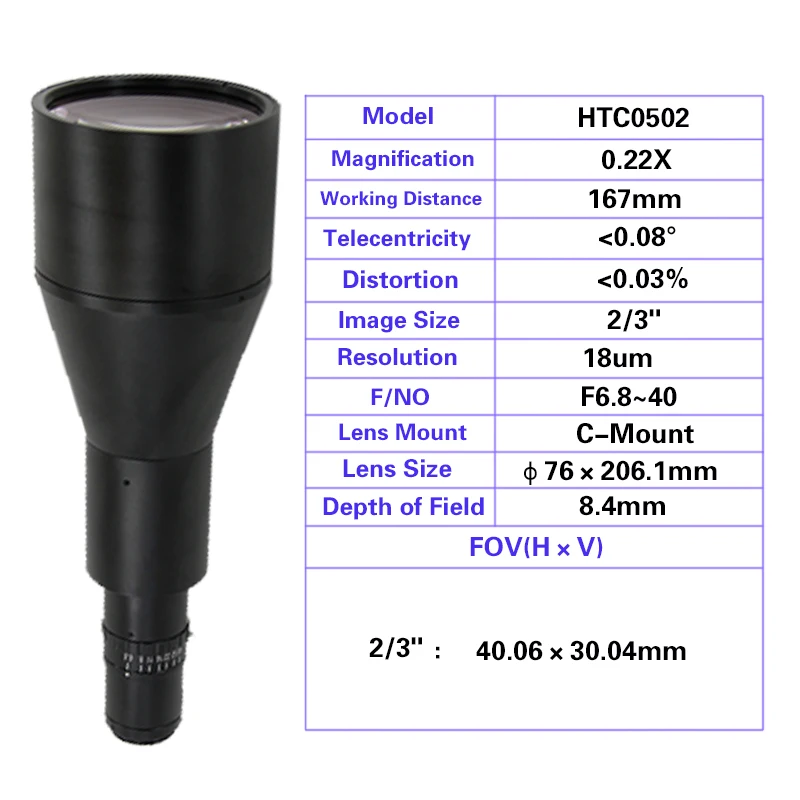

HTC0502 |
0.22X |
2/3″ |
<0.08° |
<0.03% |
F6.8-40 |
C-Mount |
18um |
167mm |
|

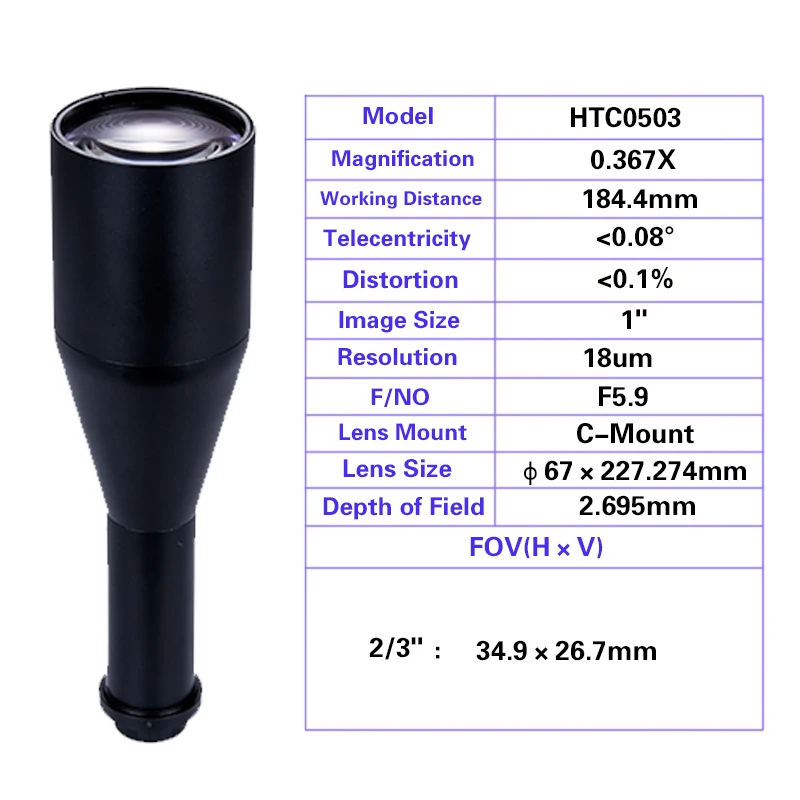

HTC0503 |
0.367X |
1″ |
<0.08° |
<0.1% |
F5.9 |
C-Mount |
18um |
184.4mm |
|
HTC1531 |
0.31X |
1.1″ |
<0.05° |
<0.03% |
F8.0-22 |
C-Mount |
16.12um |
150mm |
