Key Features:

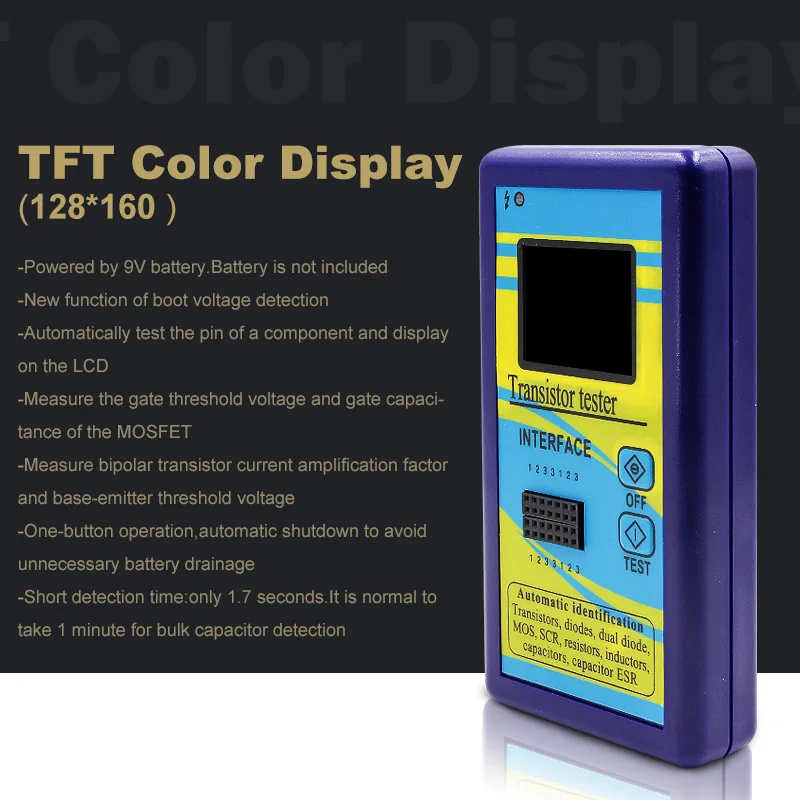

• 128 x 160 TFT color display for easy reading, can display measurement data and graphs
• Powered by 9V battery (not included)
• All components are protected in a plastic carrying case

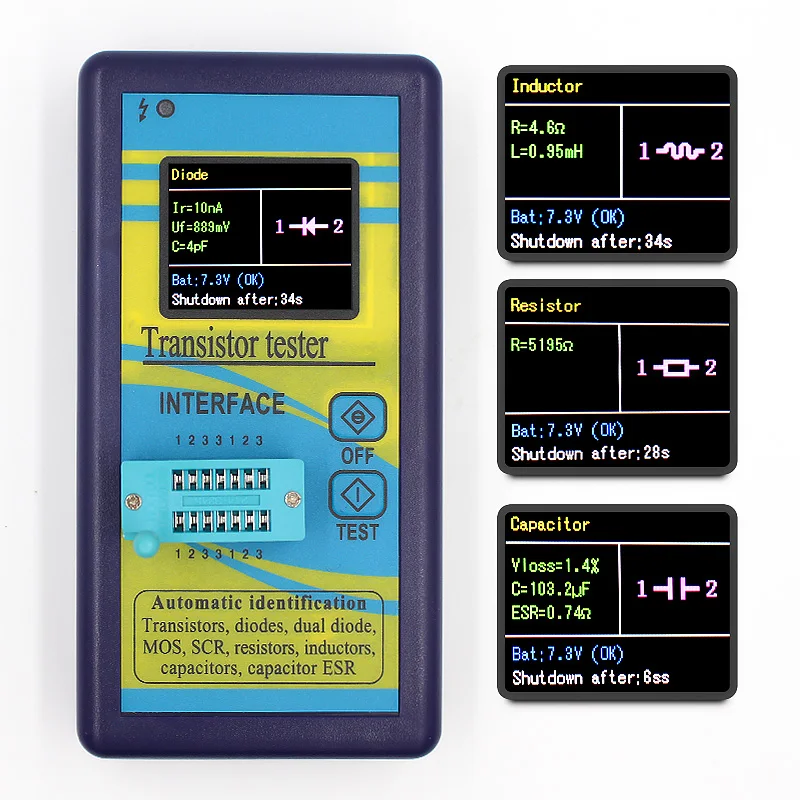

• Automatic detection of NPN and PNP transistors, MOSFETs, Diodes, Thyristors, Resistors, Capacitors and more
• Automatically checks component connectors and shows results on display.
• Measures MOSFET threshold voltage and gate capacitance
• Measures BJT current gain and base-emitter threshold voltage
• Two control buttons, auto power off to save power
• Short detection time: only 2 seconds (when detecting capacitors, the normal value is 1 minute)
• 128 x 160 TFT color display for easy reading, can display measurement data and graphs
• Powered by 9V battery (not included)
• All components are protected in a plastic carrying case
• Automatic detection of NPN and PNP transistors, MOSFETs, Diodes, Thyristors, Resistors, Capacitors and more
• Automatically checks component connectors and shows results on display.
• Measures MOSFET threshold voltage and gate capacitance
• Measures BJT current gain and base-emitter threshold voltage
• Two control buttons, auto power off to save power
• Short detection time: only 2 seconds (when detecting capacitors, the normal value is 1 minute)
Note: Please make sure that the capacitors are discharged before testing.
Characteristics:
• Housing color: gray
• Display: TFT 1.8″ color display
• Material: PVC + plastic
• Breaking current: 20nA
• Resistance measurement range: 0.5 ohm – 50 MΩ
• Inductance measurement range: 0.01 mH – 20 H
• Capacitance measurement range: 25 pF – 100,000 uF

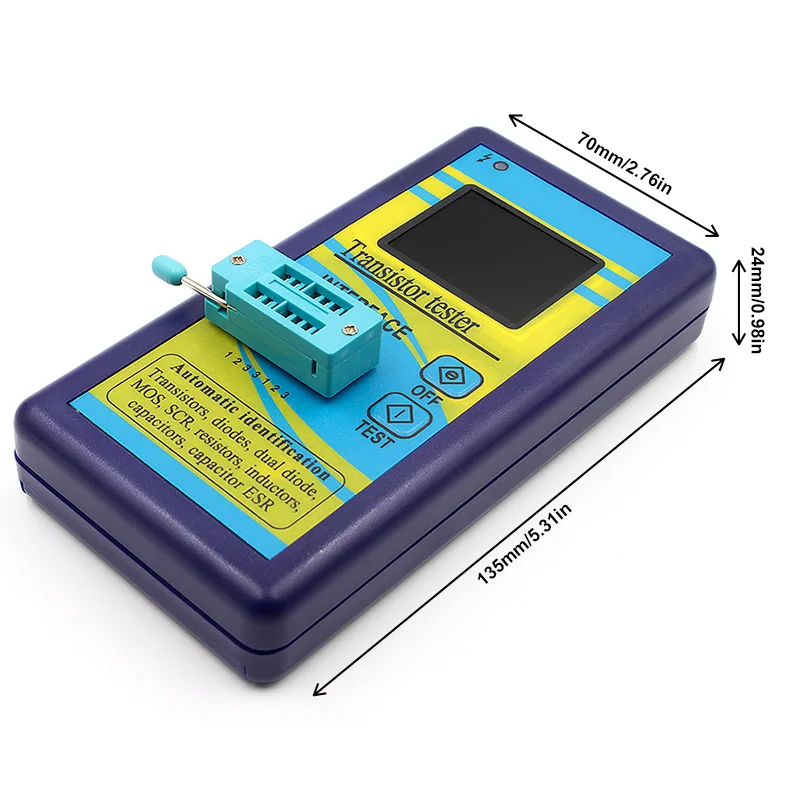

• Product size: 13.5 x 7 x 2.2 cm
• Product weight: 99 grams
• Package size: approx. 16 x 8 x 2.5 cm
• Package weight: 102 grams
Package includes
• Transistor tester – 1 pc. (battery not included)
