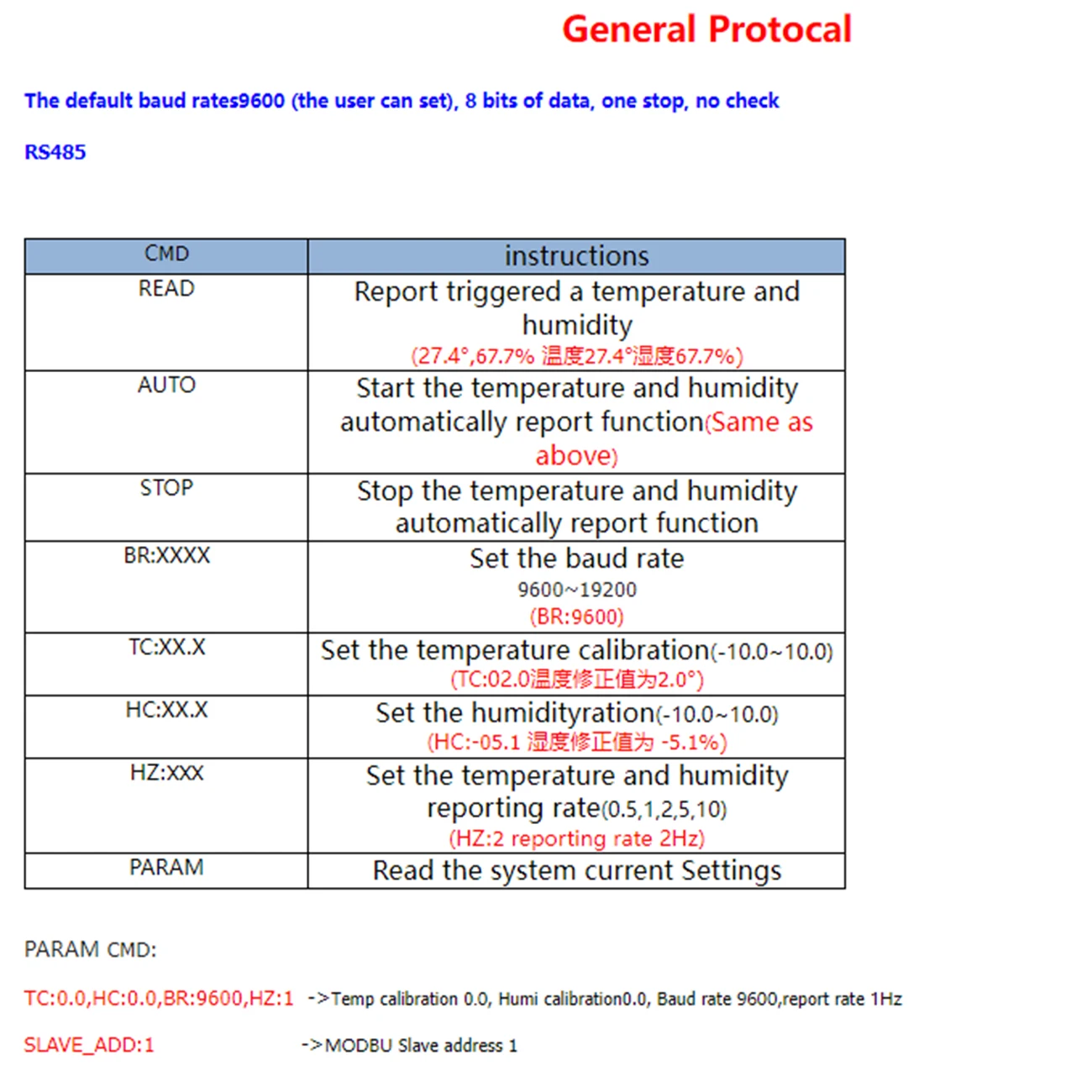

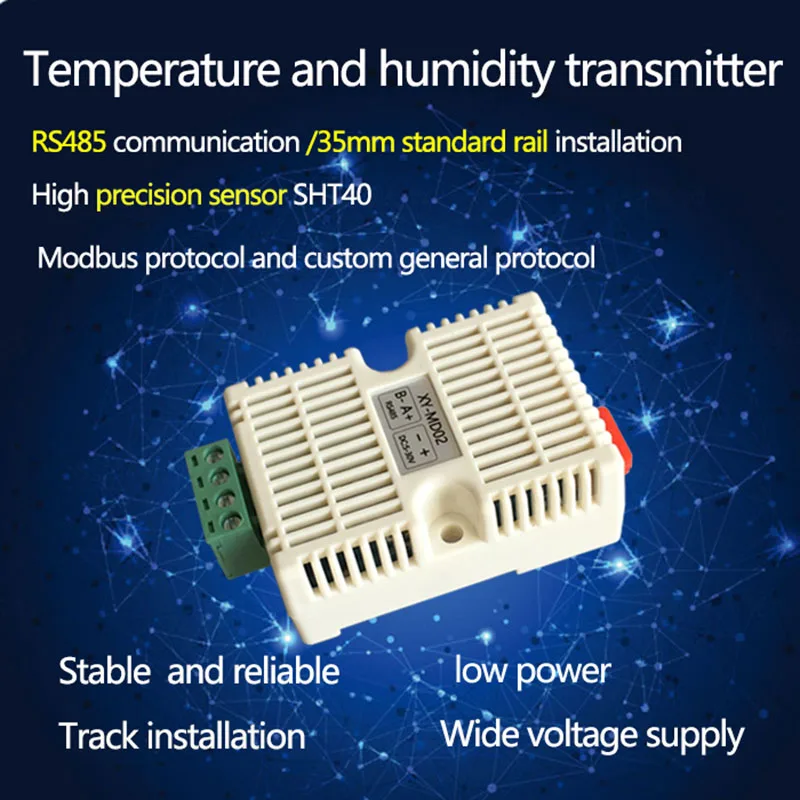

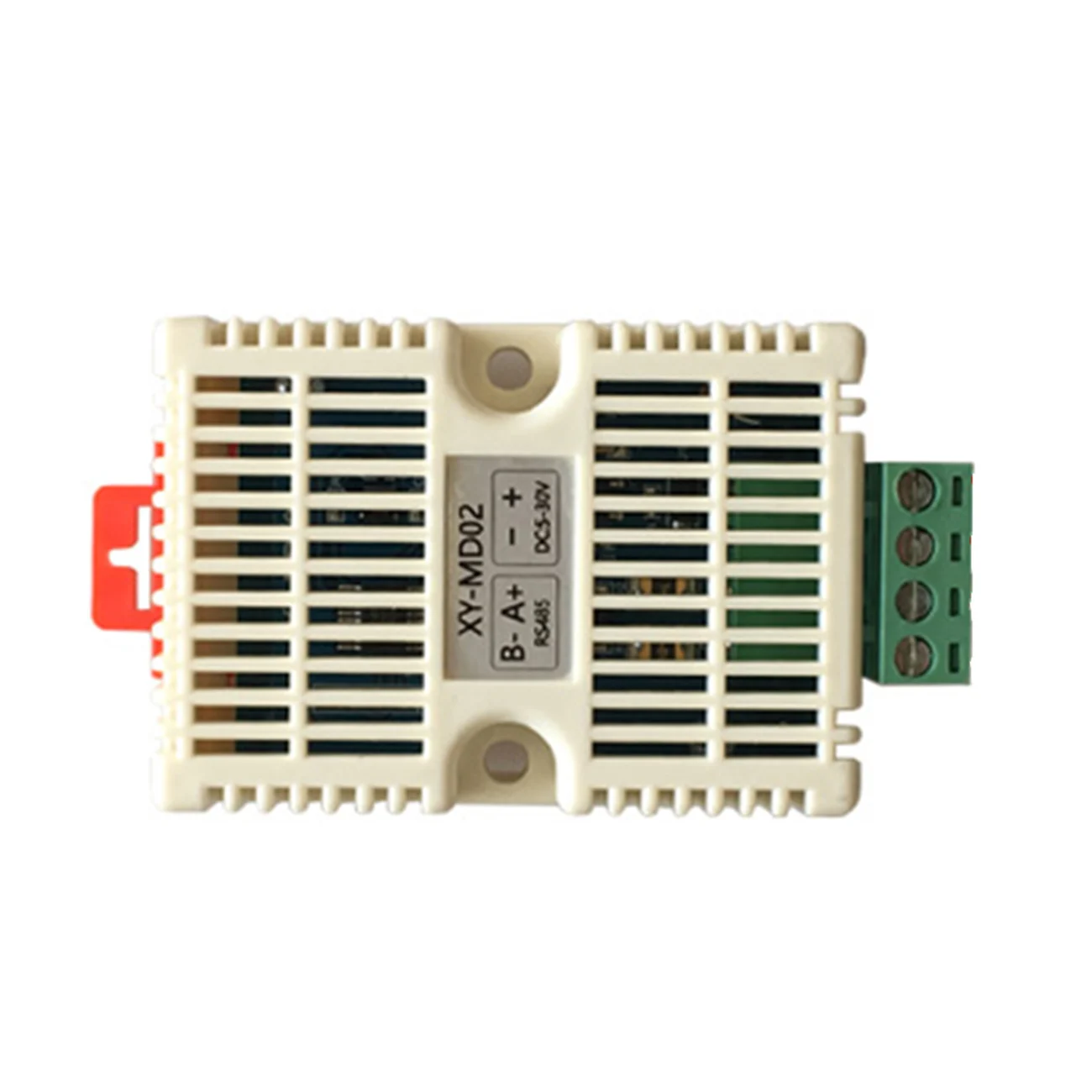

The product adopts industrial grade chip, high-precision imported SHT40 temperature and humidity sensor to ensure the excellent reliability, high precision and interchangeability of the product. Using RS485 hardware interface (with lightning protection design), the protocol layer is compatible with standard industrial Modbus-Rtu protocol. This product integrates the MODBUS protocol and the common protocol. The user can choose the communication protocol. The common protocol has an automatic upload function (connecting RS485 through the serial port adjustment tool will automatically output temperature and humidity).

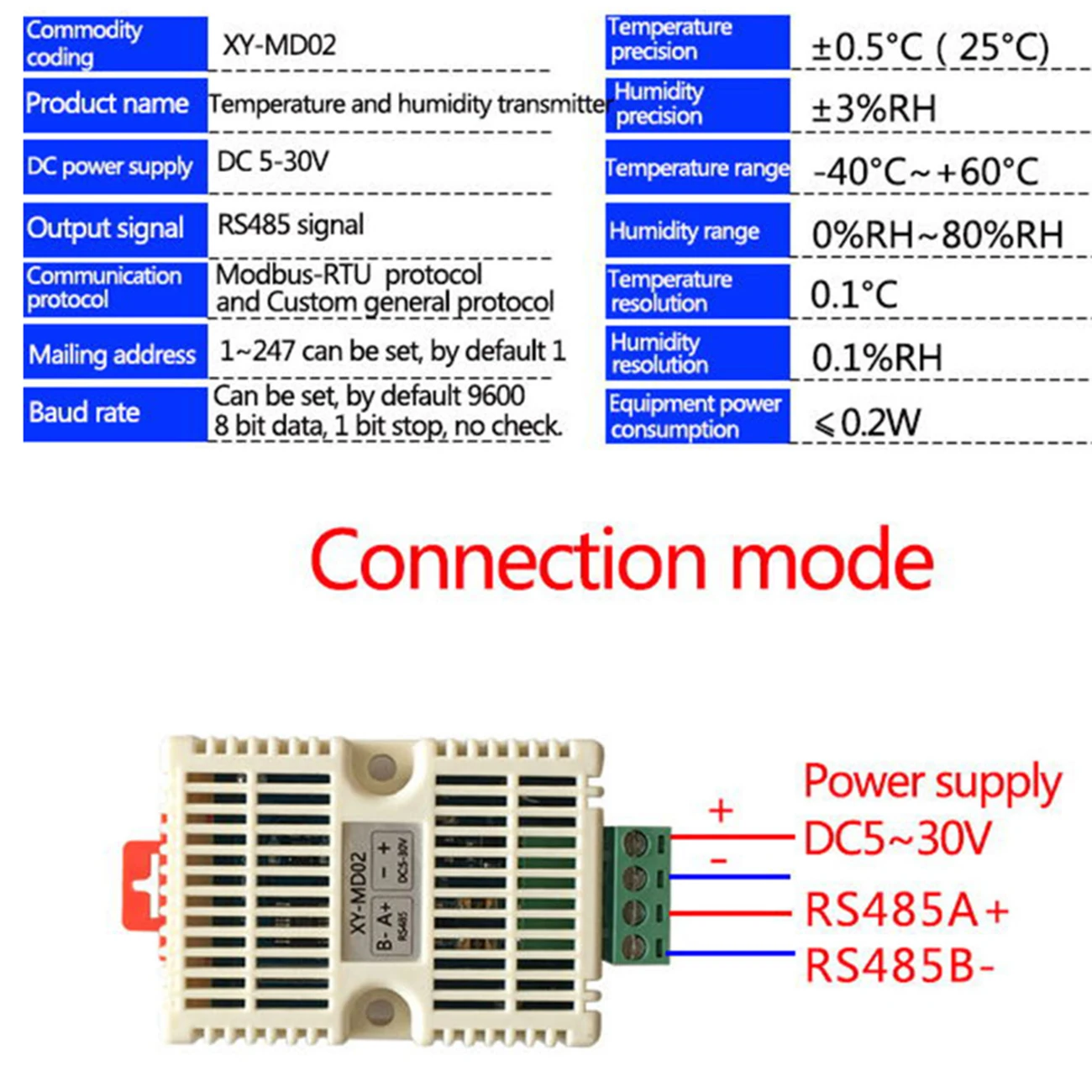

Parameters:
Product name: temperature and humidity transmitter
DC power supply: DC 5V-30V
Output signal: RS485 signal
Temperature accuracy: ±0.5℃ (25℃)
Humidity accuracy: ±3%RH
Temperature range: 0%RH-80%RJ
Temperature resolution: 0.1℃
Humidity resolution: 0.1%RH
Equipment power consumption: ≤0.2W
Communication address: 1-247 can be set, default 1

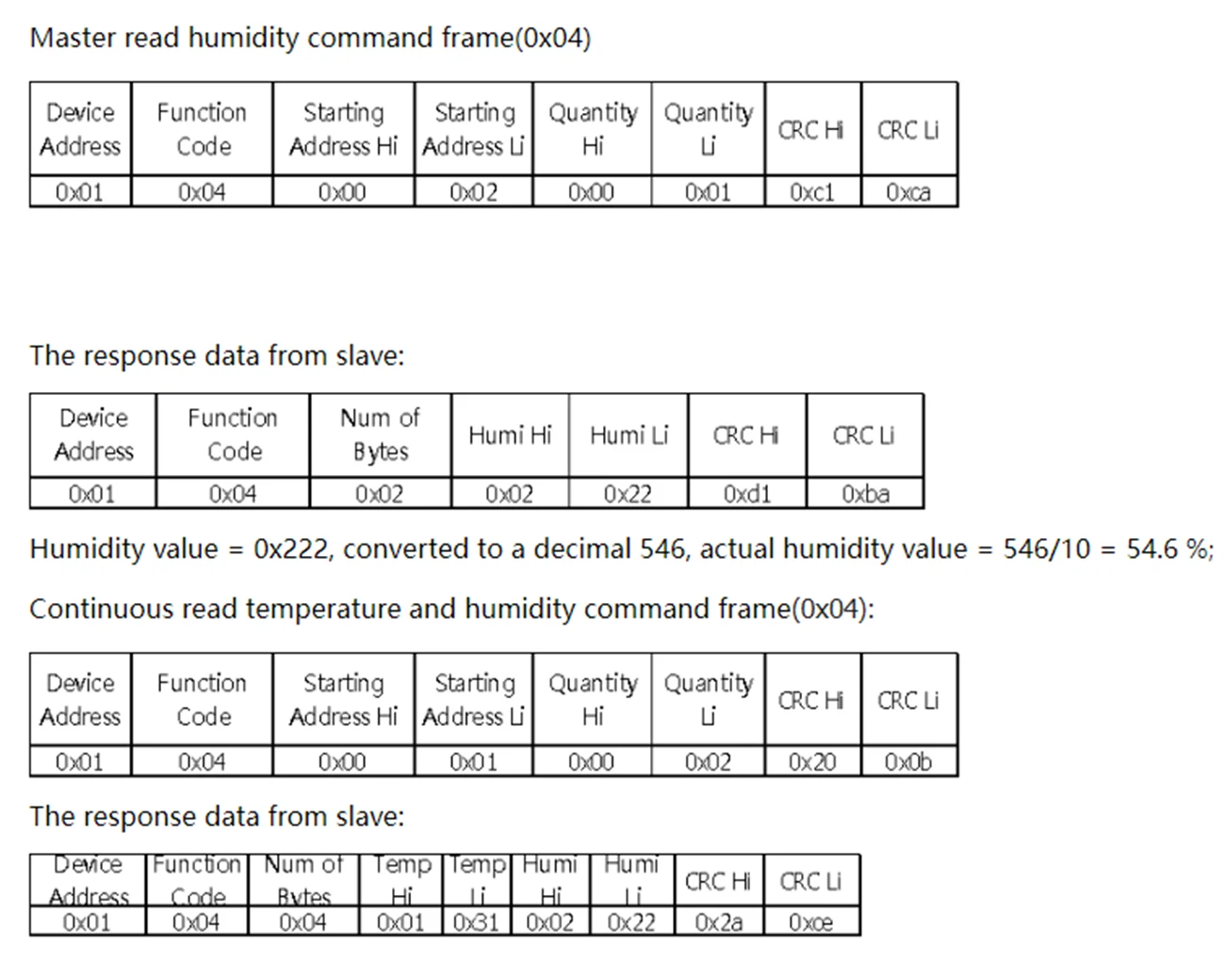

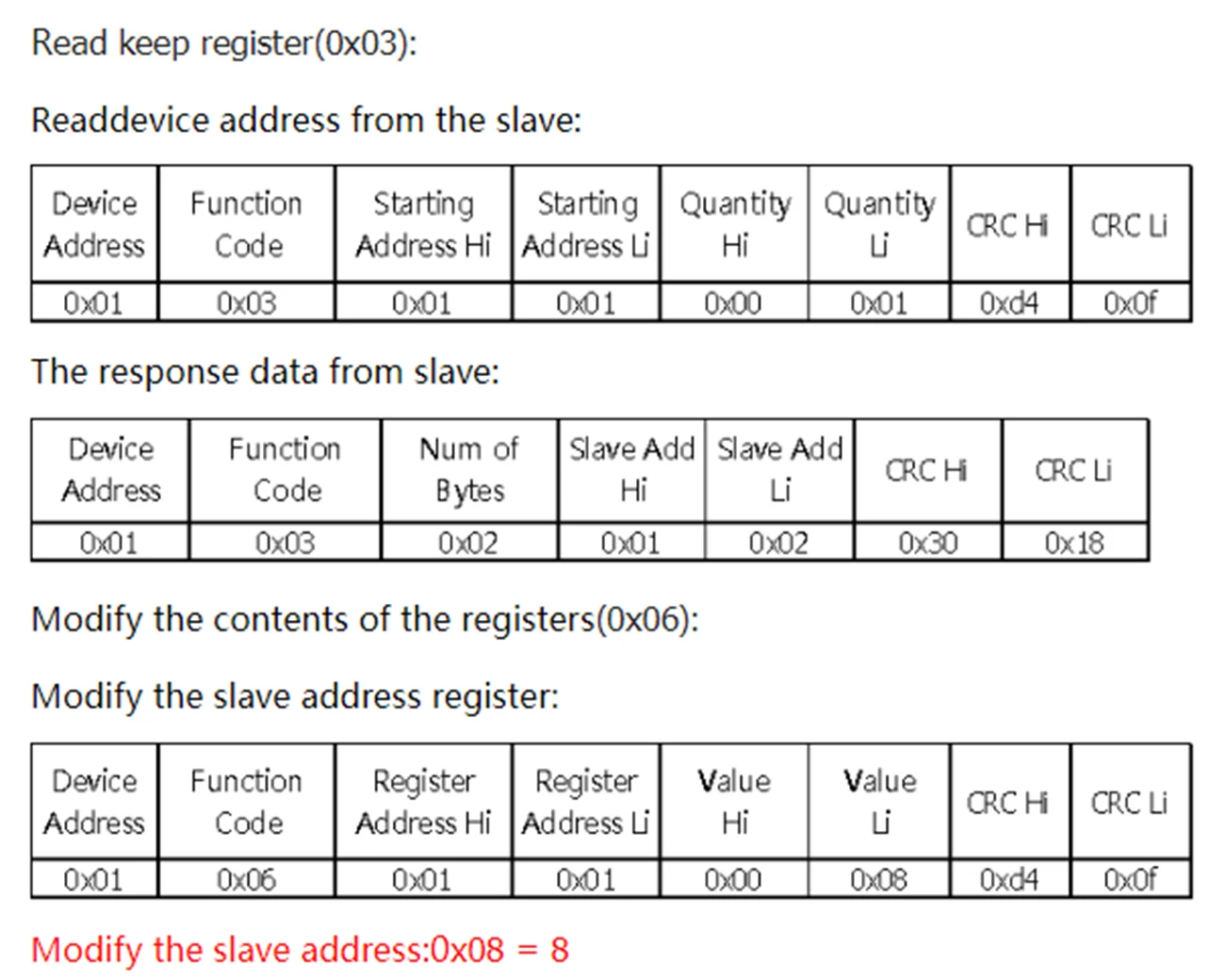

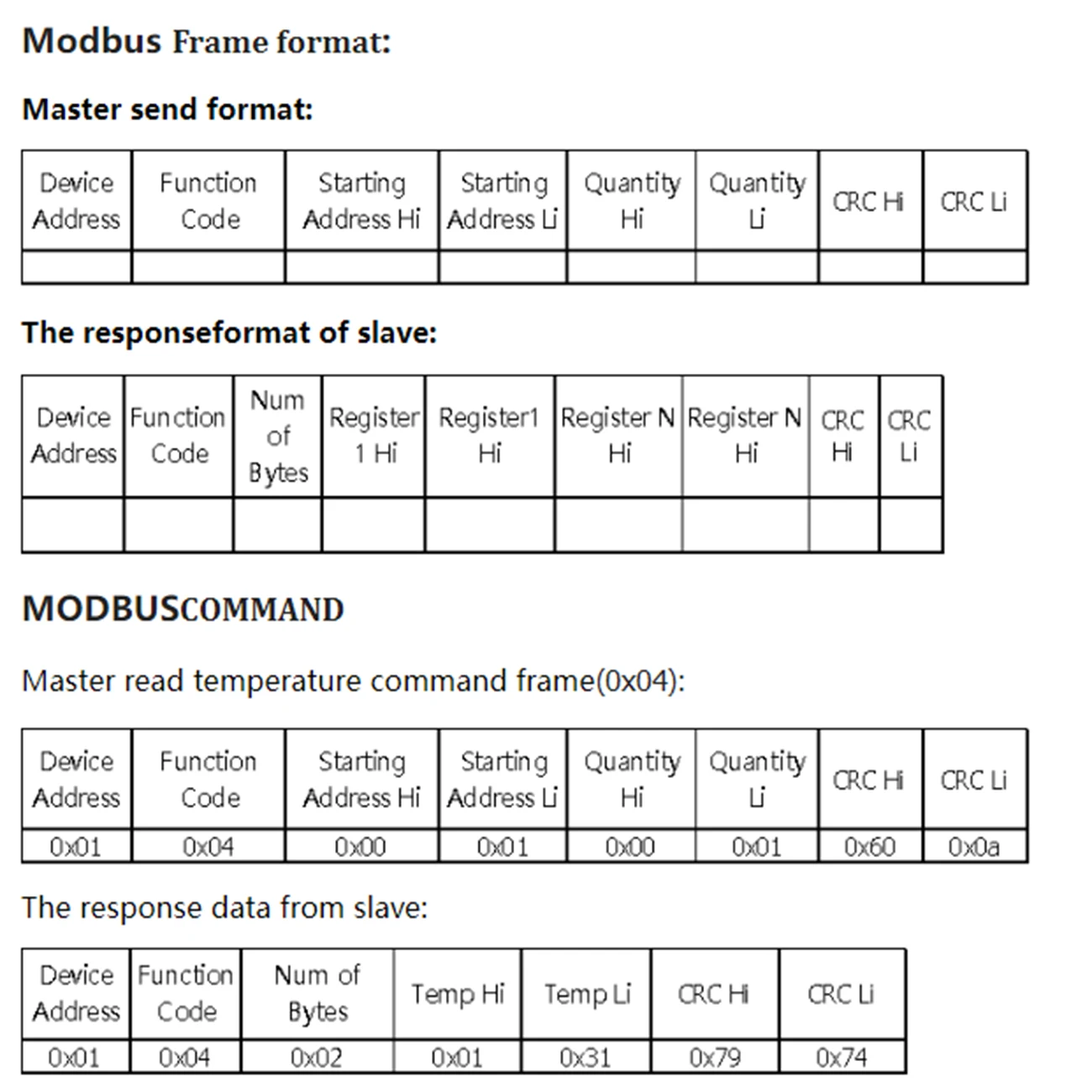

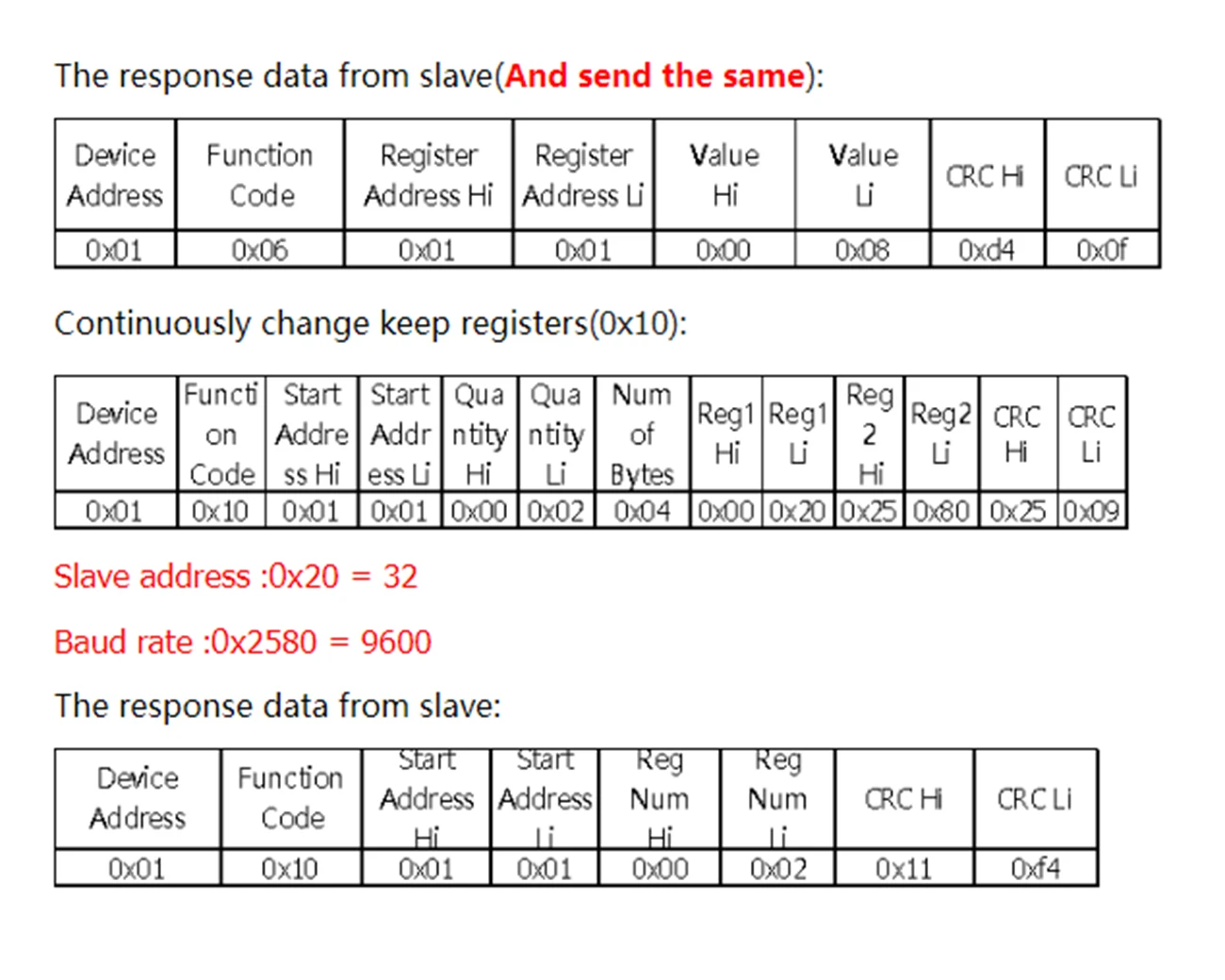

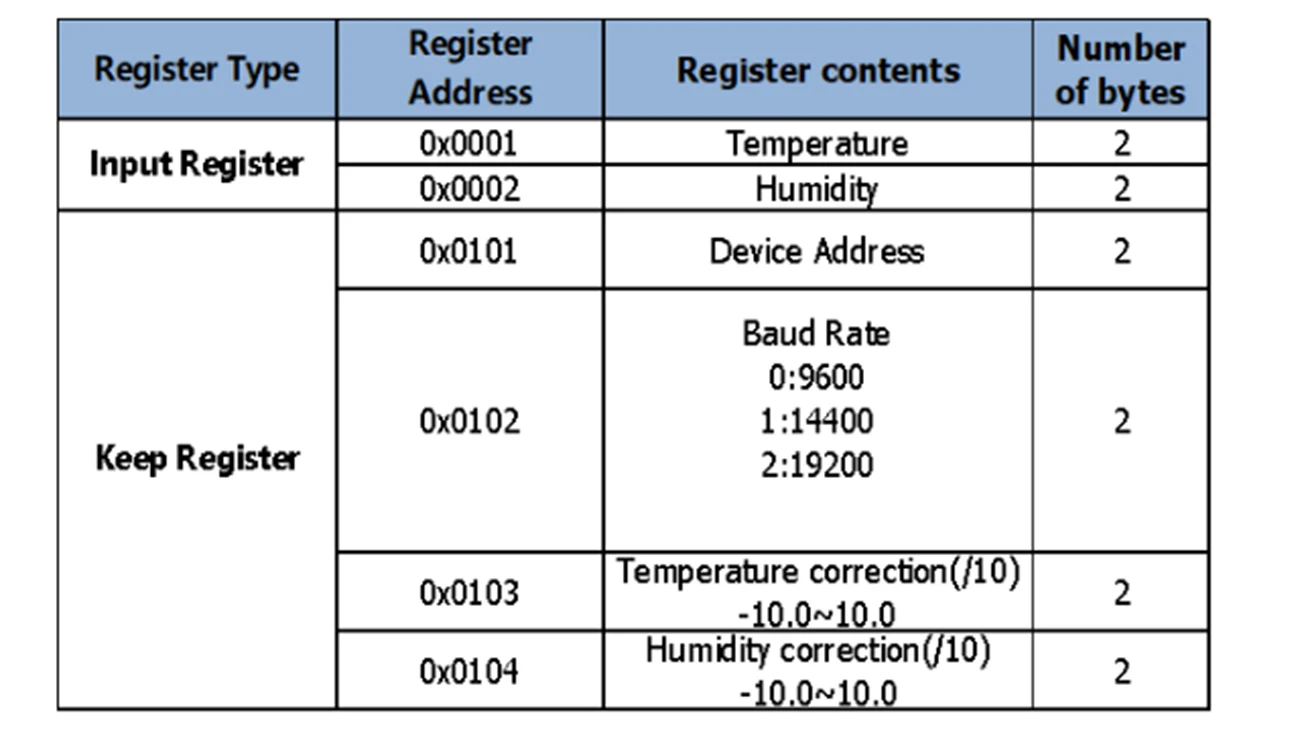

Communication protocol: Modbus-RTU protocol and custom common protocol
Baud rate: configurable, default 9600, 8-bit data, 1-bit stop, no parity
