10.4/12.1/15/17/19-inch Industrial Embedded All-in-One PC, Dual Capacitive/Resistive Touch, Intel Core i5, Windows/Linux, Panel

1. LCD Specifications
Available screen size:10.4 inch /12.1 inch /15 inch /17 inch /19 inch
Resolution for 10.4/12.1/15 inch:1024*768
Resolution for 17/19 inch:1280*1024
Viewing angle of 10.4/12.1/15 inch:89/89/89/89
Viewing angle of 17/19 inch:85/85/80/80
Brightness of 10.4/12.1 inch:500cd/㎡
Brightness of 15 inch:350cd/㎡
Brightness of 17/19 inch:250cd/㎡
Contrast ratio of 10.4 inch:900:1
Contrast ratio of 12.1 inch:1200:1
Contrast ratio of 15/17/19 inch:1000:1
Touch type: Capacitive touch or Resistive touch optional
Touch controller: USB interface
Service life of capacitive touch: ≥5 million taps
Service life of resistive touch: ≥100 thousand taps

2. Dimension & Weight
10.4 inch overall dimension:277.3224.555.8mm
10.4 inch cutout dimension:266*213mm
10.4 inch net weight: about 2.75KG
12.1 inch overall dimension:311.3255.355.6mm
12.1 inch cutout dimension:298.8*242.8mm
12.1 inch net weight: about 3.3KG
15 inch overall dimension:367.3291.358.8mm
15 inch cutout dimension:350*274mm
15 inch net weight: about 3.75KG
17 inch overall dimension:401.6338.258.6mm
17 inch cutout dimension:383.8*320.8mm
17 inch net weight: about 5.65KG
19 inch overall dimension:445374.858.6mm
19 inch cutout dimension:423.8*353.8mm
19 inch net weight: about 5.7KG

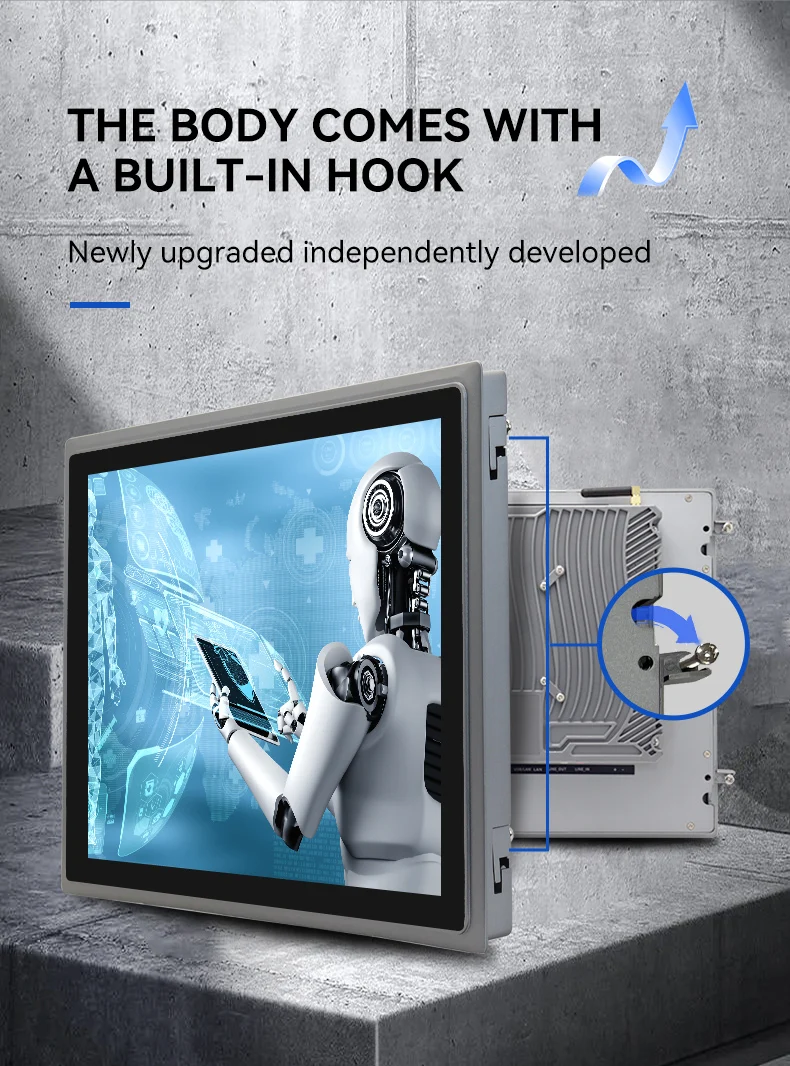

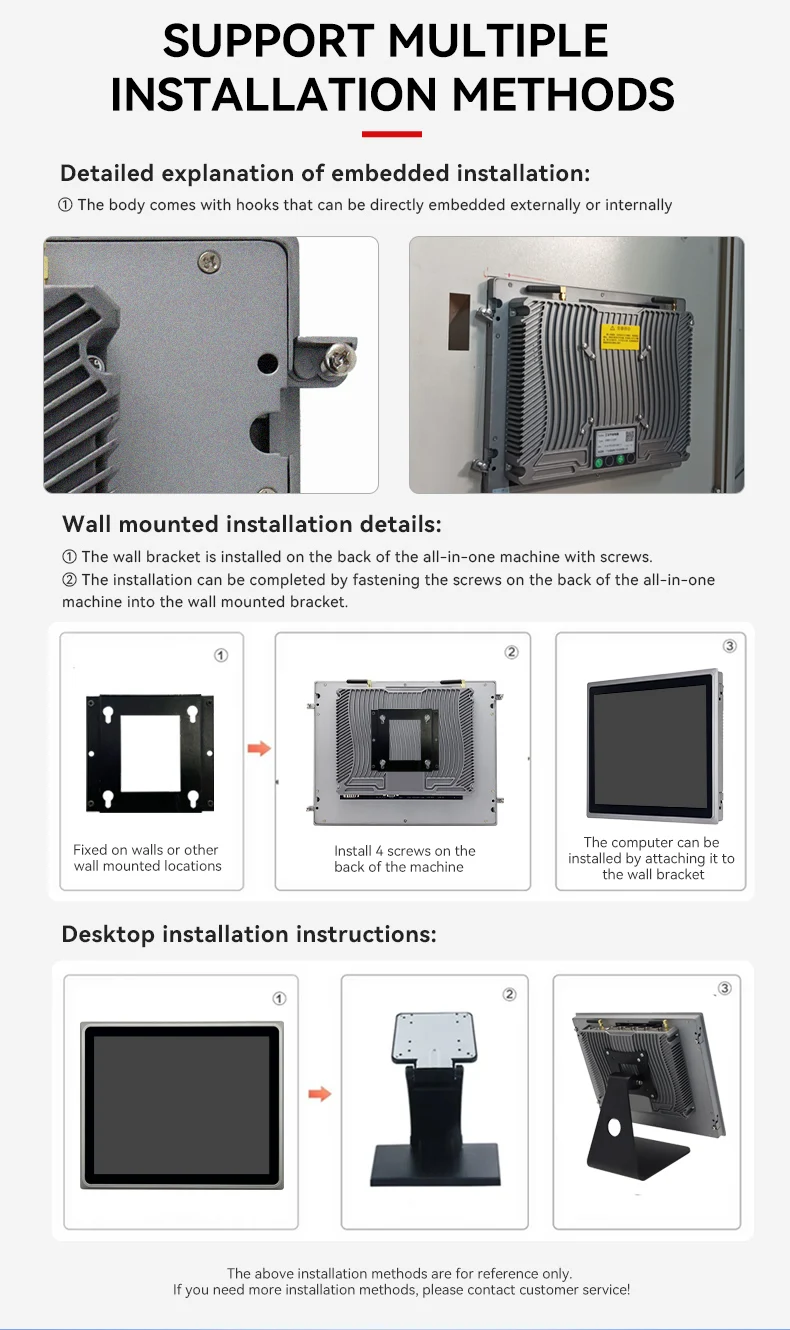

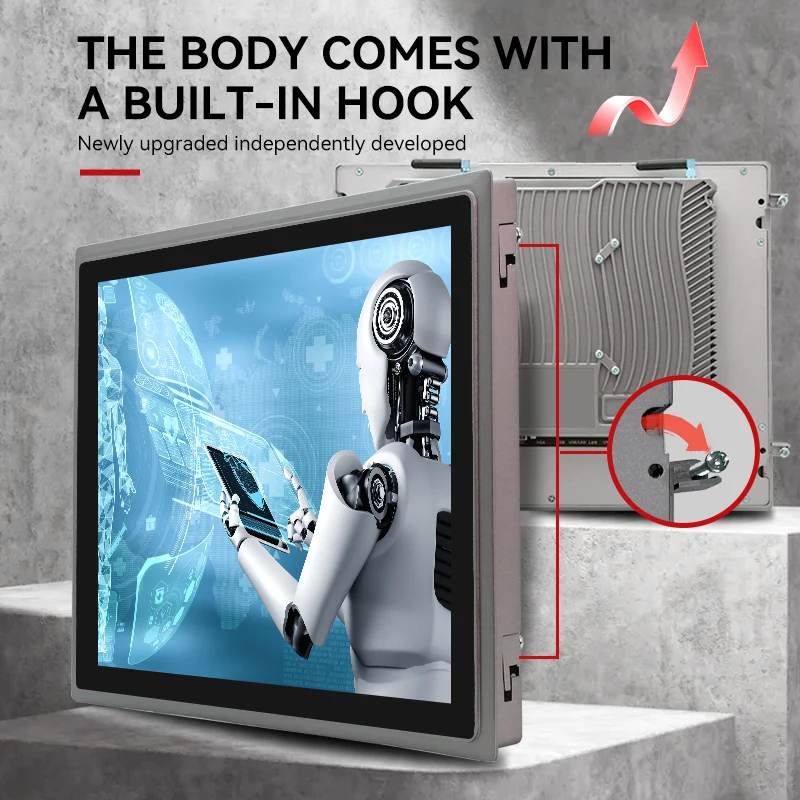

Installation mode: Embedded / Wall-mounted / Desktop mounting

3. Environmental Specifications

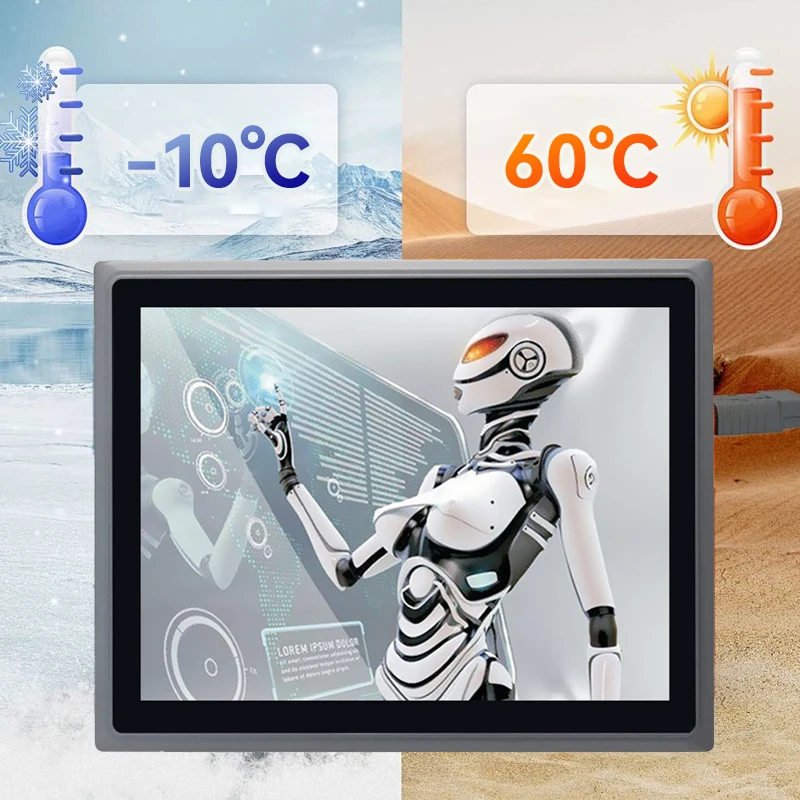

Operating temperature: -10℃ ~ +60℃
Storage temperature: -20℃ ~ +70℃
Relative humidity:5%~95%, non-condensing

4. Power Specifications
Standard power input: DC12V
Optional wide voltage input:9-36V
