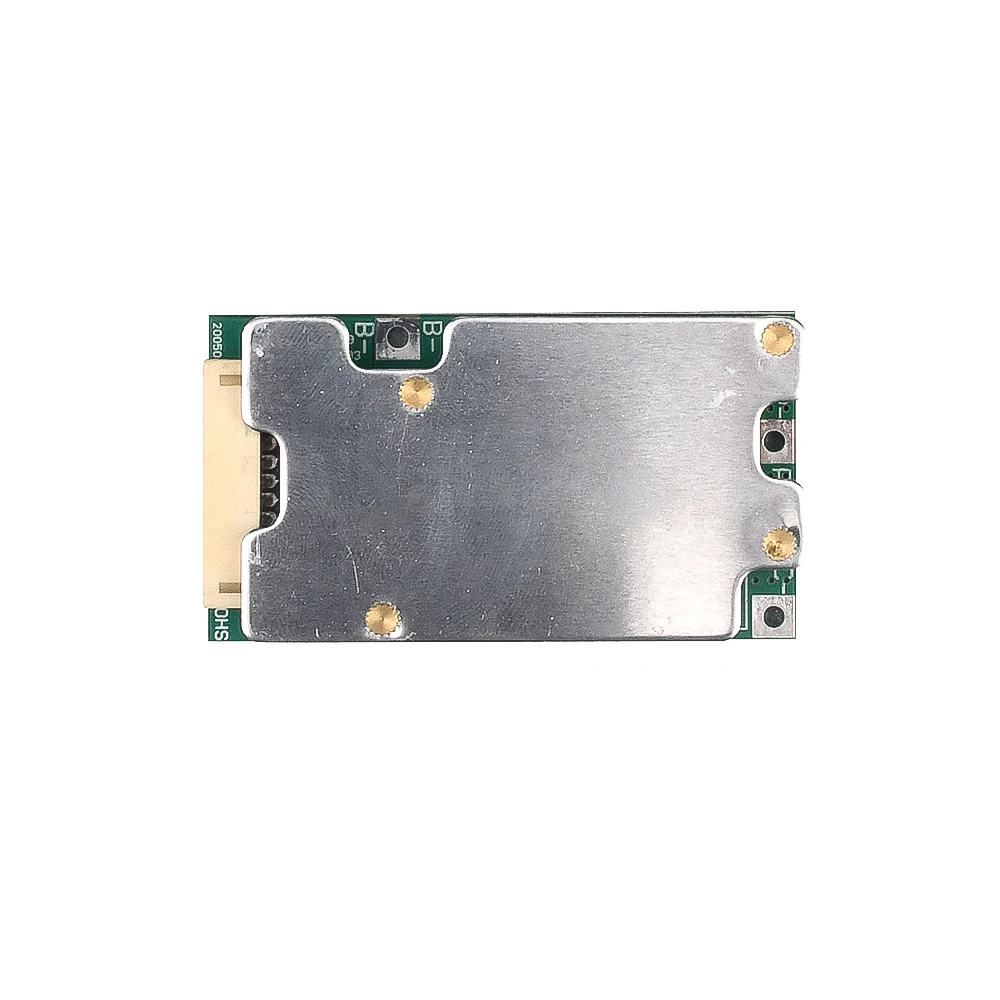

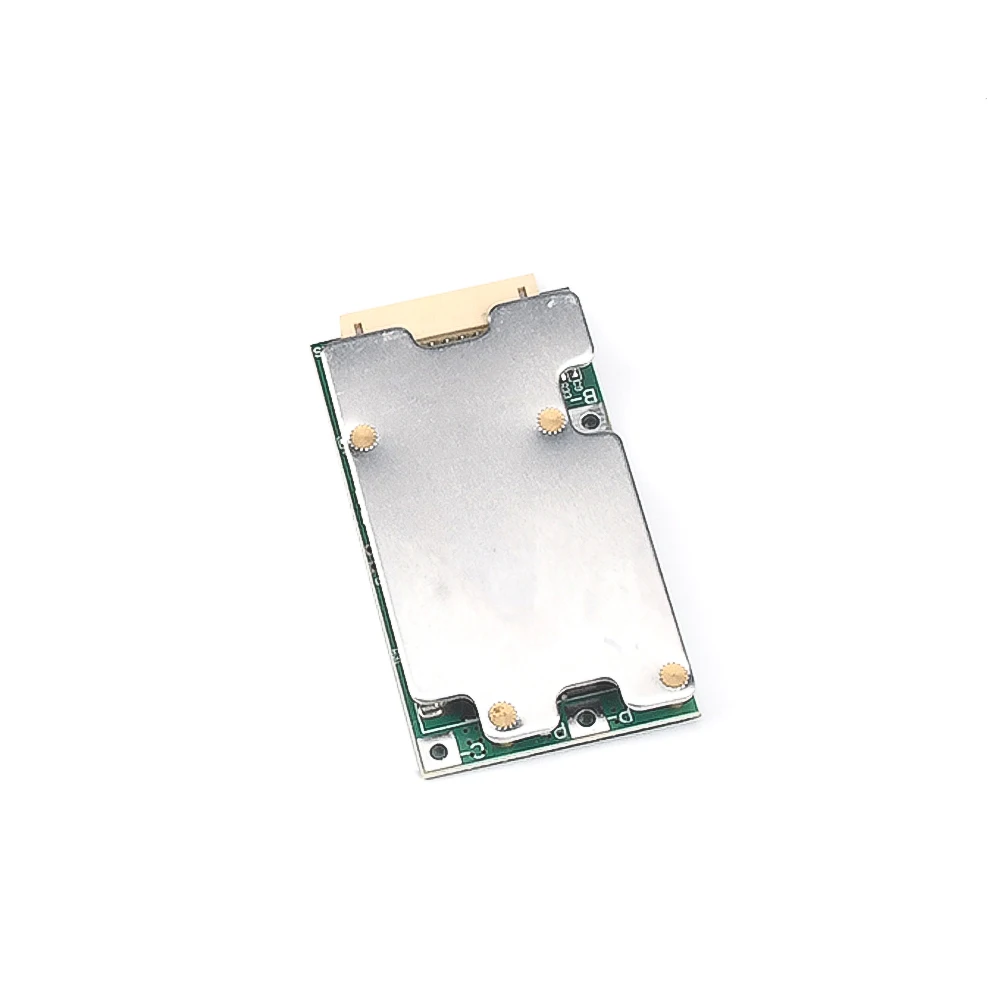

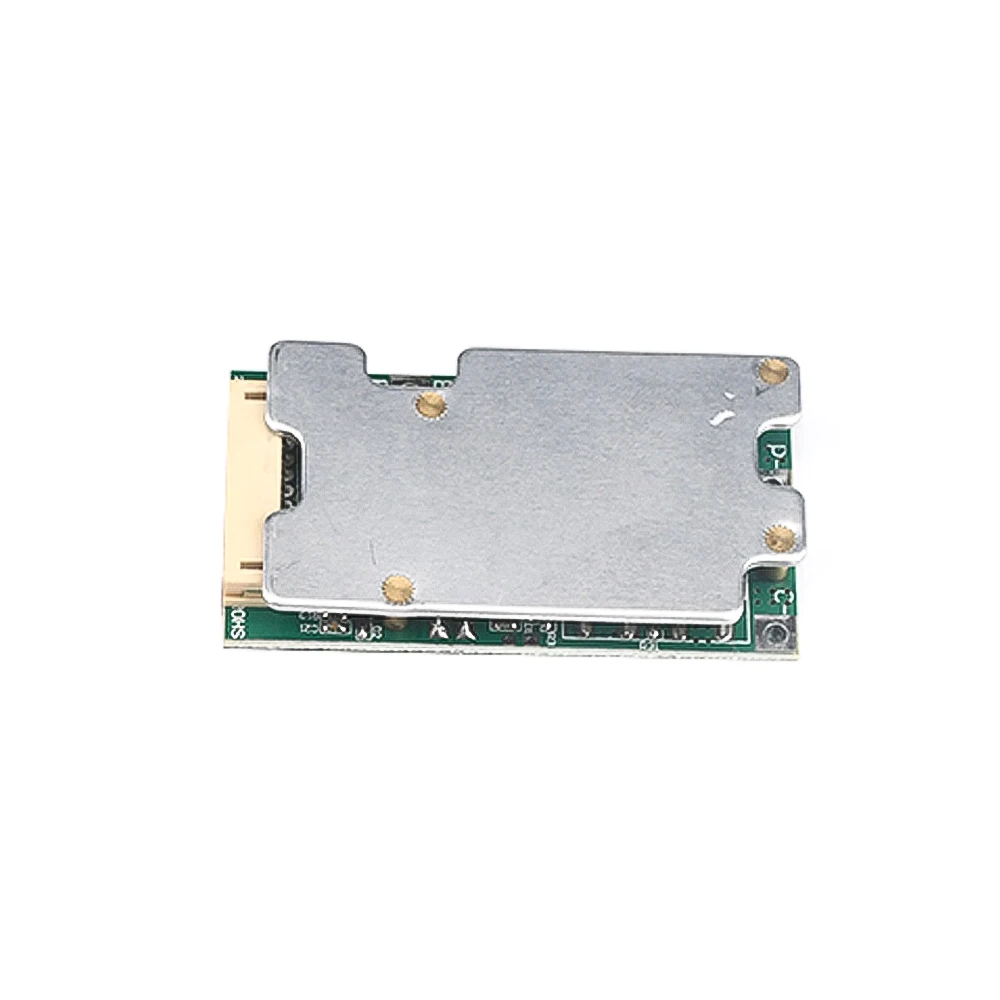

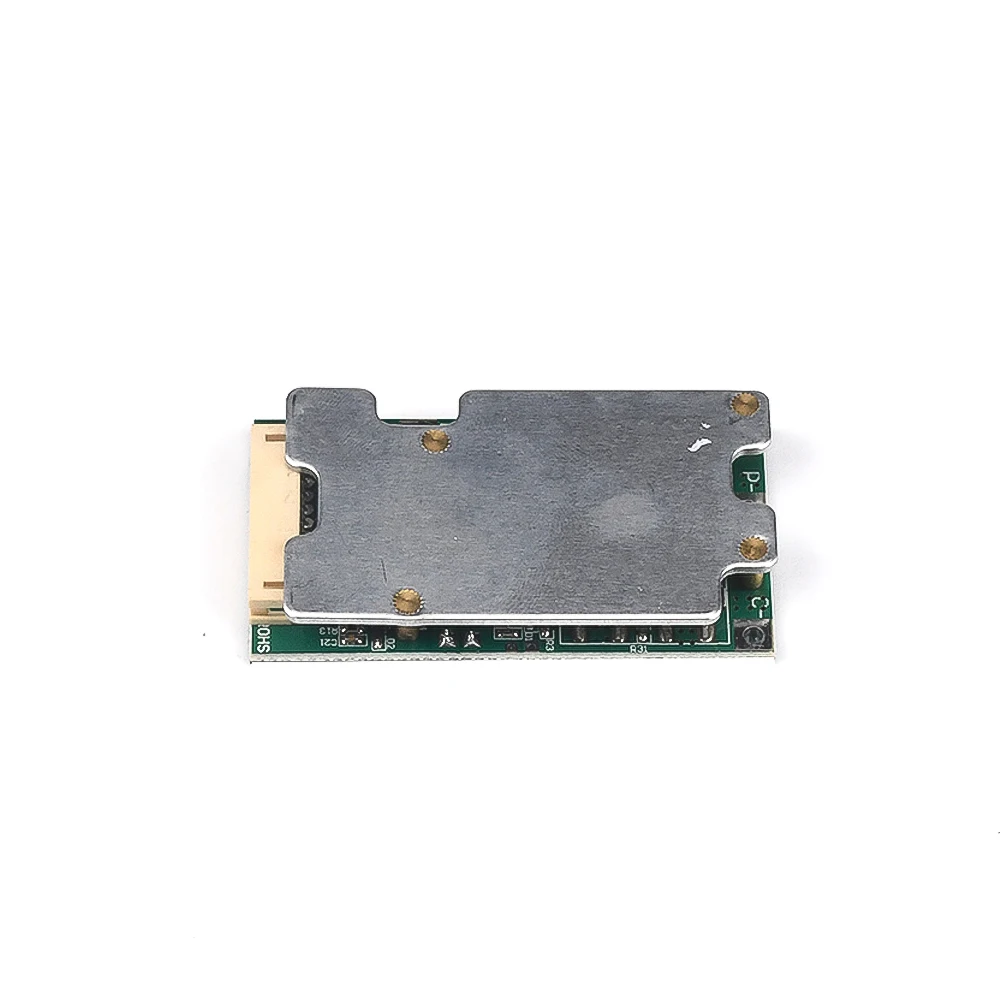

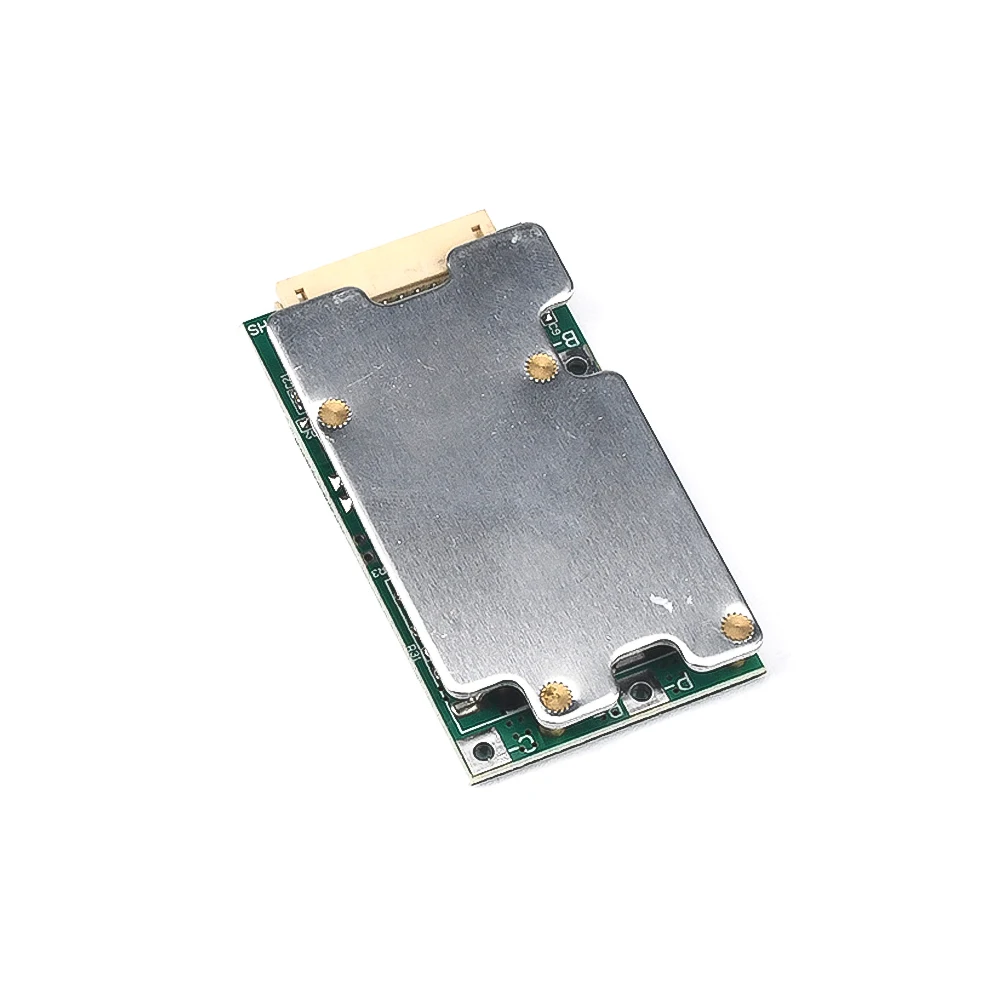

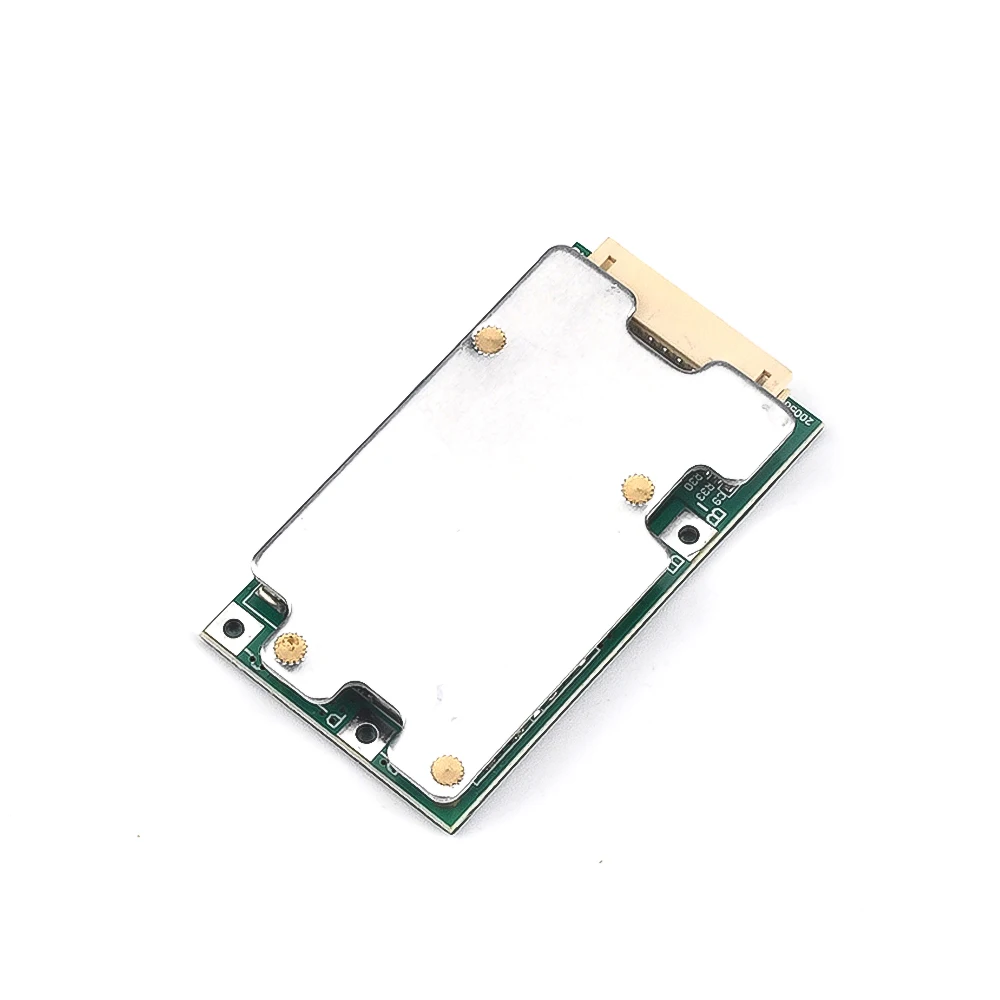

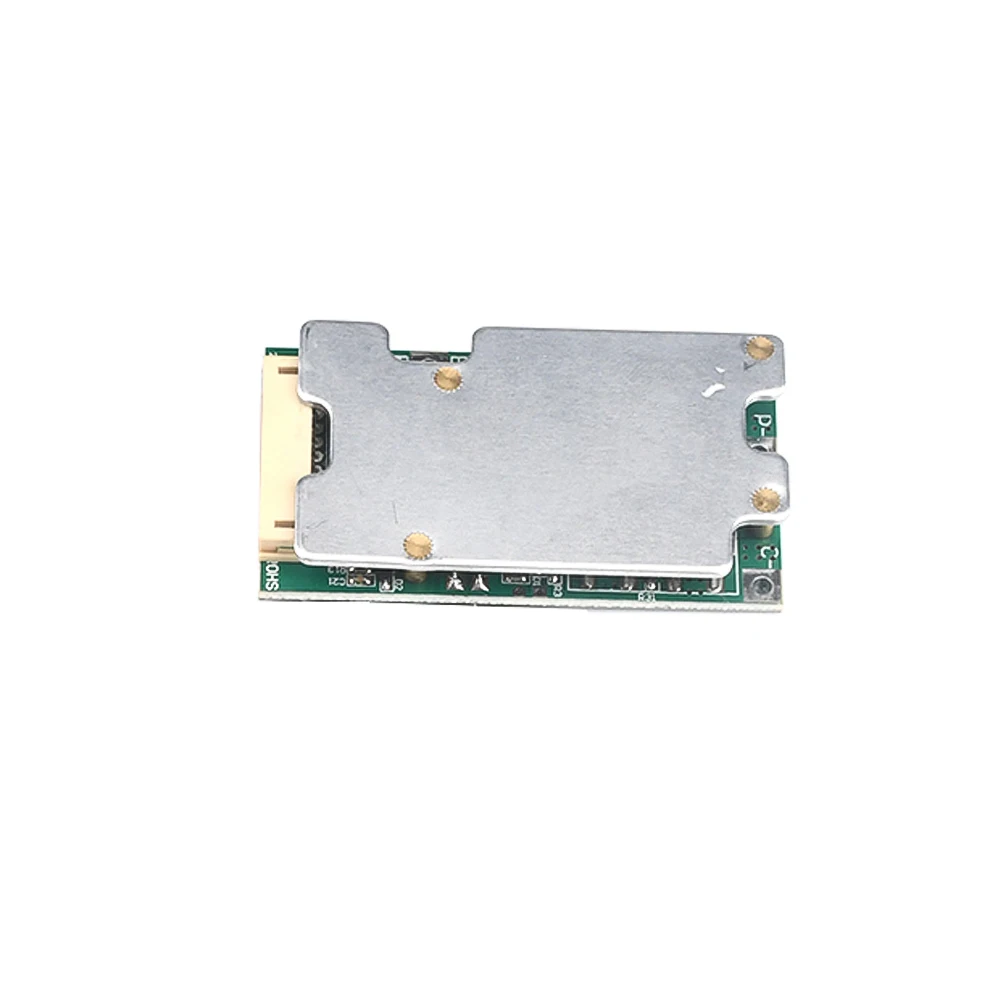

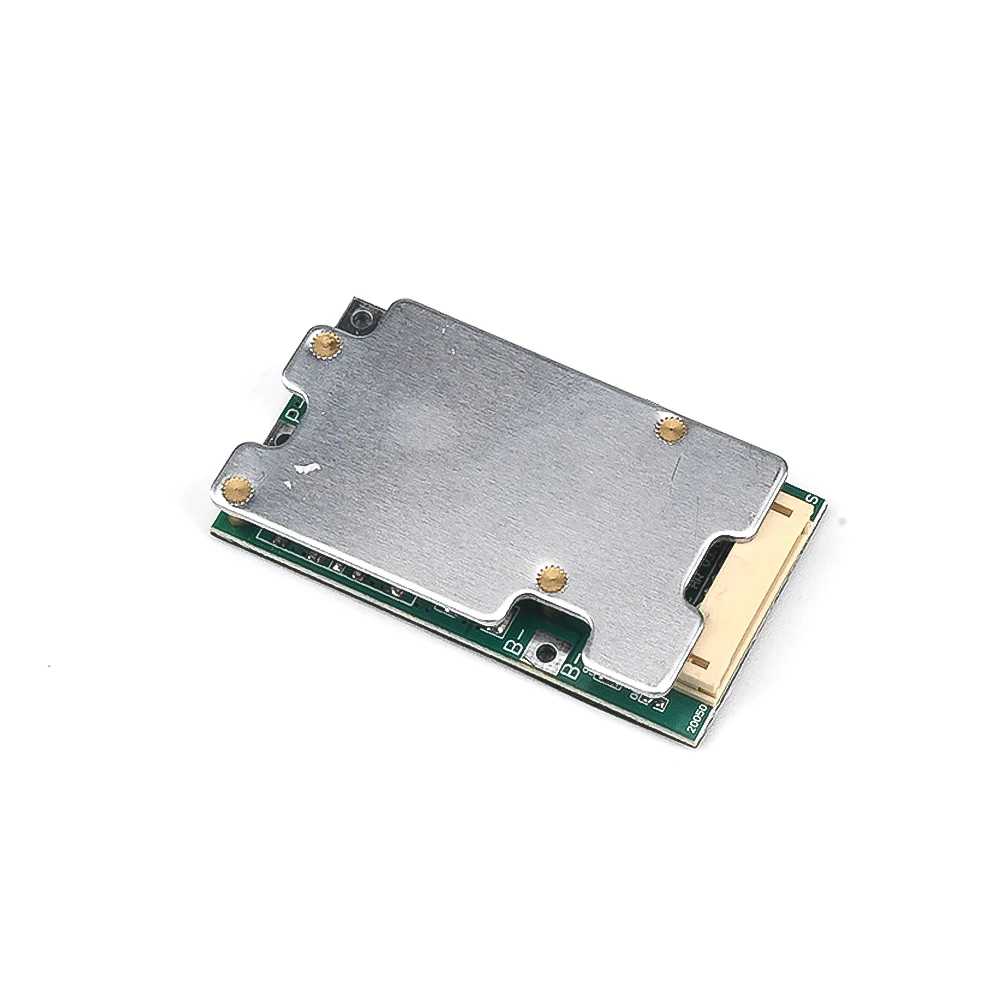

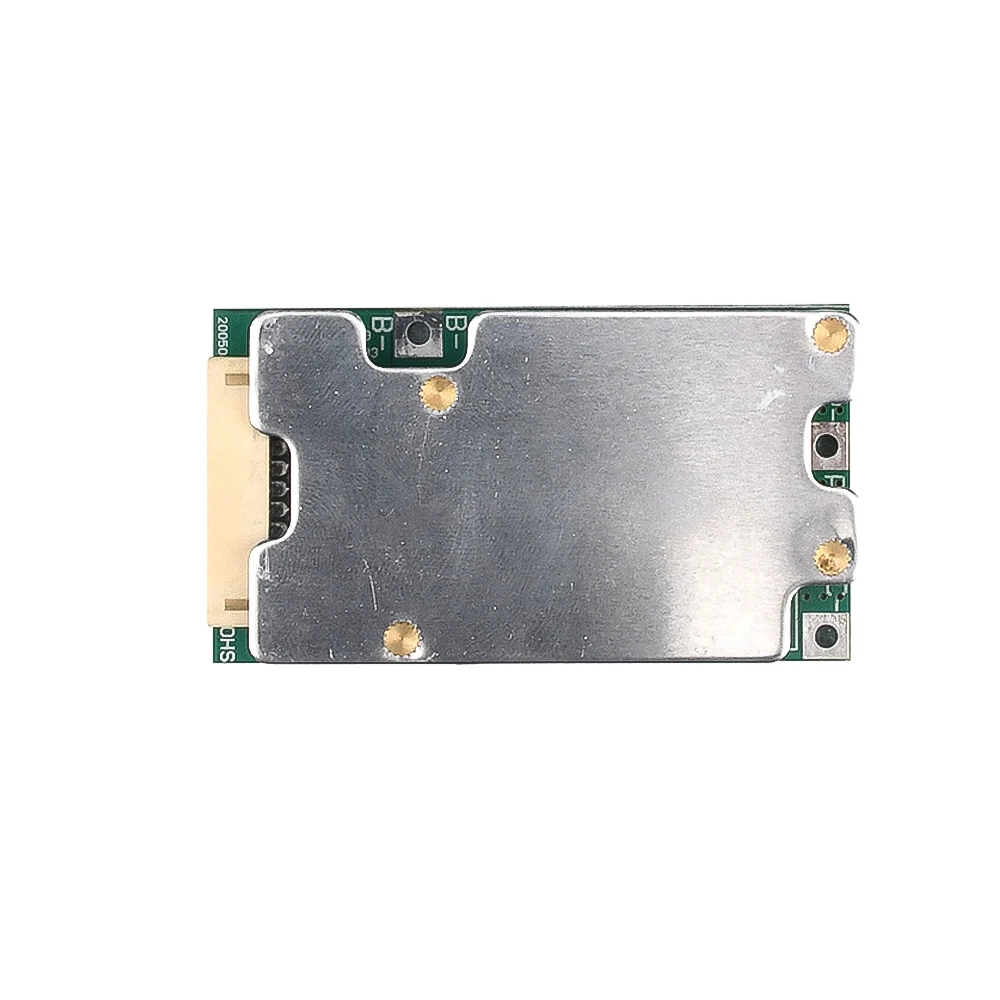

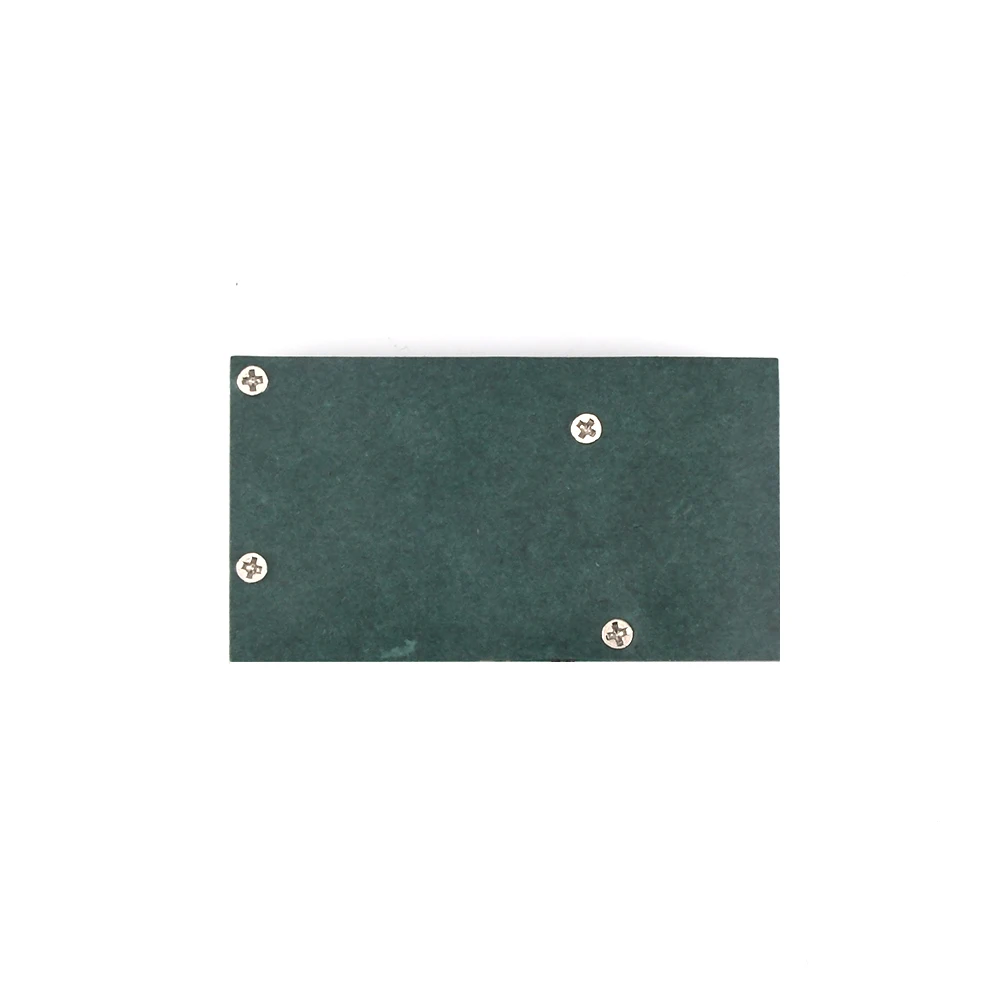

Product parameters:
Model: 10 series 36V/30A split
Applicable voltage power: 36V<1000W
Applicable battery type: 3.7V ternary battery, lithium cobalt oxide, lithium manganate battery
Function description: Lithium battery-overcharge protection; overdischarge protection; overcurrent protection; output short circuit protection.
Maximum working current: 40AMAX
Maximum continuous working current: 25A MAX
Over-discharge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Charging current: 10A MAX
Equalization charging function: with this function equalization voltage 4.2V
Temperature protection: with this function, discharge high temperature 75℃; charge low temperature -7℃;
Application areas: electric vehicles; twisted vehicles; electric power mopeds; scooters; inverters, etc.
Dimensions: length 64mm*width 35mm*thickness 9mm
Unit weight: 60g

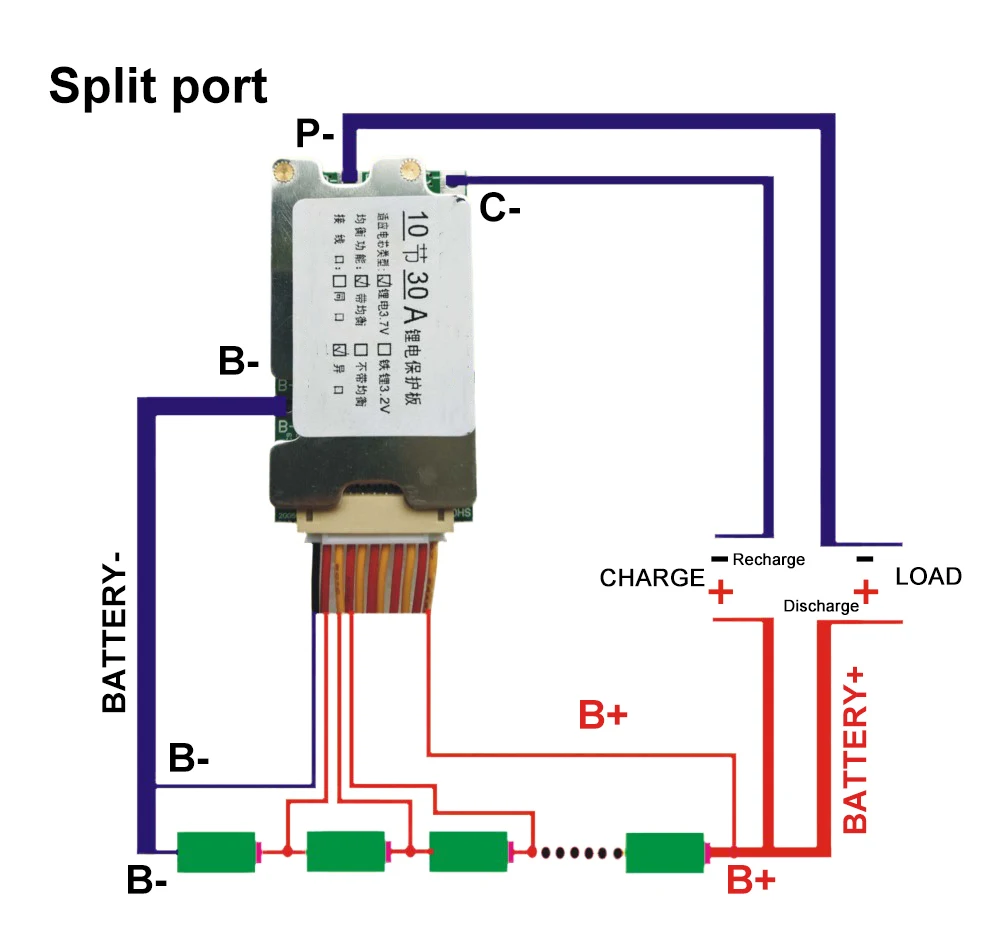

Wiring steps:

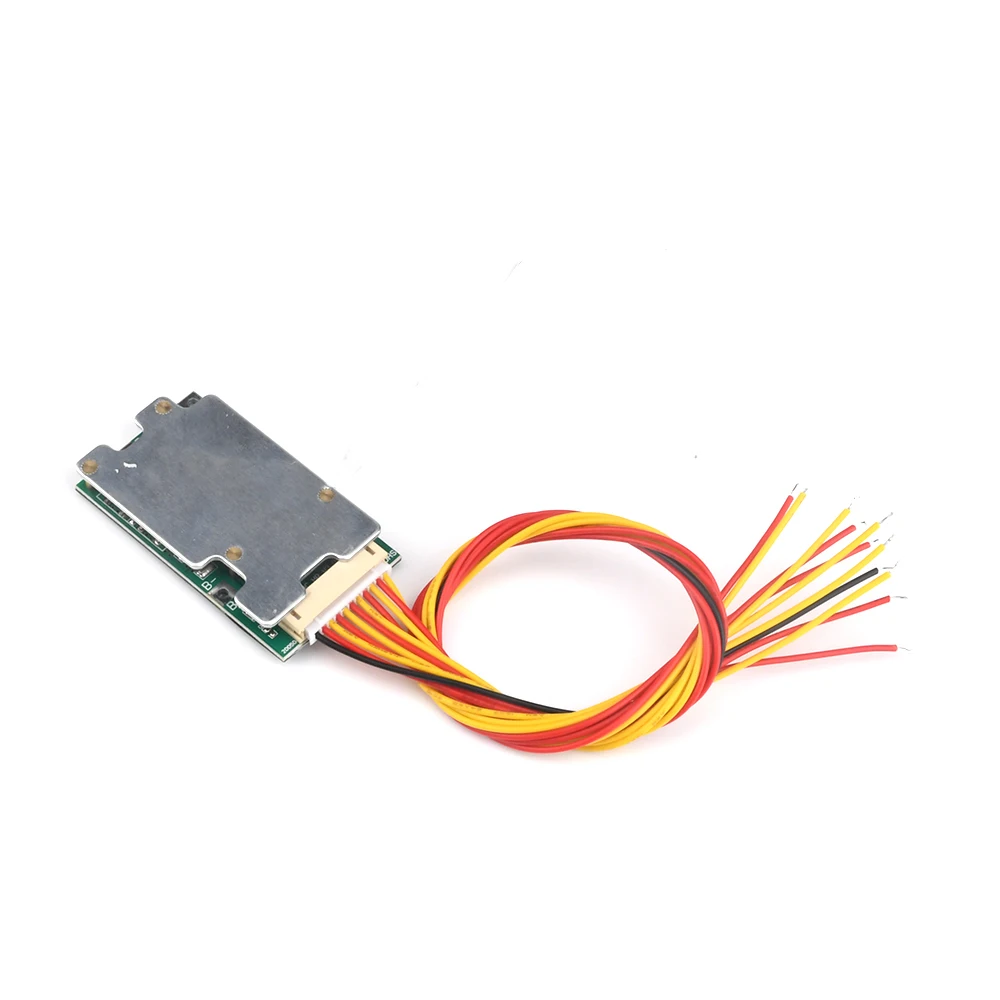

(1) The collection cable is connected to each section of the battery to ensure the effective connection of the cable.
Make sure that at the cable plug end, a single potential increases or decreases in sequence.
The potential sequence is consistent with the potential sequence of the socket at the end of the protection board and the potential is-corresponding.
(2) Solder the B-lead of the protection board to the total negative B- of the battery pack.
Ensure that the solder joints are firm and reliable and have good electrical conductivity. There are no possible hidden dangers such as extrusion and friction in the wiring position, and the wiring is smooth and short.
Avoid solder, conductive objects or leads from falling into, sticking to, or touching the protective board.
(3) Connect the plug of the flat cable with the socket of the protection board.
First, solder the B-lead of the protection board to the total negative B- of the battery pack, and then connect the plug of the flat cable with the socket of the protection board.
Make sure that the cable plug is connected to the socket of the protection board in place, and no charged objects or leads touch the protection board, and take proper measures to fix it.
(4) B+ and c- are respectively connected to the positive and negative terminals of the charging interface.
Make sure to isolate other leads during the welding connection process to avoid short circuits.
The battery pack voltage tested for the discharge interface and the charge interface is consistent with the battery pack voltage, the correctness of the polarity and the correctness of the wiring position.
Package Included:
Split port balance lithium battery protection board x1
