Purchase instructions:
A：M10 2 Position （Aluminum）
B：M10 4 Position （Aluminum）
C：M10 8 Position （Aluminum）

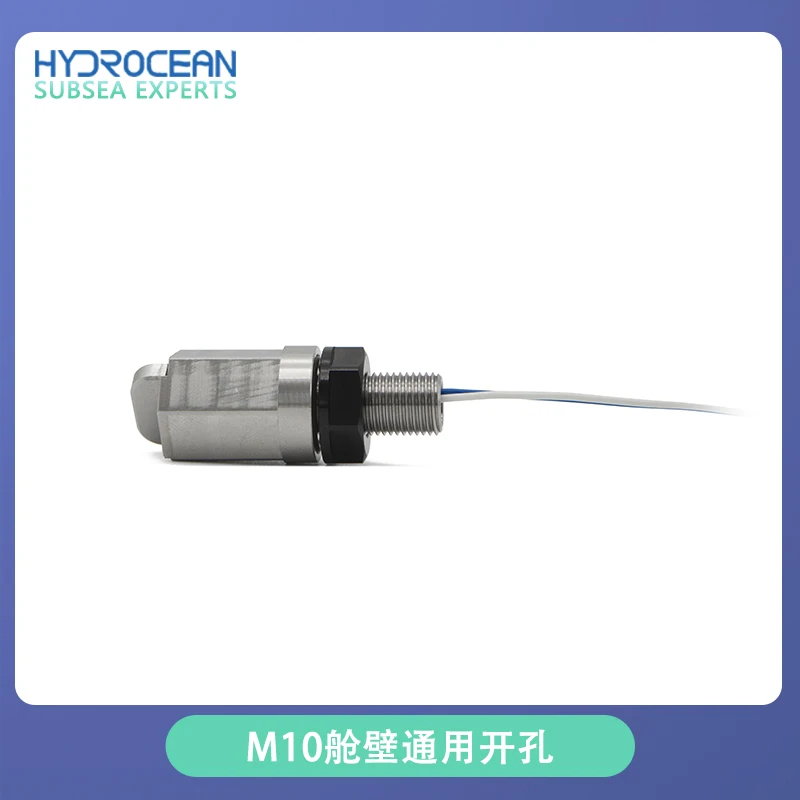

D：M10 2 Position (316 stainless with Aluminum nut)
DESCRIPTION
-
An M10x1 mounted switch with 2-8 position, allows multiple functions and customizable travel angle. There is no risk of the knob falling off because of the internal structure of the switch knob, and it has clear feedback of each position. Standard version has been tested 1000m water depth with 2000 rotary cycles, with setting limited position, can withstand a certain torque.

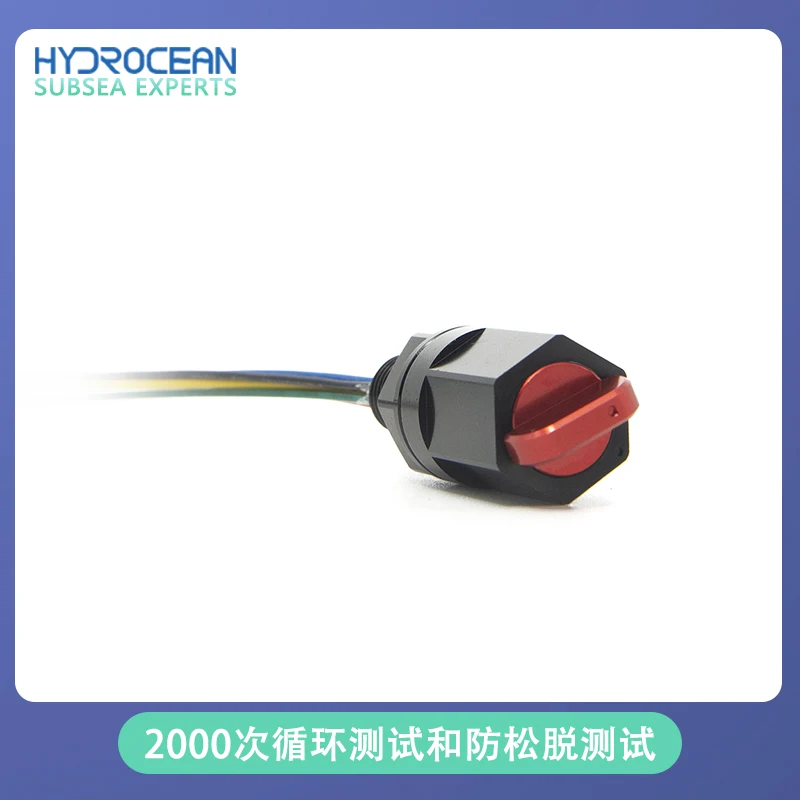

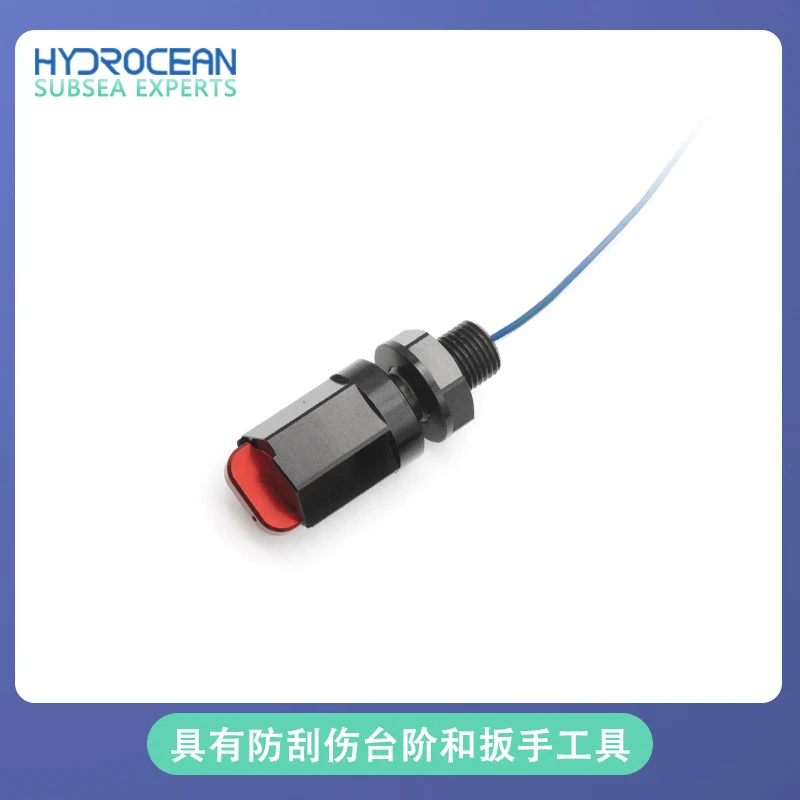

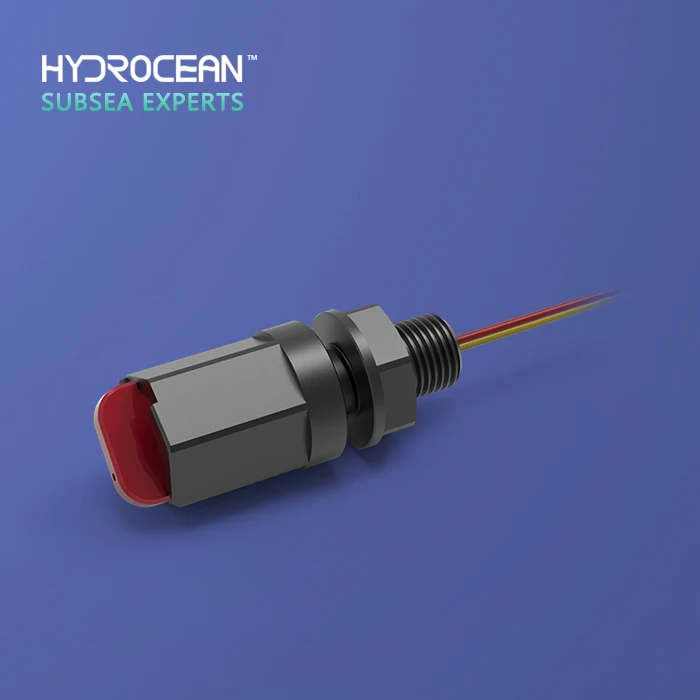

Rotary subsea Switch
An M10x1 mounted switch with 2-8 position, allows multiple functions and customizable travel angle. No risk of knob falling off and clear feedback of each position. Standard version has been tested 1000m water depth with 2000 rotary cycles.
SPECIFICATION :
|
Depth Rating |
1000m |
Operating Life |
2000 cycles |
|
Electrical Rating |
0.5A 24VDC; 0.2A 48VDC |
Contact Resistance |
100mΩ MAX |
|
Insulation Resistance |
100mΩ MIN.500VDC |
Operating Temperature Range |
-20℃~70℃ |
2 POSITION* ELEC-RS1-02: 0°/C-C 45°/NC 90°/NC 135°/NC 180°/C-4
4 POSITION* ELEC-RS1-04: 0°/C-C 45°/-1 90°/C-2 135°/C-3 180°/C-4
8 POSITION* ELEC-RS1-08: 0°/C-C 45°/-1 90°/C-2 135°/C-3 180°/C-4 225°/C-5 270°/C-6 315°/C-7

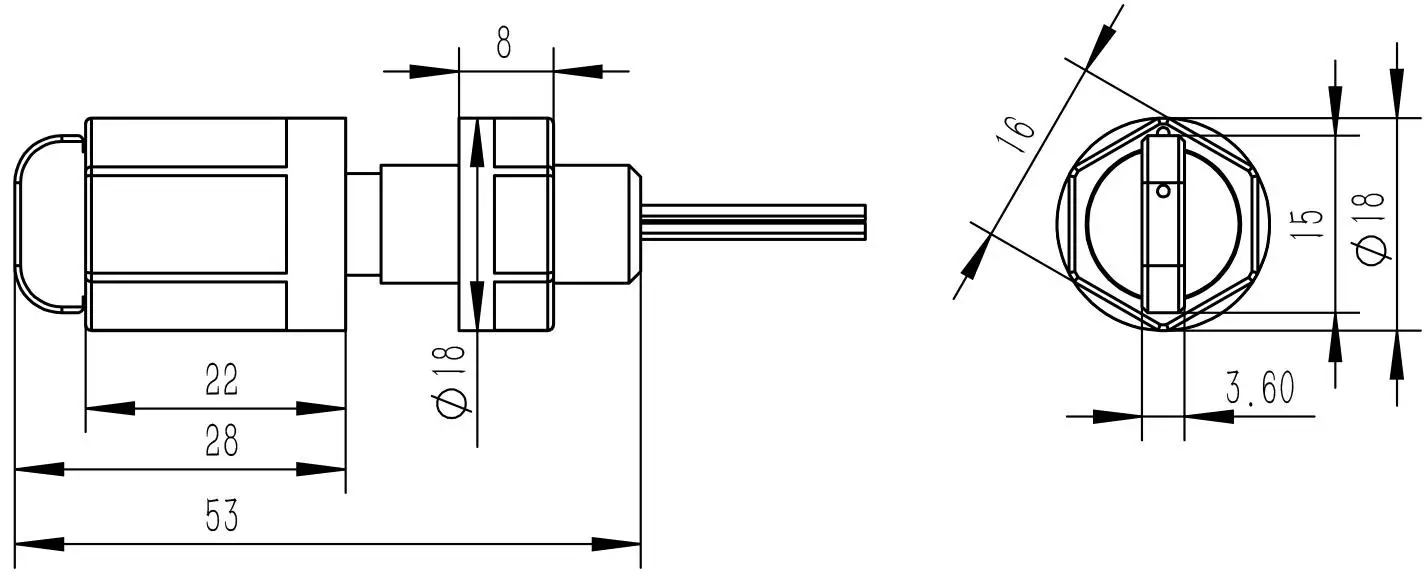

DIMENSION :
