This product does not include a camera and video transmission (VTX) system. Customers must install these components separately.
Compatible with:
DJI O4 Air Unit Pro HD system
BLITZ Whoop 1.6W VTX
BLITZ Mini Force 600 mW VTX

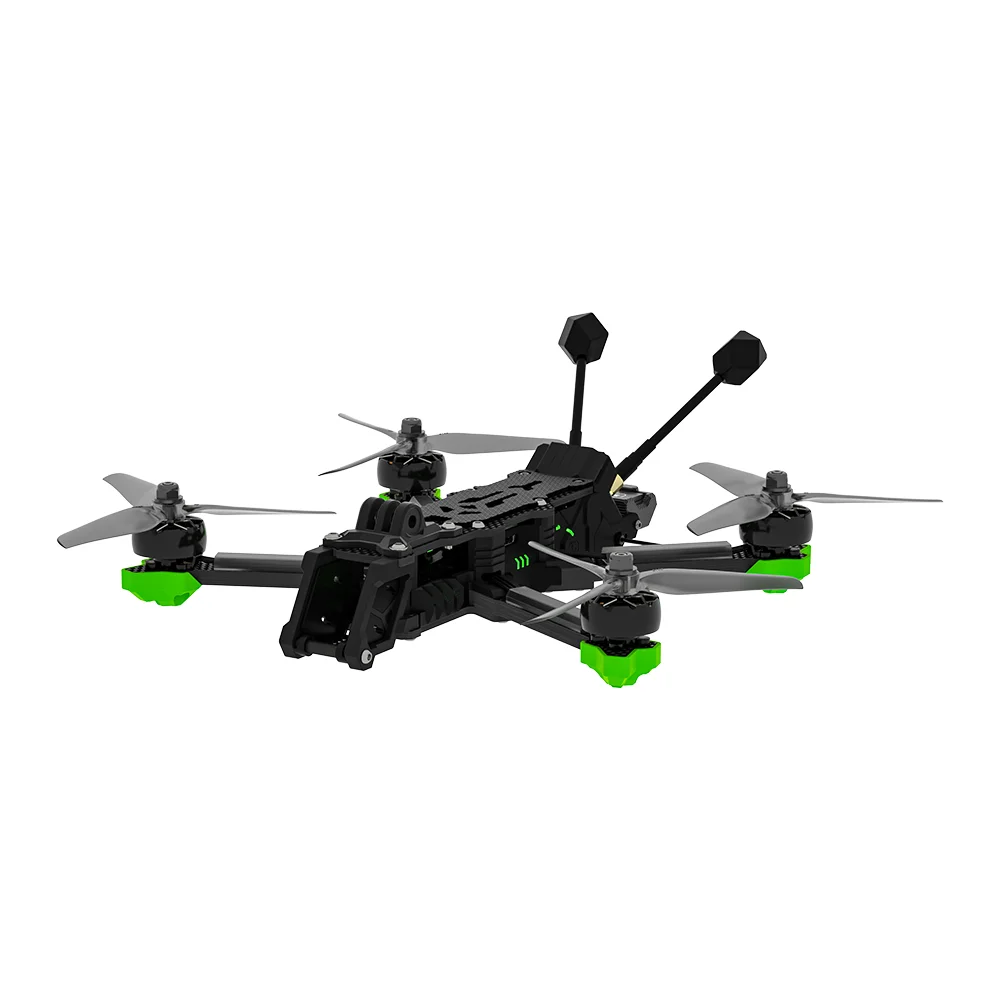

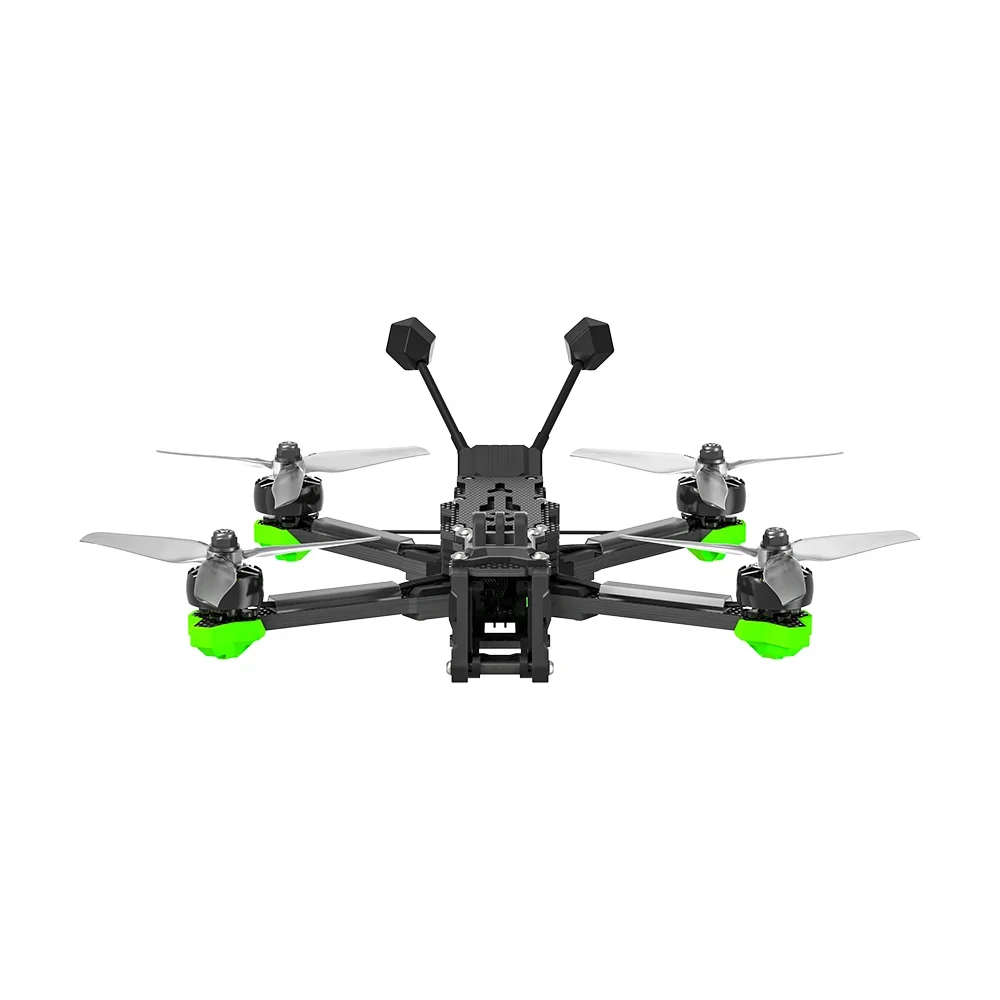

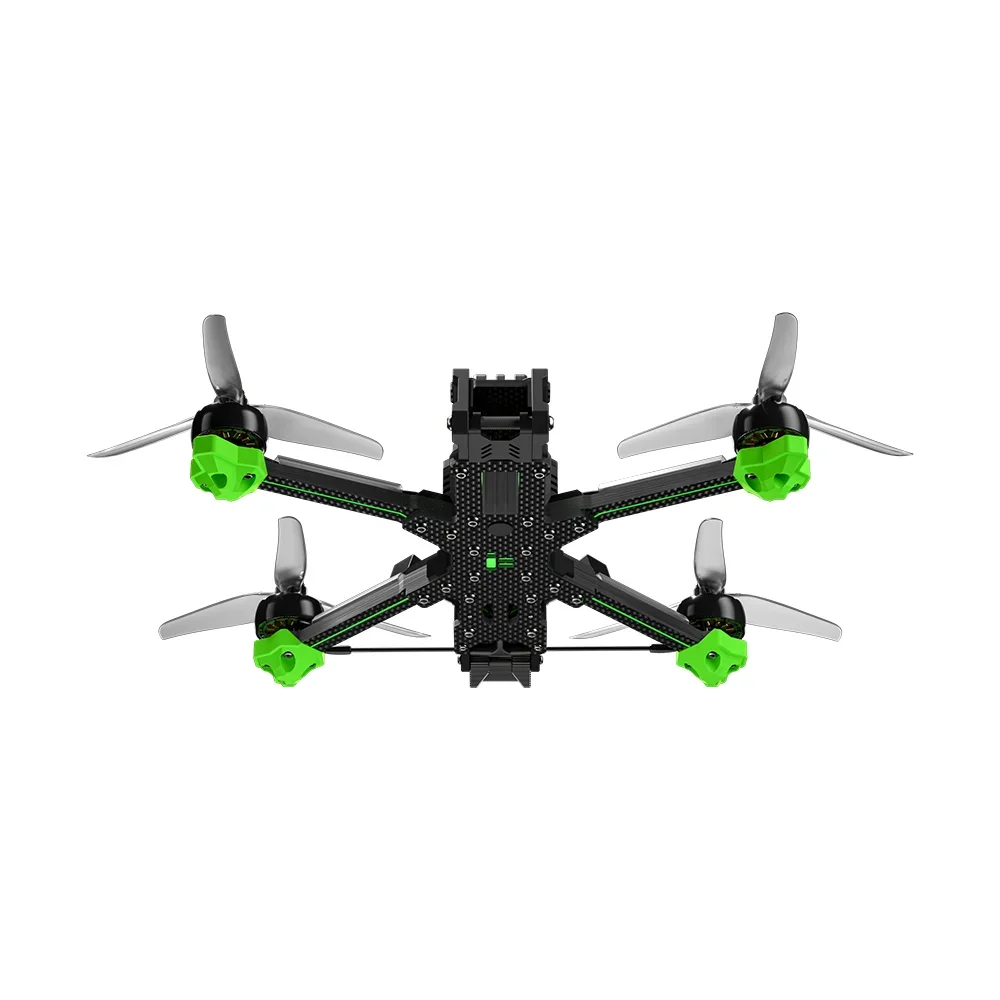

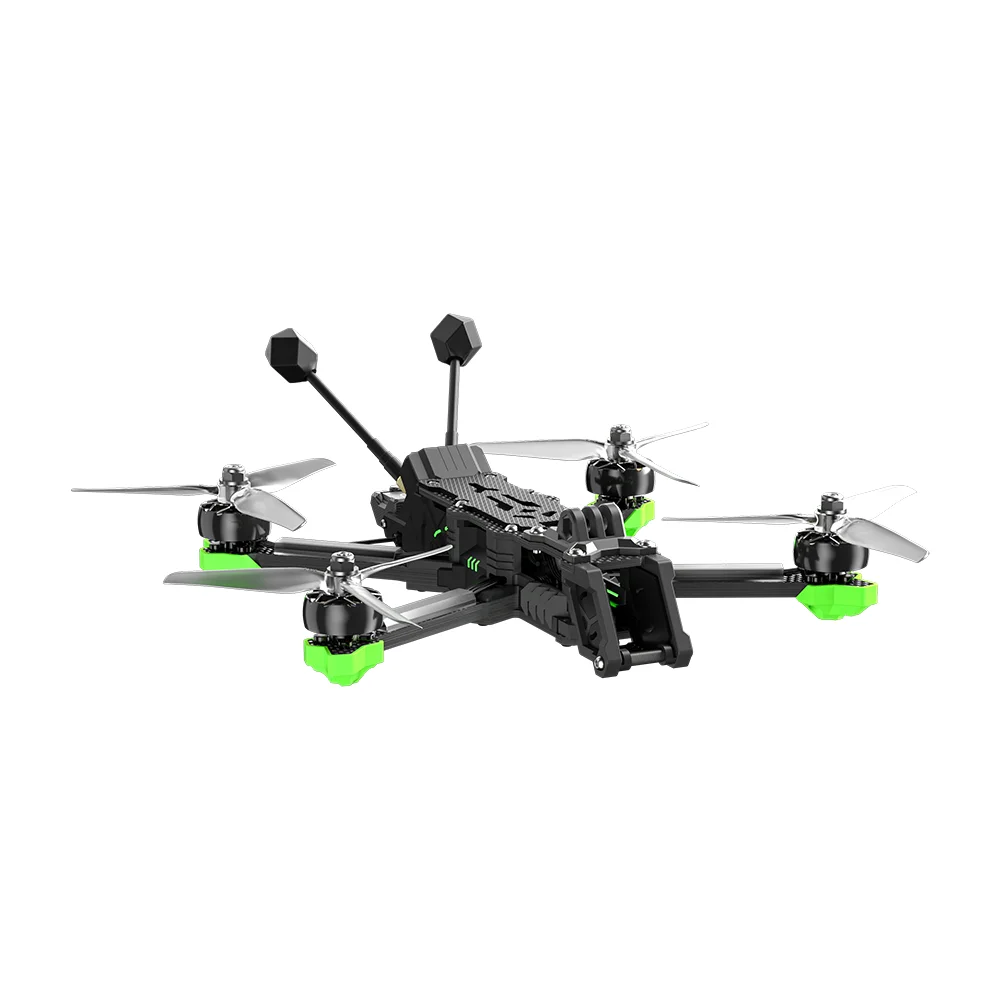

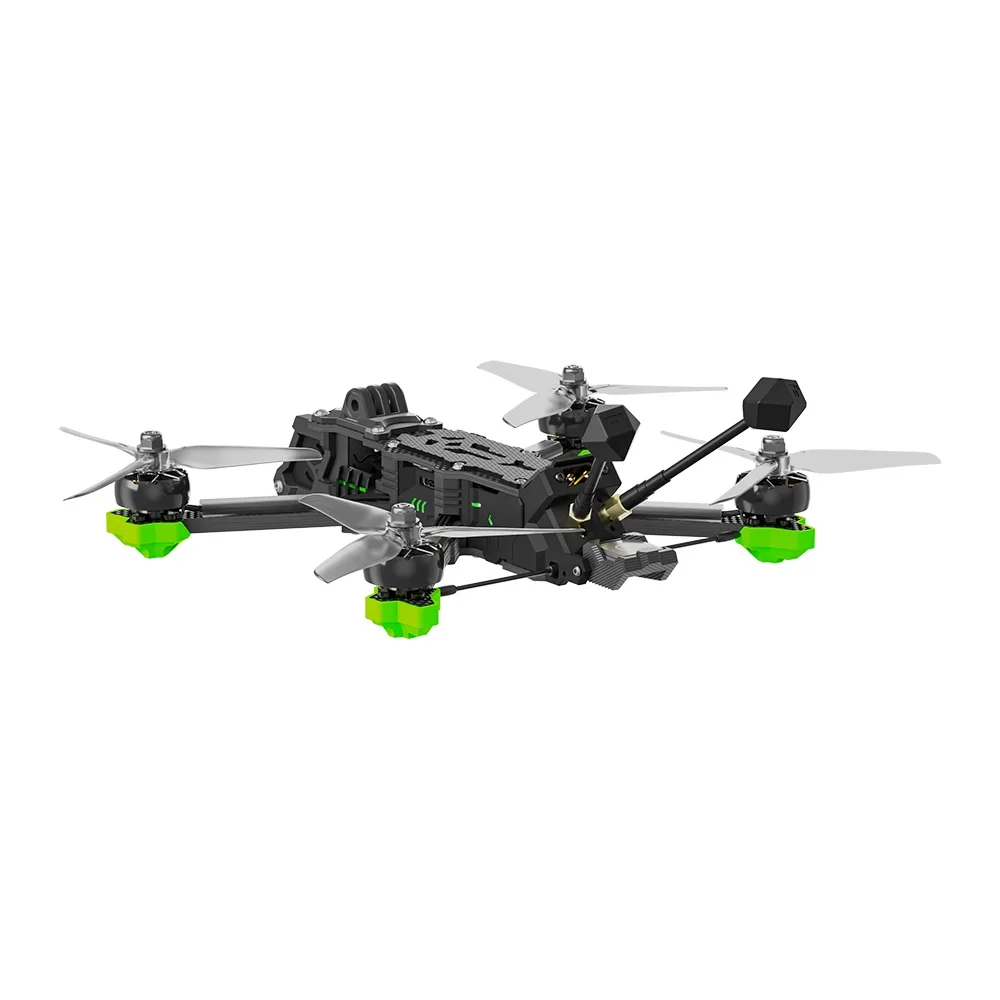

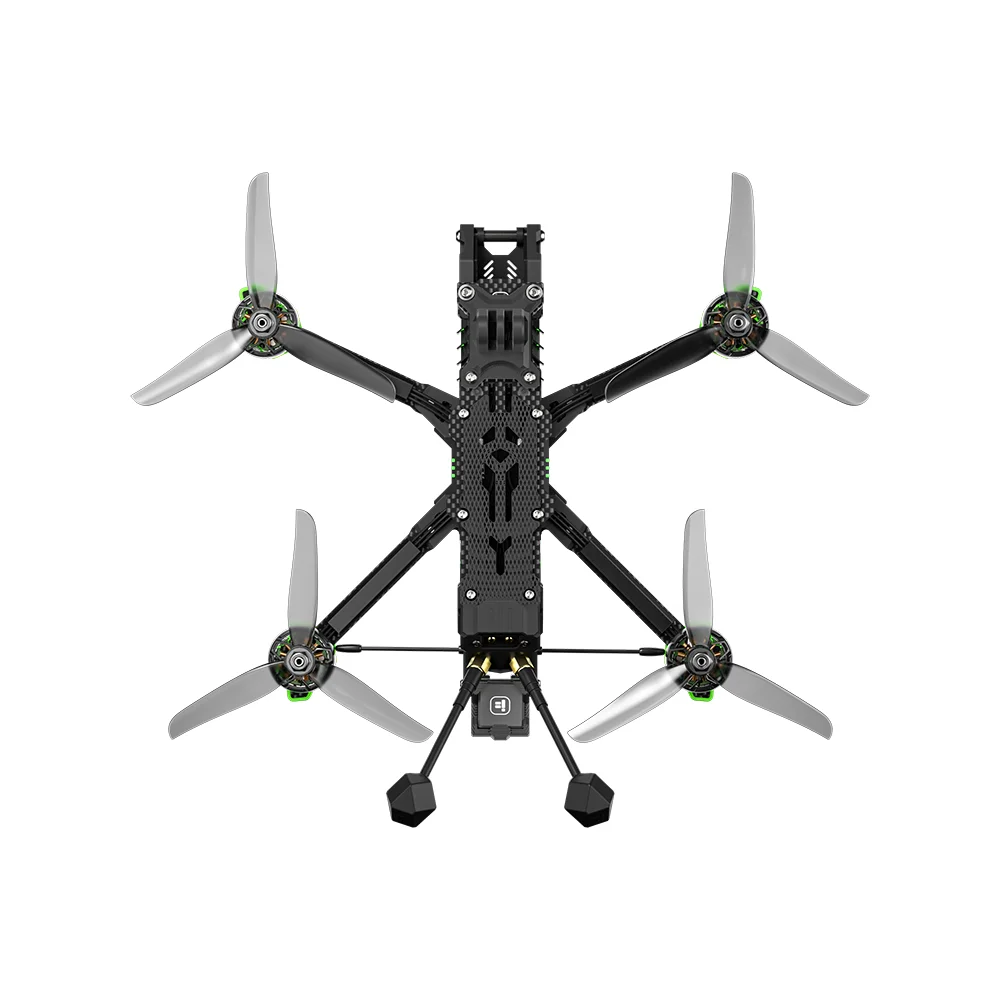

Experience the next generation of pre-built FPV drones with iFlight’s latest offering, setting a new standard in Bind-And-Fly simplicity and performance. The upgraded frame and electronics not only enhance durability but also provide enthusiasts with top-tier performance right out of the box. Welcome to the future of FPV flight with iFlight – where setup is simple, yet the thrill and capability are unmatched.
DC /X Dual Geometry Flexible Switching
The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile squashed X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.
Borg Mini Stack Enhanced safety and stability
Integrated anti-spark Filter, 65A brust current, dual independent BEC power supply, and built-in polymer capacitor further enhancing safety and stability.
Upgraded Appearance Style Meets Performance
Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.
Refined Injection-Molded Construction Upgraded Quality
Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.
Product Name: Evoque F5 V3 WTFPV
FC: Borg Mini F7 Flight Controller
ESC: Borg Mini 60 ESC
Video Transmission and Camera: None
Geometry: DeadCat (default) / True X (switchable)
Frame wheelbase: 236mm(DC-Default)/239mm(True X)
Motor: XING2 2207 1750KV motors
Prop: Nazgul F5 propellers
Weight: 460±5g
Takeoff Weight: Approx. 704±5g (With 1480mAh Battery)
Dimensions (L×W×H): 230*207*54mm(DC-Default)/207*199*54mm(True X)
Adjustable angle of the camera: 10-45°
Max Speed: 190 km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 12-13 min (No load With 6S 1480mAh)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)
1 x Evoque F5 V3 6S WTFPV
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
