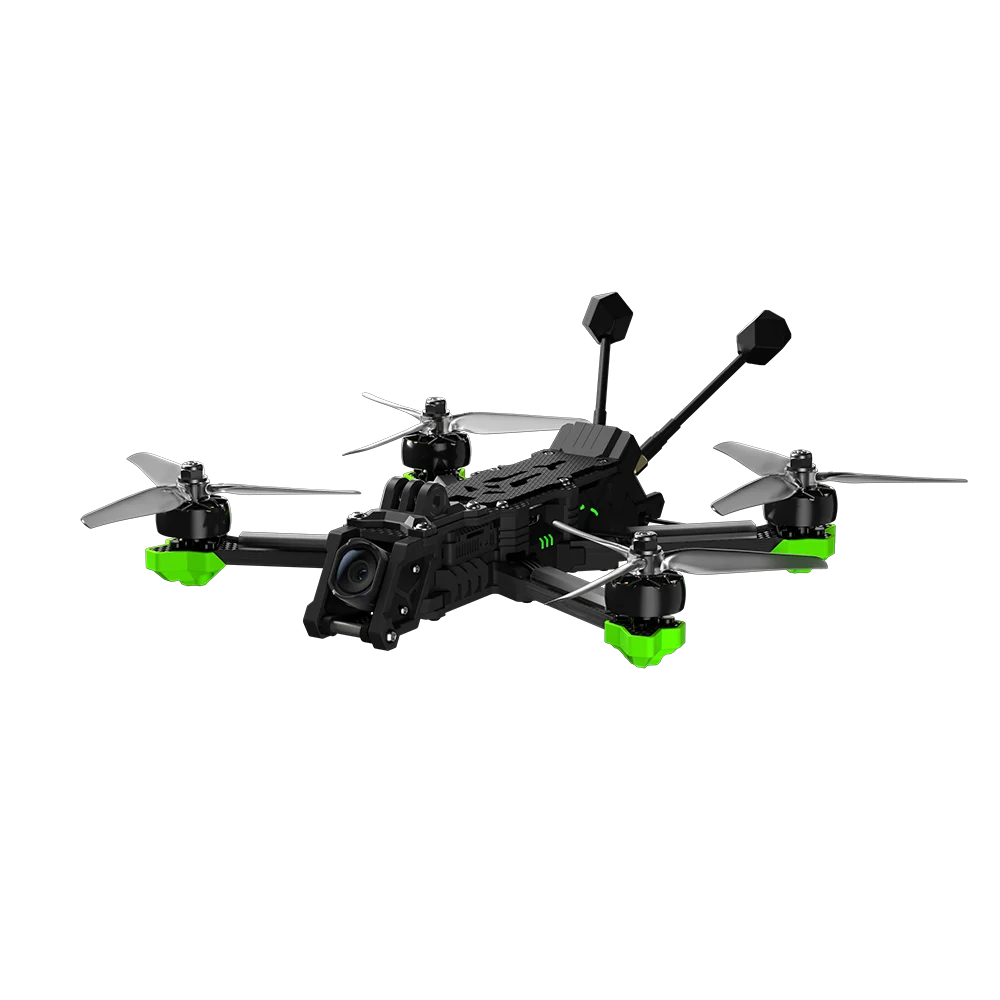

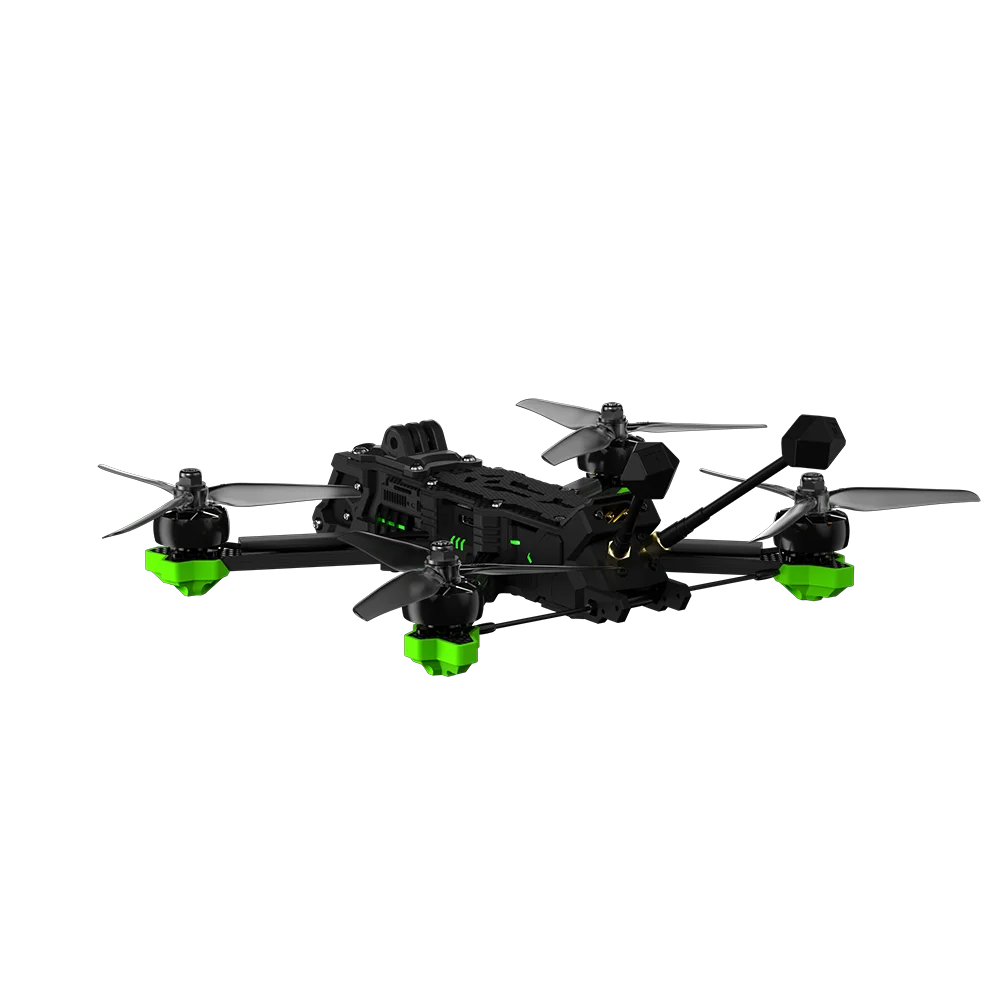

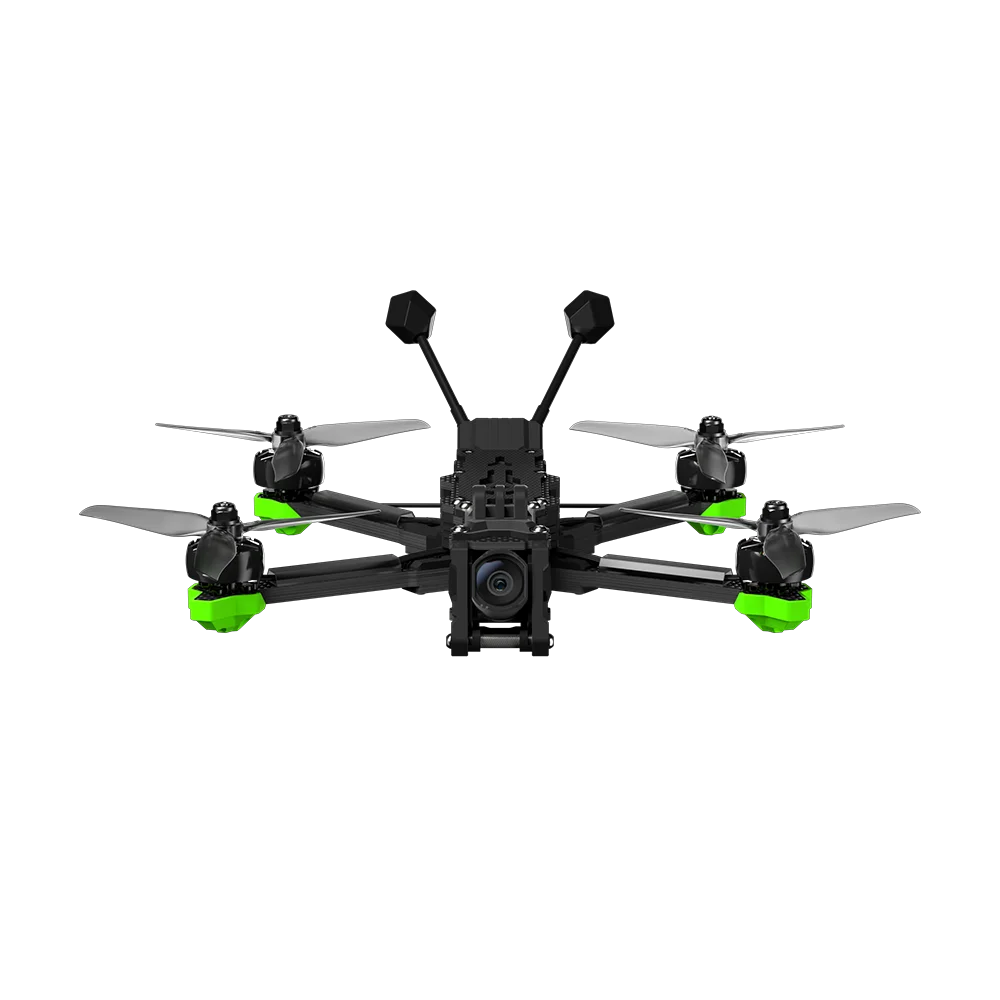

iFlight Nazgul Evoque F5 V3 O4 Pro 6S HD BNF FPV Drone commutabile DC/X-frame design W/ Borg Mini F7 60A Stack / O4 Pro Air Unit

Description

• Every upgrade of the Nazgul Evoque F5 V3 is engineered to elevate your flight experience to new heights, featuring six core enhancements that redefine versatility and performance for drone enthusiasts. At its core, the innovative switchable DC/X-frame design stands out as a game-changer—seamlessly adapting to every flight scenario you demand. Opt for the DC geometry when capturing stunning cinematic shots, ensuring zero propeller obstruction for crystal-clear footage, or switch to the agile X geometry to unlock dynamic, high-speed freestyle maneuvers, making it a versatile companion for both creative filming and adrenaline-fueled flights.

• Whether you’re a professional pilot chasing precise control or a hobbyist seeking immersive fun, this drone is intuitive to master, empowering you to explore diverse flying styles and unlock endless aerial enjoyment.

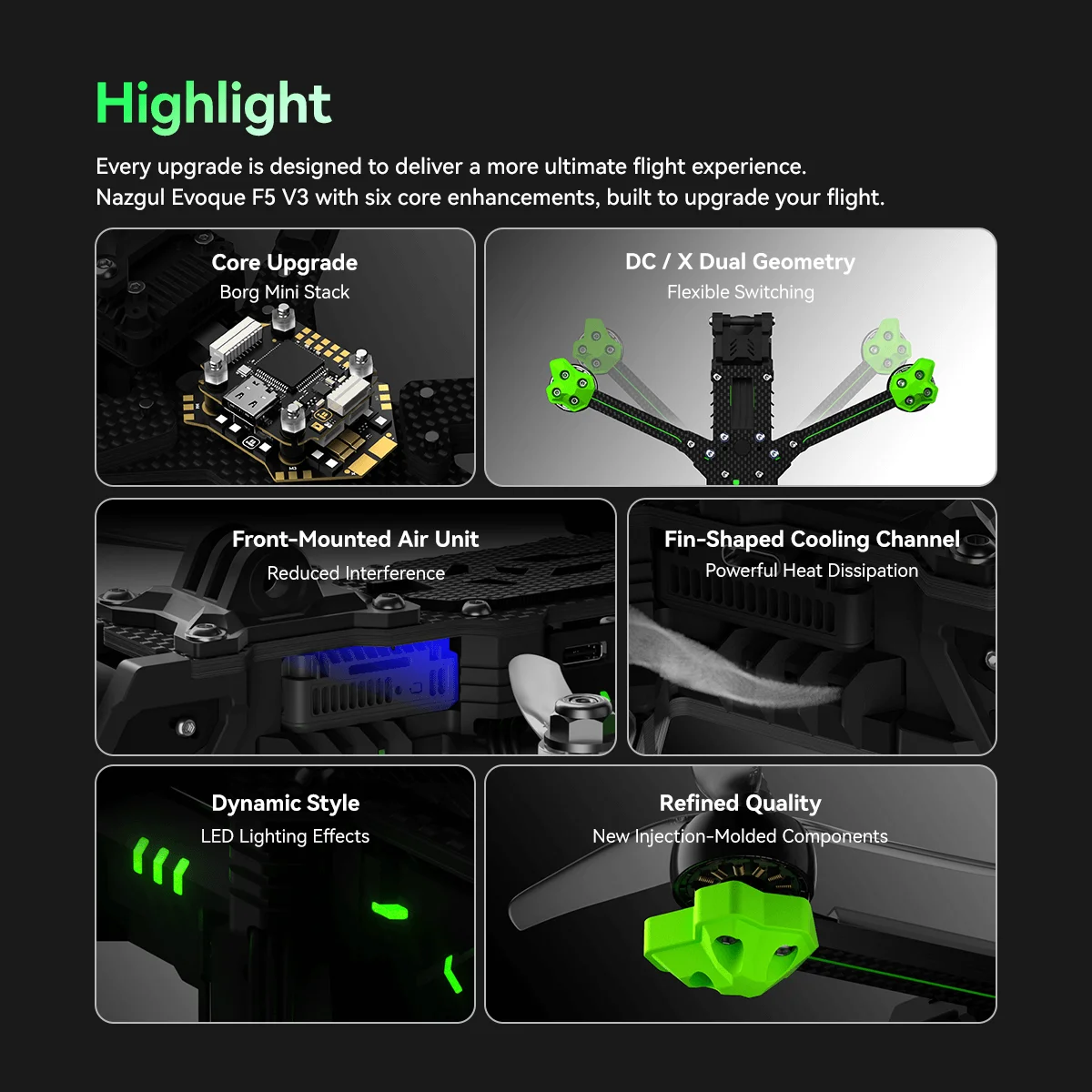

Highlights

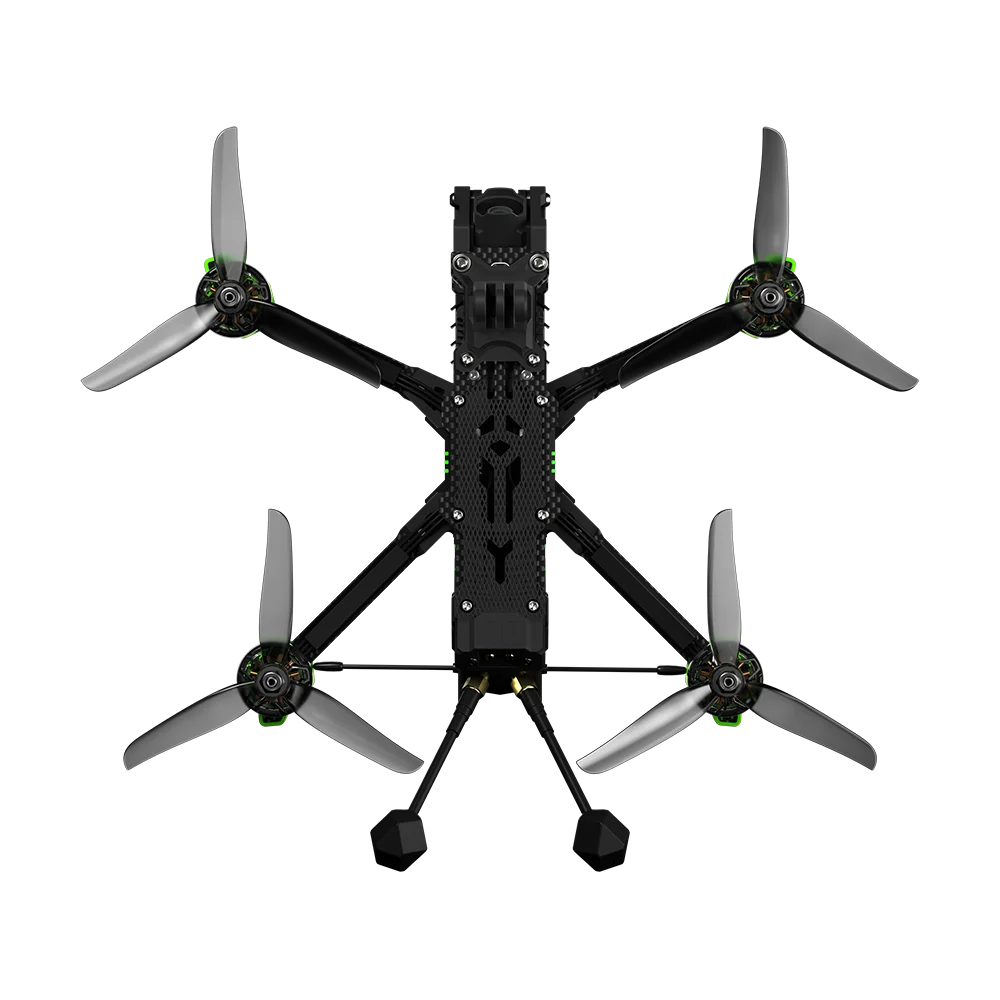

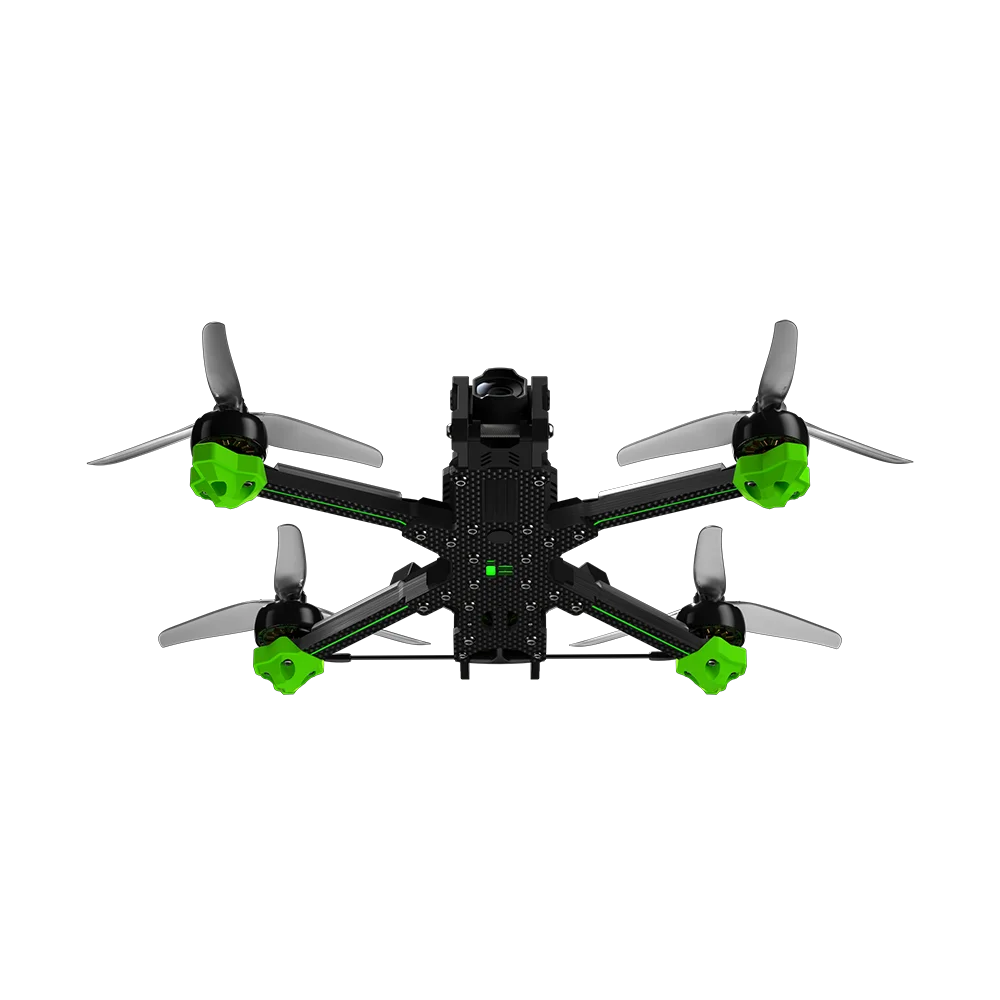

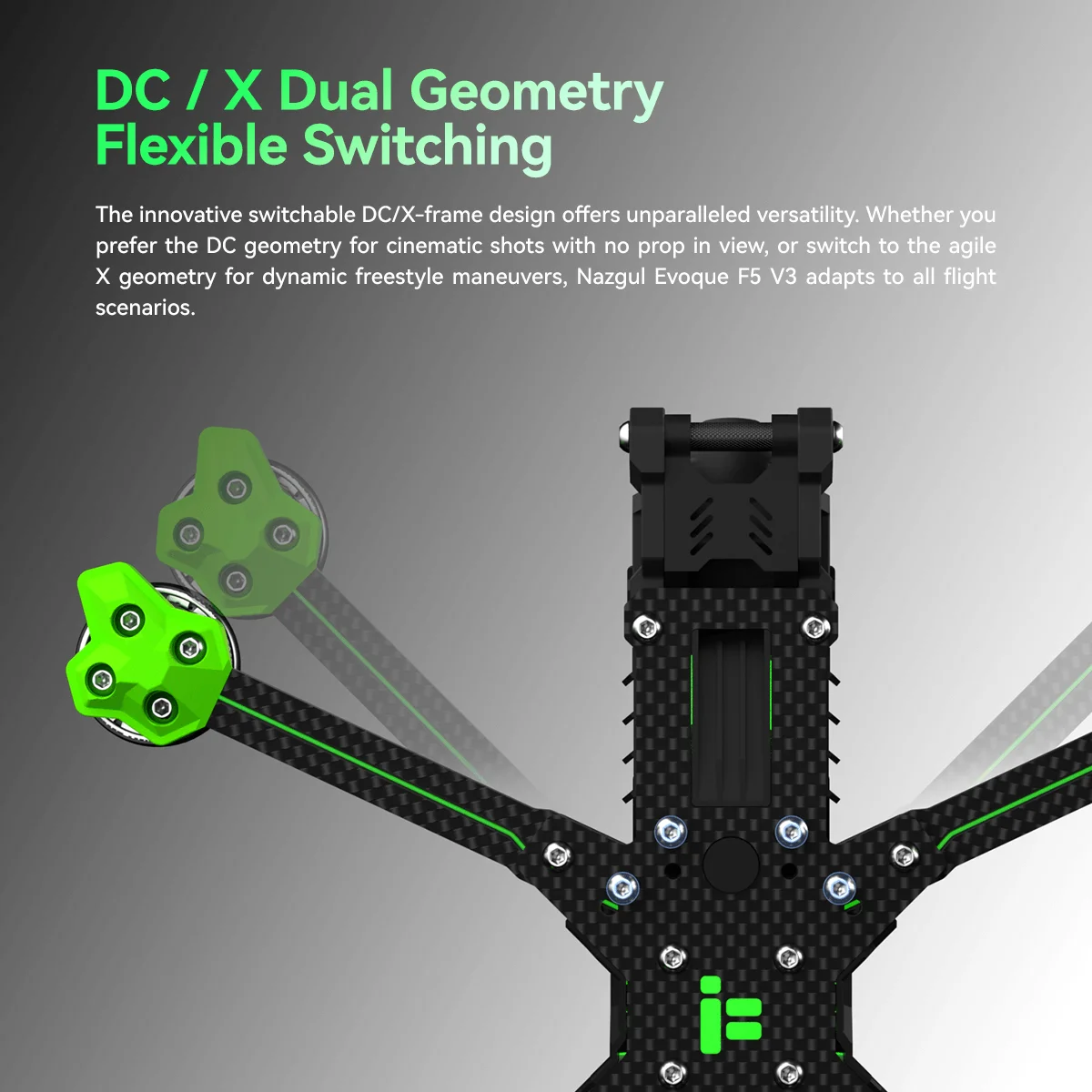

DC /X Dual Geometry Flexible Switching

The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.

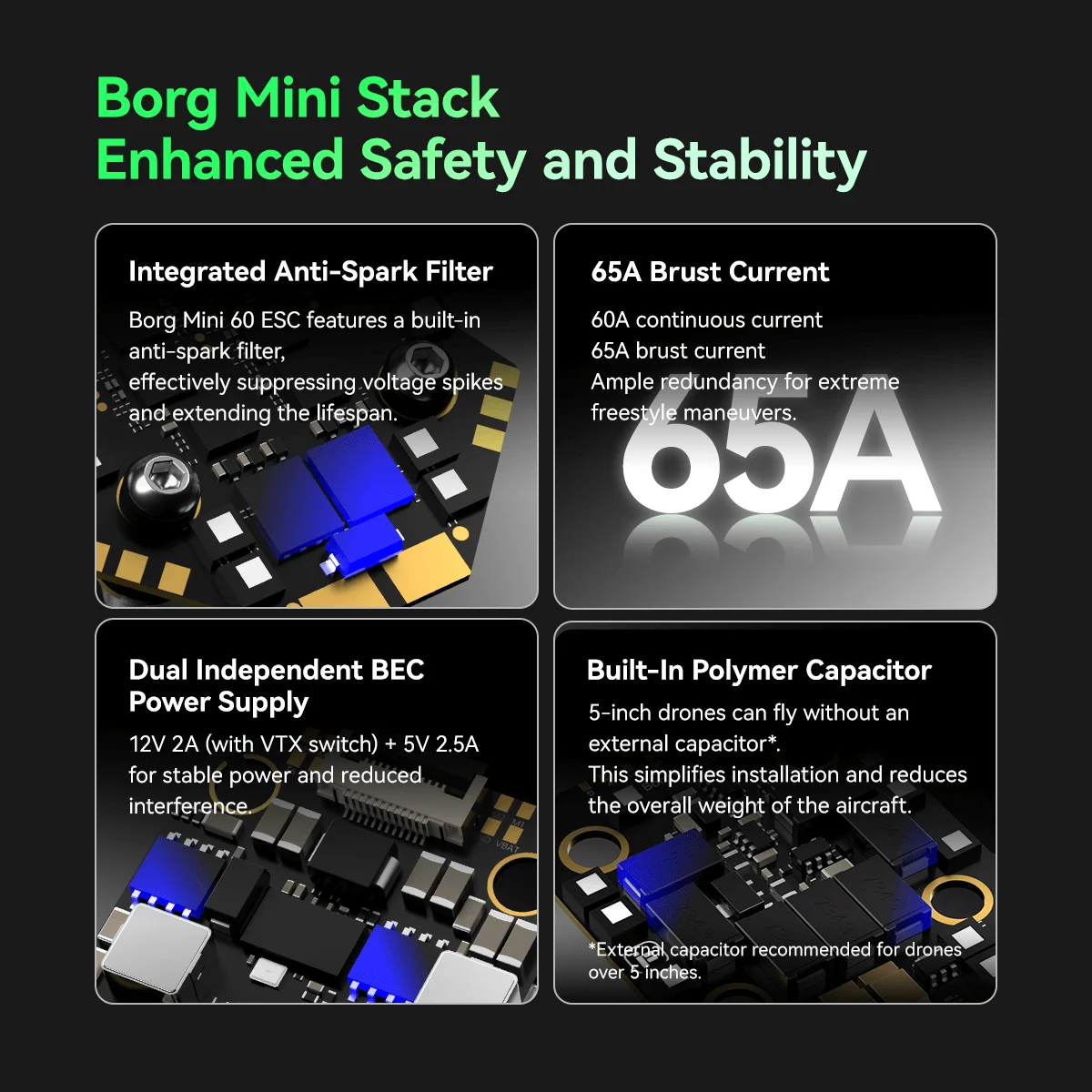

Borg Mini Stack Enhanced safety and stability

Integrated anti-spark Filter, 65A brust current, dual independent BEC power supply, and built-in polymer capacitor further enhancing safety and stability.

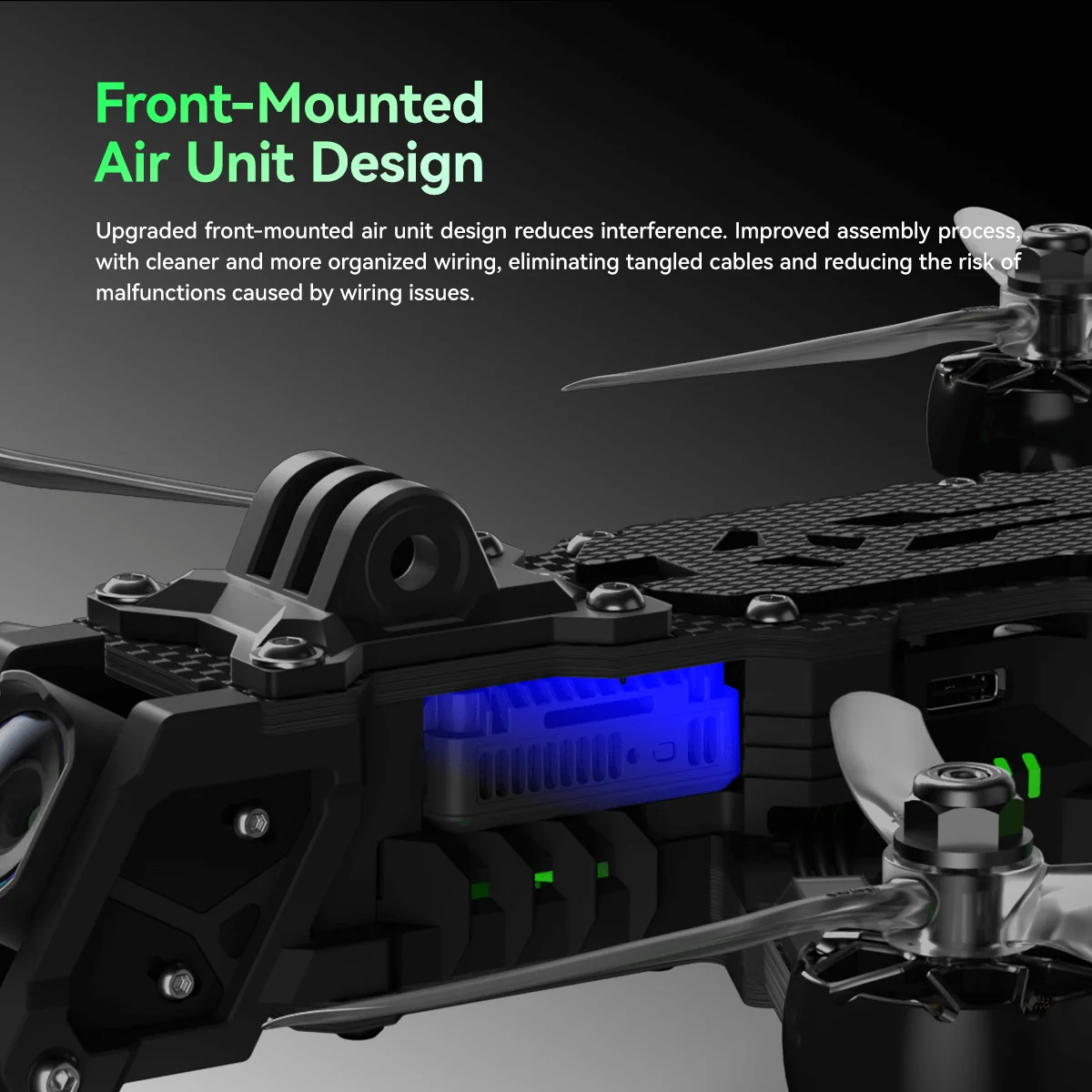

Front-Mounted Air Unit Design

Upgraded front-mounted air unit design reduces interference. Improved assembly process with cleaner and more organized wiring, eliminating tangled cables and reducing the risk of malfunctions caused by wiring issues.

Upgraded Appearance Style Meets Performance

Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.

Refined Injection-Molded Construction Upgraded Quality

Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.

Flagship Recording Capability Equipped with DJl O4 Air Unit Pro

Upgraded with a 1/1.3-inch image sensor, delivers remarkable performance in low-light and night environments. Capture low-altitude, high-speed flight footage in 4K resolution with an ultra-wide 155° FOV. Experience the immersive visual impact of flight like never before, with crisp 4K output that effortlessly meets your creative needs.

Specificaitons

• Product Name: Evoque F5 V3 O4 HD BNF

• FC: Borg Mini F7 Flight Controller

• ESC: Borg Mini 60 ESC

• Video Transmission: DJI O4 Air Unit Pro

• Geometry: DeadCat (default) / True X (switchable)

• Frame wheelbase: 236mm(DC-Default)/239mm(True X)

• Motor: XING2 2207 1750KV motors

• Prop: Nazgul F5 propellers

• Weight: 492±5g

• Takeoff Weight: Approx. 736±5g (With 1480mAh Battery)

• Dimensions (L×W×H): 230*207*54mm(DC-Default)/207*199*54mm(True X)

• Adjustable angle of the camera: 10-45°

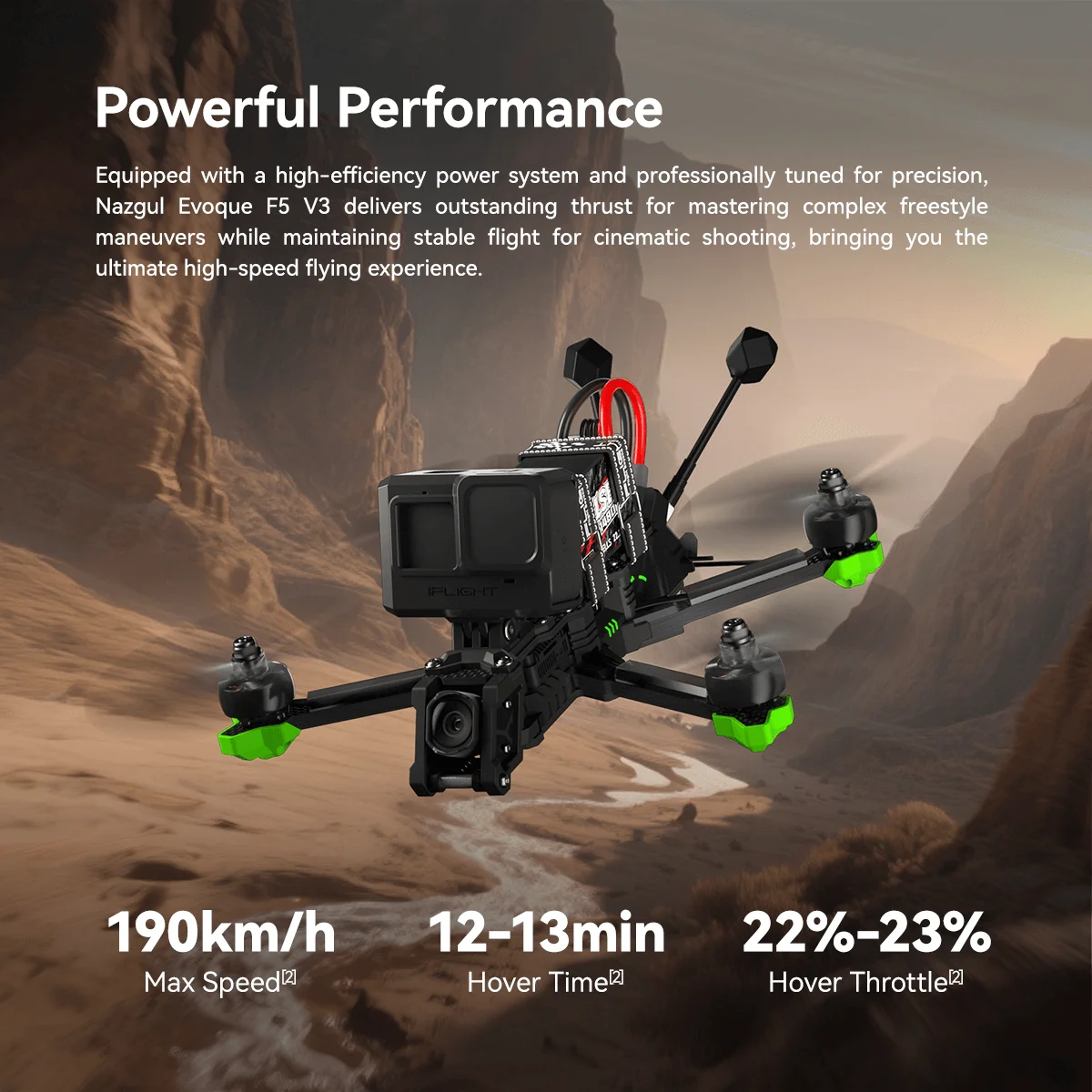

• Max Speed: 190 km/h

• Maximum Takeoff Altitude: 7000 m

• Max Hover Time: Approx. 12-13 min (No load With 6S 1480mAh)

• Operating Temperature Range: -10° to 40° C (14° to 104° F)

• Antennas: Dual Antennas

• GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission

• Product Name: DJI O4 Air Unit Pro

• Image Sensor: 1/1.3-inch

• Lens: FOV: 155°

• ISO: 100-25600

• Video Resolution: 1080p/100fps H.265

• Video Format: MP4, Max Video Bitrate: 130Mbps

• Color Mode: Normal Mode/D-Log M

• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

• Live View Quality: 1080P@100fps

• Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

• Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

• Communication Bandwidth: Max 60 MHz

• Antenna: Dual antennas

• Built-in Storage: 4GB

• Supported SD cards: microSD (up to 512GB)

• Operating Temperature: -10° to 40° C

• Weight: Air Unit (camera module included): Approx. 32 g

• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

• 1 x Nazgul Evoque F5 V3 6S O4 HD BNF

• 2 x Antennas

• 1 x Battery pad

• 2 x propeller(Pairs)

• 2 x Battery strap

Important

• All iFlight BNFs are tested before shipment to guarantee the highest quality.

• If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note

1. iFlight product is for fun purposes only and does not support autonomous flight.

2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.

Compatibility

• DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3

• DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2

• (Or another Radio to match the RX in the Drone)

• The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
