N29 series adopts all-aluminum fanless heat dissipation structure, no noise, can avoid the dust problem caused by fan. The chassis uses aluminum alloy galvanized steel plate, which is very suitable for industrial quasi-system of harsh industrial environment. The motherboard uses STX-N29 and integrates with Intel. ® J1900 quad-core processor 2.0GHz quad-core processor, with superior graphics processing and application computing capabilities, is a low-power, high-performance, compact HD playback system that supports 1*SO DDRIII slots. Supports 1600/1333MHz DDR3L/1.35V memory, supports up to 8GB, integrates Intel® HD Graphics core graphics card, provides high-performance display output, supports VGAHDMI display output, and integrates Realtek Gigabit LAN cards.
The N29 has a variety of display modes, and can be widely used in media playback, advertising, LCD large screen, communication control, medical instruments, industrial control, traffic control, information systems, financial equipment, automatic ticketing systems, and automobiles. , military and various terminal market segments.
How to select Configuration?
For example:
1. You click”NO RAM NO SSD” from Color and “J1900-NO WIFI ” from Bundle, we will ship the mini pc with processor J1900 2.0Ghz but NO WIFI , no ram no storage included and No O/S to you.
2. You click ” 4GB Ram 60GB SSD” from Color and “J1900-WIFI” from Bundle, we will ship the mini pc with processor j1900 2.0Ghz WIFI 4GB Ram 60GB SSD to you.
Features
1.Fanless cooling structure
2.Full aluminum alloy, compact structure, flexible installation
3.1xVGA, 1xHDMI, support synchronous/asynchronous display
Integrated Intel® Celeron J1900 quad core processor
4.1*Gigabit LAN port, support Wake On LAN

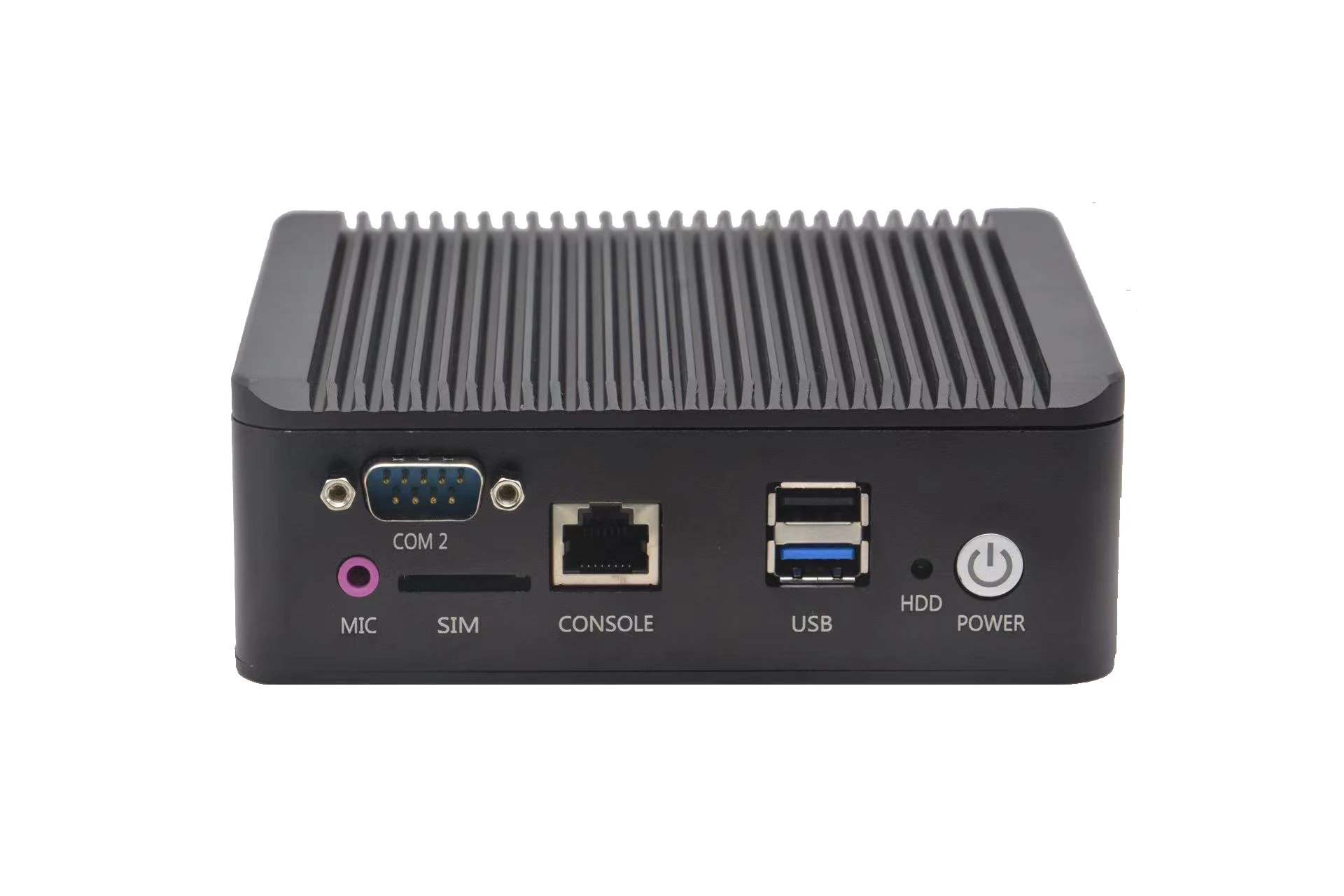

5.Rich IO: 1*DC Jack, 4*USB, 1*HDMI, 1*VGA, 1*Audio, 1*LAN,SIM,COM,RJ45 COM
Specification
Model No. | j1900-1L | |
Chassis | Color | black |
Dimension | 135mm*130mm*50mm(L*W*H) | |
Structure | Full aluminum fanless cooling structure | |
Material | Aluminu alloy | |
Installation | Desktop type or mounted installation | |
Motherboard | Model | N29-1L |
Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor | |
Chipset | Intel® Bay trail SOC chipset platform | |
Graphics | HD Graphics | Integrated Intel® HD Graphics |
Resolution | ||
Storage | Memory | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
SATA | N/A | |
CF | N/A | |
SSD | Support 1*MSATA SSD expansion | |
Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support MIC, |
Network | Ethernet | 1*RTL8111 Gigabit LAN, support Wake On LAN /PXE |
WiFi | Provide 1xMini-PCIE slot, support WiFi, 3G module | |
System Features | Serial Port | 1*CISCO standard serial port(COM1) +1*COM2 |
USB | 3* USB2.0, 1*USB3.0 | |
Power Switch | 1* Power switch | |
LED indicator | 1*HDD LED, 1*Power LED | |
LAN | 1*RJ45 Gigabit LAN port | |
Display | 1*VGA, 1*HDMI | |
Power | 1*12V DC IN Jack | |
Antenna | 2*WiFi/3G SMA antenna (Optional) | |
Audio | 1*Line-out, 1*MIC | |
Power | Power Adaptor | 12V/3A adaptor |
Reliability | Operating Temp. | 0℃~45℃ |
Storage Temp. | -20℃~70℃ | |
Relative Humidity | 5%-95%, no condensing | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
Operating System | Support Windows7, Windows8, Windows10, Linux OS | |
Package includes:
1* mini pc
1* VESA bracket
2* antenna（No configuration with WiFi, no antenna）
1* package box
1*12V 3A Power adapter and power plug.
