XM 1080P XVI Telecamera di sorveglianza AHD Sorveglianza CCTV Telecamere IR ad alta risoluzione PAL NTSC Videocamere esterne

Front-end camera + back-end storage = perfect combination (XVI)

1.What is XVI

   XVI also known as AXVI(Full name is Advanced XM Video Interface),it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols,but also its unique feature.

2.XVI having three major features

  Frist,Coaxial Control:One coaxial cable can transfer video and command signal at the same time.

(1) DVR can control XVI camera directly,it is convenient to debug the project in the earlier stage and maintain the project later.

(2) No control line,it can simplify the construction and save the cost.

(3) Multilingual advanced interface,resolve the lack of front-end device language

 Second,Coaxial Update:Transfer updates data by coaxial cable

(1) DVR can update XAC directly,it is exempt from teardowm of rework

(2) Version update,customize firmware easier,no need teardown of work,save you time and energy

Third,XM design image enhancement and noise reduction unit in XM310 XM320 XM330 and other Independent ISP chi,XVI,with XM DVR,can play remarkable features.Compared wih ordinary coaxial HD,XVI gets richer screen details,more natural reproduction of colors,more effective noise control

Fouth,Configuring import/export:Through the coaxial line import and export front-end camera personalized configuration,realize the camera batch configuration,so that customers can customize the front-end effect quickly

Features:

·  100% Brand New

    Material:Plastic

·  2.0MP 1080P high resolution XVI/AHD camera

·  0.01 LUX /color illumination, 0 LUX IR ON

·  24pcs IR LED, 5-20M IR distance

·  High Resolution

·  MUST work with XVI/AHD DVR which supports AHD-M

·  Built-in infrared LED, may work under zero degree of illumination environmen

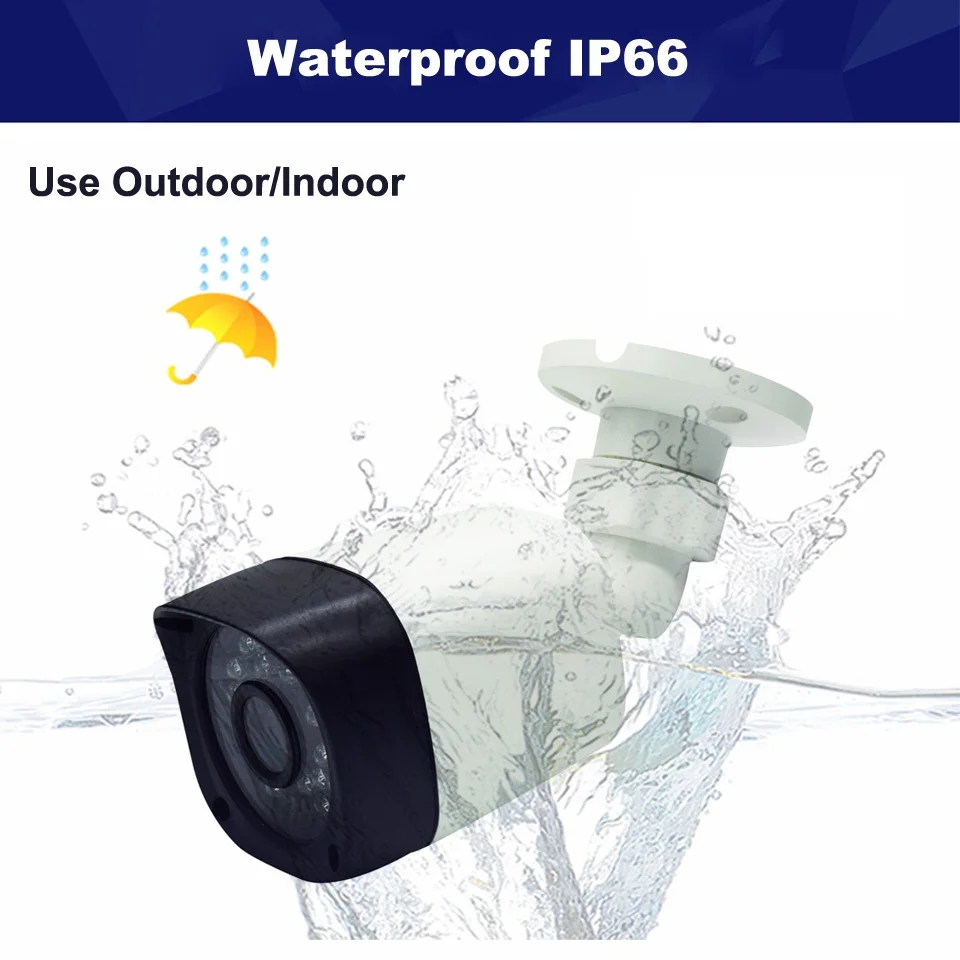

·  indoor and outdoor  for Day / Night

·  You can upgrade an old analog security system to 2.0MP HD cameras without changing cable routes

·  XVI AHD (Analog High Definition), a new video format

·  With IR-CUT filter(Unbiased color,True colour)

·  Fixed daytime color cast problems, enhancing the brightness at night

·  2.0Megapixel Color CMOS

·  Resolution : 1920(H)×1080(V)

   Video Format: Default PAL system,if you want NTSC system,please leave us message!

·  Min. illumination : 0Lux/F1.2(IR ON)

·  IR cut function ,Day @ Night surveillance

·  Non coding compression ,High efficiency, without delay real-time transmission

·  Up to 500 meters lossless transmission with 75-3 coax

   Camera Default PAL system,if you want NTSC,please tell us!
