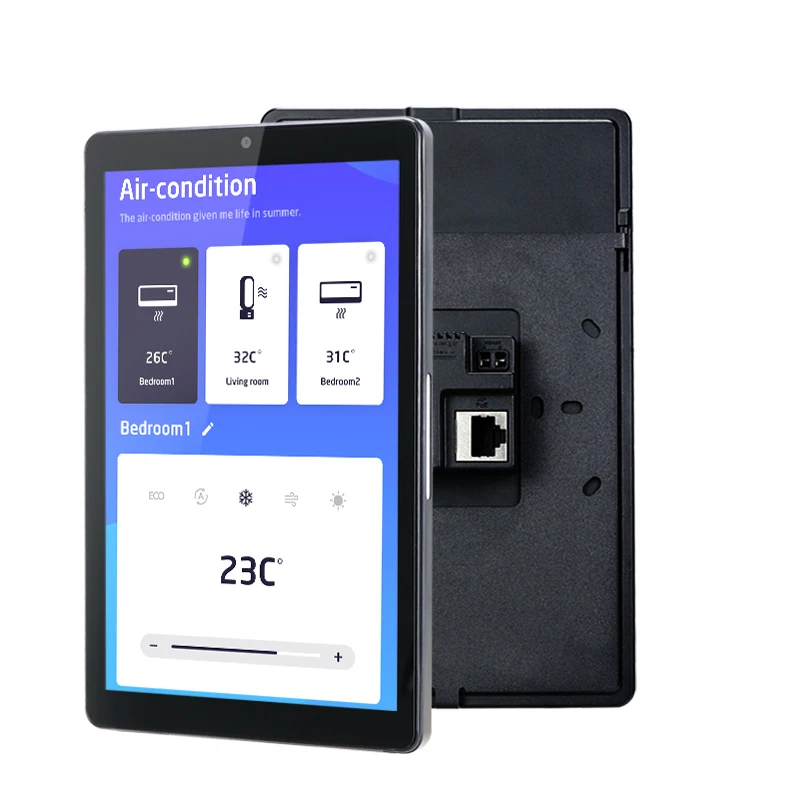

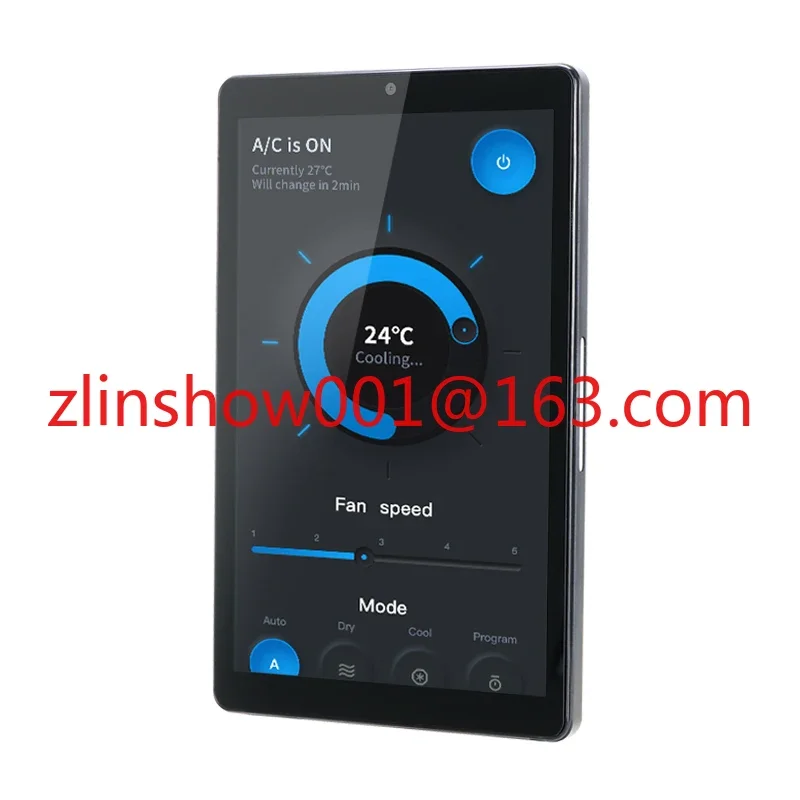

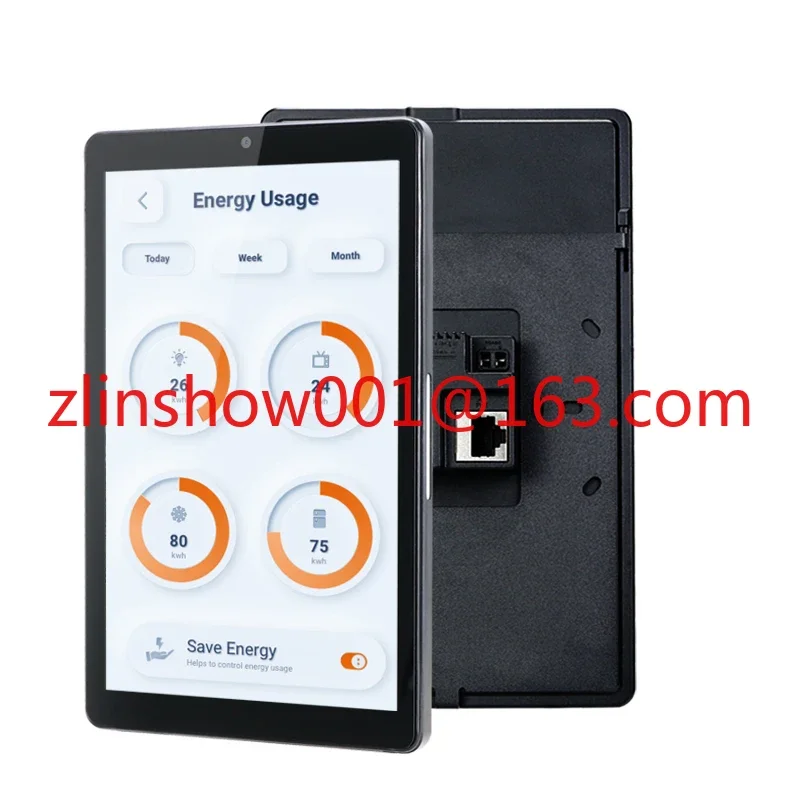

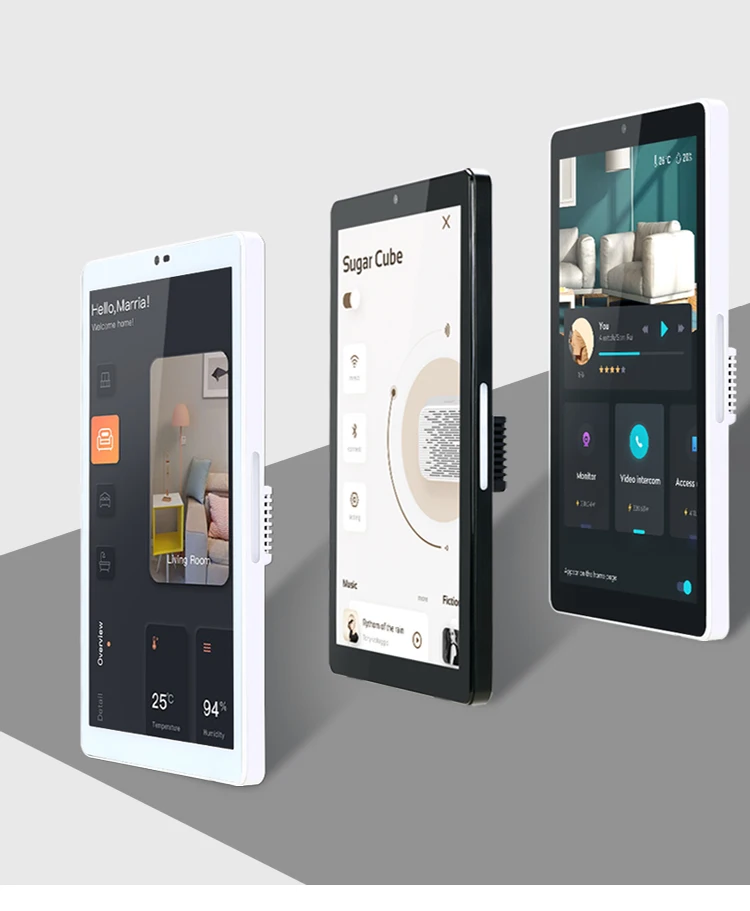

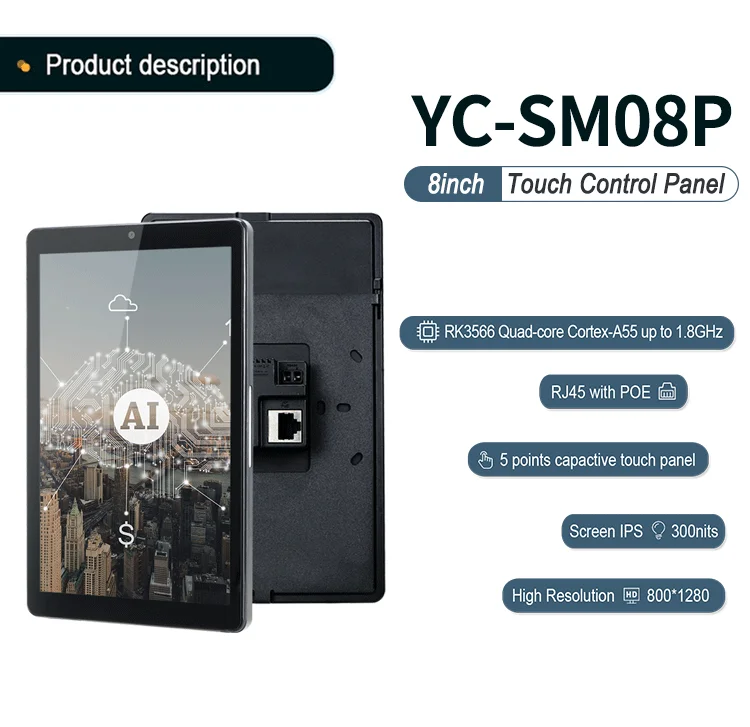

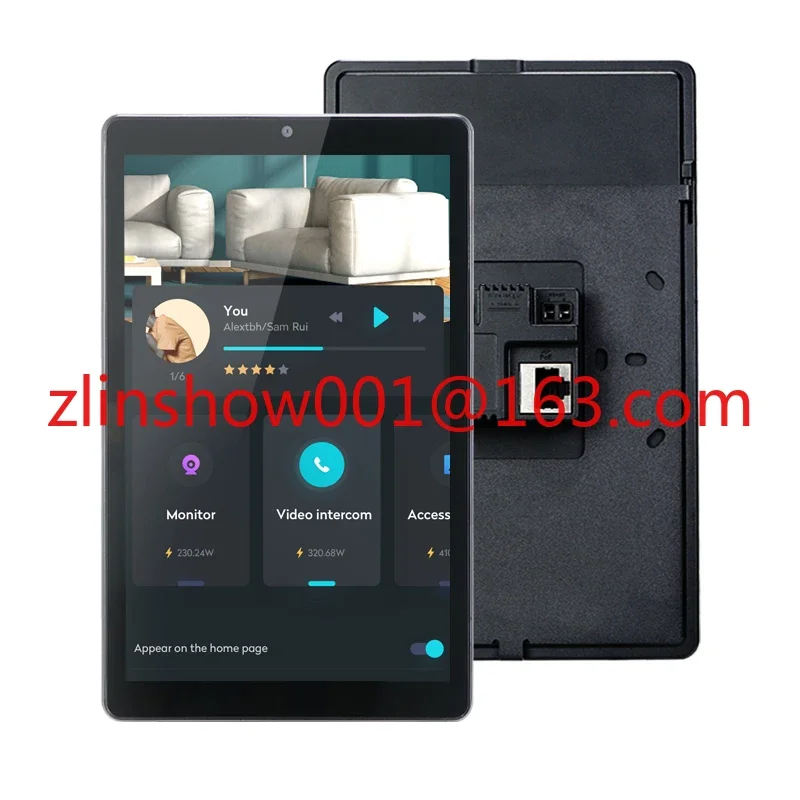

Embedded 8 inch control touch panel Android 11 wall mount android poe tablet
Features :
(1) 8″ IPS 1280*800 touch screen tablet pc;
(2) RK3566 Android 11 OS Quad core Smart home control panel
(3) 2GB RAM and 32GB nand flash
(4) Build in Wifi, Camera , Speakers , Micphone etc
(5) Type C USB,RJ45 , RS485 etc
System | Dimension | 200mm*124.59mm*37.7mm | |
CPU | RK3566 Quad-core Cortex-A55 up to 2.0GHz | ||
System | Android 11 | ||
RAM | 2G (4G optional) | ||
Rom | 32G | ||
Display | Display size | 8inch | |
Resolution | 800*1280 | ||

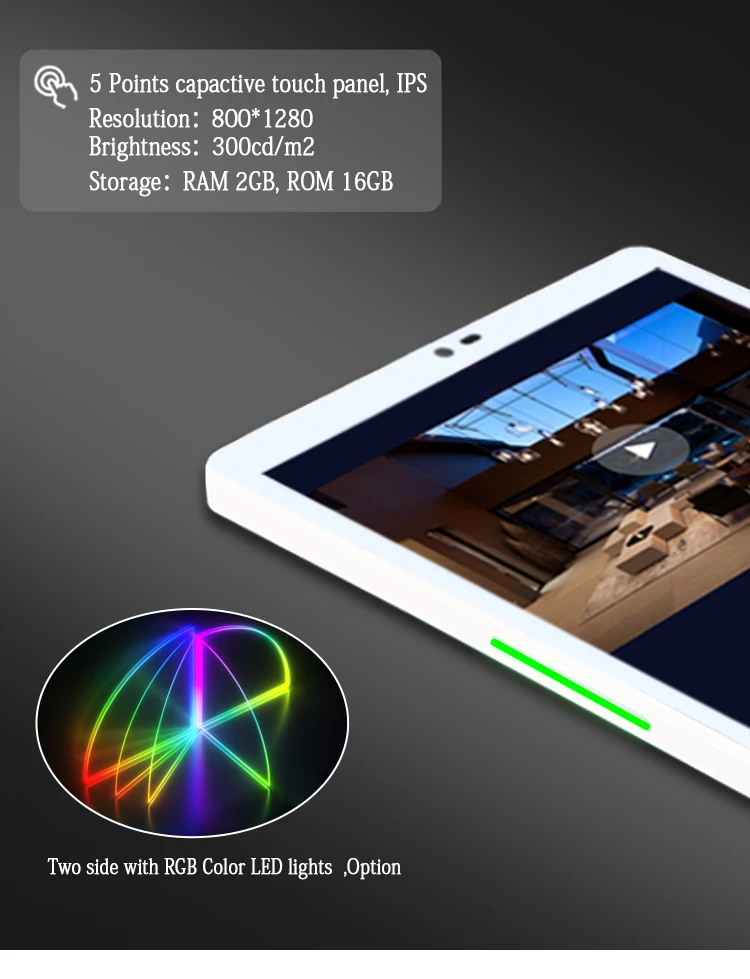

Touch Panel | 5 points capactive touch panel, IPS | ||
Brightness | 300nit | ||
Active area | 120.96(L)*68.04(W)mm | ||
Network | WIFI | 802.11b/g/n ( 5G wifi option) | |
Blue`tooth | BLE 5.2 | ||
Ethernet | 10M/100M | ||

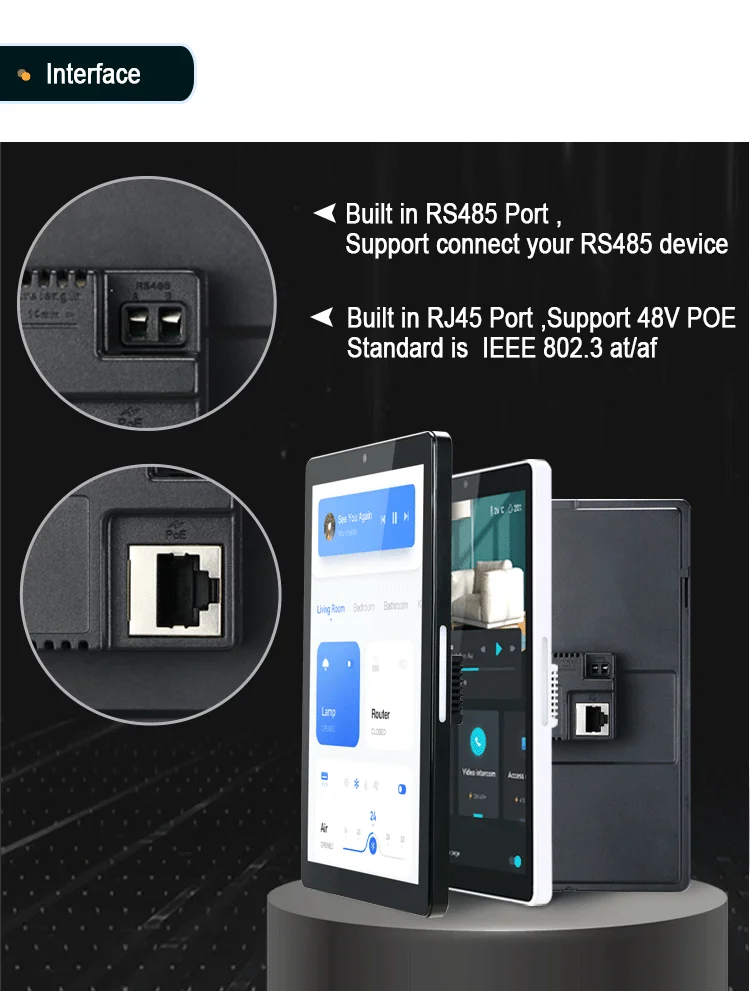

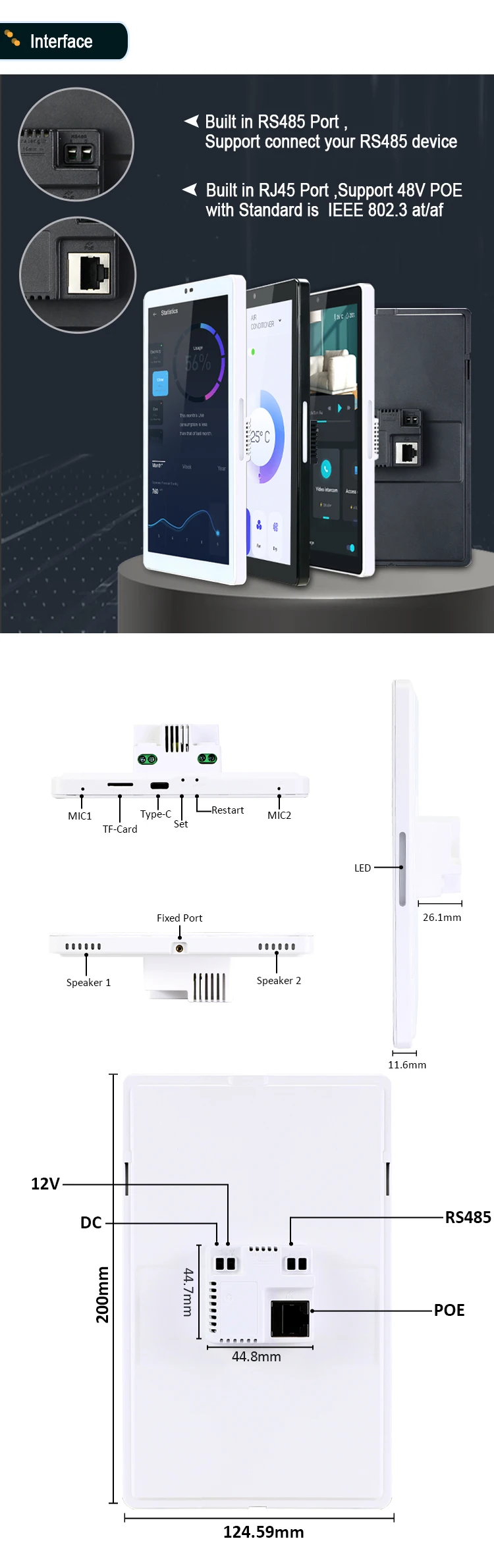

I/O ports | RJ45 | Ethernet interface input (RJ-45 cable support POE function) | |
TF Card | TF Card *1 | ||
USB Type C | Type C USB | ||
RS485 | RS485 A,B | ||
Set | Built- in | ||
Restart | Built- in | ||
Power suply | DC 12V /24V input | ||
Material | Plastic case + Glass touch panel | Plastic case cover | |
Features | Microphone | 2* Mic Built- in | |
Speaker | 1W | ||
Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |
Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
Entertainment | Video / Movie / Music / FM online | ||
Others | Camera | Front camera 2.0MP | |
Battery | NO | ||

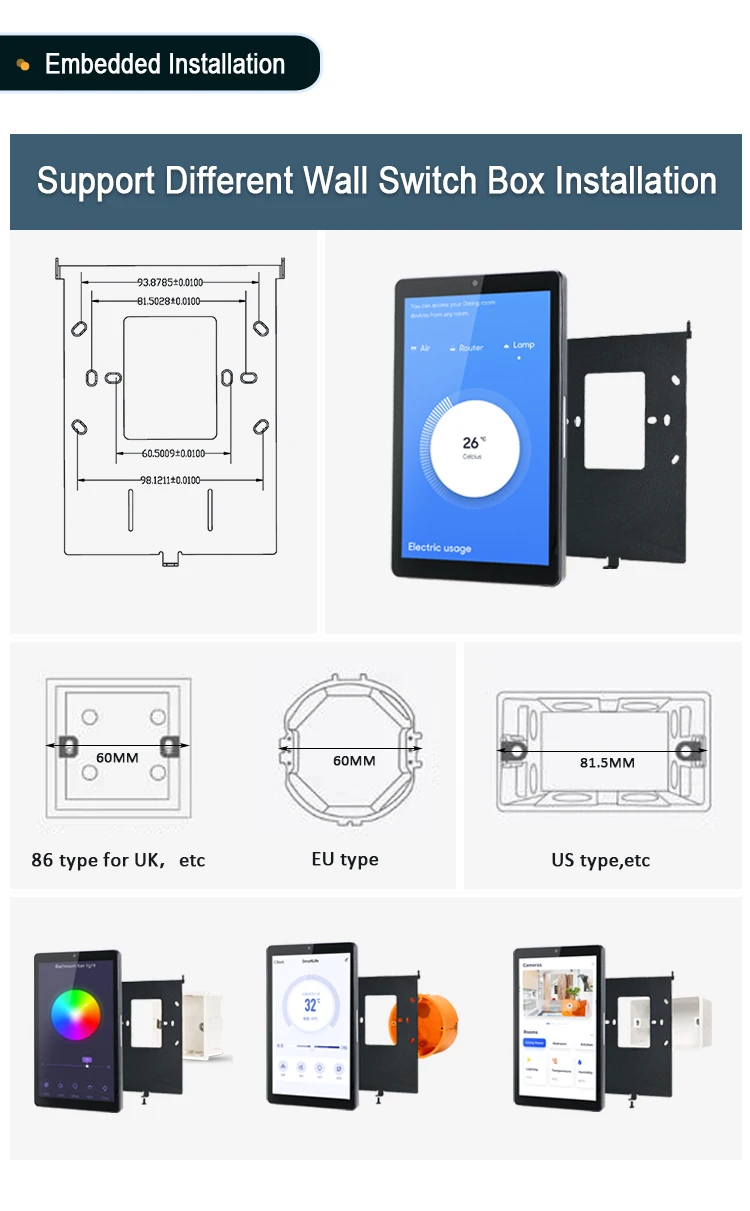

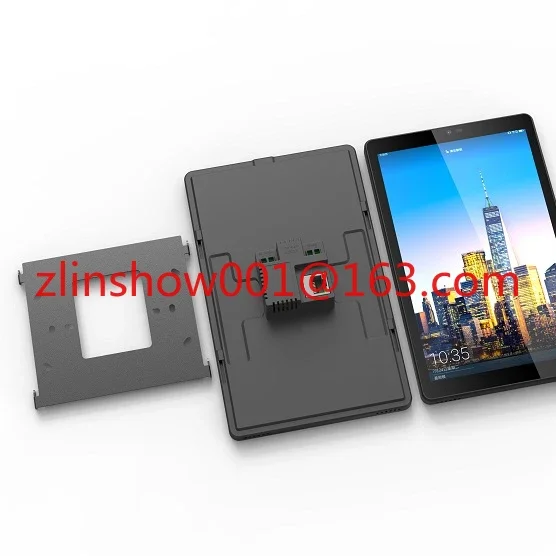

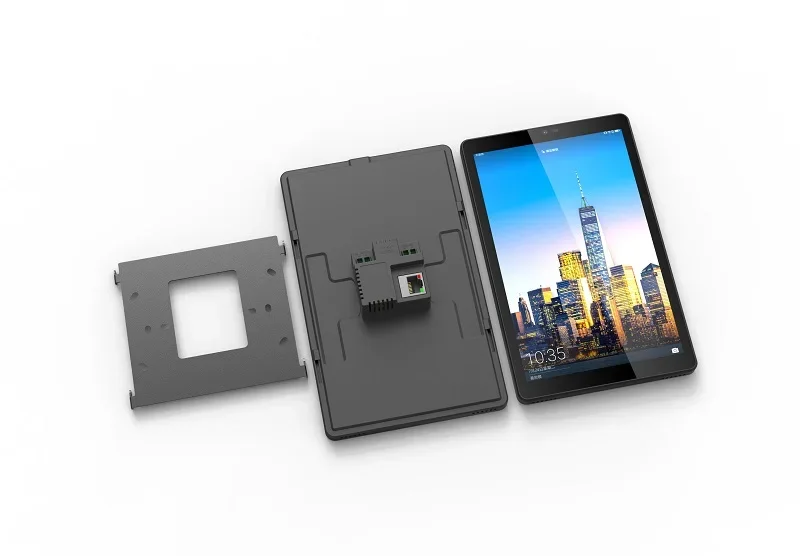

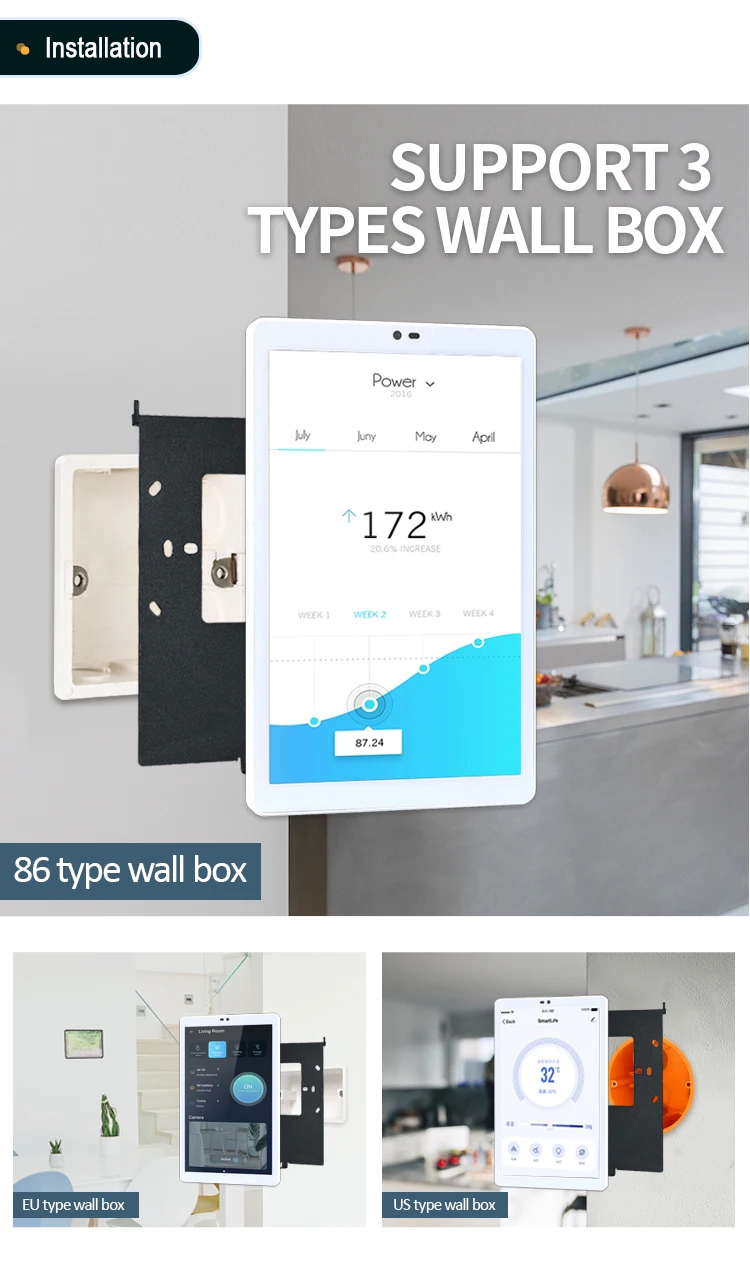

Mount | wall mounted / in wall & embedded | ||
Power consumption | 10W MAX | ||
Working temperature | .-5°~70° | ||
Language | Support multi-languages | ||
