13MP HDMI VGA 60FPS HD Camera Feature:
Pixel array:13MP
The sensor: gc2053
Overall dimension: 75*50*50mm

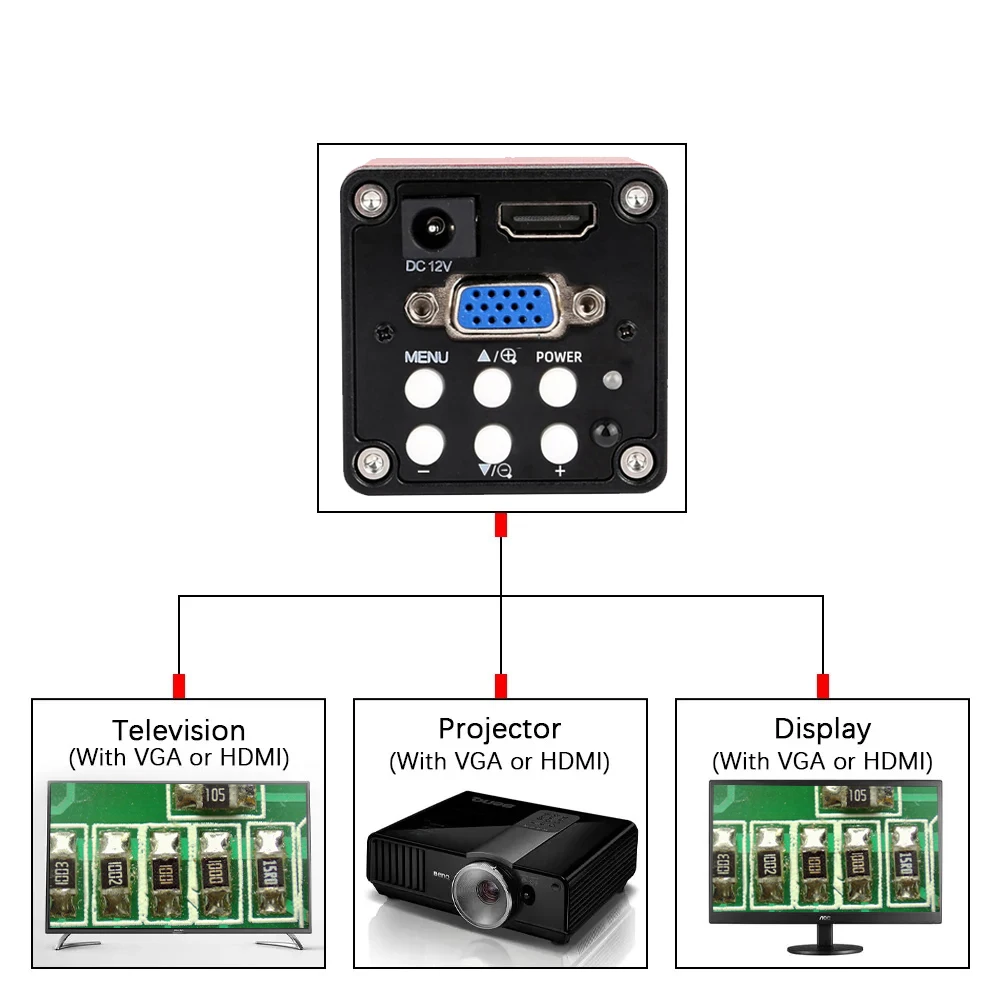

Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3″
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB

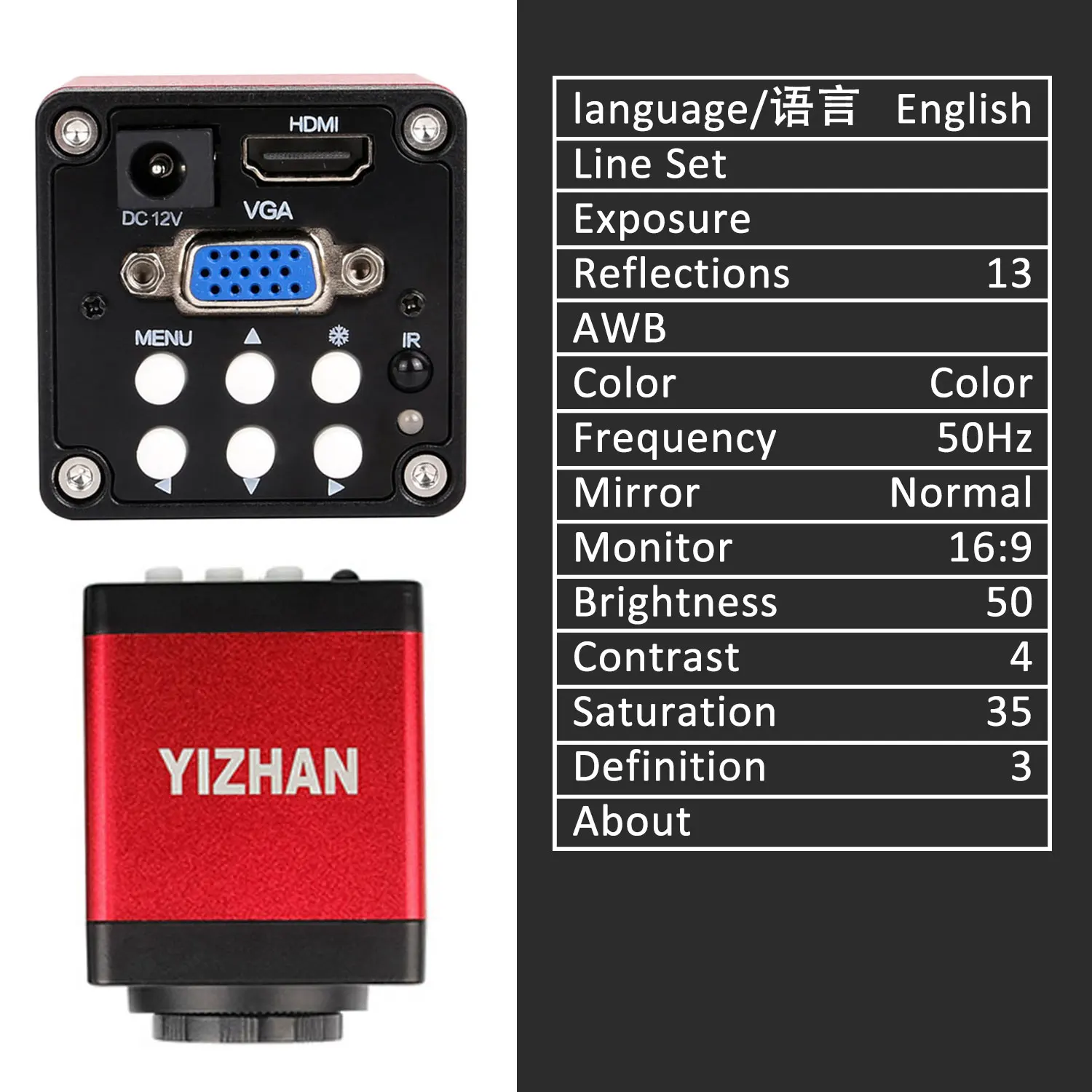

OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

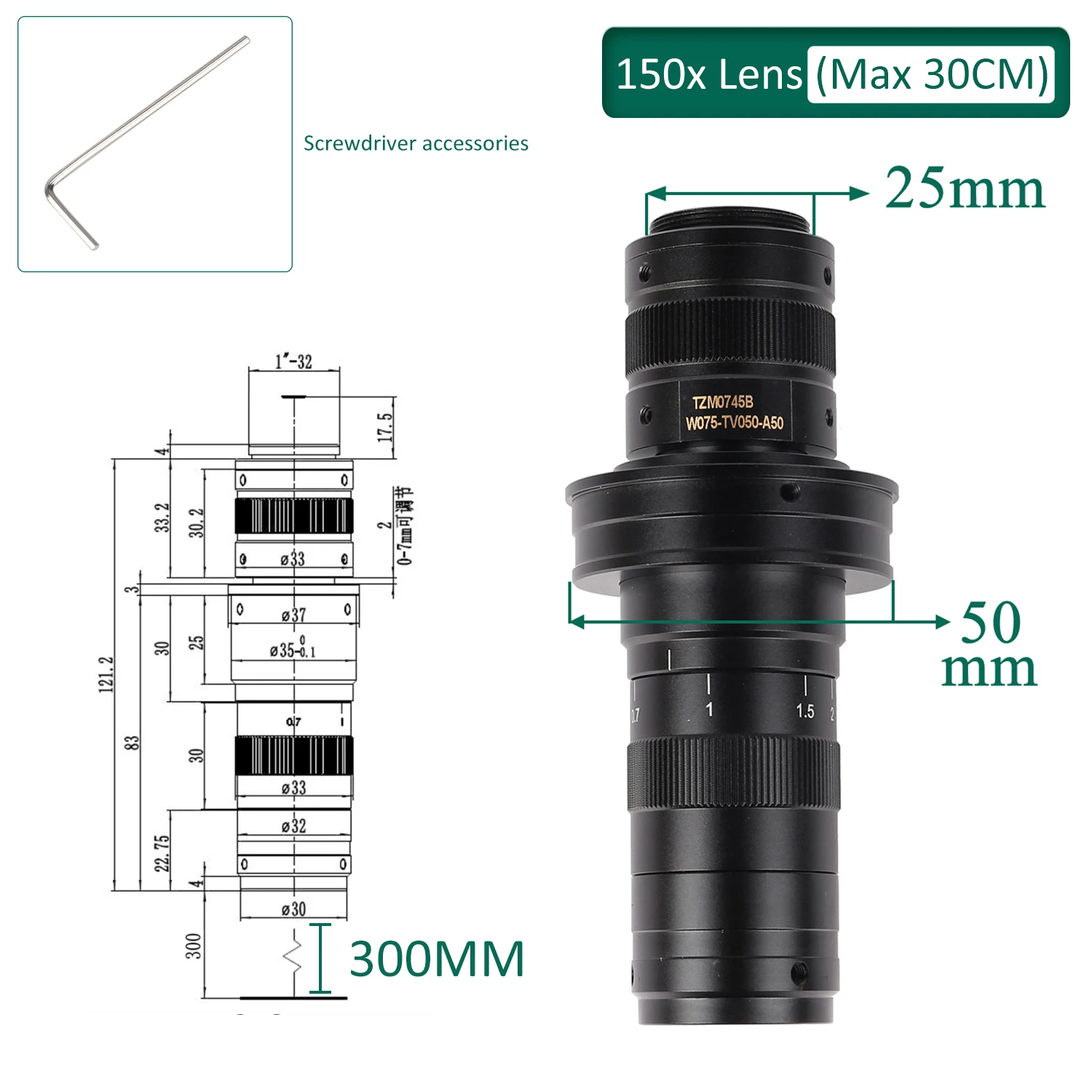

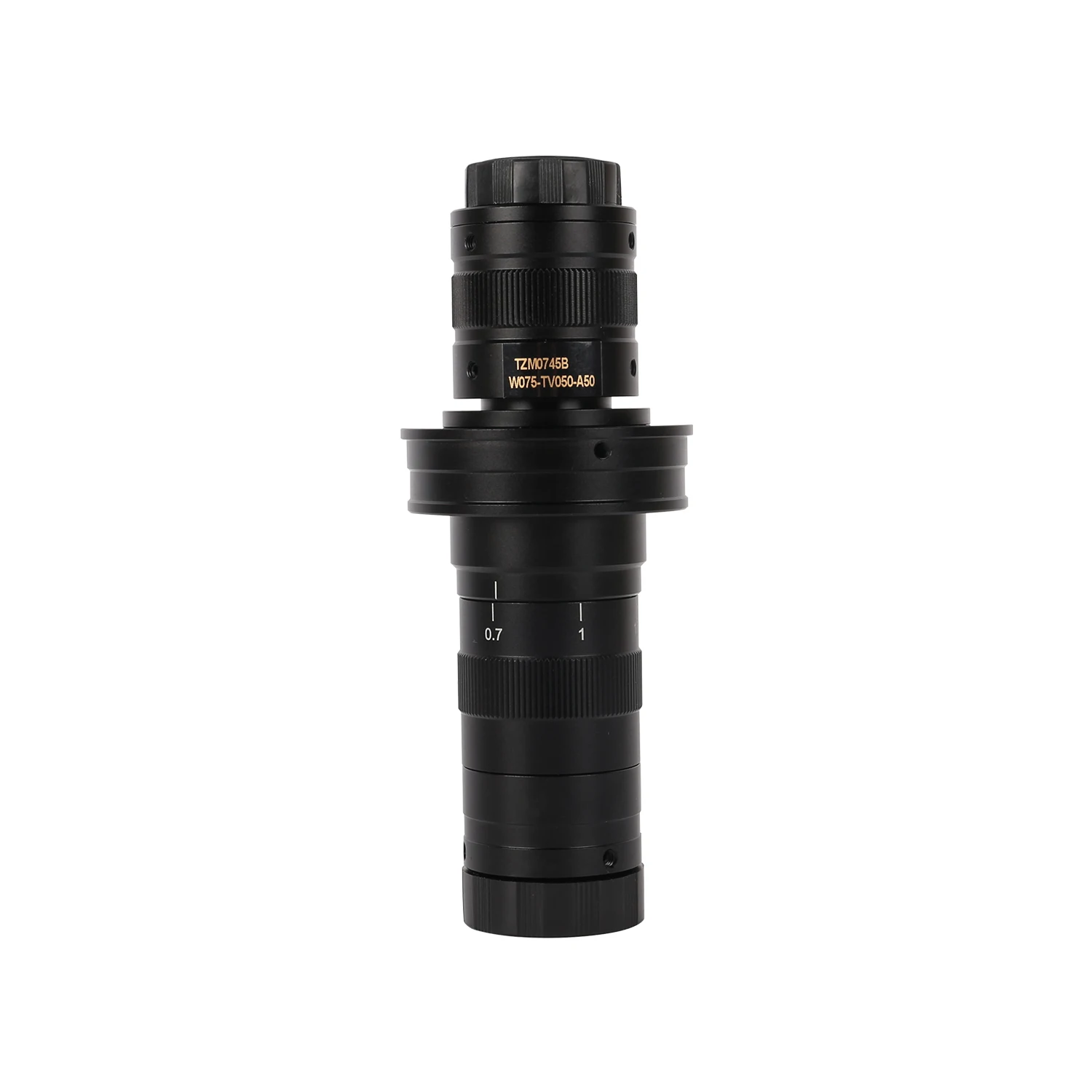

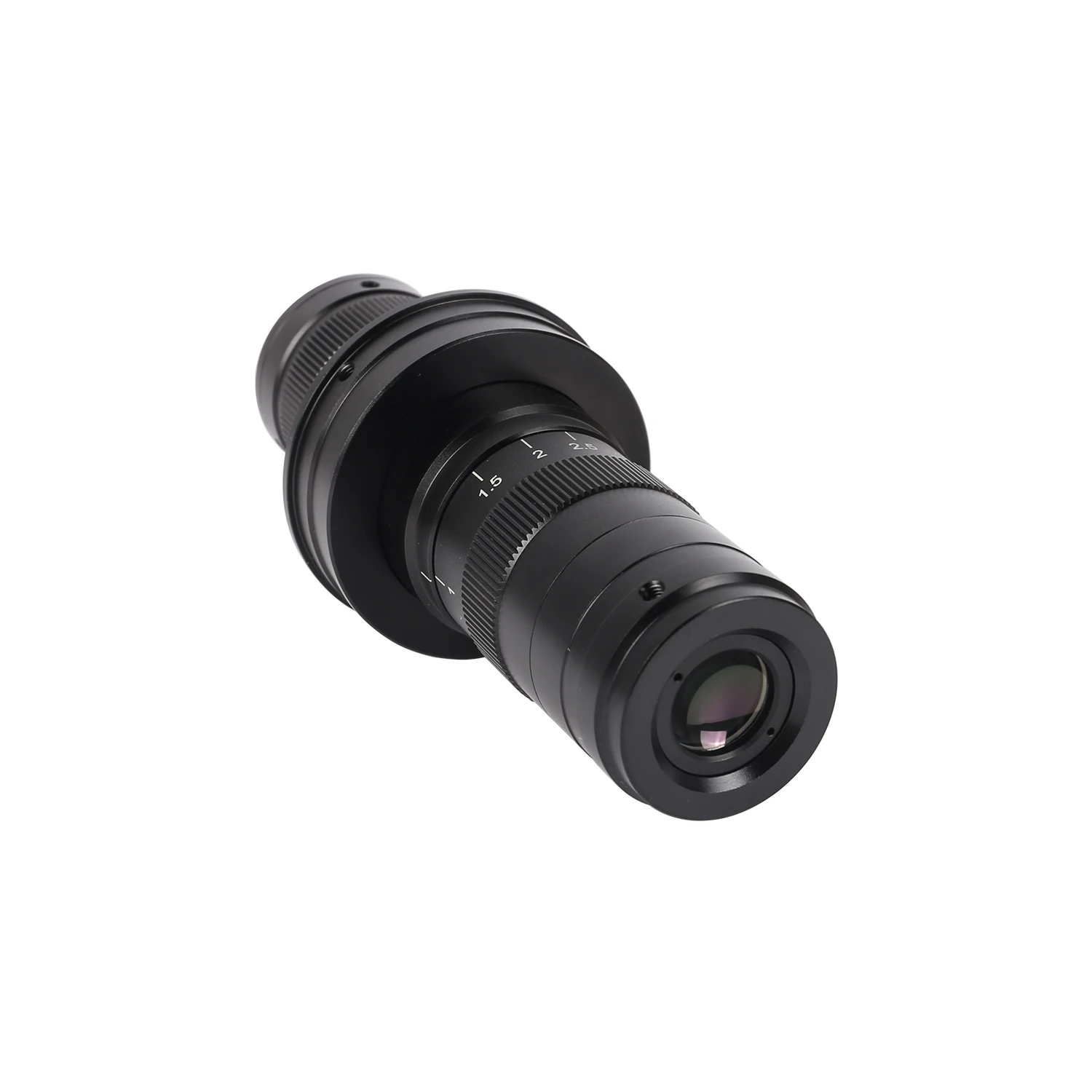

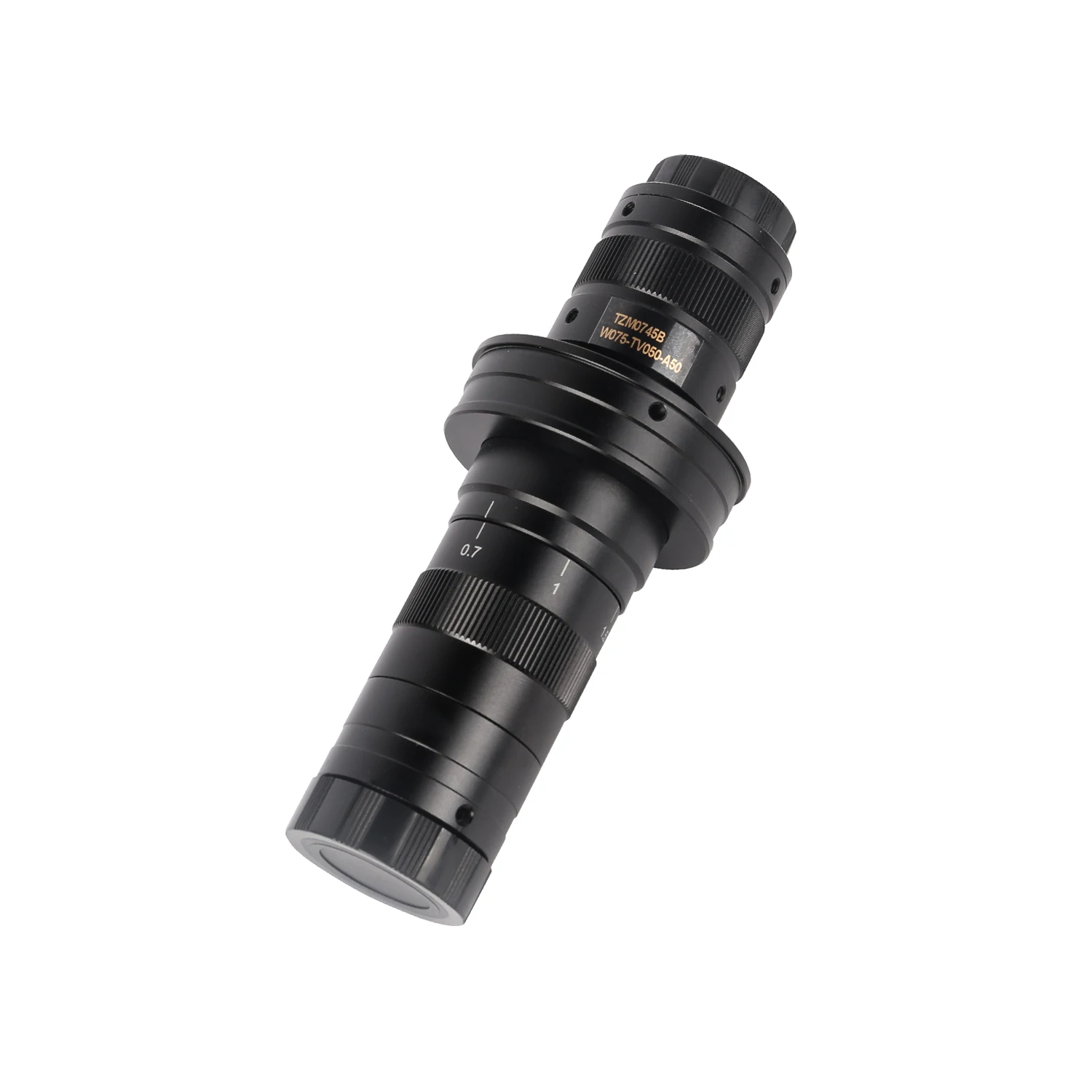

150x optical zoom lens
TZM0745B-W075-TV050-A50, representing the standard main magnification 0.7X-4.5X, objective magnification 0.75X and TV magnification 0.5X
This product adopts the design scheme of limited far-conjugate distance optical system. Five basic modules are: continuous magnifying body, auxiliary objective lens, TV lens, bracket adapter and optional module.
TZM0745B-W075-TV050-A50 Optical parameters
Bulk ratio: 0.7X-4.5X
System multiplier: 0.26X-1.69X
NA: 0.012-0.053
Working distance: 300mm
Diagonal visual field: 22.86-3.56
Matching camera size: 1/3in
Camera + 150x Lens
1*13MP Camera（HDMI VGA ）Body
1*100V-240V power supply (EU / UK / AU Adapter for free）
1*Camera remote
1*HDMI cables
1*Paper manual
1*Lens
1*Screwdriver

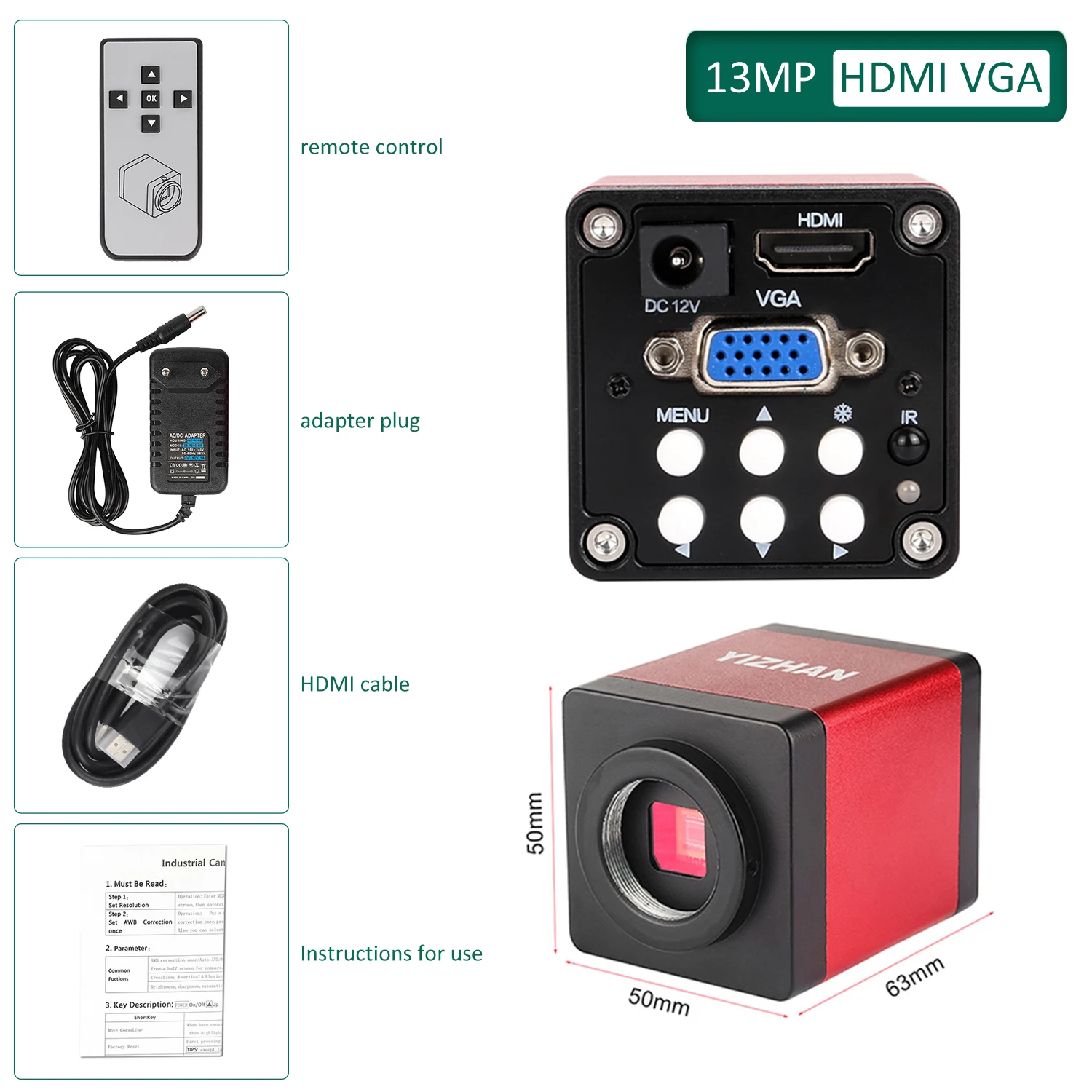

HDMI VGA Camera：
1 x 13MP Camera（HDMI VGA ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x HDMI cables
1 x Paper manual
150x Lens：
1*Lens
1*Screwdriver
Note
Please do not wipe the camera lens with your hands, it will cause scratches on the lens, which is not conducive to the use of the camera and affects the sharpness of the camera.
