Specification
|

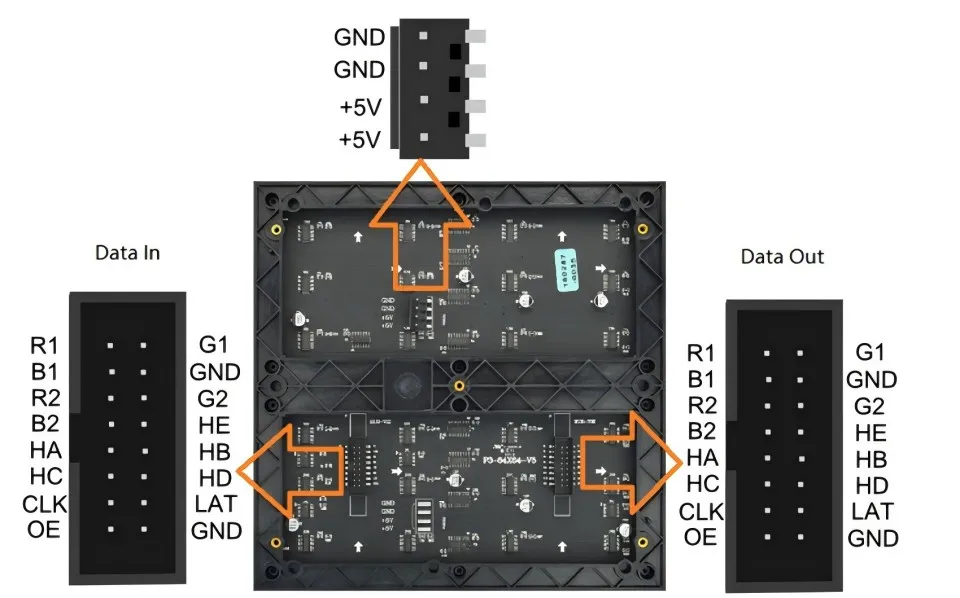

Module Back View |
||
|
Resolution |
64(H)×64(W) |
|
|
Pitch |
3mm |
|
|
Density |
111.111 pixels/m² |
|
|
LED Arrangement |
SMD2121 |
|
|
Driver Mode |
32scan(constant current drive) |
|
|
Size |
192mm×192mm |
|
|
Mask |
No mask |
|
|
Electricity Parameter |
||
|
Optical Ratings |
||
|
Brightness |
≥600cd/m² |
|
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
|
View Distance |
2m-200m |
|
|
Gray Scale |
8bits input, correction with 16bits |
|
|
Display Color |
16.7M |
|
|
Brightness Adjustment |
100 levels |
|
|
Power Supply |
||
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
|
Maxim Power Consumption |
800 w/m² |
|
|
Average Power Consumption |
300 w/m² |
|
|
Control System |
||
|
Correction Scale Level |
16bits |
|
|
Frame Update Frequency |
60Hz |
|
|
Screen Refresh Frequency |
1920Hz |
|
|
Gamma Correction |
-5.0—5.0 |
|
|
Support Input |
Composite Video, S-Video, DVI, HDMI. |
|
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
|
Support VGA Mode |
1024×768,1280×1024,1600×1200,1920×1080 |
|
|
Color Temperature |
5000-9300 adjustable |
|
|
Brightness Correction |
dot by dot, module by module |
|
|
Reliability |
||
|
Operating Temp. |
-20℃ – +60℃ Celsius degree |
|
|
Operating Humidity |
10-95% RH |
|
|
Operating Life |
100,000 hours |
|
|
MTBF |
5000 hours |
|
|
Continuous Working Time |
≥72hours |
|
|
Protection Level |
IP20 |
|
|
Out of Control Pixel Rate |
0.01% |
|
